Since the Polish (not Russian) version was posted, I should post the CG version. Was planning on doing this tomorrow...

CircuitGizmos RetroMax















Micromites and Maximites! - Beginning Maximite

CircuitGizmos

Guru

Joined: 08/09/2011
Location: United States
Posts: 1421
Posted: 06:24pm 10 Oct 2020
Copy link to clipboard
Print this post

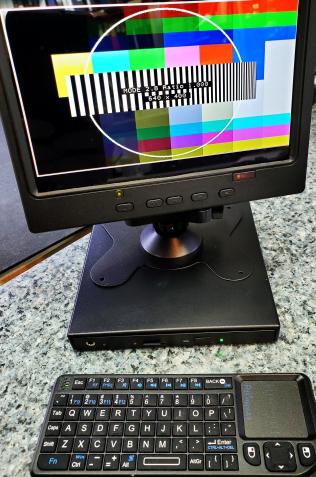

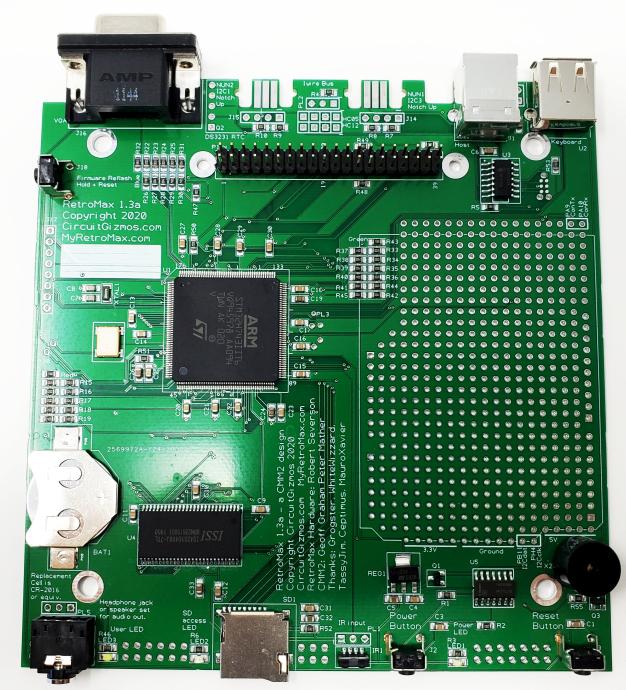

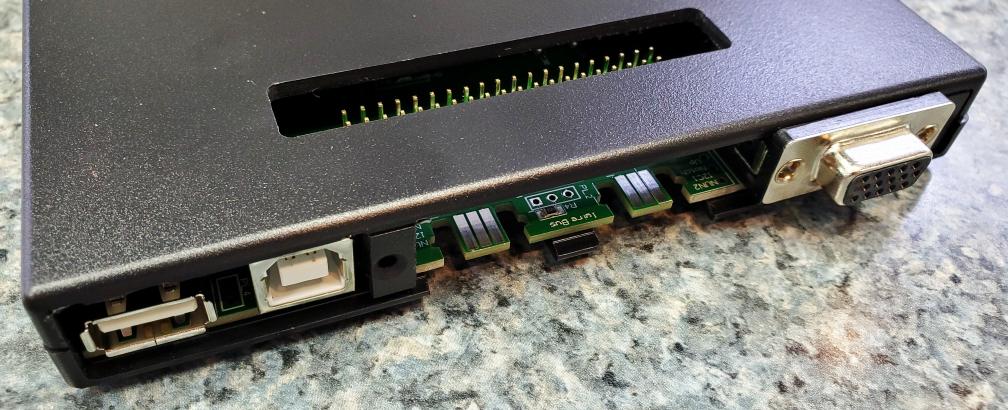

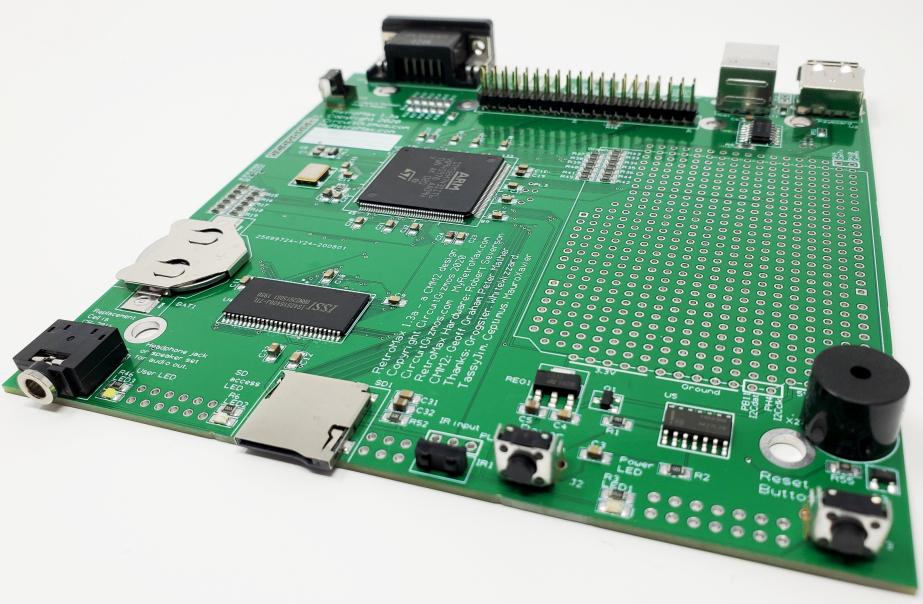

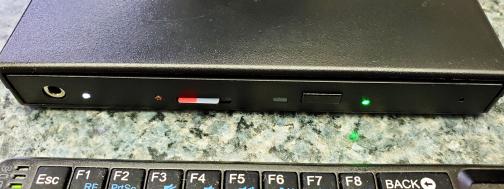

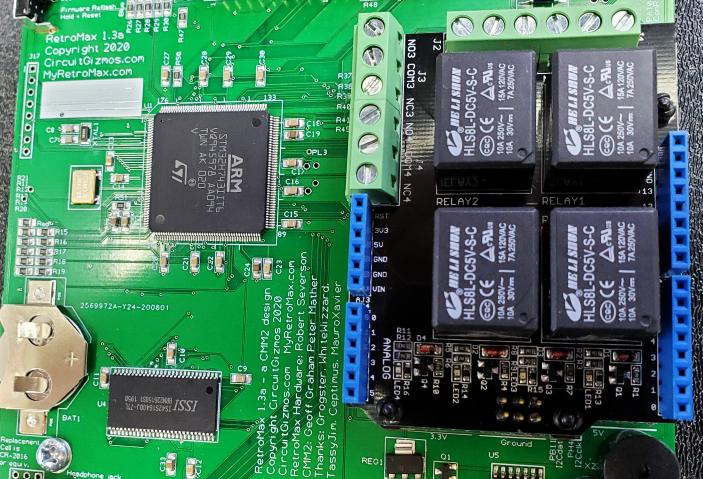

Some features of the RetroMax:

- Compatibility with the Color Maximite 2 (different enclosure, board layout, but functionally the same)

The RetroMax is designed to be simple and fun. This CircuitGizmos RetroMax is functionally the same as the Color Maximite 2 version from magazine articles and sold previously here, except there are some changes and additions:

- Different board shape/size appropriate for the optional enclosure

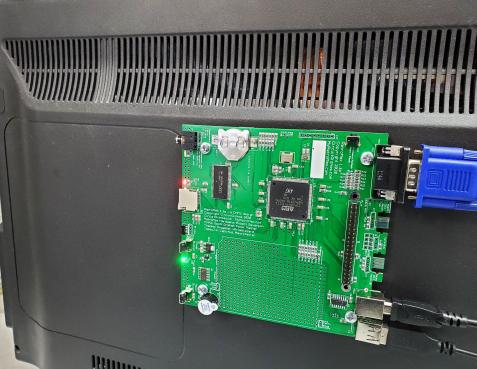

- Board mounting holes for VESA 100mm back-of-monitor mounting
- Power button that toggles on/off
- Reset available from front panel
- IR receiver behind translucent window (on case)
- Micro SD card holder
- Firmware reflash button available on side
- Additional "User LED" in white
- Piezo "User Buzzer"
- Two Nunchuk connections for two game players
- PCB connection for optional real-time clock

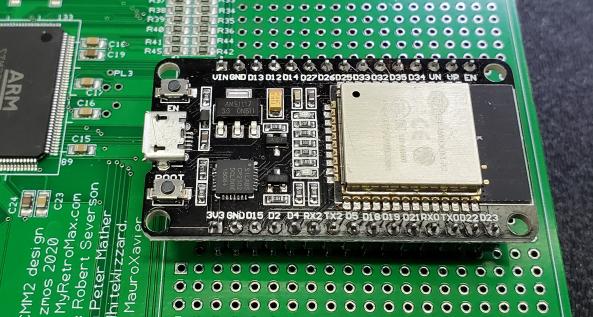

- PCB sea-of-holes for user hardware, conducive to Arduino shields

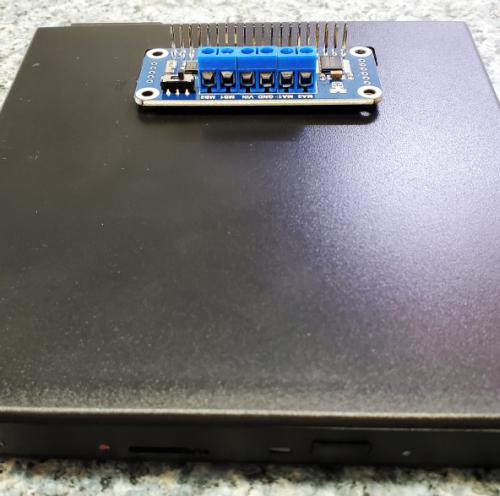

- Mounting holes and orientation for Raspberry Pi HATS

Accessories included with the case purchase are a 20 inch power/console USB cable, reset key, and high impedance ear buds.
Micromites and Maximites! - Beginning Maximite

CircuitGizmos

Guru

Joined: 08/09/2011
Location: United States
Posts: 1421
Posted: 07:00pm 10 Oct 2020
Copy link to clipboard
Print this post



Micromites and Maximites! - Beginning Maximite

vegipete

Guru

Joined: 29/01/2013
Location: Canada
Posts: 1082
Posted: 07:07pm 10 Oct 2020
Copy link to clipboard
Print this post

Looks nice.
Obviously the MCU and RAM on the same side works fine. Good to know.

Is the VGA socket through hole?
Visit Vegipete's *Mite Library for cool programs.

CircuitGizmos

Guru

Joined: 08/09/2011
Location: United States
Posts: 1421
Posted: 07:16pm 10 Oct 2020
Copy link to clipboard
Print this post

Thanks!

Yes, the VGA socket is a through-hole part. I've has some serious issues with SMT VGA connectors.
Micromites and Maximites! - Beginning Maximite

William Leue
Guru

Joined: 03/07/2020
Location: United States
Posts: 382
Posted: 07:46pm 10 Oct 2020
Copy link to clipboard
Print this post

Interesting! I am waiting to see whether the designer follows through on the idea of adding a mouse interface. If so, I am sold!

-Bill

Grogster

Admin Group

Joined: 31/12/2012
Location: New Zealand
Posts: 9059
Posted: 12:21am 11 Oct 2020
Copy link to clipboard
Print this post

Love the VESA mount holes idea on your board.
Perfect for turning an old VGA LCD monitor into a dedicated CMM2 system, minimizing the cables and clutter.  The rest of the board also looks very nice indeed.
I'm flattered by the silkscreen thank.
Smoke makes things work. When the smoke gets out, it stops!
