I have a customer that refuses to use a controller on his solar system cannot convince him at all.
he has asked me to provide him with some blocking diodes to stop his batteries from draining back at night
How would I go about building such a beast
Mick.

Every day the sun shines
& gravity sucks= free energy.

Gizmo

Admin Group

Joined: 05/06/2004
Location: Australia
Posts: 5016

Posted: 09:03pm 25 Sep 2007

Copy link to clipboard

Print this post

Hi Mick

A blocking diode is just another name for a single rectifier. It connects in series from the solar cells and his battery bank.

You need to find out what the rating of his panel is, ie how many watts, and the voltage of his batt bank. Convert the watts to amps ( watts / volts ), and use the volts and amps rating to choose a rectifier. Double the values to play it save, ie if he runs a 24volt battery and his panel can supply 10 amps, then use a rectifier that can safely pass 48 volts at 20 amps or better.

GlennEdited by Gizmo 2007-09-27

The best time to plant a tree was twenty years ago, the second best time is right now.
JAQ

Gill

Senior Member

Joined: 11/11/2006
Location: Australia
Posts: 669

Posted: 02:24am 26 Sep 2007

Copy link to clipboard

Print this post

Hello Mick,

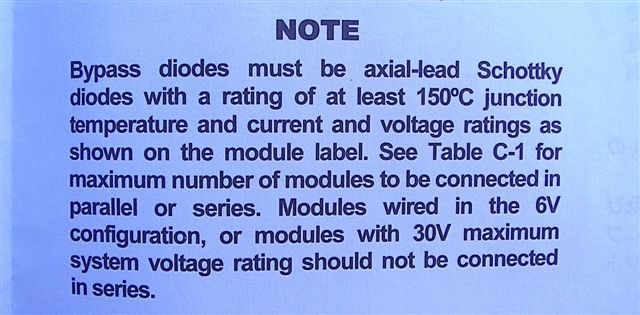

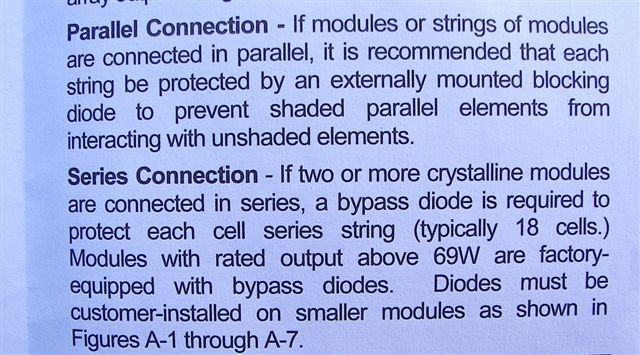

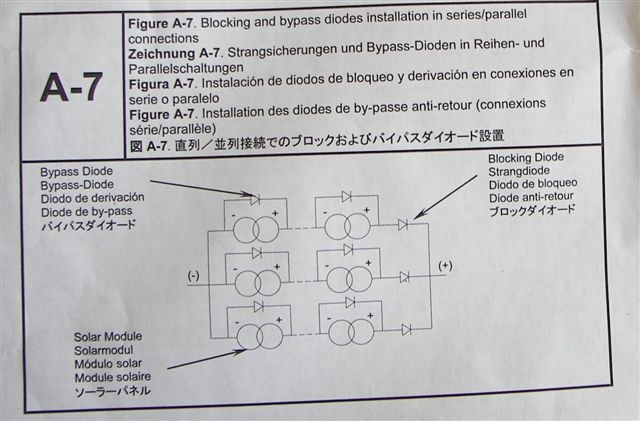

Here's some info extracted from the instruction sheet from BP for their "Crystalline Silicon Photovoltaic Modules" (Solar Panel range[polycrystal])

For my new 80w panels they reckon they are already fitted with by-pass diodes, but for the life of me I can't see where they are located.

Sorry the Table C-1 they refer to does not exist on the Instruction Sheet.

was working fine... til the smoke got out.
Cheers Gill _Cairns, FNQ
