Forum Index : Microcontroller and PC projects : simplest 32MX150 ICSP

     Page 1 of 28
Author Message
robert.rozee
Guru

Joined: 31/12/2012
Location: New Zealand
Posts: 1998
Posted: 06:43pm 19 Apr 2014
Copy link to clipboard
Print this post

it occurs to me that programming the interpreter into a 32MX150 (aka micromite) is relatively straight forward from the electrical perspective. the three pins on the device that need to be manipulated are (1) reset, always an output from the programmer, (2) clock (PGC) that again is always an output from the programmer, and (3) data (PGD) that needs to be bidirectional. none of these lines need to have more than a swing between 0 and 3v3.

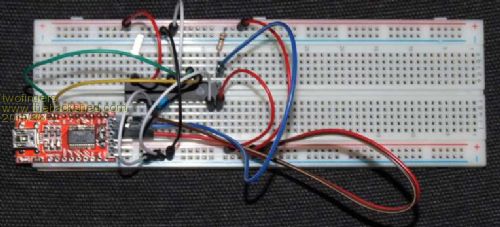

pins that meet these requirements are available on the average USB to serial bridge, in the form of the various flow control pins. it therefore seems that, given that the rate of data flow is controlled entirely by the host, all that is needed beyond said bridge is a small windows (or mac or linux) application that can take a .HEX file and turn it into the required manipulation of the above lines.

why hasn't anyone done this yet? better still, someone might care to take up the challenge. a solution quite specific to the 32MX150.

yes, i am aware that general-purpose pic programmers are available at a price, but i am asking this question specifically in relation to not using one of these.


rob :-)
Edited by robert.rozee 2014-04-21

Alan68
Newbie

Joined: 28/01/2013
Location: Australia
Posts: 17
Posted: 08:44pm 19 Apr 2014
Copy link to clipboard
Print this post

Hi Robert,
I was looking in to using a Maximite as a programmer and putting the HEX file on a SD Card, There is a lot of information on how the PICKIT3 works on the internet.

atmega8
Guru

Joined: 19/11/2013
Location: Germany
Posts: 537
Posted: 08:51pm 19 Apr 2014
Copy link to clipboard
Print this post

http://picpgm.picprojects.net/hardware.html
Link


Here you find several ways of Programming a PIC, Even with an FTDI Chip.

Don't know why 32MX150 IS not supported.

Is the programming algorythm different?

Where is the difference?

With some time and Google, you should be able to figure out.

A simple an cheap Programmer with a pice of software should help uMite to spread over The world.

Good idea!Edited by atmega8 2014-04-21

MOBI
Guru

Joined: 02/12/2012
Location: Australia
Posts: 819
Posted: 10:25pm 19 Apr 2014
Copy link to clipboard
Print this post

Some months ago I did a bit of research into programming pic32 chips with a home grown programmer. It seems (Geoff can probably put it better) that because the core processor is MIPS and not pic it needs a specific programming executive that is not the same as an 'ordinary" pic.

What you might be able to do is dump in a uMite programme written in MMbasic by creating a simple 20x4 LCD based terminal programme. I have been contemplating designing such a system.
David M.

atmega8
Guru

Joined: 19/11/2013
Location: Germany
Posts: 537
Posted: 04:48am 20 Apr 2014
Copy link to clipboard
Print this post

  MOBI said
What you might be able to do is dump in a uMite programme written in MMbasic by creating a simple 20x4 LCD based terminal programme. I have been contemplating designing such a system.


Mobi, i do not understand what this will be good for ??

What do you mean with this?

Dietmar

atmega8
Guru

Joined: 19/11/2013
Location: Germany
Posts: 537
Posted: 04:54am 20 Apr 2014
Copy link to clipboard
Print this post

One must understand this an implement it:

http://ww1.microchip.com/downloads/en/devicedoc/61145g.pdf


;-)

Not me, i'am not retired ;-)

MOBI
Guru

Joined: 02/12/2012
Location: Australia
Posts: 819
Posted: 12:55pm 20 Apr 2014
Copy link to clipboard
Print this post

Thanks Atmega8, I'll have a closer read.


================

I had a read through the programming specs and realised my memory lapse. When I first started playing with PICs, I wrote my own assembler/programmer for 8 bit pics using VB6 via serial cable and Silicon Chip portable programmer.

When I was introduced to PIC32, my problem was not the programming but the writing of the assembly language programme as the PIC32 core was different to a "standard" PIC, hence lashing out and buying a PICKit 3 and using MPLABX.

I could probably modify my own programmer to do PIC32 but..do I really need to now.Edited by MOBI 2014-04-22
David M.

atmega8
Guru

Joined: 19/11/2013
Location: Germany
Posts: 537
Posted: 07:58am 21 Apr 2014
Copy link to clipboard
Print this post

The idea is really good, but the effort , i think, very high...

BobD

Guru

Joined: 07/12/2011
Location: Australia
Posts: 935
Posted: 10:12am 21 Apr 2014
Copy link to clipboard
Print this post

  atmega8 said   The idea is really good, but the effort , i think, very high...

Even higher, the referred document does not even apply to the PIC32MX ones and twos. That document is vintage 2010. There may be a later one around but I did not look as it was easier to buy a Pickit3.

MOBI
Guru

Joined: 02/12/2012
Location: Australia
Posts: 819
Posted: 12:38pm 21 Apr 2014
Copy link to clipboard
Print this post

I spent all evening (yet again) trying to decipher the microchip description of external too programming. At least I can get the chip into programming mode - that is the easy part.

The rest of the description is the usual Microchip gobbled gook.

I have been through the procedure a number of times with Microchip flow charts and timing diagrams and vague descriptions and in the end, I won. This one is a real challenge though. The timing diagrams are mostly incomplete have "holes" in the middle because they won't fit on a page and are left up to the reader to interpret.

I don't think it matters that the document doesn't refer specifically to our PIC32MX versions as the programming algorithms and command values are likely to be the same. I think the main difference will be with the size and location of flash memory, boot segments and config words. No big deal as they are only parameters to the programmer and easily changed. Once it is nutted out, the mechanics of it all it is easy to apply to updated chips.

I realise that nutting this out will be a lot of effort (and is it really worth it), but, it is a challenge and I think it is quite do-able. Does anyone want to go along for the ride? I'm willing to as I've been down this track before with the 8 bit units starting with the F84A, F628A, F88 and F819 as well as Atmel 328 chips.
David M.

BobD

Guru

Joined: 07/12/2011
Location: Australia
Posts: 935
Posted: 01:00pm 21 Apr 2014
Copy link to clipboard
Print this post

I am not sure if I am a capable party but I am certainly interested.

vasi

Guru

Joined: 23/03/2007
Location: Romania
Posts: 1697
Posted: 08:23pm 21 Apr 2014
Copy link to clipboard
Print this post

I guess MX1/2 micros are a bit different than MX3-MX7 series regarding to programming protocol.
Hobbit name: Togo Toadfoot of Frogmorton
Elvish name: Mablung Miriel
Beyound Arduino Lang

JohnS
Guru

Joined: 18/11/2011
Location: United Kingdom
Posts: 2837
Posted: 12:01am 22 Apr 2014
Copy link to clipboard
Print this post

These look newer
ww1.microchip.com/downloads/en/DeviceDoc/61145L.pdf‎
ww1.microchip.com/downloads/en/DeviceDoc/60001145M.pdf

They show the PE is optional.

The latter PDF includes the new PIC32MZ a bit.

John

MOBI
Guru

Joined: 02/12/2012
Location: Australia
Posts: 819
Posted: 06:49pm 22 Apr 2014
Copy link to clipboard
Print this post

  JohnS said  They show the PE is optional.


That is correct. I guess it is simpler and faster using the PE. I think I can implement the 4 wire method, but the 2 wire explanation leaves me befuddled. It would have been nice to see a timing chart using all clock pulses instead of implying them. Unless anyone else has their head around the 2 wire method, I think I will see if I can Implement the 4 wire mode first. At least that will get the MM software working.

Any help gratefully accepted.

==============
Think I'm beginning to cotton on to the data sequences. Needs a bit more analysing yet.

  Rob said  pins that meet these requirements are available on the average USB to serial bridge, in the form of the various flow control pins.


I tried the serial to usb idea with 8 bit PICs and it was S L O W ! Ended up making a 'go between' to do the clocking.

Are you actively working on this or is it just a challenge 'out there'?Edited by MOBI 2014-04-24
David M.

robert.rozee
Guru

Joined: 31/12/2012
Location: New Zealand
Posts: 1998
Posted: 02:23am 23 Apr 2014
Copy link to clipboard
Print this post

  MOBI said
Are you actively working on this or is it just a challenge 'out there'?


i'm more just putting it out there - it is quite outside of my area of expertise, and i don't have the tools/resources necessary to to make much of a go of it. but i am willing to offer a hand wherever i can.

it does seem to me, intuitively, that a simple (albeit specific to the 32MX150) solution should be possible. at the physical level the communications is very basic (just two wires, PGD and PGC) which are manipulated as digital I/O lines. similarly for MCLR i assume.

a brute-force attack, on the assumption that all 32MX150B devices are identical, would be to capture (via hardware) the data flow along these three lines. a small windows/linux/etc application could then 'play back' the captured conversation to achieve the task of programming using just a USB to serial bridge via the flow control lines.

another, similar approach, would be to build a software simulation of the PICKIT3 (or preferably PICKIT2 if it would suffice), and capture the data flow as it occurred at the (virtual) pins of the simulated PICKIT's processor. the advantage here would be that a general-purpose software solution could be arrived at to convert a .HEX file into something usable.

would the above ideas be any simpler than decoding the protocol?


rob :-)

JohnS
Guru

Joined: 18/11/2011
Location: United Kingdom
Posts: 2837
Posted: 04:54am 23 Apr 2014
Copy link to clipboard
Print this post

It's an interesting idea but a PICkit3 clone is so cheap that I don't know who'd really be bothered!

In case the timings are fairly critical, USB driven by an app on an OS like Windows could be "awkward".

John

robert.rozee
Guru

Joined: 31/12/2012
Location: New Zealand
Posts: 1998
Posted: 05:25am 23 Apr 2014
Copy link to clipboard
Print this post

a pickit3 clone is still us$30 or so, which is quite a fair bit more than the $5 chip that is being programmed. you need to put yourself in the shoes of a hobbyist who (1) might have limited access to any sort of electronics store, (2) might not be in a position to buy supplies on ebay.

because the data is clocked, there should be no major issue of timing. the only tricky bit wrt timing may be getting the 32MX into programming mode.

has anyone out there managed to program a 32MX150 using mplab 8 and a pickit2? it seems that a pickit2 is mostly just a pic18f2550, making it a good candidate for software simulation.


rob :-)

vasi

Guru

Joined: 23/03/2007
Location: Romania
Posts: 1697
Posted: 05:52am 23 Apr 2014
Copy link to clipboard
Print this post

David,

Serge, the author of PIC32prog may help you... or you can study his sources.
Hobbit name: Togo Toadfoot of Frogmorton
Elvish name: Mablung Miriel
Beyound Arduino Lang

MOBI
Guru

Joined: 02/12/2012
Location: Australia
Posts: 819
Posted: 01:15pm 23 Apr 2014
Copy link to clipboard
Print this post

  rob said  would the above ideas be any simpler than decoding the protocol?



I've got my head around the protocol now and besides being a little complex, is not difficult. The SiliconChip pic programmer of a few years back used the serial port control lines (RTS) etc. and worked fine with hardware comm ports but was dreadfully slow with the usb to ser version, so I wrote a pic interface to receive jtag like commands and do the switching.

I imagined with this project that we would use say MPLAB to create a .HEX file onto a SD card and use a MMite to interpret the HEX data and do the signal switching as necessary.

  JohnS said  It's an interesting idea but a PICkit3 clone is so cheap that I don't know who'd really be bothered!

In case the timings are fairly critical, USB driven by an app on an OS like Windows could be "awkward".

John


Yes, that is the reason why I bought a PICKit3. However, this was a challenge thrown out by Rob and I see it as a way to expand the knowledge base of PIC users who simply wonder how it all works but weren't game to dive in.

Timings are not critical (well not much) as just like I2C, all timing is done by the PG clock. I think MMite speed will still be less than the minimum critical.

  rob said  because the data is clocked, there should be no major issue of timing. the only tricky bit wrt timing may be getting the 32MX into programming mode.


If we use a MMite for the programming engine, then putting the PIC32 into programming mode is dead simple.

  vasi said  Serge, the author of PIC32prog may help you... or you can study his sources


Thanks, I'll have a read up.

To all, it might be easy just to buy something already made every time we need something, but what do we learn from it?

This is a way to test the capabilities of a MMite and where it might lead to. The outcome may lead to other adaptations, or if it is simply to be a PIC programmer, it is then an easy matter to alter a few lines if MMite code should a new PIC device come along.

Some times, we do things for the 'fun' of it. Just as Geoff built the MMite, there are plenty of PCs around which do the job better, but it was a challenge, and how much has been learnt from it? Lots!


David M.

Geoffg

Guru

Joined: 06/06/2011
Location: Australia
Posts: 2960
Posted: 04:11pm 23 Apr 2014
Copy link to clipboard
Print this post

I reckon that this would make a great project and something that would be appreciated by a lot of people.

Let me know if you need my help.

Geoff
Geoff Graham - http://geoffg.net
