To challenge me to force the full potential of a Colour Maximite and the PSGLib, dealing with the eight color limitation, pure basic and limited sprite architecture, I'm porting one of my favorite games: Gauntlet.

I'm starting making all things based on the NES version, which is the one i had the most contact in adolescence and still think it is the most fun and with better maps, wherever, I began to see in more depth the graphics of the version of the Master System and some screens of other versions and so I decided to make a nice mix in this port, where it will have:

- Master System version based sprites
- Title screen, maps and NES musics (converted to PSG)
- Some arcade voices
- Good sound effects, voices and openning music even without a sound card (the new PSGLib supports PWM Sound emulating a PSG)
- Sprites and screens making the most of the 8 colors, all done in pixel art without rough conversions
- Map editor

Well, obviously some technical limitations was found, and by now it's too hard to work around, and MAYBE it stays as a "limited features" from this port:

- All moves and scroll are in 8x8 pixels blocks
- Main character moves in 8 directions but sprites are for only 4 directions (to save RAM). At least the shots have all the 8 directions sprites glory.
- Some enemies have all sprites and some are cut in the same way of the main character, based in the NES Gauntlet II port.
- Only two frames per angle, instead 3 like the SMS version
- Unstable frame rate around 20 fps. Note: It's may seen little, but gives a good result due to the movements every 8 pixels.
- FPS can drop severely when the screen fills with enemies
- When turn on the music, the performance can be hurt (waiting to the MMBasic 5 and C Functions in the CMM)
- Digital sounds directly from SD card, but only in 8 bits, 4Khz. It's almost acceptable, since the arcade voices contribute to the retro atmosphere
- After I finish everything... Will I be able to allow at least 2 players without hurting the game speed a lot??

Of course there are many bugs to be fixed and optimizations need to be done, but now the main engine I consider almost ready.

Finally, soon the Colour Maximite will have a Gauntlet port (or not too soon enough).

Next week I will upload a video in YouTube and publish the alpha source code.

Turbo46

Guru

Joined: 24/12/2017
Location: Australia
Posts: 1584
Posted: 02:24am 08 May 2019
Copy link to clipboard
Print this post

Another impressive job Mauro!

By the way - you were going to post a schematic of your sound card. A hand drawn sketch would be fine.

Bill
Keep safe. Live long and prosper.

Frank N. Furter
Guru

Joined: 28/05/2012
Location: Germany
Posts: 813
Posted: 07:25am 08 May 2019
Copy link to clipboard
Print this post

Very impressive! I can't wait for your release!


WhiteWizzard
Guru

Joined: 05/04/2013
Location: United Kingdom
Posts: 2794
Posted: 10:45am 08 May 2019
Copy link to clipboard
Print this post

BRILLIANT Edited by WhiteWizzard 2019-05-09
For everything Micromite visit micromite.org

Direct Email: whitewizzard@micromite.o

MauroXavier
Guru

Joined: 06/03/2016
Location: Brazil
Posts: 303
Posted: 11:14am 08 May 2019
Copy link to clipboard
Print this post

  Turbo46 said   Another impressive job Mauro!

By the way - you were going to post a schematic of your sound card. A hand drawn sketch would be fine.

Bill

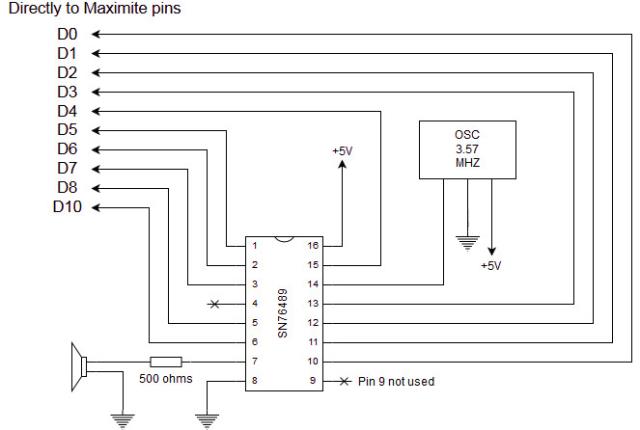

It's not drawed by me, but I believe it's correct:




Anyway, inside the PSGLib / Shadow of The Beast Demo has the specifications of the soundcard:
https://www.casadosnerds.com.br/maximite/PSGLIB.zip

With it you can have some options:

- Only one SN76489 (all my softwares support this mode)
- 2 SN76489 for stereo
- 1 AY-3-8190 or YM2149 (with clock divide support in MStudio software, which I must release soon)

You can build it inside the CMM using the Arduino connector in a little board. The bus I made is not necessary (that board that appears in some photos I've posted), I built it just to make my prototypes easier to implement and test.

MauroXavier
Guru

Joined: 06/03/2016
Location: Brazil
Posts: 303
Posted: 02:01pm 18 May 2019
Copy link to clipboard
Print this post

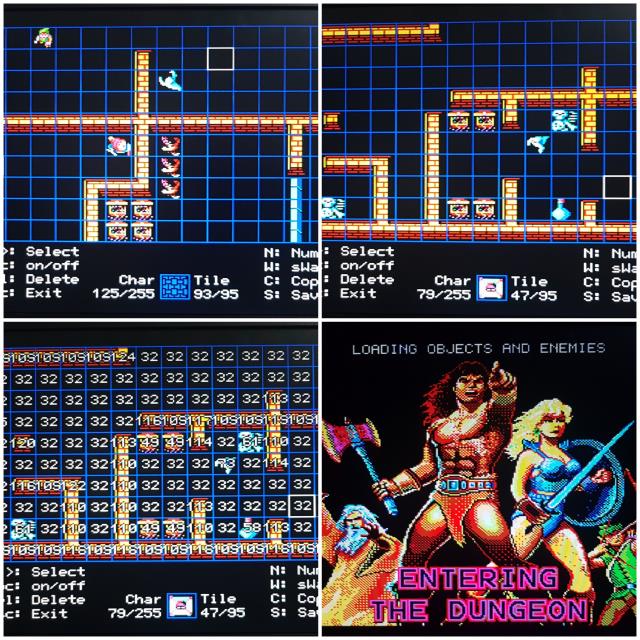

New map editor (inside the CdN Media Studio):



The loading screen was remade with manual dithering and some pixel art changes to better details in low resolution (ex.: Faces, hands etc).Edited by MauroXavier 2019-05-20

MauroXavier
Guru

Joined: 06/03/2016
Location: Brazil
Posts: 303
Posted: 01:30am 29 May 2019
Copy link to clipboard
Print this post

One more update!

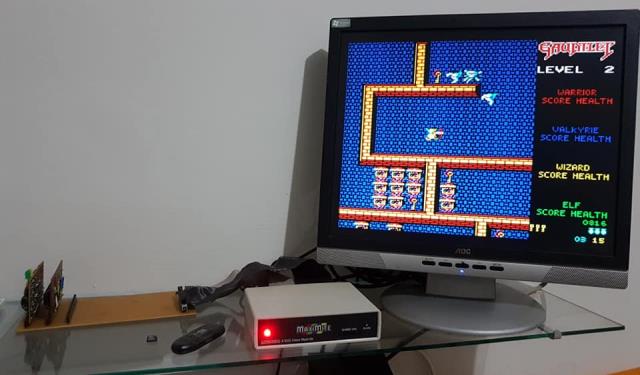

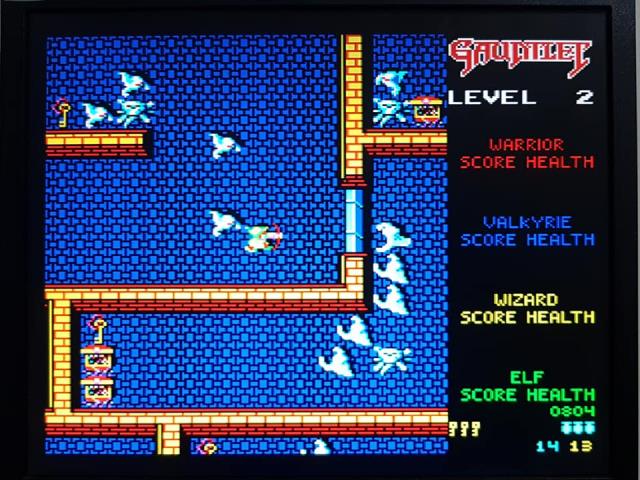

Game panel like the arcade version, with the advantage of a better scroll speed up using a smaller tile grid.






This weekend I will publish the source of CdN Media Studio (to edit maps) and the current alpha development version of Gauntlet.

Stay tuned!

cosmic frog
Senior Member

Joined: 09/02/2012
Location: United Kingdom
Posts: 277
Posted: 03:38pm 29 May 2019
Copy link to clipboard
Print this post

This is so cool!

MauroXavier
Guru

Joined: 06/03/2016
Location: Brazil
Posts: 303
Posted: 02:36am 30 May 2019
Copy link to clipboard
Print this post

This is the last alpha source:
2019-05-30_123458_GAUNTLET_ALPHA_001.zip

Obviously, have a tons of bugs, bad voice quality, slow performance, debug mode on, only three maps etc.

Uncompress it in any folder, if don't work, put it in B:/GAMES/GAUNTLET.

To play use the gauntlet.bas, to edit a map, listen a music and other things, use the medit.bas, but before run it, make sure you are in mode 1 to clean memory, otherwise will crash your CMM.

PS.: To edit a map, use the same name to .map and .spr file.

Enjoy it and give me your oppinion.
Edited by MauroXavier 2019-05-31

cosmic frog
Senior Member

Joined: 09/02/2012
Location: United Kingdom
Posts: 277
Posted: 09:10am 05 Jun 2019
Copy link to clipboard
Print this post

Hi MauroXavier. Trying to get your game to work but getting this error.

In library PSGMINI.LIB
[17] Pin(D8)=1: Port(D0,8)=Num: Pin(D8)=0: Pin(D8)=1
Error: Invalid output pin

Thanks. Dave.

MauroXavier
Guru

Joined: 06/03/2016
Location: Brazil
Posts: 303
Posted: 04:31pm 05 Jun 2019
Copy link to clipboard
Print this post

  cosmic frog said   Hi MauroXavier. Trying to get your game to work but getting this error.

In library PSGMINI.LIB
[17] Pin(D8)=1: Port(D0,8)=Num: Pin(D8)=0: Pin(D8)=1
Error: Invalid output pin

Thanks. Dave.

Hi, Dave!

Are you using the last firmware for CMM (4.5c)? This error occurs in previous firmwares.

PS.: This reminds me that I must put a firmware verification code.Edited by MauroXavier 2019-06-07

MauroXavier
Guru

Joined: 06/03/2016
Location: Brazil
Posts: 303
Posted: 01:02am 07 Jun 2019
Copy link to clipboard
Print this post

Here is a alpha 2 version:
2019-06-07_105759_GAUNTLET_ALPHA_002.zip

Various bugs fixed, better playability, new tiles and 6 levels.

I recommend to use the numeric pad to allow diagonal movement.

Please, test it and put some comments, I don't care about criticism, feel free to say something bad about my code or game ;)

Cyber

Senior Member

Joined: 13/01/2019
Location: Ukraine
Posts: 161
Posted: 06:25pm 30 Jun 2019
Copy link to clipboard
Print this post

  MauroXavier said  It's not drawed by me, but I believe it's correct:


It's drawed by me. Under careful guidance of MauroXavier. :)
I'm glad it turned out to be useful for others.

By the way it is schematic for only one SN76489 (not stereo).
And in place of speaker you should put amplifier+speaker or headphones, bacause output signal of SN76489 is very low.

Yesterday I assembled this schematic on protoboard, and I confirm it works!

Edited by Cyber 2019-07-02

MauroXavier
Guru

Joined: 06/03/2016
Location: Brazil
Posts: 303
Posted: 07:43pm 01 Jul 2019
Copy link to clipboard
Print this post

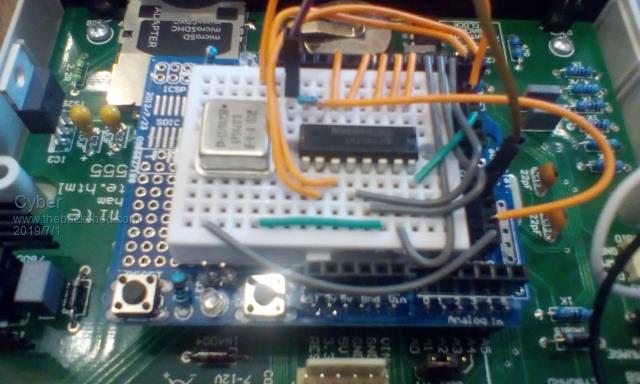

What a beautifull piece of protoboard ;)

Here I'm mixing the sound out from Colour Maximite directly in a amplifier.

I'm very glad that you are using it, I have so many things to show but was a little dissapointed because doesn't had some feedback from users, with this appears that nobody is interessed in this.

But with your perseverance, I'm happy again to continue the project!

I will publish soon other videos and more recent codes with heavy optimizations and with a ton of good PSG musics.

Thanks a lot by your feedback!

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 8517
Posted: 09:53pm 01 Jul 2019
Copy link to clipboard
Print this post

  Quote  I have so many things to show but was a little dissapointed because doesn't had some feedback from users, with this appears that nobody is interessed in this.


I don't think we have a game playing/programming audience

I spent quite a lot of time developing a pretty comprehensive sprite capability on the MMX and ported it to the Pi-cromite and Armmite but AFAIK no-one has ever used it. Lot's of feedback when I was developing with ideas that I tried to incorporate but no sign of any actual usage.

You are doing amazing things with the CMM but even there I think you are only the second or third developer to use the capabilities Geoff built in.

Don't be discouraged but don't expect too much.

The last game I played was Chuckie Egg

Cyber

Senior Member

Joined: 13/01/2019
Location: Ukraine
Posts: 161
Posted: 02:44am 02 Jul 2019
Copy link to clipboard
Print this post

  matherp said  I don't think we have a game playing/programming audience
May be they are just silent or haven't heard about things happening.
I noticed quiete an increasing interest in vintage gaming lately here and there.

  matherp said  The last game I played was Chuckie Egg
Spectrum?

Chopperp

Guru

Joined: 03/01/2018
Location: Australia
Posts: 1028
Posted: 07:12am 02 Jul 2019
Copy link to clipboard
Print this post

  MauroXavier said   What a beautiful piece of protoboard ;)

I totally agree. Nice & neat.

My one & only CMM is tied up full time doing a heap of monitoring so I can't really try out some of the gaming stuff unfortunately. But thinking about it, I may learn a a thing or two if I did delve into some of the games programming done here.

Still waiting for any word of updates for the CMM firmware from Geoff.
ChopperP

Frank N. Furter
Guru

Joined: 28/05/2012
Location: Germany
Posts: 813
Posted: 07:23am 02 Jul 2019
Copy link to clipboard
Print this post

@MauroXavier:

Please keep on!
I'm still waiting for having the time to reflash my CMM to try out your programs!
Unfortunately it doesn't work with my current CMM firmware!

Frank

Cyber

Senior Member

Joined: 13/01/2019
Location: Ukraine
Posts: 161
Posted: 09:46am 02 Jul 2019
Copy link to clipboard
Print this post

  Chopperp said  My one & only CMM is tied up full time doing a heap of monitoring so I can't really try out some of the gaming stuff unfortunately.
I plan to obtain one ore two MiniMM or CGMMSTICK for such tasks.
You can do the same.
And let ColourMM be your desktop device.

Chopperp

Guru

Joined: 03/01/2018
Location: Australia
Posts: 1028
Posted: 10:15am 02 Jul 2019
Copy link to clipboard
Print this post

@Cyber

Good suggestions.

There are a number of options available. I like the VGA in some respects display. Nice & big.

I have put a lot of time & effort into my current setup though but it is due for an upgrade.

BTW, welcome to the Forums.

ChopperP
