Solar Mike
Guru

Joined: 08/02/2015
Location: New Zealand
Posts: 1119
Posted: 10:53am 21 Dec 2021
Copy link to clipboard
Print this post

Last one for 2021 I promise, thought I would throw together a smaller non-synchronous version, where all parts including the buck inductor fit on the pcb. Less current 30 amps and using smd mosfets. The pcb conducts the heat through to an alloy spacer under the pcb to the heatsink - back panel.

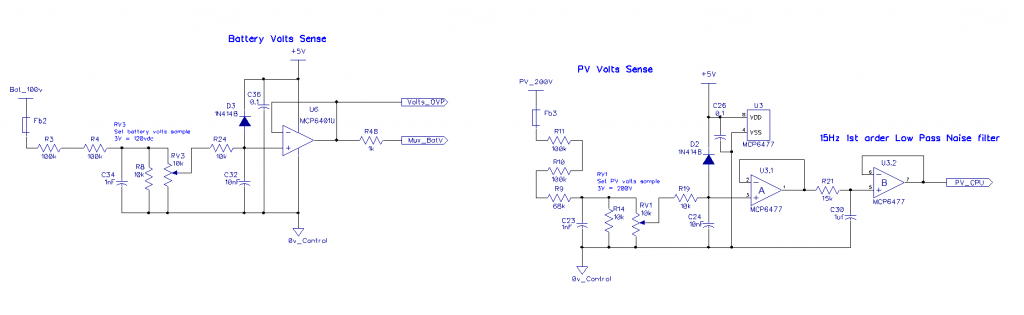

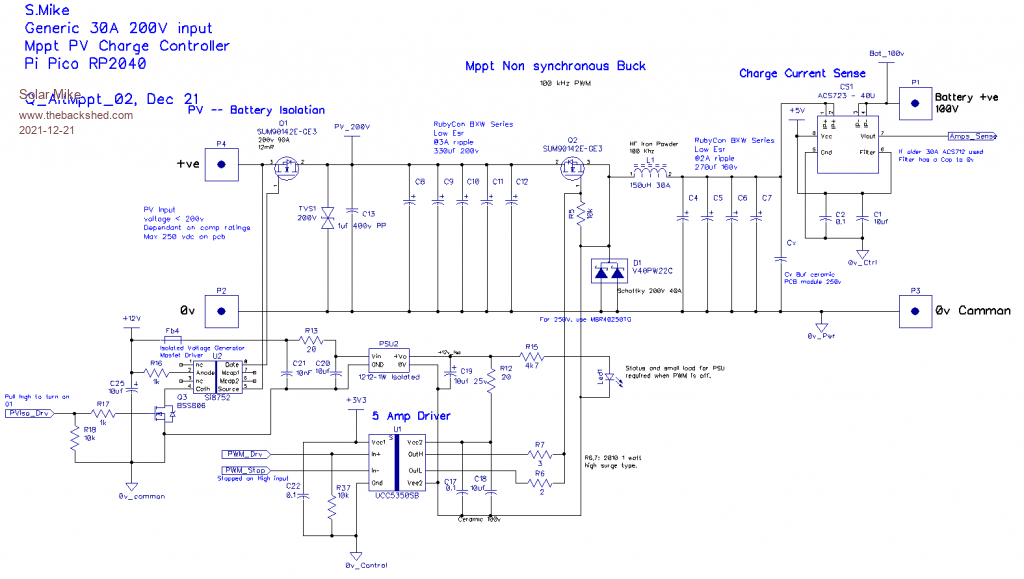

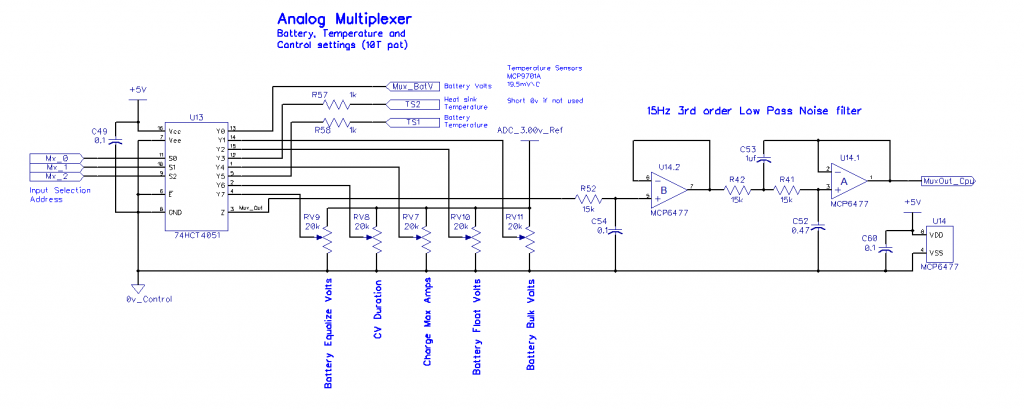

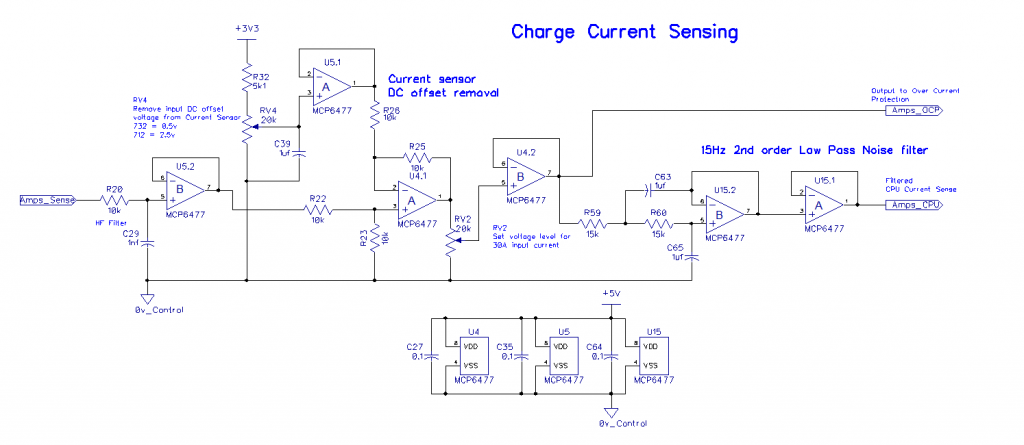

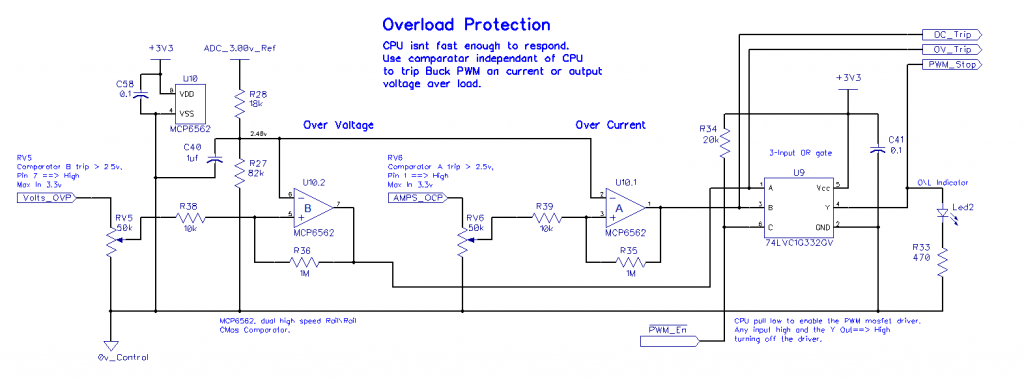

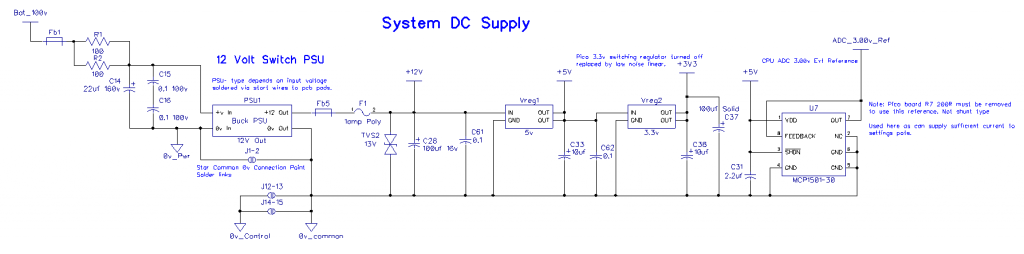

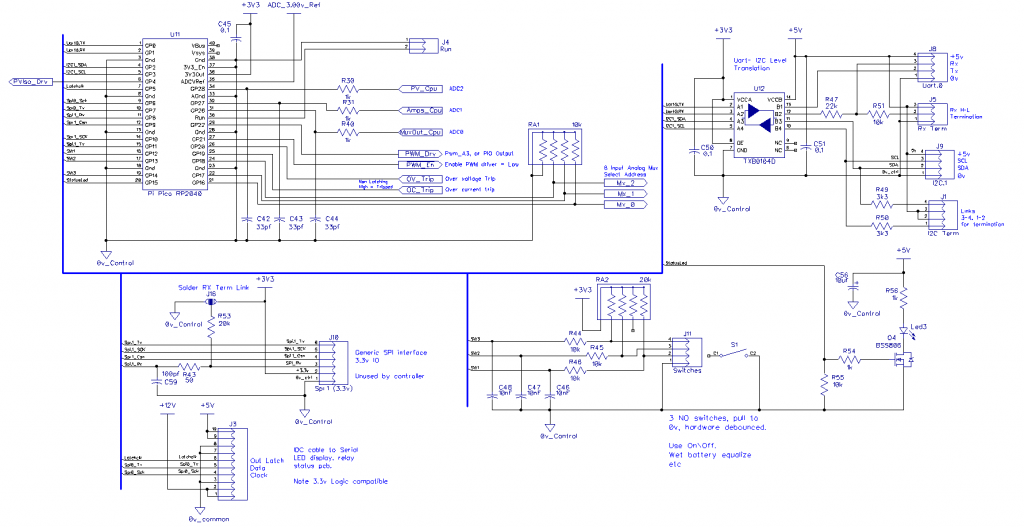

Schematic and gerbers attached, anyone wanting to build go for it, sorry it will be next year until I have some software.

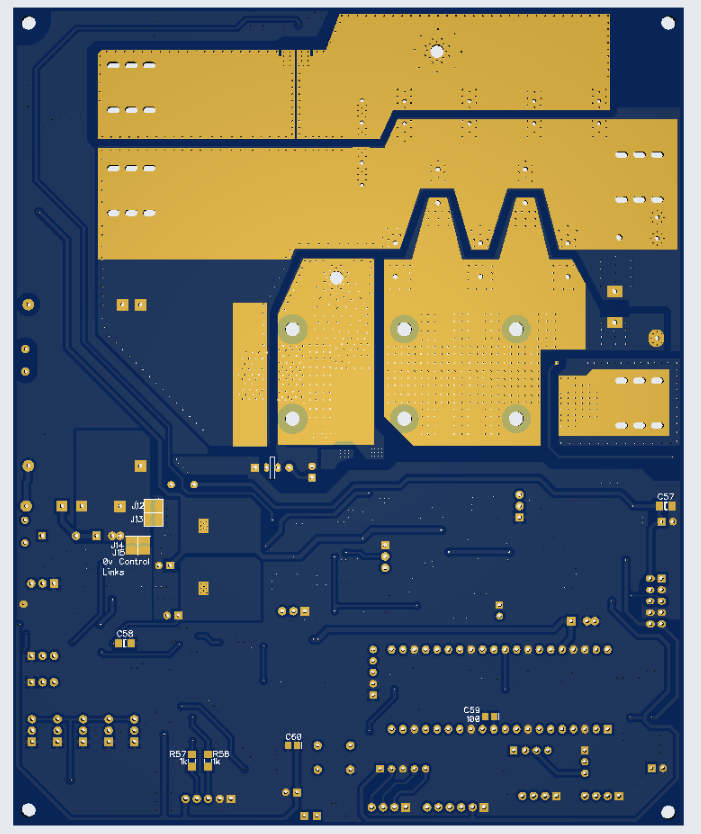

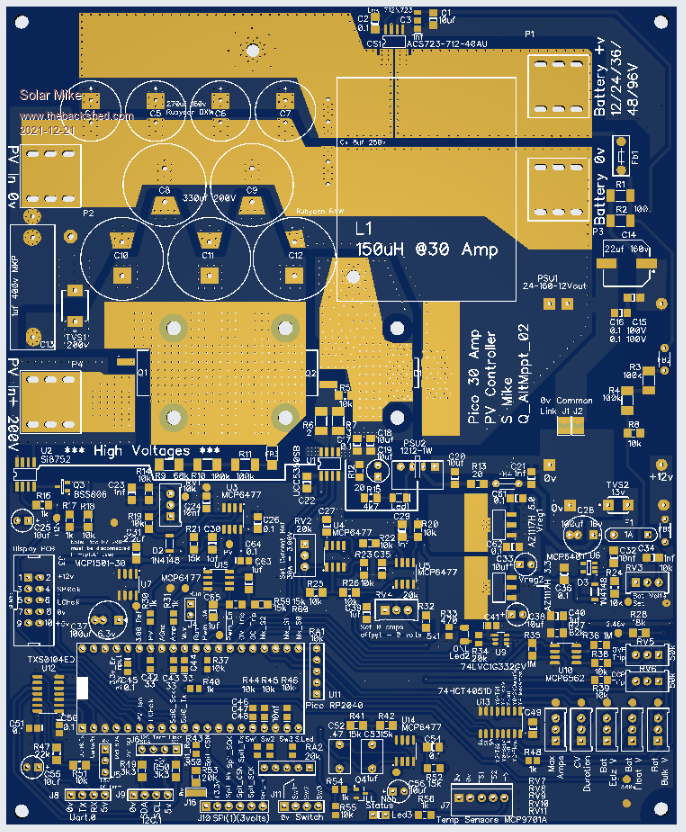

Top: 150 x 183mm




























Gerbers_02.zip



PCB's for other Pico designs will be back before the end of this week I hope, glad I ordered good selection of parts earlier, just about all smd chips are now unavailable until 2023.

Cheers
Mike

Astro67
Newbie

Joined: 26/12/2021
Location: United Kingdom
Posts: 1
Posted: 10:53am 16 Jan 2022
Copy link to clipboard
Print this post

Thanks for sharing your hard work. I have been pouring over this for several hours and researched around it, and I've learned heaps of new stuff. Thank you.
