Forum Index : Microcontroller and PC projects : CMM2 "ruggedised" back panel break-out

Author

Message

JohnS
Guru

Joined: 18/11/2011
Location: United Kingdom
Posts: 4139

Posted: 09:34pm 10 Aug 2020

Copy link to clipboard

Print this post

The post Roll your own data logger - CMM2 made me wonder if there's a cable+board (I guess both) to provide a convenient way to bring the signals out / take them in and connect things, and which is protected against "abuse" (cross-connection, shorts, etc)?

I suppose it would be good if it also had some LEDs and, er, switches, etc, which can be patched in?

I suspect opto-isolators etc would be useful.

John
Edited 2020-08-11 07:34 by JohnS

Nimue

Guru

Joined: 06/08/2020
Location: United Kingdom
Posts: 425

Posted: 09:47pm 10 Aug 2020

Copy link to clipboard

Print this post

JohnS said The post Roll your own data logger - CMM2 made me wonder if there's a cable+board (I guess both) to provide a convenient way to bring the signals out / take them in and connect things, and which is protected against "abuse" (cross-connection, shorts, etc)?

I suppose it would be good if it also had some LEDs and, er, switches, etc, which can be patched in?

I suspect opto-isolators etc would be useful.

John

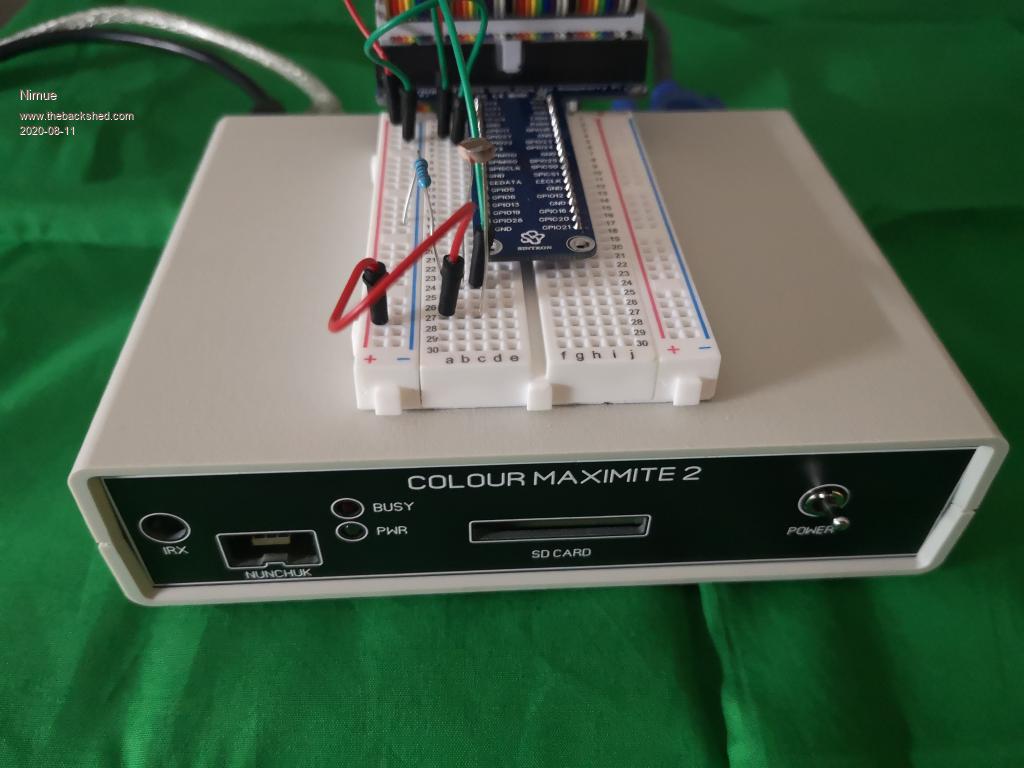

The ribbon / breadboard is just a Raspberry PI breakout with a notch cut in it so I can reverse the cable...

Not quite as grand as you suggestion - but cheap as chips.

A fine idea - not sure I'm up to the challenge to build it though.

Entropy is not what it used to be
