Forum Index : Microcontroller and PC projects : Pin number are mirrored ! Cmm2

Author Message
Plasmamac

Guru

Joined: 31/01/2019
Location: Germany
Posts: 595
Posted: 04:06pm 19 Dec 2020
Copy link to clipboard
Print this post

Hi , if iam not totally wrong i think the cmm2 Pin number are mirrored. Because the Port has a Pin 1 sign But the manual Says its pin number 40.
Plasma

Turbo46

Guru

Joined: 24/12/2017
Location: Australia
Posts: 1646
Posted: 08:16pm 19 Dec 2020
Copy link to clipboard
Print this post

Is this what you are talking about?
  The Manual page 10 said  These numbers are used as reference in the table below and by MMBasic to refer to an I/O pin.
They are not the connector manufacturer’s standard pin numbers.


Bill
Keep safe. Live long and prosper.

CircuitGizmos

Guru

Joined: 08/09/2011
Location: United States
Posts: 1427
Posted: 09:02pm 19 Dec 2020
Copy link to clipboard
Print this post

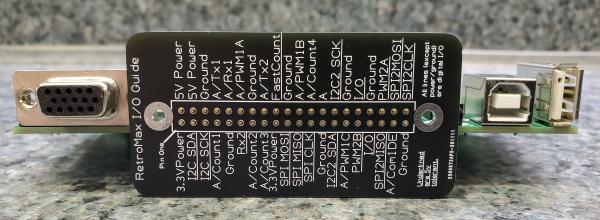

The image in my RetroMax documentation has a red arrow pointing to pin 1.

Micromites and Maximites! - Beginning Maximite

CircuitGizmos

Guru

Joined: 08/09/2011
Location: United States
Posts: 1427
Posted: 09:41pm 19 Dec 2020
Copy link to clipboard
Print this post

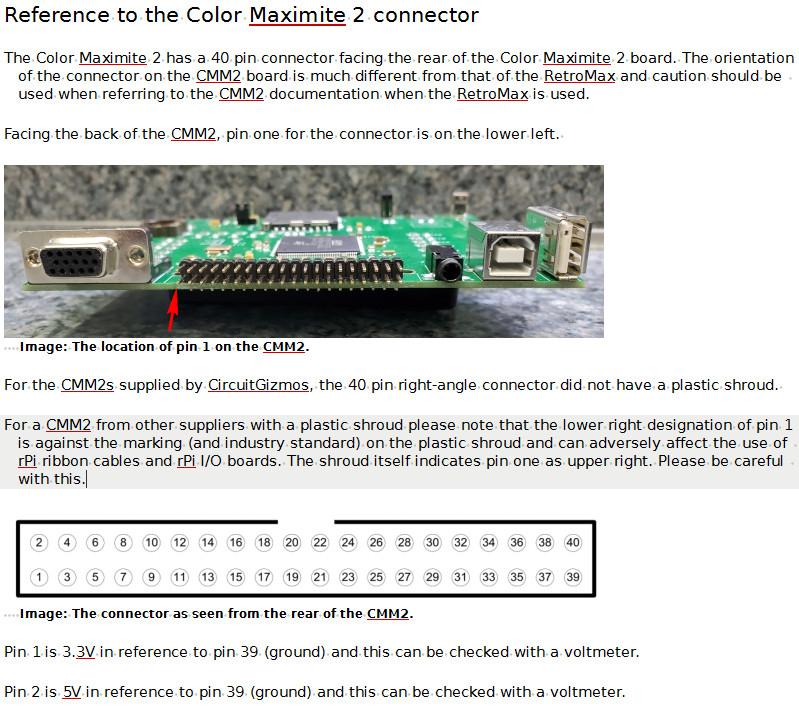

The RetroMax I/O guide in the back of a CMM2:


Micromites and Maximites! - Beginning Maximite

Plasmamac

Guru

Joined: 31/01/2019
Location: Germany
Posts: 595
Posted: 05:59am 20 Dec 2020
Copy link to clipboard
Print this post

RTFM ! Sry
Plasma
