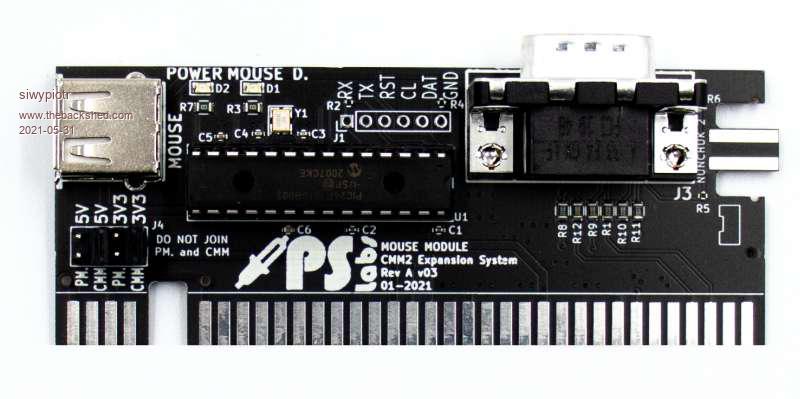

This card adds following functionalities to CMM2: USB mouse (HT chip) including wireless, Atari joystick, Nunchuck port


Schematic can be found here: schematic REV A v03

Instruction, code can be found on Github: CMM2 Expansion Card Mouse Joy

Expansion system and cards can be purchased here: PS Labs

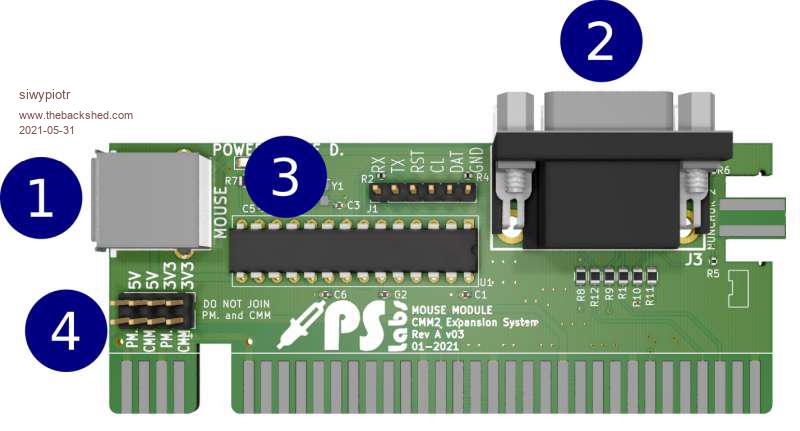

1. USB A connector for mouse
2. DB9 for Atari Joystick
3. HT USB mouse host chip
4. Power supply selector
