Forum Index : Microcontroller and PC projects : CMM2 Expansion Card - WiFi
| Author | Message | ||||
siwypiotr Senior Member  Joined: 18/08/2020 Location: PolandPosts: 127 |

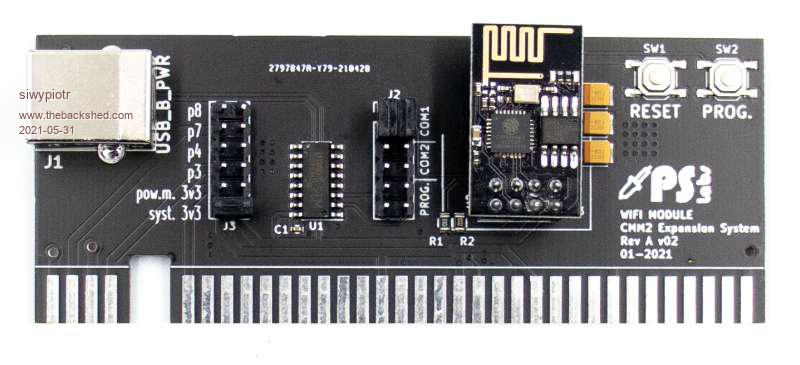

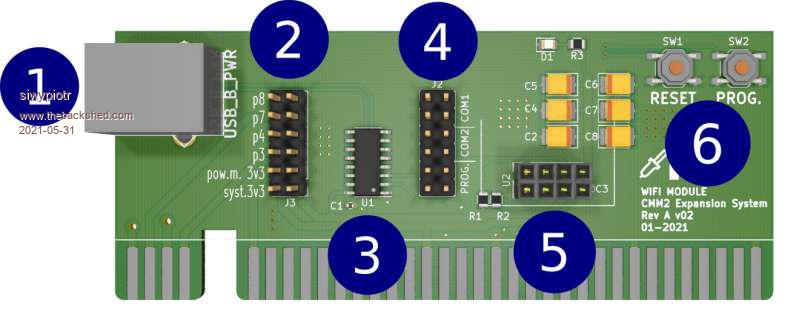

 This card adds wifi functionality, includes USB to RS chip allowing easy flashing and communication with pc Schematic can be found here: https://github.com/pslabs-ps/CMM2-ExpansionCard-WiFi/blob/main/Schematic/WiFi_REVA_v02.pdf Expansion system and cards can be purchased here: PS Labs  1. USB B connector for flashing ESP01 from PC 2. Power source selector 3. USB to UART converter 4. Port com and flashing selector 5. Socket for ESP01 6. Flashing buttons |
||||
