Forum Index : Microcontroller and PC projects : Front and Back Panels for CMM2?

Author Message
toml_12953
Guru

Joined: 13/02/2015
Location: United States
Posts: 480
Posted: 08:10pm 13 Jul 2021
Copy link to clipboard
Print this post

Is there anyone who sells silk-screened front and back panels for the CMM2 in the standard enclosure? I got mine today and it looks so bare with plain black front and back panels.

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 8297
Posted: 08:16pm 13 Jul 2021
Copy link to clipboard
Print this post

I laser printed them from the files in the construction pack and stuck them to the panels with double-sided tape then covered them in clear book-binding plastic. They are reasonable (but needed trimming on the edges as they were then too thick to fit into the slots in the case). Screen printed panels would have been ideal.

If anyone decides to copy what I did, beware. The scaling of some of the artwork is wrong even when printed out 1:1. Measure the hardware first!
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

toml_12953
Guru

Joined: 13/02/2015
Location: United States
Posts: 480
Posted: 08:45pm 13 Jul 2021
Copy link to clipboard
Print this post

  Mixtel90 said  I laser printed them from the files in the construction pack and stuck them to the panels with double-sided tape then covered them in clear book-binding plastic. They are reasonable (but needed trimming on the edges as they were then too thick to fit into the slots in the case). Screen printed panels would have been ideal.


I looked in the Construction Pack for Gen2 and I don't see any front or back panel files I could use to print them. Where did you get them?

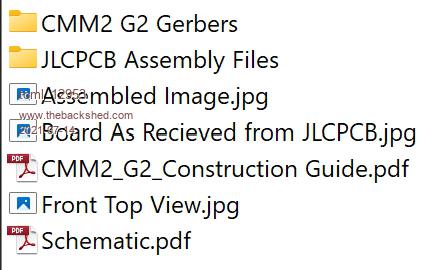

Here's what I have in my Gen 2 ZIP:

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 8297
Posted: 09:22pm 13 Jul 2021
Copy link to clipboard
Print this post

Ah - mine isn't a Gen2.
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

toml_12953
Guru

Joined: 13/02/2015
Location: United States
Posts: 480
Posted: 10:20pm 13 Jul 2021
Copy link to clipboard
Print this post

  Mixtel90 said  Ah - mine isn't a Gen2.


My bad. I should've specified.

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2971
Posted: 11:58pm 13 Jul 2021
Copy link to clipboard
Print this post

Hi Tom,

I can supply you a set of panels for a G1 cmm2.

They are shown on page 3 of this document.

Cmm2 brief

I think you are in the US, if so I can offer them for $16AU (approximately $12US) including postage in a standard , non tracking, envelope.

These typically take 2 weeks to arrive but recently they have taken nearly 3 weeks.

PM me if you are interested.

I think the green rear panel (which was a mistake when I ordered) actually looks quite good.
I am happy to include a couple of photo masters if you want to try the photo quality ones as well.

Kind Regards

MICK
Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

toml_12953
Guru

Joined: 13/02/2015
Location: United States
Posts: 480
Posted: 04:04am 14 Jul 2021
Copy link to clipboard
Print this post

  bigmik said  Hi Tom,

I can supply you a set of panels for a G1 cmm2.

Kind Regards

MICK


Thanks but I have a G2.

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2971
Posted: 04:37am 14 Jul 2021
Copy link to clipboard
Print this post

My Apologies Tom,

I mis-read..

Don't get old..

Mick
Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

palcal

Guru

Joined: 12/10/2011
Location: Australia
Posts: 2006
Posted: 04:54am 14 Jul 2021
Copy link to clipboard
Print this post

Try CircuitGizmos.com he is in the US and Geoff's site says he will have a kit.
"It is better to be ignorant and ask a stupid question than to be plain Stupid and not ask at all"

toml_12953
Guru

Joined: 13/02/2015
Location: United States
Posts: 480
Posted: 08:48am 14 Jul 2021
Copy link to clipboard
Print this post

  bigmik said  My Apologies Tom,

I mis-read..

Don't get old..

Mick


The alternative is to die young!

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 8297
Posted: 12:40pm 14 Jul 2021
Copy link to clipboard
Print this post

I just had a thought...

T-shirt transfer paper. I wonder if that could be used to prettify the panels?
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

CircuitGizmos

Guru

Joined: 08/09/2011
Location: United States
Posts: 1427
Posted: 02:04pm 14 Jul 2021
Copy link to clipboard
Print this post

  palcal said  Try CircuitGizmos.com he is in the US and Geoff's site says he will have a kit.


I have the RetroMax, not the CMM2 (Gen1 or Gen2) kit.
Micromites and Maximites! - Beginning Maximite
