Forum Index : Microcontroller and PC projects : WVGA 24bpp color terminal

Author Message
boss

Senior Member

Joined: 19/08/2011
Location: Canada
Posts: 268
Posted: 12:39pm 11 Dec 2014
Copy link to clipboard
Print this post

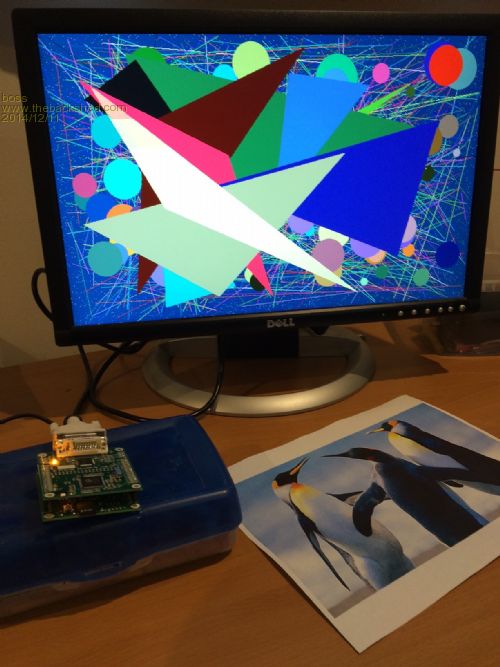

Prototype of 800x480 24bpp terminal based on Ray's shield. uMite SW is still under development but the basic functionality was tested. I'm considering to use it as uMite shield and

a fully independent color terminal.


Bo

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2949
Posted: 03:57pm 11 Dec 2014
Copy link to clipboard
Print this post

Hi Bohumil,

What is `Rays Shield'

That looks very interesting...

But there is a `minor' bug in your program if the screen is supposed to look like that picture of the Penguins.

Mick
Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

viscomjim
Guru

Joined: 08/01/2014
Location: United States
Posts: 925
Posted: 04:26pm 11 Dec 2014
Copy link to clipboard
Print this post

It is a prototype and if you squint your eyes just right, it is getting close to the penguins. A little tweaking is in order.

boss

Senior Member

Joined: 19/08/2011
Location: Canada
Posts: 268
Posted: 04:29pm 11 Dec 2014
Copy link to clipboard
Print this post

Hi Mick,

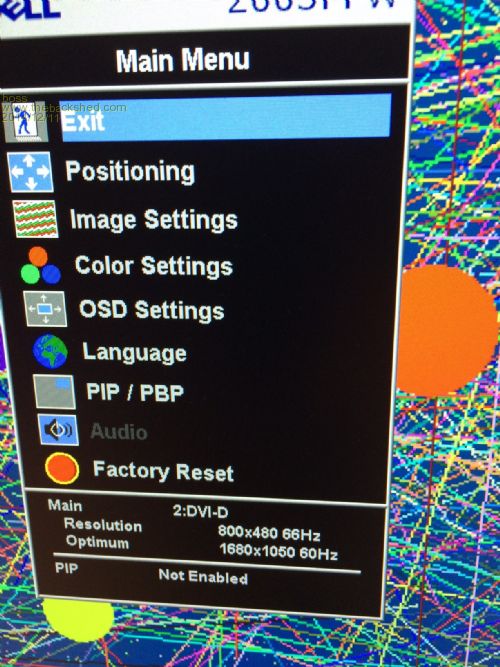

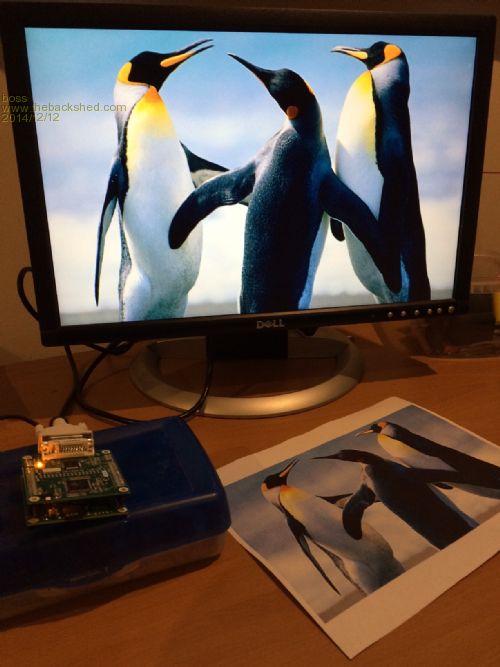

the right screen is here. The picture was used for testing because full WVGA resolution and 16M colors.



The Ray's shield is there:

http://www.rayslogic.com/Propeller/Products/DviGraphics/DVI. htm

and I adopted it for WVGA and connect with uMite. The DVI shield has 8bit bus and 8080 set of control signals. It is fast, really fast. Price $US34 and free shipping in US. I also got the permission to manufacture my own board based on his design.
My goal is design an Operator Graphic Console for one of my customers, but I'd like to share this design with others.

Bo
