Posted: 08:20pm 30 Nov 2015

Copy link to clipboard

Print this post

I just received 64 PCBs from ShenZhen with no paperwork that I did not order, they are triangle shaped about 100mm high and have provision for 10 LEDs and a driver IC, probably a 555.
I am thinking maybe this is some sort of Xmas promo as they look like they would make a flashing Xmas tree. Any one else get some of these. I don't know whether to contact them or throw the boards in the bin.
Paul.

"It is better to be ignorant and ask a stupid question than to be plain Stupid and not ask at all"

Grogster

Admin Group

Joined: 31/12/2012
Location: New Zealand
Posts: 9643

Posted: 08:26pm 30 Nov 2015

Copy link to clipboard

Print this post

Can you please post a photo of them?

I have done more then 30 orders via SH2U now, and they never go to the wrong place, but if it was a freebie Xmas promo or something, yeah, I would expect some paperwork to clarify that this was the case......

Smoke makes things work. When the smoke gets out, it stops!

palcal

Guru

Joined: 12/10/2011
Location: Australia
Posts: 1997

Posted: 08:40pm 30 Nov 2015

Copy link to clipboard

Print this post

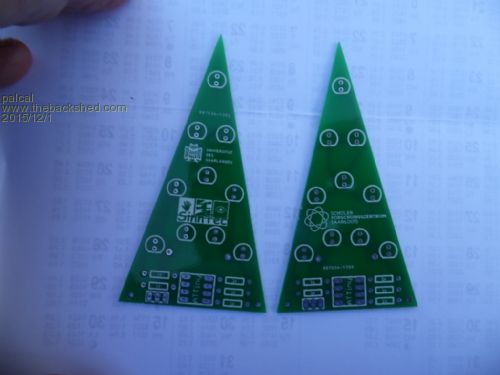

Here is a pic. I see now the IC is an ATTiny micro.

Paul

Edit. I suppose to receive 64 boards it is obviously a mistake and not a promo.Edited by palcal 2015-12-02

"It is better to be ignorant and ask a stupid question than to be plain Stupid and not ask at all"

HankR
Senior Member

Joined: 02/01/2015
Location: United States
Posts: 209

Posted: 09:01pm 30 Nov 2015

Copy link to clipboard

Print this post

I sure wouldn't toss them.

How about contacting and if they say don't bother returning, how about passing them out here on the shed? :)

I volunteer to be the redistributor to the US for a small bundle.

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2956

Posted: 09:19pm 30 Nov 2015

Copy link to clipboard

Print this post

Hi Paul,

I would guess they have obviously stuffed up, one of their QC checkers will now be summarily executed..

Contact them and say the incorrect PCBs were delivered I have found them quite responsive to my emails.

Regards,

Mick

Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

WhiteWizzard
Guru

Joined: 05/04/2013
Location: United Kingdom
Posts: 2948

Posted: 10:10pm 30 Nov 2015

Copy link to clipboard

Print this post

If you are 'allowed' to keep them, then simply drop one of BigMik's NanoMites on each PCB and make a forest of flashing Christmas Tree's

palcal

Guru

Joined: 12/10/2011
Location: Australia
Posts: 1997

Posted: 10:44pm 30 Nov 2015

Copy link to clipboard

Print this post

I have already contacted them, but to complicate matters I had an order with them I am waiting on. Their reply to my email suggests they did not understand fully what happened so I have replied and hopefully will get a reply that makes sense.
The problem with redistribution among TBS members is the cost of postage for such a simple PCB.
They would probably work OK with an 08 PicAxe.
Paul.Edited by palcal 2015-12-02

"It is better to be ignorant and ask a stupid question than to be plain Stupid and not ask at all"

Grogster

Admin Group

Joined: 31/12/2012
Location: New Zealand
Posts: 9643

Posted: 11:08pm 30 Nov 2015

Copy link to clipboard

Print this post

Translation problems can be a common issue dealing with Chinese businesses - though no fault of their own.

I find that it is a good idea to type you message, keeping the language as simple as possible, omit any local colloquialisms etc, and then copy and paste your message into Google Translate, then copy the Chinese back into your message and send them BOTH.

This may well be more effort then you are prepared to go to for boards that are not yours....

They seem to be destined for "Sinntec" - is that a web address or email on the back silkscreen? Perhaps you could email them, and depending on where they are, they would probably be happy enough to pay postage to get hold of them.

Smoke makes things work. When the smoke gets out, it stops!

palcal

Guru

Joined: 12/10/2011
Location: Australia
Posts: 1997

Posted: 11:26pm 30 Nov 2015

Copy link to clipboard

Print this post

I did just that Grogs, pretended I was talking to a 2 year old. Got it sorted, we received each others boards so they are reproducing both lots and re sending them.
If any one wants some of these, I don't know why you would, I will look into the cost of postage.

Paul

Edit: Just checked postage, about $7 to USA or UK, $5 to NZ.
I'll wear the cost if any one wants some.Edited by palcal 2015-12-02

"It is better to be ignorant and ask a stupid question than to be plain Stupid and not ask at all"

WhiteWizzard
Guru

Joined: 05/04/2013
Location: United Kingdom
Posts: 2948

Posted: 11:38pm 30 Nov 2015

Copy link to clipboard

Print this post

Hi Paul.
Please can you see if 3 fit into an Airmail envelope (taped to some thin card on both sides) and drop them in the post to sunny UK! Will gladly cover all your costs. No need for tracking, just standard Airmailwith a 'proof of posting' should they get lost! I will PM my address if you're ok to send!

WW

palcal

Guru

Joined: 12/10/2011
Location: Australia
Posts: 1997

Posted: 11:50pm 30 Nov 2015

Copy link to clipboard

Print this post

@WW
Just weighed them, for AU$7 I can send 30 boards, or for AU$3 I can send 5 boards.
PM me.
Paul.

"It is better to be ignorant and ask a stupid question than to be plain Stupid and not ask at all"

f1fco

Senior Member

Joined: 18/03/2012
Location: France
Posts: 155

Posted: 01:21am 01 Dec 2015

Copy link to clipboard

Print this post

hello Paul,
can you send 5 boards in France ?
I can PAYPAL you

thank you for answer
Pierre, from Nimes, south of France

73s de F1FCO

CircuitGizmos

Guru

Joined: 08/09/2011
Location: United States
Posts: 1427

Posted: 06:48am 01 Dec 2015

Copy link to clipboard

Print this post

Must be Charlieplexing the LEDs.

Micromites and Maximites! - Beginning Maximite

palcal

Guru

Joined: 12/10/2011
Location: Australia
Posts: 1997

Posted: 11:07am 01 Dec 2015

Copy link to clipboard

Print this post

@WW

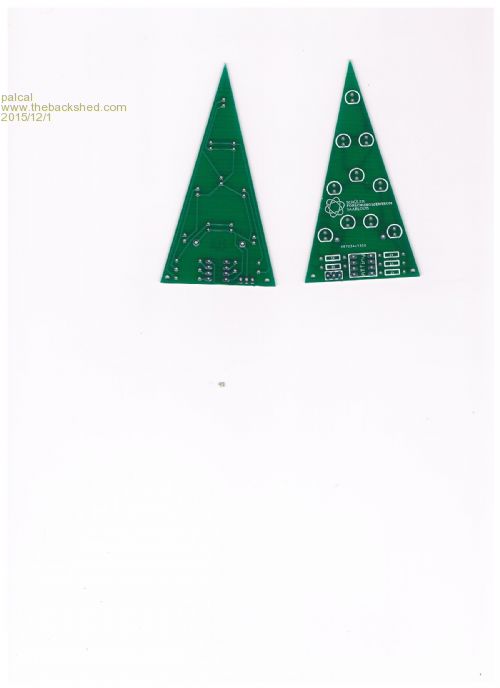

Could not upload scanned image in a PM so here it is,

Paul

"It is better to be ignorant and ask a stupid question than to be plain Stupid and not ask at all"

WhiteWizzard
Guru

Joined: 05/04/2013
Location: United Kingdom
Posts: 2948

Posted: 11:18am 01 Dec 2015

Copy link to clipboard

Print this post

That's great - thanks

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2956

Posted: 05:52pm 01 Dec 2015

Copy link to clipboard

Print this post

GDay Phil, All,

WhiteWizzard said If you are 'allowed' to keep them, then simply drop one of BigMik's NanoMites on each PCB and make a forest of flashing Christmas Tree's

That would be fine from my perspective but you can buy an entire kit of a similar tree inc freight for cheaper than my buy price of the SSOP '170

See LINK

Regards,

Mick

Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

plover

Guru

Joined: 18/04/2013
Location: Australia
Posts: 306

Posted: 11:08pm 01 Dec 2015

Copy link to clipboard

Print this post

I guess it is a near cousin you are linking to, but it is also a simpler circuit from what I understand. I see no micro in this design.

Anyway having two grand kids coming my way from Europe, perhaps a couple of those you have linked to would be could be entertaining for 7 and 9 year olds. Thanks for the link.

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2956

Posted: 02:09pm 02 Dec 2015

Copy link to clipboard

Print this post

GDay Plover,

Whilst the circuit doesnt have any smarts if you look at the vid clip near the bottom it looks pretty impressive from what I gather is a 2 transistor multi-vibrator circuit.

As an aside, here is a post I did of my daughter, Georgia's first time EVER soldering and she made a microprocessor driven clock.

Clock Kit

That might be a good kit for your grand kids although good luck getting them by Christmas.

Regards,

Mick
