option explicit
option default FLOAT

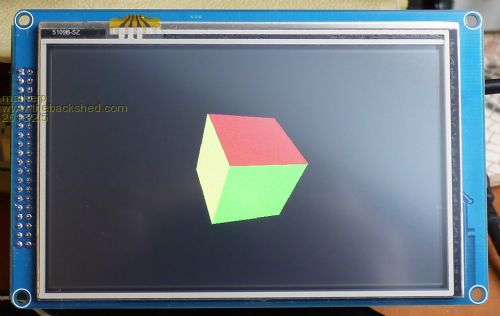

' 3D solid graphics demo using quarternions to rotate the coordinates
'
cls
'
' Adjust the following to fit your display
'
dim scale=600 'length of the edge of the cube in "real" space
'define the projection plane in units from the observer
DIM viewplane = -500
DIM cubelocation(2)=(mm.hres/2,MM.VRES/2,-2000) 'actual location of the centre of the cube in "real" 3D space
'
'
' define the coordinates of a cube with the z-axis towards the viewer and the centre at 0,0,0
dim cube(3,7)=(-1,-1,1,0, -1,1,1,0, 1,1,1,0, 1,-1,1,0, -1,-1,-1,0, -1,1,-1,0, 1,1,-1,0, 1,-1,-1,0 ) 'coordinates of the cube
dim centroid(3,5)=(0,0,1,0, -1,0,0,0, 0,1,0,0, 1,0,0,0, 0,0,-1,0, 0,-1,0,0) 'centre of each face in space
'
' define the coordinate triples that make up two triangles for each face of the cube, together with a face index number
' all drawing is done as filled triangles
' NB the triangles must be in the same order as the faces, two triangles/face
'
dim cubetriangles%(3,11)=(0,1,2,0, 0,2,3,0, 0,1,5,1, 0,4,5,1, 1,2,6,2, 1,5,6,2, 3,6,7,3, 3,2,6,3, 4,6,7,4, 4,5,6,4, 0,4,7,5, 0,3,7,5)
'
dim q1(4),v(4),vout(4),M_PI=3.14159265359,i%,j%,k%,x1,y1,z1,x2,y2,z2,x3,y3,z3
dim csort(5)
dim sortorder%(5)
DIM integer xx0(11), yy0(11), xx1(11), yy1(11), xx2(11), yy2(11), tcol(5) ,scol(11) 'arrays for calling the triangle draw routine
'
for i%=0 to 7 'scale the cube verticies up depending on the display size
for j%=0 to 2
cube(j%,i%)=cube(j%,i%)*scale/2
next j%
next i%
'
for i%=0 to 5 'scale the centroid positions up depending on the display size
for j%=0 to 2
centroid(j%,i%)=centroid(j%,i%)*scale/2
next j%
next i%
'
' define the colour of each face of the cube
tcol(0)=rgb(red)
tcol(1)=rgb(blue)
tcol(2)=rgb(magenta)
tcol(3)=rgb(yellow)
tcol(4)=rgb(cyan)
tcol(5)=rgb(green)


for i%=0 to 7 'convert coordinates to normalised form
x1=cube(0,i%): y1=cube(1,i%): z1=cube(2,i%)
create_vector(x1,y1,z1,v())
cube(0,i%)=v(2): cube(1,i%)=v(3): cube(2,i%)=v(4): cube(3,i%)=v(0)
next i%
'
for i%=0 to 5 'convert centroid coordinates to normalised form
x1=centroid(0,i%): y1=centroid(1,i%): z1=centroid(2,i%)
create_vector(x1,y1,z1,v())
centroid(0,i%)=v(2): centroid(1,i%)=v(3): centroid(2,i%)=v(4): centroid(3,i%)=v(0)
next i%

'create a quarternion to rotate 15 degrees about a chosen axis
'play with the x,y,z vector which is the sxis of rotation
create_normalised_quaternion(15,1,0.5,0.25,q1())
'
do
for i%=0 to 7 'rotate coordinates
v(2)=cube(0,i%): v(3)=cube(1,i%): v(4)=cube(2,i%): v(0)=cube(3,i%): v(1)=0
rotate_vector(vout(),v(),q1())
cube(0,i%)=vout(2): cube(1,i%)=vout(3): cube(2,i%)=vout(4): cube(3,i%)=vout(0)
next i%
'
for i%=0 to 5 'rotate centroids
v(2)=centroid(0,i%): v(3)=centroid(1,i%): v(4)=centroid(2,i%): v(0)=centroid(3,i%): v(1)=0
rotate_vector(vout(),v(),q1())
centroid(0,i%)=vout(2): centroid(1,i%)=vout(3): centroid(2,i%)=vout(4): centroid(3,i%)=vout(0)
csort(i%)=vout(4)
sortorder%(i%)=i%
next i%
'
floatindexsort(csort(),sortorder%(),6) 'sort the faces in the order of the depth
'
for i%=0 to 5 'project the coordinates onto the viewplane
j%=sortorder%(i%)*2 'get the furthest, as yet undisplayed, face from the viewer
k%=i%*2
z1=cube(2,cubetriangles%(0,j%))*cube(3,cubetriangles%(0,j%))+cubelocation(2)
x1=(cube(0,cubetriangles%(0,j%))*cube(3,cubetriangles%(0,j%))*viewplane/z1 +cubelocation(0))
y1=(cube(1,cubetriangles%(0,j%))*cube(3,cubetriangles%(0,j%))*viewplane/z1 +cubelocation(1))
z2=cube(2,cubetriangles%(1,j%))*cube(3,cubetriangles%(1,j%))+cubelocation(2)
x2=(cube(0,cubetriangles%(1,j%))*cube(3,cubetriangles%(1,j%))*viewplane/z2 +cubelocation(0))
y2=(cube(1,cubetriangles%(1,j%))*cube(3,cubetriangles%(1,j%))*viewplane/z2 +cubelocation(1))
z3=cube(2,cubetriangles%(2,j%))*cube(3,cubetriangles%(2,j%))+cubelocation(2)
x3=(cube(0,cubetriangles%(2,j%))*cube(3,cubetriangles%(2,j%))*viewplane/z3 +cubelocation(0))
y3=(cube(1,cubetriangles%(2,j%))*cube(3,cubetriangles%(2,j%))*viewplane/z3 +cubelocation(1))
xx0(k%)=x1 :yy0(k%)=y1: xx1(k%)=x2 :yy1(k%)=y2: xx2(k%)=x3 :yy2(k%)=y3 :scol(k%)=tcol(j%\2)
k%=k%+1
z1=cube(2,cubetriangles%(0,j%+1))*cube(3,cubetriangles%(0,j%+1))+cubelocation(2)
x1=(cube(0,cubetriangles%(0,j%+1))*cube(3,cubetriangles%(0,j%+1))*viewplane/z1 +cubelocation(0))
y1=(cube(1,cubetriangles%(0,j%+1))*cube(3,cubetriangles%(0,j%+1))*viewplane/z1 +cubelocation(1))
z2=cube(2,cubetriangles%(1,j%+1))*cube(3,cubetriangles%(1,j%+1))+cubelocation(2)
x2=(cube(0,cubetriangles%(1,j%+1))*cube(3,cubetriangles%(1,j%+1))*viewplane/z2 +cubelocation(0))
y2=(cube(1,cubetriangles%(1,j%+1))*cube(3,cubetriangles%(1,j%+1))*viewplane/z2 +cubelocation(1))
z3=cube(2,cubetriangles%(2,j%+1))*cube(3,cubetriangles%(2,j%+1))+cubelocation(2)
x3=(cube(0,cubetriangles%(2,j%+1))*cube(3,cubetriangles%(2,j%+1))*viewplane/z3 +cubelocation(0))
y3=(cube(1,cubetriangles%(2,j%+1))*cube(3,cubetriangles%(2,j%+1))*viewplane/z3 +cubelocation(1))
xx0(k%)=x1 :yy0(k%)=y1: xx1(k%)=x2 :yy1(k%)=y2: xx2(k%)=x3 :yy2(k%)=y3 :scol(k%)=tcol(j%\2)
next i%
cls
triangles(12,xx0(),yy0(),xx1(),yy1(),xx2(),yy2(),scol(),100000)
pause 1000
loop
end

'
sub create_normalised_quaternion(theta,x,y,z,q())
local radians = theta/180.0*M_PI
local sineterm= sin(radians!/2)
q(1)=cos(radians/2)
q(2)=x* sineterm
q(3)=y* sineterm
q(4)=z* sineterm
q(0)=sqr(q!(1)*q(1) + q(2)*q(2) + q(3)*q(3) + q(4)*q(4)) 'calculate the magnitude
q(1)=q(1)/q(0) 'create a normalised quaternion
q(2)=q(2)/q(0)
q(3)=q(3)/q(0)
q(4)=q(4)/q(0)
q(0)=1
end sub
'
sub invert_quaternion(n(),q())
n(0)=q(0)
n(1)=q(1)
n(2)=-q(2)
n(3)=-q(3)
n(4)=-q(4)
end sub
'
sub multiply_quaternion(n(),q1(),q2())
local a1=q1(1),a2=q2(1),b1=q1(2),b2=q2(2),c1=q1(3),c2=q2(3),d1=q1(4),d2=q2(4)
n(1)=a1*a2-b1*b2-c1*c2-d1*d2
n(2)=a1*b2+b1*a2+c1*d2-d1*c2
n(3)=a1*c2-b1*d2+c1*a2+d1*b2
n(4)=a1*d2+b1*c2-c1*b2+d1*a2
n(0)=q1(0)*q2(0)
end sub
'
sub create_vector(x,y,z,v())
v(0)=sqr(x*x + y*y + z*z)
v(1)=0
v(2)=x/v(0)
v(3)=y/v(0)
v(4)=z/v(0)
end sub

sub rotate_vector(vnew(),v(),q())
local n(4),iq(4)
multiply_quaternion(n(),q(),v())
invert_quaternion(iq(),q())
multiply_quaternion(vnew(),n(),iq())
end sub
