bigmik said
@CG,

Great Idea, I think we can create some nice little cards with some simple reference material for beginners (like me) but there are a heap of standard electronic things like these cards we could use as well. Some ideas I propose.

Simple Transistor NPN switch (and Fet equiv)
Simple Transistor PNP switch (and Fet equiv)
Capacitor laws (parallel/series)
Kirchoffs law
Ohms law

I already did a memorable resistor color code chart. :)

http://circuitgizmos.com/wp-content/uploads/2016/03/GizmoInfo.pdf

http://circuitgizmos.com/documentation/tools-tips-and-tricks/printable-note-cards/

More to come...

Micromites and Maximites! - Beginning Maximite

vasi

Guru

Joined: 23/03/2007
Location: Romania
Posts: 1697

Posted: 11:41am 21 Mar 2016

Copy link to clipboard

Print this post

Couple of pages unreadable under Linux, probably a Mars imported font...

Hobbit name: Togo Toadfoot of Frogmorton
Elvish name: Mablung Miriel
Beyound Arduino Lang

CircuitGizmos

Guru

Joined: 08/09/2011
Location: United States
Posts: 1427

Posted: 12:54pm 21 Mar 2016

Copy link to clipboard

Print this post

vasi said Couple of pages unreadable under Linux, probably a Mars imported font...

Thanks for letting me know. Not sure that I can directly fix that.

Cards are available as images on CG website.

Micromites and Maximites! - Beginning Maximite

WhiteWizzard
Guru

Joined: 05/04/2013
Location: United Kingdom
Posts: 2959

Posted: 08:22pm 21 Mar 2016

Copy link to clipboard

Print this post

@CircuitGizmos

Any reason why you left out the 30%, 40% and 50% resistor tolerances?

A couple of useful cards there for me - a good reason to buy some more colour ink!

Thanks for posting these

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2971

Posted: 08:33pm 21 Mar 2016

Copy link to clipboard

Print this post

Yes,

Thank you ROB, there are some good ones, I generally can read a resistor's value by memory of the codes but I find myself looking constantly at your "Mammary-able colour code chart" Just to make sure..

A suggestion or two, in the micromite pinouts use another colour for the 5V tolerant pins with a reference at the bottom and remove 5V from the descriptions of the pins.. I feel it will show more clarity and stop somebody ,"maybe" connecting 5V (power) directly to these pins..

The resistor values chart, I do not understand the reference to 10% and 20% as these are also 5 percent values, maybe call the tables E12 etc. The % is covered by the last colour ring.

Great effort... I was going to post the ascii chart but yours is better than what I could do..

Regards,

Mick

Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

CircuitGizmos

Guru

Joined: 08/09/2011
Location: United States
Posts: 1427

Posted: 04:38am 22 Mar 2016

Copy link to clipboard

Print this post

Thanks, WhiteWizard!

bigmik said
A suggestion or two, in the micromite pinouts use another colour for the 5V tolerant pins with a reference at the bottom and remove 5V from the descriptions of the pins.. I feel it will show more clarity and stop somebody ,"maybe" connecting 5V (power) directly to these pins..

Good thinking. I changed to italic.

bigmik said
The resistor values chart, I do not understand the reference to 10% and 20% as these are also 5 percent values, maybe call the tables E12 etc. The % is covered by the last colour ring.

E12 is right, but calling it by that name isn't clear for a newbie. Nevertheless, if you want a "collection" of 6, 12, or 24 resistors (per decade), the simple chart helps.

vasi said Couple of pages unreadable under Linux, probably a Mars imported font...

Vasi: Let me know if the new pdf fixes this problem.

Added and updated:
http://circuitgizmos.com/documentation/tools-tips-and-tricks/printable-note-cards/

http://circuitgizmos.com/wp-content/uploads/2016/03/GizmoInfo-1.pdf

Edited by CircuitGizmos 2016-03-23

Micromites and Maximites! - Beginning Maximite

Lightrock
Newbie

Joined: 19/05/2014
Location: Australia
Posts: 26

Posted: 01:33am 23 Mar 2016

Copy link to clipboard

Print this post

@CircuitGizmos

The new GizmoInfo cards are great as is your much earlier classic MM Basic Manual.

Can you confirm pin 30 is used as Card Detect on your CGMICROBOARD2. I have been able to write and read back to the micro SD card with pin 30 both in and out of the SD Card configuration.

CircuitGizmos

Guru

Joined: 08/09/2011
Location: United States
Posts: 1427

Posted: 06:17am 23 Mar 2016

Copy link to clipboard

Print this post

Lightrock said @CircuitGizmos

The new GizmoInfo cards are great as is your much earlier classic MM Basic Manual.

Can you confirm pin 30 is used as Card Detect on your CGMICROBOARD2. I have been able to write and read back to the micro SD card with pin 30 both in and out of the SD Card configuration.

Yes. And that would be a good thing for me to add to the card with the pinout. Thanks!

Micromites and Maximites! - Beginning Maximite

panky

Guru

Joined: 02/10/2012
Location: Australia
Posts: 1116

Posted: 02:46pm 23 Mar 2016

Copy link to clipboard

Print this post

@Circuit Gizmos

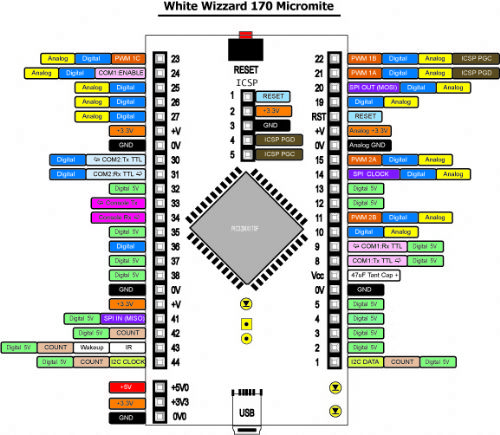

The attached diagram of WW's little 170 board was created for my own use but if you can use it, please do so. I have a vector .pdf if you need to scale or alter.

I am also working on your microkit and microboard boards and Zonkers DIP-600-28 and also Grogsters Explore 64 in the same format and will forward when complete.

Cheers,
Doug.

... almost all of the Maximites, the MicromMites, the MM Extremes, the ArmMites, the PicoMite and loving it!

CircuitGizmos

Guru

Joined: 08/09/2011
Location: United States
Posts: 1427

Posted: 12:17pm 24 Mar 2016

Copy link to clipboard

Print this post

Panky - yeah, I'll need a better resolution for that.

Micromites and Maximites! - Beginning Maximite

Chris Roper
Senior Member

Joined: 19/05/2015
Location: South Africa
Posts: 280

Posted: 03:50am 01 Apr 2016

Copy link to clipboard

Print this post

Here is a very extensive Reference source fom TI.com

Analog Engineer�s Pocket Reference

It is a free PDF book.

Cheers
Chris

http://caroper.blogspot.com/

Frank N. Furter
Guru

Joined: 28/05/2012
Location: Germany
Posts: 979

Posted: 09:41am 01 Apr 2016

Copy link to clipboard

Print this post

Hi Chris,

many thanks for this useful link!

Frank

brucepython

Regular Member

Joined: 19/06/2011
Location: Australia
Posts: 64

Posted: 10:29am 01 Apr 2016

Copy link to clipboard

Print this post

Thanks Doug for sharing your 170 diagram. I've made a few attempts at keeping all those details under control in my creaking brain, but your design really works. Great stuff!

Bruce

Lightrock
Newbie

Joined: 19/05/2014
Location: Australia
Posts: 26

Posted: 02:53am 13 Apr 2016

Copy link to clipboard

Print this post

Latest email from Altronics has a link http://www.altronics.com.au/technicaldata/ to two new double sided A3 size data sheets on Arduino and the other on Electronics.
