YAWD = Yet Another weather Display

My new weather display this time using an Explorer 64 PCB and Matherp's new
ILI9341 enhanced driver.

The weather information is from the forecast.io webservice they allow a huge 1000 requests per day. The data arrives as a rather larger Json file.
Taking a lead from Addafruit (and their PHP scrips) i am using a webserver to download and parse the Json file doing it this way makes sorting and display the data really easy (you can use any web server that supports PHP most do). The internal data is from a modified Sonoff device that controls my Aircon (topic for another post) this uploads the data to the thingspeak website and the thing.php script downloads the Json file. As my PHP skills are non existant the PHP is not the best but it does the job quite well. Matherp's new ILI9341 driver works a treat and is the main reason for this update. Now we have a bmp background with the text overlayed. Included in the attached zip is the Basic,PHP,Icons and background

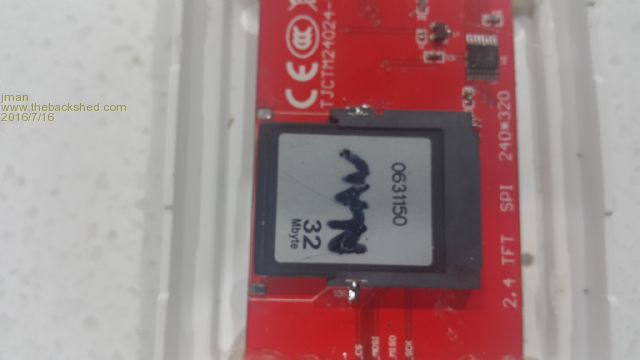

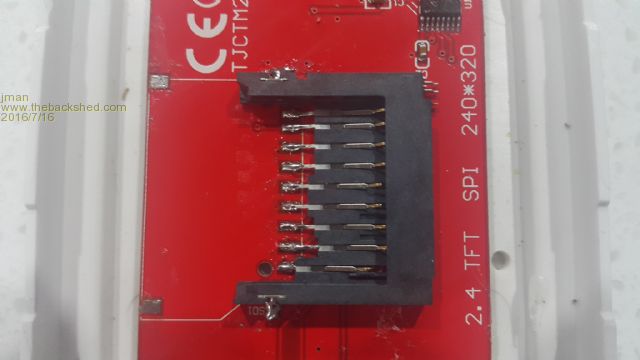

I changed the SD Card holder on the back of the LCD to allow me to plug
a SD card in that did not stick out the side as this did not allow mounting
in the wall plate.

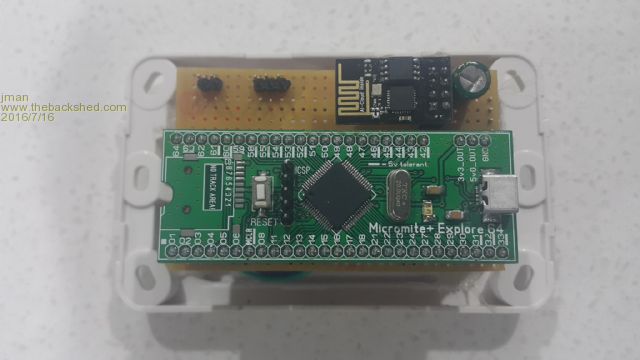

Internals

A video of the device in use
WeatherDisplay Video

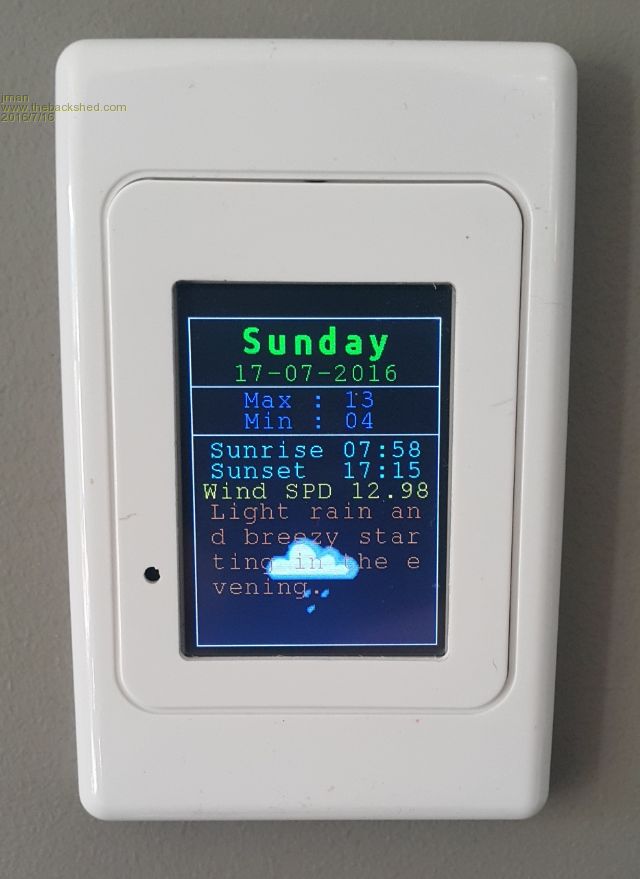

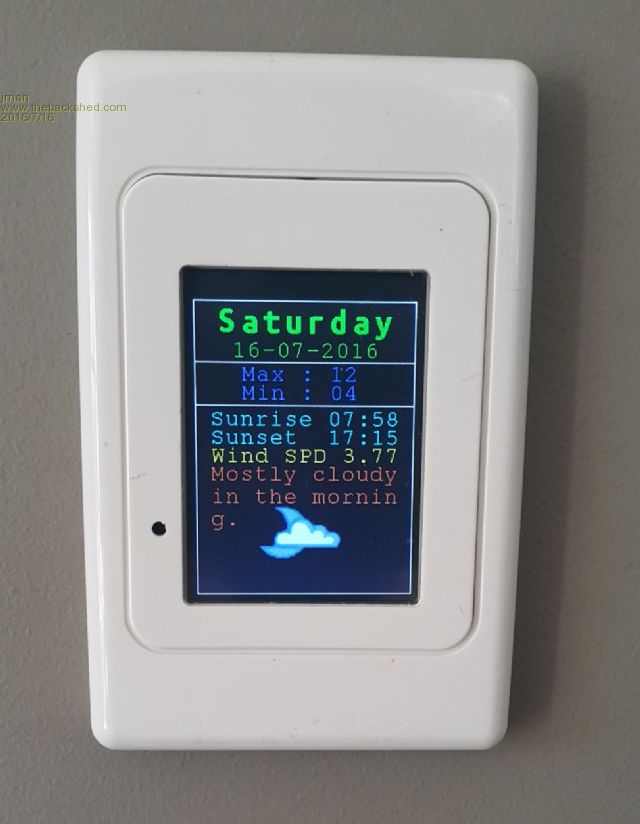

A few pics of the unit working

2016-07-16_021648_WeatherDisplay.zip

Regards
JmanEdited by jman 2016-07-17

Zonker

Guru

Joined: 18/08/2012
Location: United States
Posts: 767

Posted: 06:44pm 15 Jul 2016

Copy link to clipboard

Print this post

Wow Jman..!! I had no idea that all that could fit int a wall box..!
Nice looking, well planned out display graphics and sections..!!

Awesome project fine Sir..!

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 10216

Posted: 11:16pm 15 Jul 2016

Copy link to clipboard

Print this post

Jman

Please can you provide a link to that SDcard slot. That is a GREAT mod

jman

Guru

Joined: 12/06/2011
Location: New Zealand
Posts: 711

Posted: 12:30am 16 Jul 2016

Copy link to clipboard

Print this post

matherp said Jman

Please can you provide a link to that SDcard slot. That is a GREAT mod

Hi Sure

First link allows single item purchase second link minimum purchase
quantity is 5

Link 1

Link 2

Regards
Jman

OA47

Guru

Joined: 11/04/2012
Location: Australia
Posts: 982

Posted: 12:20pm 16 Jul 2016

Copy link to clipboard

Print this post

Great project Jman, I am very impressed. Can you tell me how you have powered the unit and kept that part concealed?
Graeme

mikeb

Senior Member

Joined: 10/04/2016
Location: Australia
Posts: 174

Posted: 12:37pm 16 Jul 2016

Copy link to clipboard

Print this post

Nice job. Well done !!!

There are 10 kinds of people in the world.
Those that understand binary and those that don't.

jman

Guru

Joined: 12/06/2011
Location: New Zealand
Posts: 711

Posted: 02:25pm 18 Jul 2016

Copy link to clipboard

Print this post

OA47 said Great project Jman, I am very impressed. Can you tell me how you have powered the unit and kept that part concealed?
Graeme

Hi
Luckly for those of us who reside in New Zealand and Australia the mains wiring

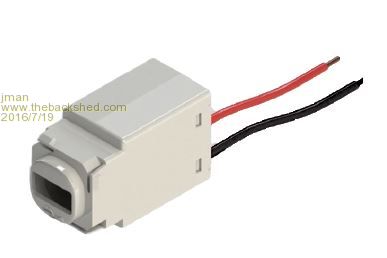

to all light switchs includes both the Live and Netural so i used a USB outlet desgined to be clipped into a switch panel and left it in the wall.
