Forum Index : Microcontroller and PC projects : Easy ESP8266 ESP-01 Breakout

Author Message
Phil23
Guru

Joined: 27/03/2016
Location: Australia
Posts: 1667
Posted: 09:17pm 31 Jul 2016
Copy link to clipboard
Print this post

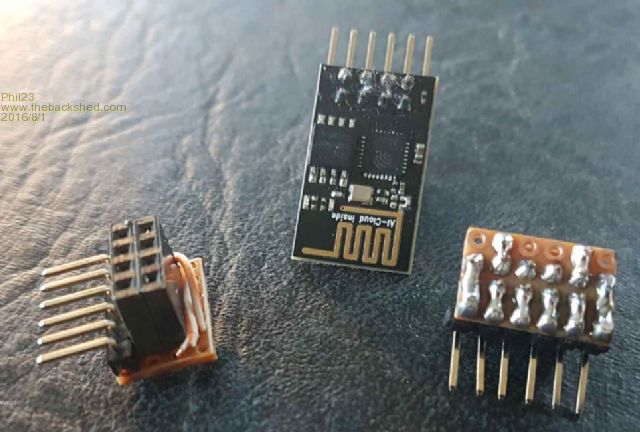

Nothing spectacular & I've seen other ideas, namely 8 pin DIL adaptor,
to make these things more breadboard friendly.

Could do all 8 pins in a similar fashion, & the wire links aren't necessary,
but they put the pins in an order I preferred.

Rx - Tx - CH_PD - Reset - Vcc - Gnd.

The DIL example looked a pain to solder on single sided board, this was a piece of....

Cheers.
