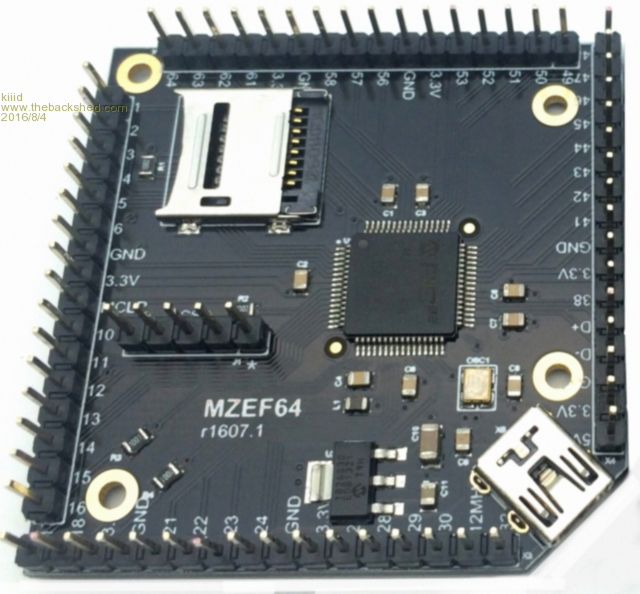

As the porting of MMM (Micromite Mega on the PIC32MZ chip) comes closer to completion now, I wanted to share my little new board with a 64-pin PIC32MZ/EF chip on it. Basically the board is very little more than a holder for the chip plus a few passive components and the oscillator. It copies exactly the pinout of the IC itself, which is very useful during development.
I have no commercial plans for this one yet, at least until the software is done, but in case anyone needs one, let me know.



http://rittle.org

--------------

JohnS
Guru

Joined: 18/11/2011
Location: United Kingdom
Posts: 4036
Posted: 08:06am 04 Aug 2016
Copy link to clipboard
Print this post

Looks great!

(I'd have to use Harmony for now so will wait...)

John

Grogster

Admin Group

Joined: 31/12/2012
Location: New Zealand
Posts: 9590
Posted: 05:17pm 04 Aug 2016
Copy link to clipboard
Print this post

Very clever placement of the USB socket.

Does that 64-pin MZ/EF also use 0.4mm pitch?
It looks larger then that in the photo, but the photo is blown up......
Smoke makes things work. When the smoke gets out, it stops!

kiiid

Guru

Joined: 11/05/2013
Location: United Kingdom
Posts: 671
Posted: 08:07pm 04 Aug 2016
Copy link to clipboard
Print this post

It is a standard 0.5mm pitch TQFP just like MX470. The board is 5x5cm
http://rittle.org

--------------

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2949
Posted: 08:31pm 04 Aug 2016
Copy link to clipboard
Print this post

Hi Kiiid,

Another very well thought out design, I too like the USB on the angle, good lateral thinking.

How does the hardware compare with the MZ and MX chips? Could this board be used with an MX chip to work with the MMBasic for the 64pin 470?

Kind Regards,

Mick
Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

isochronic
Guru

Joined: 21/01/2012
Location: Australia
Posts: 689
Posted: 11:34pm 04 Aug 2016
Copy link to clipboard
Print this post

Looks good .... is it hitting the 200 MHz ? eh caramba ..
