Forum Index : Microcontroller and PC projects : 8 Port MX170 Controller PCB

Author Message
MikeO
Senior Member

Joined: 11/09/2011
Location: Australia
Posts: 275
Posted: 01:41am 25 Jan 2018
Copy link to clipboard
Print this post

I have started a new thread but this should perhaps be read in conjunction with my post Headless MX170 Controller as this PCB sort of morphed out of the previous post/project as one all on its own.

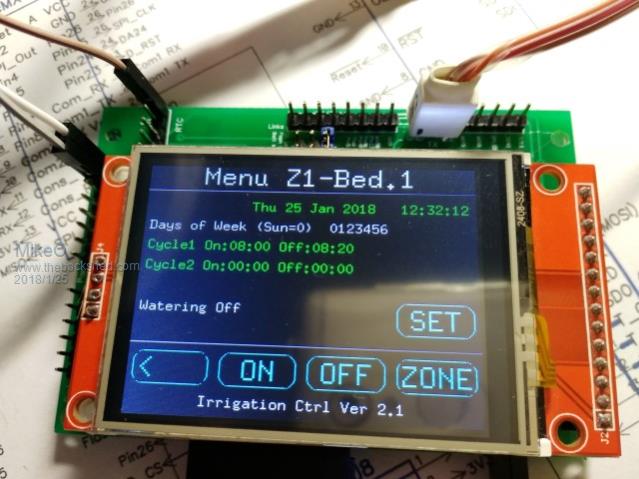

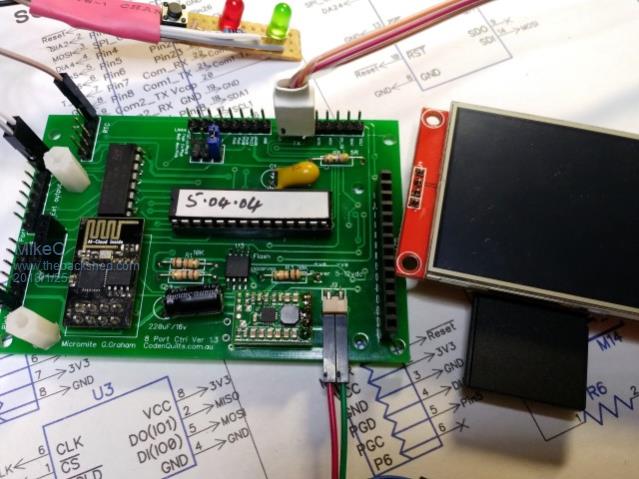

After three iterations the ver 1.3 board is there i think has all the functions and no more circuit errors (I hope). Shown below is the latest PCB fully populated with all functions tested OK.

LCD working with Touch - OK
8 Port Ext with sw - OK
Wi-Fi with sw - OK
Flash Ram (matherp sw)- OK
SD-Card on LCD (matherp sw)- OK
ISCP - OK

Just wanted to acknowledge Geoff for MMbasic and Peter(matherp) extensions they have turned the Micromite into a fantastic hobby and keeping the Grey Cells going!

I do have boards if anyone wants one. PM







Mike

Codenquilts

Zonker

Guru

Joined: 18/08/2012
Location: United States
Posts: 772
Posted: 03:59am 04 Feb 2018
Copy link to clipboard
Print this post

Nice project Mike...!

I love it when members take an idea and go through the design process, think out the GUI user control, firmware, and then layout a PCB to go with...

That's why i love the MM cores... Easy to use, powerful, Touch GUI get's it...

MikeO
Senior Member

Joined: 11/09/2011
Location: Australia
Posts: 275
Posted: 09:16am 22 Feb 2018
Copy link to clipboard
Print this post

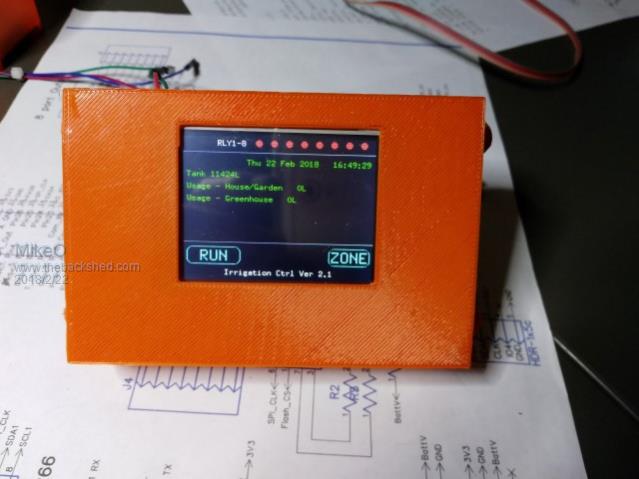

3D printed enclosure for the 8 port controller.

This is designed for the 2.4" LCD display, I don't have one to try but the backpack boards with a 2.4" LCD should also fit OK. The are two versions a plain box and the same thing with Lugs/tabs so that it could be mounted vertically on a panel etc.




3D stl files are on my server under downloads

Mike
