Geoffg

Guru

Joined: 06/06/2011
Location: Australia
Posts: 3308

Posted: 01:40am 21 Jul 2018

Copy link to clipboard

Print this post

I have added two new controls to the Micromite Beta version which can be downloaded from: http://geoffg.net/micromite.html#Downloads

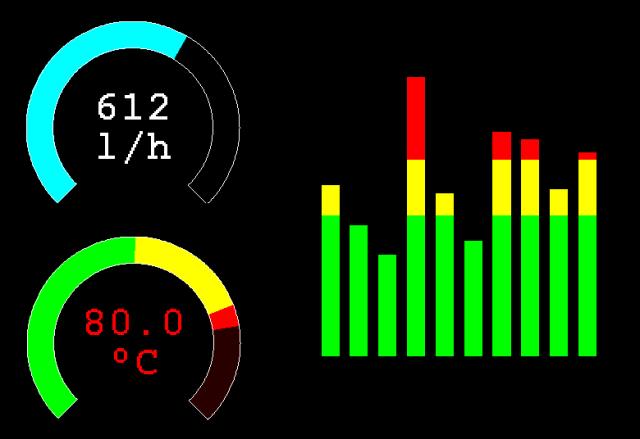

These are colourful analog gauges, the Circular Gauge control will draw a circular gauge with a digital display in the centre showing the value and units. If specified the gauge will be coloured to provide a graphical indication of the signal level (eg, green for OK, yellow for warning, etc).

The Bar Gauge control will draw either a horizontal or vertical analogue bar gauge. Many bar graphs can be packed close together so that a number of values can be displayed simultaneously using a small amount of screen space (as shown in the below image which shows ten bar gauges). Like the Circular Gauge the bars can be coloured to provide a graphical indication of the signal level.

Geoff Graham - http://geoffg.net

OA47

Guru

Joined: 11/04/2012
Location: Australia
Posts: 1013

Posted: 02:24am 21 Jul 2018

Copy link to clipboard

Print this post

Good one Geoff

Looking forward to playing around with these jiggers.

OA47

Bizzie
Senior Member

Joined: 06/07/2014
Location: Australia
Posts: 192

Posted: 02:26am 21 Jul 2018

Copy link to clipboard

Print this post

They look fantastic!!

Can't wait to apply them both.

Thanks Geoff.

Rob White

lew247

Guru

Joined: 23/12/2015
Location: United Kingdom
Posts: 1702

Posted: 01:58pm 21 Jul 2018

Copy link to clipboard

Print this post

That's amazing, I hope it gets ported across to the Picromite

viscomjim
Guru

Joined: 08/01/2014
Location: United States
Posts: 925

Posted: 12:34am 22 Jul 2018

Copy link to clipboard

Print this post

This works with 28 and 44 pinners?

Geoffg

Guru

Joined: 06/06/2011
Location: Australia
Posts: 3308

Posted: 01:28am 22 Jul 2018

Copy link to clipboard

Print this post

No, the Micromite Plus, the 28 and 44 pin Micromites don't have the flash memory for the advanced controls.

Sorry, I should have made that plain in my post.

Geoff Graham - http://geoffg.net

Geoffg

Guru

Joined: 06/06/2011
Location: Australia
Posts: 3308

Posted: 07:20am 05 Aug 2018

Copy link to clipboard

Print this post

Just a quick "heads up". I have updated the beta version to Ver 5.04.10 Beta 5. This fixes the PWM gaps issue reported separately plus a couple of other minor issues.

It can be downloaded from: http://geoffg.net/micromite.html#Downloads

Geoff Graham - http://geoffg.net
