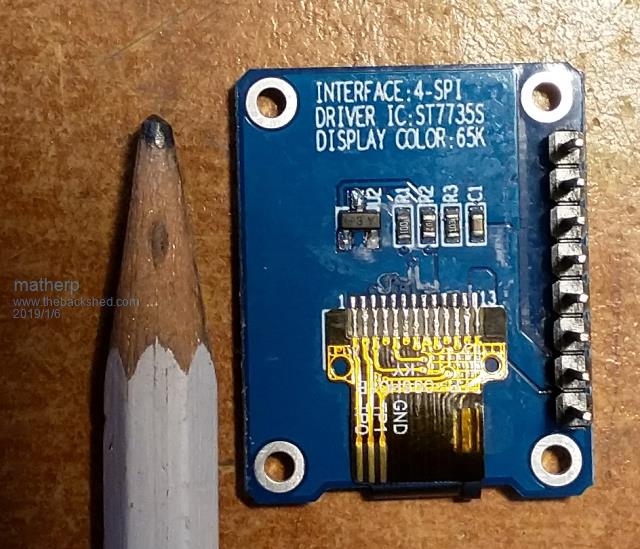

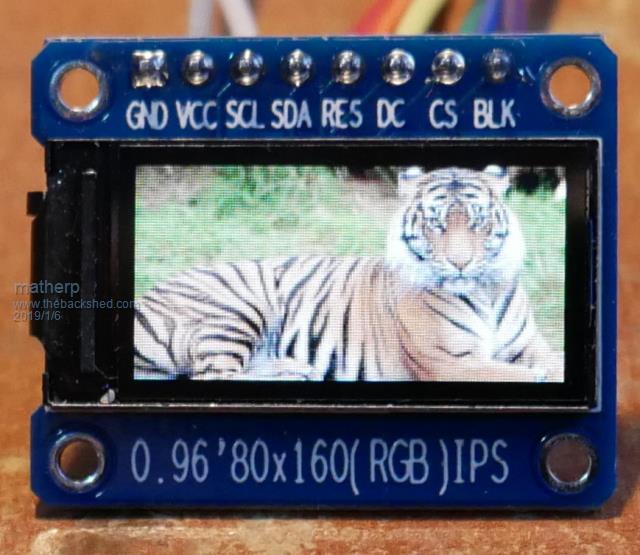

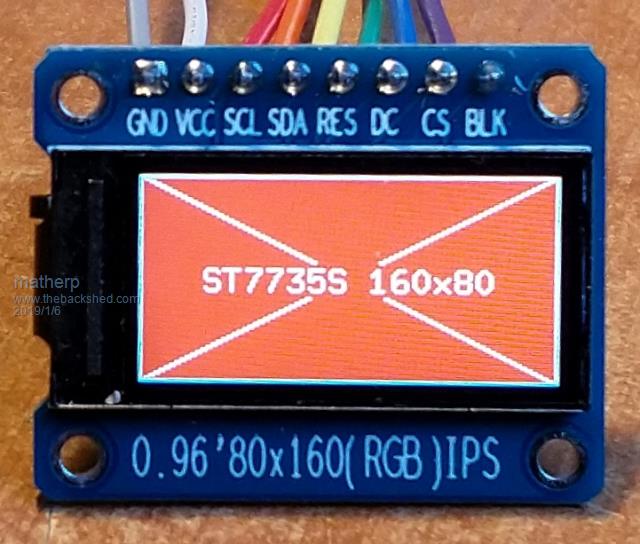

| matherp Guru  Joined: 11/12/2012 Location: United KingdomPosts: 10572 |
Just £2.81!   I've been looking for small low power displays for the Armmite L4 and came across this. Ideal for adding a "small" (pencil for scale) touch of colour rather than the SSD1306 etc.  Loadable drivers for the MM2 and MM+ below. MM+ supports image load. MM2 Sub mm.startup Dim integer right=23, up=15, down=6 ' Left and push are reserved pins on Mircomite HAT stand for MM2 Dim integer key1=26,key2=24, key3=7 ST7735S 2,16,9, 1 'DCpin, RESETpin, CSpin, orientation (1-4) End Sub ' CSub ST7735S 0000022A 'spi_write_data 27BDFFE0 AFBF001C AFB10018 AFB00014 309100FF 3C109D00 8E030090 8E02001C 8064002C 0040F809 24050006 8E030090 8E02001C 8064002D 0040F809 24050005 3C02BF80 AC515820 3C03BF80 8C625810 30420080 1040FFFD 3C02BF80 8C425820 3C029D00 8C430090 8C42001C 8064002D 0040F809 24050006 8FBF001C 8FB10018 8FB00014 03E00008 27BD0020 'spi_write_command 27BDFFE0 AFBF001C AFB10018 AFB00014 309100FF 3C109D00 8E030090 8E02001C 8064002C 0040F809 24050005 8E030090 8E02001C 8064002D 0040F809 24050005 3C02BF80 AC515820 3C03BF80 8C625810 30420080 1040FFFD 3C02BF80 8C425820 3C029D00 8C430090 8C42001C 8064002D 0040F809 24050006 8FBF001C 8FB10018 8FB00014 03E00008 27BD0020 'spi_write_cd 27BDFFD8 AFBF0024 AFB10020 AFB0001C AFA60030 AFA70034 00A08821 27A20030 AFA20010 308400FF 0411FFD2 00000000 1A20000A 00008021 8FA20010 24430004 AFA30010 90440000 0411FFA7 00000000 26100001 1611FFF9 8FA20010 8FBF0024 8FB10020 8FB0001C 03E00008 27BD0028 'DefineRegion 27BDFFD8 AFBF0024 AFB10020 AFB0001C 3C029D00 8C420090 90420015 30420001 10400006 00E08821 24B0001A 24F1001A 24870001 10000005 24C60001 2487001A 24C6001A 24B00001 26310001 00061203 AFA20010 AFA60014 2404002A 24050004 00073203 0411FFCA 00000000 00111203 AFA20010 AFB10014 2404002B 24050004 00103203 02003821 0411FFC1 00000000 2404002C 0411FF9B 00000000 8FBF0024 8FB10020 8FB0001C 03E00008 27BD0028 'DrawBitmapSPI 27BDFFB8 AFBF0044 AFBE0040 AFB7003C AFB60038 AFB50034 AFB40030 AFB3002C AFB20028 AFB10024 AFB00020 0080B021 00A0F021 00C0A021 AFA70054 8FA4005C 8FA30060 3C029D00 8C420094 8C420000 02C2102B 104000C3 8FB50064 3C029D00 8C420098 8C420000 00A2102B 104000BD 8FA20058 70462802 00B63021 04C000B9 70471002 005E2821 04A000B6 00003821 2BC50000 03C5380A 00E02821 3C07BF80 8CE85830 AFA80010 8CE85800 AFA80014 8CE85840 AFA80018 ACE05800 3C080001 35088260 ACE85800 ACE05830 24080C00 ACE85840 7C901340 00043C03 2408FFF8 00E83824 02078025 321000FF 7C9120C0 00042143 2407FFE0 00872024 02248825 323100FF 7C721340 00032403 00884024 02489025 325200FF 7C7320C0 00031943 00673824 02679825 327300FF 24A7FFFF 02C02021 24C6FFFF 00E23821 0411FF84 00000000 3C179D00 8EE30090 8EE2001C 8064002C 0040F809 24050006 8EE30090 8EE2001C 8064002D 0040F809 24050005 0014C823 8FA20054 70547802 25EFFFFF 0280B821 00005821 0000C021 8FAD0058 3C069D00 240C0001 1000004D 3C02BF80 27DE0001 27C3FFFF 04600044 00000000 8CC30098 8C630000 007E182B 1460006A 8FBF0044 1E80002D 01E04821 1000003B 00000000 24630001 2464FFFF 04800020 00000000 8CC40094 8C840000 0083202B 1480001B 00000000 91040000 00872024 1080000D 00000000 8C445810 30840002 1480FFFD 00000000 AC505820 8C445810 30840002 1480FFFD 00000000 AC515820 1000000B 00000000 8C445810 30840002 1480FFFD 00000000 AC525820 8C445810 30840002 1480FFFD 00000000 AC535820 5465FFDD 24630001 254A0001 15540005 2529FFFF 10000011 00000000 02C01821 00005021 014B2021 24850007 28880000 00A8200B 000440C3 02A84021 000927C3 00042742 01243821 30E70007 00E43823 00EC3804 1000FFC7 006D2821 57CEFFB9 27DE0001 27180001 01F97821 01775821 8FA40054 0304182A 10600005 8FA50058 1CA0FFAF 03C57021 1000FFF7 27180001 3C02BF80 8C435810 30630080 1060FFFD 00000000 10000002 3C02BF80 8C435820 8C435810 30630020 1060FFFC 00000000 3C02BF80 AC405800 24040040 3C03BF80 AC645814 8FA70010 AC475830 8FA80014 AC485800 8FA30018 AC435840 3C029D00 8C430090 8C42001C 8064002D 0040F809 24050006 8FBF0044 8FBE0040 8FB7003C 8FB60038 8FB50034 8FB40030 8FB3002C 8FB20028 8FB10024 8FB00020 03E00008 27BD0048 'DrawRectangleSPI 27BDFFC0 AFBF003C AFBE0038 AFB70034 AFB60030 AFB5002C AFB40028 AFB30024 AFB20020 AFB1001C AFB00018 8FA30050 3C02BF80 8C575830 8C5E5800 8C485840 AFA80010 AC405800 3C080001 35088260 AC485800 AC405830 24080C00 AC485840 0086102A 14400005 00A7102A 00801021 00C02021 00403021 00A7102A 14400004 28930000 00A01021 00E02821 00403821 0013200B 00809821 3C029D00 8C420094 8C420000 0082402B 2444FFFF 0088980A 28D40000 0014300B 00C0A021 00C2202B 2442FFFF 0044A00A 28B50000 0015280B 00A0A821 3C029D00 8C420098 8C420000 00A2282B 2444FFFF 0085A80A 28F60000 0016380B 00E0B021 00E2202B 2442FFFF 0044B00A 7C711340 00032403 2402FFF8 00821024 02228825 323100FF 7C7020C0 00031943 2402FFE0 00621824 02038025 321000FF 02602021 02A02821 02803021 02C03821 0411FE9D 00000000 3C129D00 8E430090 8E42001C 8064002C 0040F809 24050006 8E430090 8E42001C 8064002D 0040F809 24050005 24020001 00539823 0274A021 00552023 00962021 70942002 1080000E 2484FFFF 3C02BF80 8C435810 30630002 1460FFFD 00000000 AC515820 8C435810 30630002 1460FFFD 00000000 AC505820 1480FFF5 2484FFFF 3C03BF80 8C625810 30420080 1040FFFD 3C02BF80 8C425810 30420020 14400006 3C02BF80 8C435820 8C435810 30630020 1060FFFC 00000000 3C02BF80 AC405800 24040040 3C03BF80 AC645814 AC575830 AC5E5800 8FA30010 AC435840 3C029D00 8C430090 8C42001C 8064002D 0040F809 24050006 8FBF003C 8FBE0038 8FB70034 8FB60030 8FB5002C 8FB40028 8FB30024 8FB20020 8FB1001C 8FB00018 03E00008 27BD0040 'getFPC 27BDFFF8 AFBF0004 00852023 03E42021 ACC40000 8FBF0004 03E00008 27BD0008 'pstring 27BDFFE0 AFBF001C AFB00018 00808021 00002021 3C059D00 24A50884 27A60010 0411FFEF 00000000 8FA40010 3C029D00 8C42002C 0040F809 02042021 8FBF001C 8FB00018 03E00008 27BD0020 'main 27BDFF80 AFBF007C AFBE0078 AFB70074 AFB60070 AFB5006C AFB40068 AFB30064 AFB20060 AFB1005C AFB00058 00809021 00A08821 00C09821 00E08021 00002021 3C059D00 24A508FC 27A60048 0411FFD1 00000000 3C029D00 8C430090 8E240000 A064002E 8C430090 8E440000 A064002C 8C430090 8E640000 A064002D 8C430090 8E040000 A0640015 8C430090 92040000 24840002 A0640015 8C420090 80430015 28640005 5480000A 24030014 3C059D00 2463FFFC A0430015 8CA20090 80430015 28640005 5080FFFB 2463FFFC 24030014 A0430014 3C109D00 8E030090 8E020010 8064002E 24050008 0040F809 00003021 8E030090 8E020010 8064002E 24050065 0040F809 00003021 8E030090 8E02001C 8064002E 0040F809 24050006 8E030090 8E020010 8064002C 24050008 0040F809 00003021 8E030090 8E020010 8064002C 24050065 0040F809 00003021 8E030090 8E02001C 8064002C 0040F809 24050006 8E030090 8E020010 8064002D 24050008 0040F809 00003021 8E030090 8E020010 8064002D 24050065 0040F809 00003021 8E030090 8E02001C 8064002D 0040F809 24050006 3C02BF81 8C44F220 7C84D800 3C020661 3442A053 1082000B 24030050 3C02BF81 8C43F220 7C63D800 3C020660 3442A053 00621826 24020050 2404000C 0083100B 00401821 3C029D00 8C420088 00621821 8C640000 24030064 54830008 0000A021 3C03BF80 8C745830 8C645800 AFA40050 8C635840 10000002 AFA30054 AFA00050 3C03BF81 8C65F220 7CA5D800 3C040661 3484A053 10A4000B 24030050 3C03BF81 8C64F220 7C84D800 3C030660 3463A053 00831826 24040050 2405000C 00A3200B 00801821 00621021 8C430000 24020065 1062008E 3C029D00 8C420010 3C03BF81 8C65F220 7CA5D800 3C030661 3463A053 10A3000B 24040014 3C03BF81 8C64F220 7C84D800 3C030660 3463A053 00832026 24030014 24050003 00A4180B 00602021 24050008 0040F809 00003021 3C029D00 8C420010 3C03BF81 8C65F220 7CA5D800 3C030661 3463A053 10A3000B 24040014 3C03BF81 8C64F220 7C84D800 3C030660 3463A053 00832026 24030014 24050003 00A4180B 00602021 24050065 0040F809 00003021 3C029D00 8C420010 3C03BF81 8C65F220 7CA5D800 3C030661 3463A053 10A3000B 24040029 3C03BF81 8C64F220 7C84D800 3C030660 3463A053 00832026 24030029 2405000E 00A4180B 00602021 24050002 0040F809 00003021 3C029D00 8C420010 3C03BF81 8C65F220 7CA5D800 3C030661 3463A053 10A3000B 24040029 3C03BF81 8C64F220 7C84D800 3C030660 3463A053 00832026 24030029 2405000E 00A4180B 00602021 24050065 0040F809 00003021 3C029D00 8C420010 3C03BF81 8C65F220 7CA5D800 3C030661 3463A053 10A3000B 2404000E 3C03BF81 8C64F220 7C84D800 3C030660 3463A053 00832026 2403000E 24050019 00A4180B 00602021 24050008 0040F809 00003021 3C029D00 8C420010 3C03BF81 8C65F220 7CA5D800 3C030661 3463A053 10A3000B 2404000E 3C03BF81 8C64F220 7C84D800 3C030660 3463A053 00832026 2403000E 24050019 00A4180B 00602021 24050065 0040F809 00003021 3C02BF81 8C43FA84 24040001 7C831804 AC43FA84 3C02BF81 8C43FB04 24040003 7C831804 AC43FB04 3C02BF81 8C43FA84 24040001 7C831804 AC43FA84 3C02BF81 8C44FB04 24030003 7C641804 AC44FB04 3C02BF80 34048060 AC445800 AC435830 24030C00 AC435840 16800007 3C109D00 8C545830 8C435800 AFA30050 8C425840 AFA20054 3C109D00 8E030090 8E02001C 8064002E 0040F809 24050006 8E020004 0040F809 24042710 8E030090 8E02001C 8064002E 0040F809 24050005 8E020004 0040F809 24042710 8E030090 8E02001C 8064002E 0040F809 24050006 8E020004 0040F809 24042710 24040011 0411FC9B 00000000 8E020004 3C040007 0040F809 3484A120 2411002D AFB10010 240400B1 24050003 24060001 2407002C 0411FCB2 00000000 AFB10010 240400B2 24050003 24060001 2407002C 0411FCAB 00000000 AFB10010 24130001 AFB30014 2416002C AFB60018 AFB1001C 240400B3 24050006 24060001 2407002C 0411FC9F 00000000 240400B4 24050001 24060007 0411FC9A 00000000 24020084 AFA20010 240400C0 24050003 240600A2 24070002 0411FC92 00000000 240400C1 24050001 240600C5 0411FC8D 00000000 240400C2 24050002 2406000A 00003821 0411FC87 00000000 240400C3 24050002 2406008A 2407002A 0411FC81 00000000 240400C4 24050002 2406008A 240700EE 0411FC7B 00000000 240400C5 24050001 2406000E 0411FC76 00000000 24040021 0411FC50 00000000 2404003A 24050001 24060005 0411FC6E 00000000 AFA00010 2402007F AFA20014 2404002A 24050004 00003021 00003821 0411FC65 00000000 AFA00010 2402009F AFA20014 2404002B 24050004 00003021 00003821 0411FC5C 00000000 24150007 AFB50010 24020012 AFA20014 24170037 AFB70018 24020032 AFA2001C 24120029 AFB20020 AFB10024 24020025 AFA20028 AFB2002C 2402002B AFA20030 24020039 AFA20034 AFA00038 AFB3003C 24020003 AFA20040 241E0010 AFBE0044 240400E0 24050010 24060002 2407001C 0411FC3E 00000000 AFB50010 24020006 AFA20014 2402002E AFA20018 AFB6001C AFB20020 AFB10024 AFA20028 AFA2002C AFB70030 2402003F AFA20034 AFA00038 AFA0003C 24020002 AFA20040 AFBE0044 240400E1 24050010 24060003 2407001D 0411FC26 00000000 24040013 0411FC00 00000000 8E020004 0040F809 24042710 24040029 0411FBFA 00000000 8E020090 80420015 14530007 3C029D00 24040036 24050001 240600A8 0411FC14 00000000 3C029D00 8C420090 80430015 24020002 14620007 3C029D00 24040036 24050001 240600C8 0411FC09 00000000 3C029D00 8C420090 80430015 24020003 14620007 3C029D00 24040036 24050001 24060068 0411FBFE 00000000 3C029D00 8C420090 80430015 24020004 14620007 3C029D00 24040036 24050001 24060008 0411FBF3 00000000 3C029D00 8C420090 90420015 30420001 10400008 3C029D00 8C430098 24040050 AC640000 8C420094 240300A0 10000007 AC430000 8C430094 24040050 AC640000 8C420098 240300A0 AC430000 8FA50048 3C029D00 8C430048 3C049D00 248405CC 00852021 AC640000 8FA50048 8C43004C 3C049D00 24840238 00852021 AC640000 8C430048 8C440094 8C860000 8C420098 8C470000 AFA00010 8C620000 00002021 00002821 24C6FFFF 0040F809 24E7FFFF 3C02BF80 AC545830 8FA40050 AC445800 8FA30054 AC435840 3C049D00 24841258 0411FD8E 00000000 8FBF007C 8FBE0078 8FB70074 8FB60070 8FB5006C 8FB40068 8FB30064 8FB20060 8FB1005C 8FB00058 03E00008 27BD0080 '.rodata 'startup 37375453 20533533 76697264 6C207265 6564616F 000A0D64 End CSub MM+ Sub mm.startup Dim integer right=49,up=52, down=45, PUSH=42, LEFT=23 Dim integer key1=58, key2=8, key3=46 ST7735S 64,16,62, 1 'DCpin, RESETpin, CSpin, orientation (1-4) End Sub CSub ST7735S 000002E3 'spi_write_data 27BDFFE0 AFBF001C AFB10018 AFB00014 309100FF 3C109D00 8E030090 8E02001C 8064002C 0040F809 24050006 8E030090 8E02001C 8064002D 0040F809 24050005 3C02BF80 AC515A20 3C03BF80 8C625A10 30420080 1040FFFD 3C02BF80 8C425A20 3C029D00 8C430090 8C42001C 8064002D 0040F809 24050006 8FBF001C 8FB10018 8FB00014 03E00008 27BD0020 'spi_write_command 27BDFFE0 AFBF001C AFB10018 AFB00014 309100FF 3C109D00 8E030090 8E02001C 8064002C 0040F809 24050005 8E030090 8E02001C 8064002D 0040F809 24050005 3C02BF80 AC515A20 3C03BF80 8C625A10 30420080 1040FFFD 3C02BF80 8C425A20 3C029D00 8C430090 8C42001C 8064002D 0040F809 24050006 8FBF001C 8FB10018 8FB00014 03E00008 27BD0020 'spi_write_cd 27BDFFD8 AFBF0024 AFB10020 AFB0001C AFA60030 AFA70034 00A08821 27A20030 AFA20010 308400FF 0411FFD2 00000000 1A20000A 00008021 8FA20010 24430004 AFA30010 90440000 0411FFA7 00000000 26100001 1611FFF9 8FA20010 8FBF0024 8FB10020 8FB0001C 03E00008 27BD0028 'DefineRegion 27BDFFD8 AFBF0024 AFB10020 AFB0001C 3C029D00 8C420090 90420015 30420001 10400006 00E08821 24B0001A 24F1001A 24870001 10000005 24C60001 2487001A 24C6001A 24B00001 26310001 00061203 AFA20010 AFA60014 2404002A 24050004 00073203 0411FFCA 00000000 00111203 AFA20010 AFB10014 2404002B 24050004 00103203 02003821 0411FFC1 00000000 2404002C 0411FF9B 00000000 8FBF0024 8FB10020 8FB0001C 03E00008 27BD0028 'DrawBitmapSPI 27BDFFB8 AFBF0044 AFBE0040 AFB7003C AFB60038 AFB50034 AFB40030 AFB3002C AFB20028 AFB10024 AFB00020 0080B021 00A0F021 00C0A021 AFA70054 8FA4005C 8FA30060 3C029D00 8C420094 8C420000 02C2102B 104000C3 8FB50064 3C029D00 8C420098 8C420000 00A2102B 104000BD 8FA20058 70462802 00B63021 04C000B9 70471002 005E2821 04A000B6 00003821 2BC50000 03C5380A 00E02821 3C07BF80 8CE85A30 AFA80010 8CE85A00 AFA80014 8CE85A40 AFA80018 ACE05A00 3C080001 35088260 ACE85A00 ACE05A30 24080C00 ACE85A40 7C901340 00043C03 2408FFF8 00E83824 02078025 321000FF 7C9120C0 00042143 2407FFE0 00872024 02248825 323100FF 7C721340 00032403 00884024 02489025 325200FF 7C7320C0 00031943 00673824 02679825 327300FF 24A7FFFF 02C02021 24C6FFFF 00E23821 0411FF84 00000000 3C179D00 8EE30090 8EE2001C 8064002C 0040F809 24050006 8EE30090 8EE2001C 8064002D 0040F809 24050005 0014C823 8FA20054 70547802 25EFFFFF 0280B821 00005821 0000C021 8FAD0058 3C069D00 240C0001 1000004D 3C02BF80 27DE0001 27C3FFFF 04600044 00000000 8CC30098 8C630000 007E182B 1460006A 8FBF0044 1E80002D 01E04821 1000003B 00000000 24630001 2464FFFF 04800020 00000000 8CC40094 8C840000 0083202B 1480001B 00000000 91040000 00872024 1080000D 00000000 8C445A10 30840002 1480FFFD 00000000 AC505A20 8C445A10 30840002 1480FFFD 00000000 AC515A20 1000000B 00000000 8C445A10 30840002 1480FFFD 00000000 AC525A20 8C445A10 30840002 1480FFFD 00000000 AC535A20 5465FFDD 24630001 254A0001 15540005 2529FFFF 10000011 00000000 02C01821 00005021 014B2021 24850007 28880000 00A8200B 000440C3 02A84021 000927C3 00042742 01243821 30E70007 00E43823 00EC3804 1000FFC7 006D2821 57CEFFB9 27DE0001 27180001 01F97821 01775821 8FA40054 0304182A 10600005 8FA50058 1CA0FFAF 03C57021 1000FFF7 27180001 3C02BF80 8C435A10 30630080 1060FFFD 00000000 10000002 3C02BF80 8C435A20 8C435A10 30630020 1060FFFC 00000000 3C02BF80 AC405A00 24040040 3C03BF80 AC645A14 8FA70010 AC475A30 8FA80014 AC485A00 8FA30018 AC435A40 3C029D00 8C430090 8C42001C 8064002D 0040F809 24050006 8FBF0044 8FBE0040 8FB7003C 8FB60038 8FB50034 8FB40030 8FB3002C 8FB20028 8FB10024 8FB00020 03E00008 27BD0048 'DrawRectangleSPI 27BDFFC0 AFBF003C AFBE0038 AFB70034 AFB60030 AFB5002C AFB40028 AFB30024 AFB20020 AFB1001C AFB00018 8FA30050 3C02BF80 8C575A30 8C5E5A00 8C485A40 AFA80010 AC405A00 3C080001 35088260 AC485A00 AC405A30 24080C00 AC485A40 0086102A 14400005 00A7102A 00801021 00C02021 00403021 00A7102A 14400004 28930000 00A01021 00E02821 00403821 0013200B 00809821 3C029D00 8C420094 8C420000 0082402B 2444FFFF 0088980A 28D40000 0014300B 00C0A021 00C2202B 2442FFFF 0044A00A 28B50000 0015280B 00A0A821 3C029D00 8C420098 8C420000 00A2282B 2444FFFF 0085A80A 28F60000 0016380B 00E0B021 00E2202B 2442FFFF 0044B00A 7C711340 00032403 2402FFF8 00821024 02228825 323100FF 7C7020C0 00031943 2402FFE0 00621824 02038025 321000FF 02602021 02A02821 02803021 02C03821 0411FE9D 00000000 3C129D00 8E430090 8E42001C 8064002C 0040F809 24050006 8E430090 8E42001C 8064002D 0040F809 24050005 24020001 00539823 0274A021 00552023 00962021 70942002 1080000E 2484FFFF 3C02BF80 8C435A10 30630002 1460FFFD 00000000 AC515A20 8C435A10 30630002 1460FFFD 00000000 AC505A20 1480FFF5 2484FFFF 3C03BF80 8C625A10 30420080 1040FFFD 3C02BF80 8C425A10 30420020 14400006 3C02BF80 8C435A20 8C435A10 30630020 1060FFFC 00000000 3C02BF80 AC405A00 24040040 3C03BF80 AC645A14 AC575A30 AC5E5A00 8FA30010 AC435A40 3C029D00 8C430090 8C42001C 8064002D 0040F809 24050006 8FBF003C 8FBE0038 8FB70034 8FB60030 8FB5002C 8FB40028 8FB30024 8FB20020 8FB1001C 8FB00018 03E00008 27BD0040 'DrawBufferSPI 27BDFFC0 AFBF003C AFBE0038 AFB70034 AFB60030 AFB5002C AFB40028 AFB30024 AFB20020 AFB1001C AFB00018 8FB10050 3C03BF80 8C775A30 8C7E5A00 8C625A40 AFA20010 AC605A00 3C020001 34428260 AC625A00 AC605A30 24020C00 AC625A40 0086102A 50400004 00809021 00C09021 10000002 0080A021 00C0A021 00A7102A 50400004 00A09821 00E09821 10000002 00A0B021 00E0B021 2A820000 0002200B 3C029D00 8C420094 8C430000 0283682B 246CFFFF 2A480000 0008300B 00C04021 0243482B 01803021 2AC20000 0002280B 3C029D00 8C420098 8C430000 02C3582B 246AFFFF 2A620000 0002380B 00E01021 0263382B 018D200A 014B280A 0109300B 0147100A 00403821 0411FE10 00000000 3C159D00 8EA30090 8EA2001C 8064002C 0040F809 24050006 8EA30090 8EA2001C 8064002D 0040F809 24050005 0276102A 10400038 0254482A 1000003E 3C03BF80 0440002A 00608821 8CC50094 8CA50000 0045282B 50A00026 24420001 06C20024 24420001 8CC50098 8CA50000 02C5282B 50A0001F 24420001 9065FFFD 7CB03804 9065FFFE 7CB07A04 9065FFFF 7CB0BC04 00608821 7E051340 00105C02 01685824 00AB5825 316B00FF 7E0520C0 00105142 01475024 00AA5025 314A00FF 8C855A10 30A50002 14A0FFFD 00000000 AC8B5A20 8C855A10 30A50002 14A0FFFD 00000000 AC8A5A20 10000002 24420001 24420001 0242282A 10A0FFD2 24630003 26D60001 0276102A 10400007 3C03BF80 10000009 00000000 3C069D00 2408FFF8 2407FFE0 3C04BF80 1520FFF5 02801021 1000FFC4 26230003 8C625A10 30420080 1040FFFD 3C02BF80 8C425A10 30420020 14400006 3C02BF80 8C435A20 8C435A10 30630020 1060FFFC 00000000 3C02BF80 AC405A00 24040040 3C03BF80 AC645A14 AC575A30 AC5E5A00 8FA30010 AC435A40 3C029D00 8C430090 8C42001C 8064002D 0040F809 24050006 8FBF003C 8FBE0038 8FB70034 8FB60030 8FB5002C 8FB40028 8FB30024 8FB20020 8FB1001C 8FB00018 03E00008 27BD0040 'getFPC 27BDFFF8 AFBF0004 00852023 03E42021 ACC40000 8FBF0004 03E00008 27BD0008 'pstring 27BDFFE0 AFBF001C AFB00018 00808021 00002021 3C059D00 24A50B68 27A60010 0411FFEF 00000000 8FA40010 3C029D00 8C42002C 0040F809 02042021 8FBF001C 8FB00018 03E00008 27BD0020 'main 27BDFF80 AFBF007C AFBE0078 AFB70074 AFB60070 AFB5006C AFB40068 AFB30064 AFB20060 AFB1005C AFB00058 00809021 00A08821 00C09821 00E08021 00002021 3C059D00 24A50BE0 27A60048 0411FFD1 00000000 3C029D00 8C430090 8E240000 A064002E 8C430090 8E440000 A064002C 8C430090 8E640000 A064002D 8C430090 8E040000 A0640015 8C430090 92040000 24840002 A0640015 8C420090 80430015 28640005 5480000A 24030014 3C059D00 2463FFFC A0430015 8CA20090 80430015 28640005 1080FFFB 2463FFFC 24030014 A0430014 3C109D00 8E030090 8E020010 8064002E 24050008 0040F809 00003021 8E030090 8E020010 8064002E 24050065 0040F809 00003021 8E030090 8E02001C 8064002E 0040F809 24050006 8E030090 8E020010 8064002C 24050008 0040F809 00003021 8E030090 8E020010 8064002C 24050065 0040F809 00003021 8E030090 8E02001C 8064002C 0040F809 24050006 8E030090 8E020010 8064002D 24050008 0040F809 00003021 8E030090 8E020010 8064002D 24050065 0040F809 00003021 8E030090 8E02001C 8064002D 0040F809 24050006 3C02BF81 8C43F220 7C63D800 3C020580 3442B053 00621826 24020030 24040014 0083100B 00401821 3C029D00 8C420088 00621821 8C640000 24030064 54830008 0000A021 3C03BF80 8C745A30 8C645A00 AFA40050 8C635A40 10000002 AFA30054 AFA00050 3C03BF81 8C64F220 7C84D800 3C030580 3463B053 00831826 24040030 24050014 00A3200B 00821021 8C430000 24020065 1062006F 3C029D00 8C420010 3C03BF81 8C65F220 7CA5D800 3C030580 3463B053 00A32826 2403000C 24040005 0065200A 24050008 0040F809 00003021 3C029D00 8C420010 3C03BF81 8C65F220 7CA5D800 3C030580 3463B053 00A32826 2403000C 24040005 0065200A 24050065 0040F809 00003021 3C029D00 8C420010 3C03BF81 8C65F220 7CA5D800 3C030580 3463B053 00A32826 2403000B 2404002F 0065200A 24050002 0040F809 00003021 3C029D00 8C420010 3C03BF81 8C65F220 7CA5D800 3C030580 3463B053 00A32826 2403000B 2404002F 0065200A 24050065 0040F809 00003021 3C029D00 8C420010 3C03BF81 8C65F220 7CA5D800 3C030580 3463B053 00A32826 2403000A 24040004 0065200A 24050008 0040F809 00003021 3C029D00 8C420010 3C03BF81 8C65F220 7CA5D800 3C030580 3463B053 00A32826 2403000A 24040004 0065200A 24050065 0040F809 00003021 3C02BF81 8C43F220 7C63D800 3C020580 3442B053 1462000C 3C02BF81 8C43FA90 24040001 7C831804 AC43FA90 3C02BF81 8C43FCA0 24040006 7C831804 AC43FCA0 1000000B 3C02BF81 8C43FA90 24040007 7C831804 AC43FA90 3C02BF81 8C43FC9C 24040006 7C831804 AC43FC9C 3C02BF81 8C43F220 7C63D800 3C020580 3442B053 1462000C 3C02BF81 8C43FA90 24040001 7C831804 AC43FA90 3C02BF81 8C43FCA0 24040006 7C831804 AC43FCA0 1000000B 3C02BF80 8C43FA90 24040007 7C831804 AC43FA90 3C02BF81 8C43FC9C 24040006 7C831804 AC43FC9C 3C02BF80 34038060 AC435A00 24030003 AC435A30 24030C00 AC435A40 16800007 3C109D00 8C545A30 8C435A00 AFA30050 8C425A40 AFA20054 3C109D00 8E030090 8E02001C 8064002E 0040F809 24050006 8E020004 0040F809 24042710 8E030090 8E02001C 8064002E 0040F809 24050005 8E020004 0040F809 24042710 8E030090 8E02001C 8064002E 0040F809 24050006 8E020004 0040F809 24042710 24040011 0411FBFE 00000000 8E020004 3C040007 0040F809 3484A120 2411002D AFB10010 240400B1 24050003 24060001 2407002C 0411FC15 00000000 AFB10010 240400B2 24050003 24060001 2407002C 0411FC0E 00000000 AFB10010 24130001 AFB30014 2416002C AFB60018 AFB1001C 240400B3 24050006 24060001 2407002C 0411FC02 00000000 240400B4 24050001 24060007 0411FBFD 00000000 24020084 AFA20010 240400C0 24050003 240600A2 24070002 0411FBF5 00000000 240400C1 24050001 240600C5 0411FBF0 00000000 240400C2 24050002 2406000A 00003821 0411FBEA 00000000 240400C3 24050002 2406008A 2407002A 0411FBE4 00000000 240400C4 24050002 2406008A 240700EE 0411FBDE 00000000 240400C5 24050001 2406000E 0411FBD9 00000000 24040021 0411FBB3 00000000 2404003A 24050001 24060005 0411FBD1 00000000 AFA00010 2402007F AFA20014 2404002A 24050004 00003021 00003821 0411FBC8 00000000 AFA00010 2402009F AFA20014 2404002B 24050004 00003021 00003821 0411FBBF 00000000 24150007 AFB50010 24020012 AFA20014 24170037 AFB70018 24020032 AFA2001C 24120029 AFB20020 AFB10024 24020025 AFA20028 AFB2002C 2402002B AFA20030 24020039 AFA20034 AFA00038 AFB3003C 24020003 AFA20040 241E0010 AFBE0044 240400E0 24050010 24060002 2407001C 0411FBA1 00000000 AFB50010 24020006 AFA20014 2402002E AFA20018 AFB6001C AFB20020 AFB10024 AFA20028 AFA2002C AFB70030 2402003F AFA20034 AFA00038 AFA0003C 24020002 AFA20040 AFBE0044 240400E1 24050010 24060003 2407001D 0411FB89 00000000 24040013 0411FB63 00000000 8E020004 0040F809 24042710 24040029 0411FB5D 00000000 8E020090 80420015 14530007 3C029D00 24040036 24050001 240600A8 0411FB77 00000000 3C029D00 8C420090 80430015 24020002 14620007 3C029D00 24040036 24050001 240600C8 0411FB6C 00000000 3C029D00 8C420090 80430015 24020003 14620007 3C029D00 24040036 24050001 24060068 0411FB61 00000000 3C029D00 8C420090 80430015 24020004 14620007 3C029D00 24040036 24050001 24060008 0411FB56 00000000 3C029D00 8C420090 90420015 30420001 10400008 3C029D00 8C430098 24040050 AC640000 8C420094 240300A0 10000007 AC430000 8C430094 24040050 AC640000 8C420098 240300A0 AC430000 8FA40048 3C109D00 8E020048 3C039D00 246305CC 00641821 AC430000 8FA40048 8E02004C 3C039D00 24630238 00641821 AC430000 8E020048 8E030094 8C660000 8E030098 8C670000 AFA00010 8C420000 00002021 00002821 24C6FFFF 0040F809 24E7FFFF 8FA40048 8E0200DC 3C039D00 2463083C 00641821 AC430000 3C02BF80 AC545A30 8FA40050 AC445A00 8FA30054 AC435A40 3C049D00 248414E4 0411FDA4 00000000 8FBF007C 8FBE0078 8FB70074 8FB60070 8FB5006C 8FB40068 8FB30064 8FB20060 8FB1005C 8FB00058 03E00008 27BD0080 '.rodata 'startup 37375453 20533533 76697264 6C207265 6564616F 000A0D64 End CSub |
||||
disco4now Guru Joined: 18/12/2014 Location: AustraliaPosts: 1044 |
Hi Peter, Nice find. Any change you can post the C source for this one. Regards Gerry F4 H7FotSF4xGT |
||||
| matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 10572 |
Sure, here is the complete MPLabX project 2019-01-06_182033_ST7735SLoadable.X.zip |
||||
Geoffg Guru Joined: 06/06/2011 Location: AustraliaPosts: 3308 |
I have been trying to track Peter's prolific output of display drivers so that I can list them in the Micromite firmware distribution. So far the count is twelve and I am sure that I have missed some. An amazing record. Geoff Graham - http://geoffg.net |
||||
| WhiteWizzard Guru Joined: 05/04/2013 Location: United KingdomPosts: 2959 |
Hi Peter, Two main questions if I may: 1> What is the BLK pin for? Backlight? 2> Is the display's viewing angle any good? (or do the colours 'wash out? If compared to OLED RGB, is this IPS TFT comparable? Thanks |
||||
| matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 10572 |
Yes Same as any other IPS display, very clear and bright No - it is 1/10th of the price  |
||||
| WhiteWizzard Guru Joined: 05/04/2013 Location: United KingdomPosts: 2959 |
Thanks. Do you know if this can be driven by PWM (for brightness control)? Also, when you get a moment, would you be able to measure max current draw i.e. with 100% white screen. |
||||
Grogster Admin Group  Joined: 31/12/2012 Location: New ZealandPosts: 9754 |
Indeed. I have lost track of how many Cfunctions matherp has written..... A very valuable member of the Micromite community.  Smoke makes things work. When the smoke gets out, it stops! |
||||
| WhiteWizzard Guru Joined: 05/04/2013 Location: United KingdomPosts: 2959 |
Just been reading the datasheet for this 0.96 IPS. Got an impressive 85' viewing angle from all directions. Also, two touch overlays are in development, one resistive and one capacitive. Could be very useful (obviously not for touch-keyboard input)! |
||||
| HankR Senior Member  Joined: 02/01/2015 Location: United StatesPosts: 209 |
One thing that I hope anyone who makes such a list can do is to call out all those that are SPI four-wire capable. That distinction was somewhat confusing to this TFT/IPS newbie. Sometimes it's not even clear by the ebay descriptions whether it's an SPI or not. From what I can tell there are only certain screen sizes that use the SPI method (I know it's slower). And then there are different physical arrangements of pins. All in a row, two rows (of two kinds). I use Arduinos so Arduino compatible pin spacing is very nice to have. |
||||
| WhiteWizzard Guru Joined: 05/04/2013 Location: United KingdomPosts: 2959 |
@HankR Please can you make space in your Inbox |
||||
| HankR Senior Member Joined: 02/01/2015 Location: United StatesPosts: 209 |
WW, Emailed you direct which I should have done in the first place. Thanks for the reminder. H |
||||
| paceman Guru Joined: 07/10/2011 Location: AustraliaPosts: 1329 |
I think that understates it Grogs - invaluable is more accurate. Greg |
||||
| WhiteWizzard Guru Joined: 05/04/2013 Location: United KingdomPosts: 2959 |
Hi Peter, Just received my IPS display - all hooked up to a 28pinner with MMBASIC v5.05.01. Using MM2 driver from Page 1 of this thread. Am using the pins 2, 23, and 6 for the user defined pins (i.e. identical to the 2.8" ILI pins). Orientation 1. It kind of works but I think there may be a RGB data 'INVERT' issue.  All other functions seem to work - i.e. TEXT, BOX, etc. Displays as expected APART from colours are incorrect. On boot up, display is white (as opposed to black). CLS RGB(WHITE) will clear it (i.e. goes black). CLS goes back to white. CLS RGB(BLUE) goes to yellow CLS RGB(YELLOW) goes to Blue Hopefully enough there for you to see the 'pattern' Note too that there is a white 'shimmering' edge to the screen (yes - I know I am sensitive to this )Hope you can possibly see something wrong somewhere! WW |
||||
| matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 10572 |
Sounds like you have a different controller version - please provide a link to where you bought it. In the mean time search for 24040021 and replace it with 24040020. There may be other changes but start with that. Assuming that works: Type "box 0,0,mm.hres,mm.vres" in all 4 orientations and let me know the result. Also the me know if red and blue are swapped |
||||
| WhiteWizzard Guru Joined: 05/04/2013 Location: United KingdomPosts: 2959 |
https://www.ebay.co.uk/itm/264089081686 Paid higher price as UK supplier (got here quickly!) WW |
||||
| WhiteWizzard Guru Joined: 05/04/2013 Location: United KingdomPosts: 2959 |
One occurrence - and that has corrected all the colours (certainly for CLS RGB(....))  Still have a pixelated edge on Left and Top sides only (as before). Seems like a one pixel offset (in both down and right). With the BOX 0,0,... command, I get the left and top edges of the box NEXT to the pixelated lines (i.e. down, and to the right). No Right or Bottom lines to the box (off-screen I assume due to offset issue?) THANKS for helping - looks like a nice clear display (and very tiny!) Will try the other orientations next; back soon with outcome . . . |
||||
| WhiteWizzard Guru Joined: 05/04/2013 Location: United KingdomPosts: 2959 |
Upon Reset: Orientation 2: (but with screen physically landscape; and pins along top edge): get pixelated line on left, and green(I think) line along bottom. Orientation 3: Green line at bottom. No other lines Orientation 4: Green dot in bottom right corner and Back to Orientation 1: now there's no lines on left or top ??? BOX still shows top and left lines onlyWill now go and do the BOX in each orientation . . . |
||||
| matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 10572 |
Try this 00000229 'spi_write_data 27BDFFE0 AFBF001C AFB10018 AFB00014 309100FF 3C109D00 8E030090 8E02001C 8064002C 0040F809 24050006 8E030090 8E02001C 8064002D 0040F809 24050005 3C02BF80 AC515820 3C03BF80 8C625810 30420080 1040FFFD 3C02BF80 8C425820 3C029D00 8C430090 8C42001C 8064002D 0040F809 24050006 8FBF001C 8FB10018 8FB00014 03E00008 27BD0020 'spi_write_command 27BDFFE0 AFBF001C AFB10018 AFB00014 309100FF 3C109D00 8E030090 8E02001C 8064002C 0040F809 24050005 8E030090 8E02001C 8064002D 0040F809 24050005 3C02BF80 AC515820 3C03BF80 8C625810 30420080 1040FFFD 3C02BF80 8C425820 3C029D00 8C430090 8C42001C 8064002D 0040F809 24050006 8FBF001C 8FB10018 8FB00014 03E00008 27BD0020 'spi_write_cd 27BDFFD8 AFBF0024 AFB10020 AFB0001C AFA60030 AFA70034 00A08821 27A20030 AFA20010 308400FF 0411FFD2 00000000 1A20000A 00008021 8FA20010 24430004 AFA30010 90440000 0411FFA7 00000000 26100001 1611FFF9 8FA20010 8FBF0024 8FB10020 8FB0001C 03E00008 27BD0028 'DefineRegion 27BDFFD8 AFBF0024 AFB10020 AFB0001C 00801021 00A08821 3C039D00 8C630090 90630015 30630001 10600004 00E08021 24B1001A 10000003 24F0001A 2482001A 24C6001A 00061A03 AFA30010 AFA60014 2404002A 24050004 00023203 00403821 0411FFCB 00000000 00101203 AFA20010 AFB00014 2404002B 24050004 00113203 02203821 0411FFC2 00000000 2404002C 0411FF9C 00000000 8FBF0024 8FB10020 8FB0001C 03E00008 27BD0028 'DrawBitmapSPI 27BDFFB8 AFBF0044 AFBE0040 AFB7003C AFB60038 AFB50034 AFB40030 AFB3002C AFB20028 AFB10024 AFB00020 0080B021 00A0F021 00C0A021 AFA70054 8FA4005C 8FA30060 3C029D00 8C420094 8C420000 02C2102B 104000C3 8FB50064 3C029D00 8C420098 8C420000 00A2102B 104000BD 8FA20058 70462802 00B63021 04C000B9 70471002 005E2821 04A000B6 00003821 2BC50000 03C5380A 00E02821 3C07BF80 8CE85830 AFA80010 8CE85800 AFA80014 8CE85840 AFA80018 ACE05800 3C080001 35088260 ACE85800 ACE05830 24080C00 ACE85840 7C901340 00043C03 2408FFF8 00E83824 02078025 321000FF 7C9120C0 00042143 2407FFE0 00872024 02248825 323100FF 7C721340 00032403 00884024 02489025 325200FF 7C7320C0 00031943 00673824 02679825 327300FF 24A7FFFF 02C02021 24C6FFFF 00E23821 0411FF85 00000000 3C179D00 8EE30090 8EE2001C 8064002C 0040F809 24050006 8EE30090 8EE2001C 8064002D 0040F809 24050005 0014C823 8FA20054 70547802 25EFFFFF 0280B821 00005821 0000C021 8FAD0058 3C069D00 240C0001 1000004D 3C02BF80 27DE0001 27C3FFFF 04600044 00000000 8CC30098 8C630000 007E182B 1460006A 8FBF0044 1E80002D 01E04821 1000003B 00000000 24630001 2464FFFF 04800020 00000000 8CC40094 8C840000 0083202B 1480001B 00000000 91040000 00872024 1080000D 00000000 8C445810 30840002 1480FFFD 00000000 AC505820 8C445810 30840002 1480FFFD 00000000 AC515820 1000000B 00000000 8C445810 30840002 1480FFFD 00000000 AC525820 8C445810 30840002 1480FFFD 00000000 AC535820 5465FFDD 24630001 254A0001 15540005 2529FFFF 10000011 00000000 02C01821 00005021 014B2021 24850007 28880000 00A8200B 000440C3 02A84021 000927C3 00042742 01243821 30E70007 00E43823 00EC3804 1000FFC7 006D2821 57CEFFB9 27DE0001 27180001 01F97821 01775821 8FA40054 0304182A 10600005 8FA50058 1CA0FFAF 03C57021 1000FFF7 27180001 3C02BF80 8C435810 30630080 1060FFFD 00000000 10000002 3C02BF80 8C435820 8C435810 30630020 1060FFFC 00000000 3C02BF80 AC405800 24040040 3C03BF80 AC645814 8FA70010 AC475830 8FA80014 AC485800 8FA30018 AC435840 3C029D00 8C430090 8C42001C 8064002D 0040F809 24050006 8FBF0044 8FBE0040 8FB7003C 8FB60038 8FB50034 8FB40030 8FB3002C 8FB20028 8FB10024 8FB00020 03E00008 27BD0048 'DrawRectangleSPI 27BDFFC0 AFBF003C AFBE0038 AFB70034 AFB60030 AFB5002C AFB40028 AFB30024 AFB20020 AFB1001C AFB00018 8FA30050 3C02BF80 8C575830 8C5E5800 8C485840 AFA80010 AC405800 3C080001 35088260 AC485800 AC405830 24080C00 AC485840 0086102A 14400005 00A7102A 00801021 00C02021 00403021 00A7102A 14400004 28930000 00A01021 00E02821 00403821 0013200B 00809821 3C029D00 8C420094 8C420000 0082402B 2444FFFF 0088980A 28D40000 0014300B 00C0A021 00C2202B 2442FFFF 0044A00A 28B50000 0015280B 00A0A821 3C029D00 8C420098 8C420000 00A2282B 2444FFFF 0085A80A 28F60000 0016380B 00E0B021 00E2202B 2442FFFF 0044B00A 7C711340 00032403 2402FFF8 00821024 02228825 323100FF 7C7020C0 00031943 2402FFE0 00621824 02038025 321000FF 02602021 02A02821 02803021 02C03821 0411FE9E 00000000 3C129D00 8E430090 8E42001C 8064002C 0040F809 24050006 8E430090 8E42001C 8064002D 0040F809 24050005 24020001 00539823 0274A021 00552023 00962021 70942002 1080000E 2484FFFF 3C02BF80 8C435810 30630002 1460FFFD 00000000 AC515820 8C435810 30630002 1460FFFD 00000000 AC505820 1480FFF5 2484FFFF 3C03BF80 8C625810 30420080 1040FFFD 3C02BF80 8C425810 30420020 14400006 3C02BF80 8C435820 8C435810 30630020 1060FFFC 00000000 3C02BF80 AC405800 24040040 3C03BF80 AC645814 AC575830 AC5E5800 8FA30010 AC435840 3C029D00 8C430090 8C42001C 8064002D 0040F809 24050006 8FBF003C 8FBE0038 8FB70034 8FB60030 8FB5002C 8FB40028 8FB30024 8FB20020 8FB1001C 8FB00018 03E00008 27BD0040 'getFPC 27BDFFF8 AFBF0004 00852023 03E42021 ACC40000 8FBF0004 03E00008 27BD0008 'pstring 27BDFFE0 AFBF001C AFB00018 00808021 00002021 3C059D00 24A50880 27A60010 0411FFEF 00000000 8FA40010 3C029D00 8C42002C 0040F809 02042021 8FBF001C 8FB00018 03E00008 27BD0020 'main 27BDFF80 AFBF007C AFBE0078 AFB70074 AFB60070 AFB5006C AFB40068 AFB30064 AFB20060 AFB1005C AFB00058 00809021 00A08821 00C09821 00E08021 00002021 3C059D00 24A508F8 27A60048 0411FFD1 00000000 3C029D00 8C430090 8E240000 A064002E 8C430090 8E440000 A064002C 8C430090 8E640000 A064002D 8C430090 8E040000 A0640015 8C430090 92040000 24840002 A0640015 8C420090 80430015 28640005 5480000A 24030014 3C059D00 2463FFFC A0430015 8CA20090 80430015 28640005 5080FFFB 2463FFFC 24030014 A0430014 3C109D00 8E030090 8E020010 8064002E 24050008 0040F809 00003021 8E030090 8E020010 8064002E 24050065 0040F809 00003021 8E030090 8E02001C 8064002E 0040F809 24050006 8E030090 8E020010 8064002C 24050008 0040F809 00003021 8E030090 8E020010 8064002C 24050065 0040F809 00003021 8E030090 8E02001C 8064002C 0040F809 24050006 8E030090 8E020010 8064002D 24050008 0040F809 00003021 8E030090 8E020010 8064002D 24050065 0040F809 00003021 8E030090 8E02001C 8064002D 0040F809 24050006 3C02BF81 8C44F220 7C84D800 3C020661 3442A053 1082000B 24030050 3C02BF81 8C43F220 7C63D800 3C020660 3442A053 00621826 24020050 2404000C 0083100B 00401821 3C029D00 8C420088 00621821 8C640000 24030064 54830008 0000A021 3C03BF80 8C745830 8C645800 AFA40050 8C635840 10000002 AFA30054 AFA00050 3C03BF81 8C65F220 7CA5D800 3C040661 3484A053 10A4000B 24030050 3C03BF81 8C64F220 7C84D800 3C030660 3463A053 00831826 24040050 2405000C 00A3200B 00801821 00621021 8C430000 24020065 1062008E 3C029D00 8C420010 3C03BF81 8C65F220 7CA5D800 3C030661 3463A053 10A3000B 24040014 3C03BF81 8C64F220 7C84D800 3C030660 3463A053 00832026 24030014 24050003 00A4180B 00602021 24050008 0040F809 00003021 3C029D00 8C420010 3C03BF81 8C65F220 7CA5D800 3C030661 3463A053 10A3000B 24040014 3C03BF81 8C64F220 7C84D800 3C030660 3463A053 00832026 24030014 24050003 00A4180B 00602021 24050065 0040F809 00003021 3C029D00 8C420010 3C03BF81 8C65F220 7CA5D800 3C030661 3463A053 10A3000B 24040029 3C03BF81 8C64F220 7C84D800 3C030660 3463A053 00832026 24030029 2405000E 00A4180B 00602021 24050002 0040F809 00003021 3C029D00 8C420010 3C03BF81 8C65F220 7CA5D800 3C030661 3463A053 10A3000B 24040029 3C03BF81 8C64F220 7C84D800 3C030660 3463A053 00832026 24030029 2405000E 00A4180B 00602021 24050065 0040F809 00003021 3C029D00 8C420010 3C03BF81 8C65F220 7CA5D800 3C030661 3463A053 10A3000B 2404000E 3C03BF81 8C64F220 7C84D800 3C030660 3463A053 00832026 2403000E 24050019 00A4180B 00602021 24050008 0040F809 00003021 3C029D00 8C420010 3C03BF81 8C65F220 7CA5D800 3C030661 3463A053 10A3000B 2404000E 3C03BF81 8C64F220 7C84D800 3C030660 3463A053 00832026 2403000E 24050019 00A4180B 00602021 24050065 0040F809 00003021 3C02BF81 8C43FA84 24040001 7C831804 AC43FA84 3C02BF81 8C43FB04 24040003 7C831804 AC43FB04 3C02BF81 8C43FA84 24040001 7C831804 AC43FA84 3C02BF81 8C44FB04 24030003 7C641804 AC44FB04 3C02BF80 34048060 AC445800 AC435830 24030C00 AC435840 16800007 3C109D00 8C545830 8C435800 AFA30050 8C425840 AFA20054 3C109D00 8E030090 8E02001C 8064002E 0040F809 24050006 8E020004 0040F809 24042710 8E030090 8E02001C 8064002E 0040F809 24050005 8E020004 0040F809 24042710 8E030090 8E02001C 8064002E 0040F809 24050006 8E020004 0040F809 24042710 24040011 0411FC9C 00000000 8E020004 3C040007 0040F809 3484A120 2411002D AFB10010 240400B1 24050003 24060001 2407002C 0411FCB3 00000000 AFB10010 240400B2 24050003 24060001 2407002C 0411FCAC 00000000 AFB10010 24130001 AFB30014 2416002C AFB60018 AFB1001C 240400B3 24050006 24060001 2407002C 0411FCA0 00000000 240400B4 24050001 24060007 0411FC9B 00000000 24020084 AFA20010 240400C0 24050003 240600A2 24070002 0411FC93 00000000 240400C1 24050001 240600C5 0411FC8E 00000000 240400C2 24050002 2406000A 00003821 0411FC88 00000000 240400C3 24050002 2406008A 2407002A 0411FC82 00000000 240400C4 24050002 2406008A 240700EE 0411FC7C 00000000 240400C5 24050001 2406000E 0411FC77 00000000 24040020 0411FC51 00000000 2404003A 24050001 24060005 0411FC6F 00000000 AFA00010 2402007F AFA20014 2404002A 24050004 00003021 00003821 0411FC66 00000000 AFA00010 2402009F AFA20014 2404002B 24050004 00003021 00003821 0411FC5D 00000000 24150007 AFB50010 24020012 AFA20014 24170037 AFB70018 24020032 AFA2001C 24120029 AFB20020 AFB10024 24020025 AFA20028 AFB2002C 2402002B AFA20030 24020039 AFA20034 AFA00038 AFB3003C 24020003 AFA20040 241E0010 AFBE0044 240400E0 24050010 24060002 2407001C 0411FC3F 00000000 AFB50010 24020006 AFA20014 2402002E AFA20018 AFB6001C AFB20020 AFB10024 AFA20028 AFA2002C AFB70030 2402003F AFA20034 AFA00038 AFA0003C 24020002 AFA20040 AFBE0044 240400E1 24050010 24060003 2407001D 0411FC27 00000000 24040013 0411FC01 00000000 8E020004 0040F809 24042710 24040029 0411FBFB 00000000 8E020090 80420015 14530007 3C029D00 24040036 24050001 240600A8 0411FC15 00000000 3C029D00 8C420090 80430015 24020002 14620007 3C029D00 24040036 24050001 240600C8 0411FC0A 00000000 3C029D00 8C420090 80430015 24020003 14620007 3C029D00 24040036 24050001 24060068 0411FBFF 00000000 3C029D00 8C420090 80430015 24020004 14620007 3C029D00 24040036 24050001 24060008 0411FBF4 00000000 3C029D00 8C420090 90420015 30420001 10400008 3C029D00 8C430098 24040050 AC640000 8C420094 240300A0 10000007 AC430000 8C430094 24040050 AC640000 8C420098 240300A0 AC430000 8FA50048 3C029D00 8C430048 3C049D00 248405C8 00852021 AC640000 8FA50048 8C43004C 3C049D00 24840234 00852021 AC640000 8C430048 8C440094 8C860000 8C420098 8C470000 AFA00010 8C620000 00002021 00002821 24C6FFFF 0040F809 24E7FFFF 3C02BF80 AC545830 8FA40050 AC445800 8FA30054 AC435840 3C049D00 24841254 0411FD8E 00000000 8FBF007C 8FBE0078 8FB70074 8FB60070 8FB5006C 8FB40068 8FB30064 8FB20060 8FB1005C 8FB00058 03E00008 27BD0080 '.rodata 'startup 37375453 20533533 76697264 6C207265 6564616F 000A0D64 |
||||
| WhiteWizzard Guru Joined: 05/04/2013 Location: United KingdomPosts: 2959 |
THIS IS WITH ORIGINAL CODE. Your post came in during my tests! Starting at Orientation 1: Blank on Reset. Left and Top Box lines only. Offset down and to the right Orientation 2: Now only a white dot in lower left corner ? Box: Left and bottom lines only. Orientation 3: white dot in each of bottom corners. Box: Bottom and Right lines only Orientation 4: white dot in two right corners. Box: Right and Top lines only NOTE: These tests were carried out with the code in Program Memory, and not the LIBRARY. Edited Orientation value, F1, Reset (Rst pin to GND), then observed, and did the BOX command. |
||||
