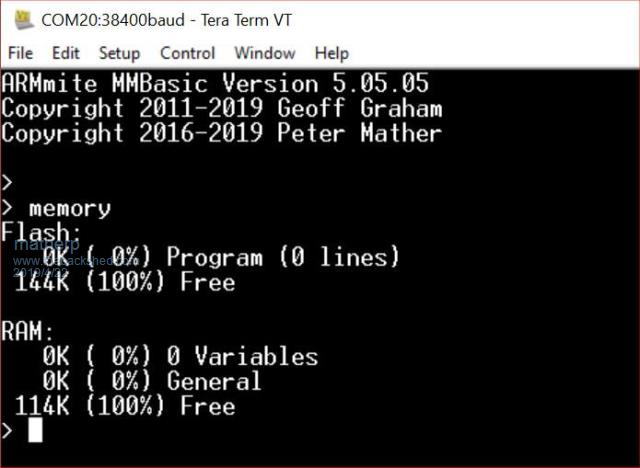

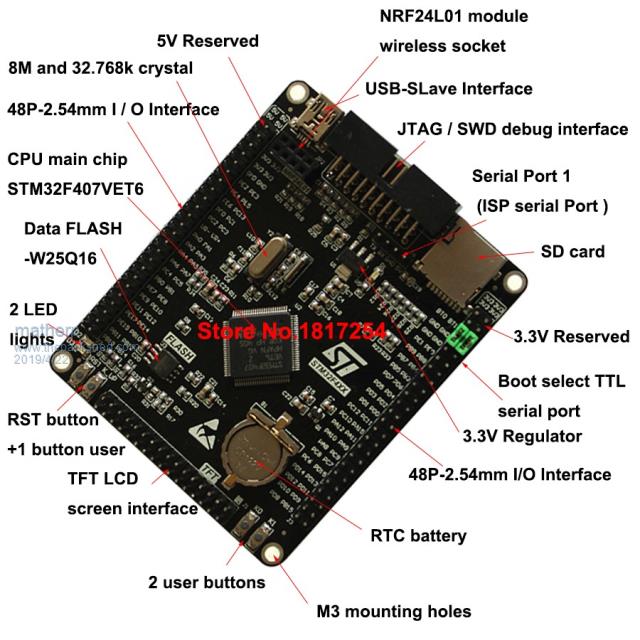

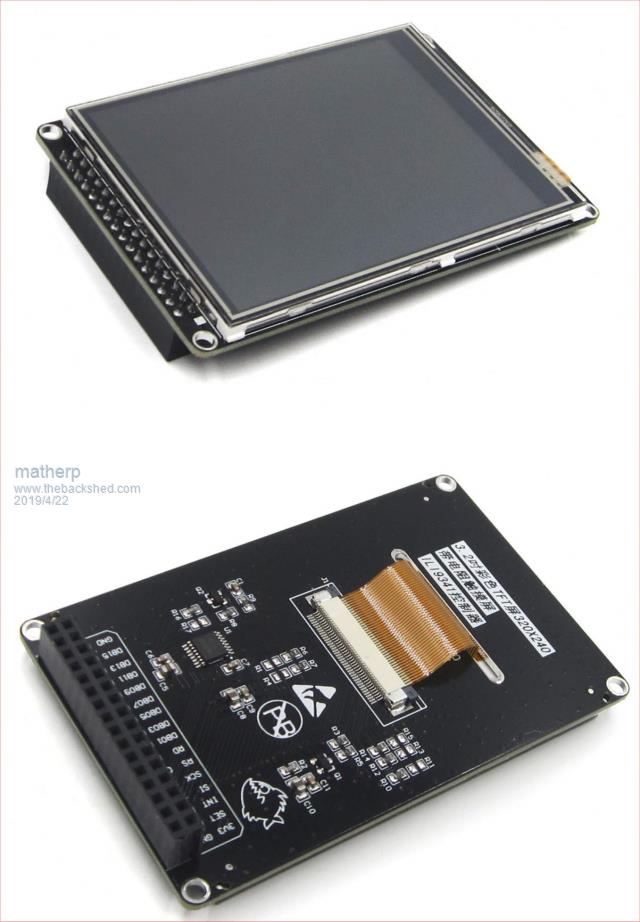

Various comments over the last weeks and months have emphasised the barrier that soldering SMD chips creates and whilst ready-built Micromite boards are available they are comparatively expensive. PCBs like the STM32 Nucleo range are cheap but they do not have SDcard slots or batteries for the RTC. They also don't easily interface to a display. Enter the STM32F407VET6 STM32 Cortex-M4 Development Board  which has a pin compatible TFT screen available to plug directly in.  Together, the PCB and screen are currently available from the link at US $9.24 for the PCB and US $13.2 for the screen and they are available from various suppliers in huge numbers (stock level currently 29000 PCB and 14000 screens) I'm in the last stages of developing a Micromite firmware version which will work on this PCB with no configuration necessary and no ancillary hardware needed. i.e. the main peripherals will work immediately on power up. The firmware can be loaded to the board over the USB port with no programmer needed and the Micromite console will be on the USB, no USB/UART needed. The speed of the port is about 1.3x faster than a MM+ at 120MHz. Peripherals include 4 x UART, 2 x SPI, 8 x PWM/Servo, 2 x I2C, 13 x 12-bit ADC, 2 x 12-bit DAC, 16-bit parallel TFT I/F supporting the screen above and any SSD1963 display using an adapter board. There are 47 user configurable pins (DOUT, DIN, etc.) and these can be referred to with either the pin number or the pin ID as silkscreened on the board. e.g. SETPIN PE1, DIN: PRINT PIN(PE1) At the moment I'm doing normal bird's nest development on another PCB but once my purchases arrive I'll do a dedicated manual for this port. The firmware uses a completely new (to me) way of interfacing with the TFT screens using the STM32F407's FSMC interface. This treats the screen as a memory device and allows for very fast performance (clear screen on the ILI9341 currently takes 6 mSec). Touch is of course supported with full GUI functionality. As I understand more about the STM32 range and its development environment this new port shares about 95% of the code with the Armmite H7 and Armmite F7 making ongoing support much easier.  |
||||
| Tinine Guru Joined: 30/03/2016 Location: United KingdomPosts: 1646 |
Very, very cool but quick question: The 6ms screen clear, does that hold up program execution? |
||||
| lizby Guru Joined: 17/05/2016 Location: United StatesPosts: 3027 |
I confess to being one of those daunted by the idea of soldering large surface mount chips (and cheap, too). This looks like just the ticket. Is it a 144-pinner? PicoMite, Armmite F4, SensorKits, MMBasic Hardware, Games, etc. on fruitoftheshed |
||||
| matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 8603 |
Yes, same as all of the Micromite family, drawing commands are all blocking. If I had a frame buffer the size of the display then I could DMA in the background but this would need more memory than available. No: 100-pins. Will run on STM32F407VET6 or STM32F407VGT6. There is a 144-pin version of the PCB: e.g. which could be supported but it is more expensive and no real advantage. |
||||
| Tinine Guru Joined: 30/03/2016 Location: United KingdomPosts: 1646 |
Not a deal breaker... heck I think I need this. Awesome job Pete....wish you guys at least had a donate button. |
||||
| matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 8603 |
This is the current speed comparison for the port ArmmiteF4 MMX(200MHz) MM+(100MHz) ArmmiteH7 Solar eclipse: 89.287 74.716 120.303 23.106 seconds Grainbench: 2445 4522 1997 11127 grains in 30 seconds Basic Line Rate: 54288 115740 39215 204918 lines per second Benchmark 1: 0.011 0.005 0.015 0.002 Benchmark 2: 0.079 0.047 0.111 0.021 Benchmark 3: 0.137 0.074 0.193 0.034 Benchmark 4: 0.150 0.083 0.206 0.038 Benchmark 5: 0.254 0.142 0.384 0.063 Benchmark 6: 0.357 0.193 0.523 0.088 Benchmark 7: 0.527 0.268 0.753 0.132 Benchmark 8: 0.257 0.130 0.341 0.059 |
||||
