Forum Index : Microcontroller and PC projects : Introducing the Colour Maximite 2

     Page 25 of 25
Author Message
Poppy

Guru

Joined: 25/07/2019
Location: Germany
Posts: 486
Posted: 04:28am 11 Jul 2020
Copy link to clipboard
Print this post

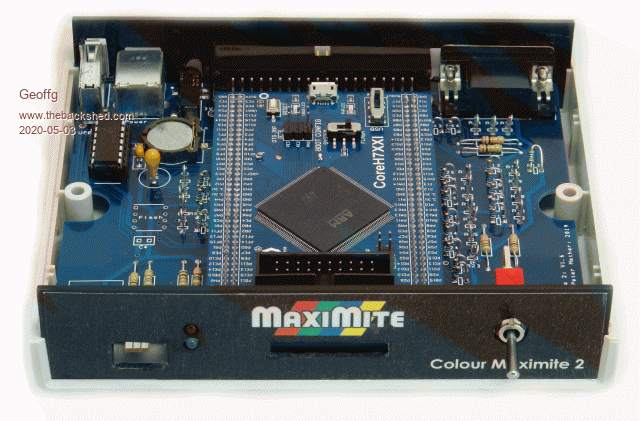

About the SMD-Version of the CMM2:


To avoid any misunderstanding in advance, please help me ...

Is THIS the final Version?

And will it get flashed the same way described in the Manual using the STM32CubeProgrammer?
Andre ... such a GURU?

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2870
Posted: 05:13am 11 Jul 2020
Copy link to clipboard
Print this post

Hi Poppy,

It appears to be the version 1.5 which AFAIK is the final version of the All-in-One PCB version.

The only difference I could see was that the one in the photo looks like the solder mask covered the NunChuk connector and had to be scraped away.. The ones I have, have this area non-masked.

I have some PCBs available if you need one.. but as I am in Australia it may take some time to get to you.


Kind Regards

Mick
Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

Poppy

Guru

Joined: 25/07/2019
Location: Germany
Posts: 486
Posted: 05:27am 11 Jul 2020
Copy link to clipboard
Print this post

Thanks Mick,

but I am not looking for the PCB itself, I am just trying to follow up the whole issue.

What about the firmware flashing?
Is it done the same way?
Andre ... such a GURU?

JohnS
Guru

Joined: 18/11/2011
Location: United Kingdom
Posts: 3654
Posted: 05:54am 11 Jul 2020
Copy link to clipboard
Print this post

  Poppy said  What about the firmware flashing?
Is it done the same way?


Yes.  Currently via Windows or Linux (on PC or RPi or any other device).

With the waveshare board you can also load firmware via JTAG e.g. using OpenOCD, which is supported on many systems.

I suppose it could be done from CMM2 to CMM2 but would need some work and how do you get it on to the first CMM2...

John
Edited 2020-07-11 15:55 by JohnS

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 8578
Posted: 06:58am 11 Jul 2020
Copy link to clipboard
Print this post

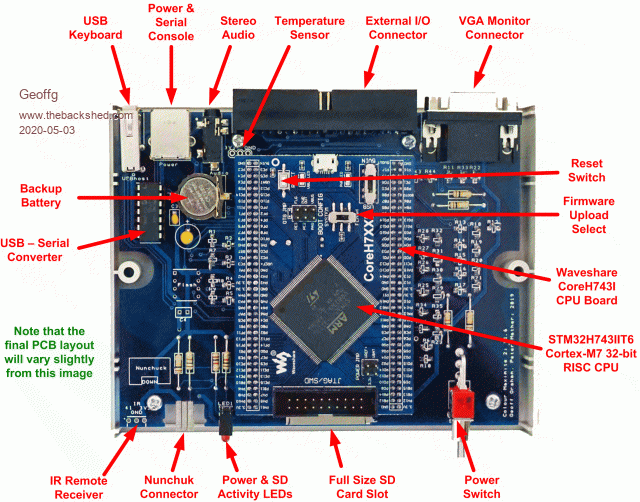

The single board version is precisely the same circuit as a motherboard + waveshare and all usage including programming is the same. It can also be programmed using the ST-LINK header using a ST-LINKV2 or ST-LINKV3 These pins are a subset of the JTAG header but are all that is needed. At some stage I'll post the gerbers and BOM for the single board version together with the component placement file to allow anyone to make it or have one made.

austfox
Newbie

Joined: 05/03/2016
Location: Australia
Posts: 18
Posted: 07:26am 11 Jul 2020
Copy link to clipboard
Print this post

  bigmik said  I have some PCBs available if you need one.. but as I am in Australia it may take some time to get to you.

Mick


Do these PCBs share the same footprints for the protruding components as the Silicon Chip boards? I prefer the single board design but would like to complement the board with the front / rear case panel PCBs that Silicon Chip are selling.

I’ve had a look at pictures of both boards and the protruding components all appear to be in the same location.
Edited 2020-07-11 17:27 by austfox

Andrew_G
Guru

Joined: 18/10/2016
Location: Australia
Posts: 840
Posted: 07:29am 11 Jul 2020
Copy link to clipboard
Print this post

Poppy,
I have an all-in-one version.
The flashing of the firmware is very well described in Appendix G of the manual and even I managed it first go (after I put the Program jumper in the right place).

Cheers,

Andrew

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 8578
Posted: 07:33am 11 Jul 2020
Copy link to clipboard
Print this post

  Quote  Do these PCBs share the same footprints for the protruding components as the Silicon Chip boards?

Yes, of course, they are directly replaceable and functionally identical

austfox
Newbie

Joined: 05/03/2016
Location: Australia
Posts: 18
Posted: 11:39am 11 Jul 2020
Copy link to clipboard
Print this post

  matherp said  Yes, of course, they are directly replaceable and functionally identical

Thanks for the confirmation. Just ordered a PCB from bigmik.

Poppy

Guru

Joined: 25/07/2019
Location: Germany
Posts: 486
Posted: 01:12pm 11 Jul 2020
Copy link to clipboard
Print this post

Thanks guys for your supporting replies!

  matherp said  At some stage I'll post the gerbers and BOM for the single board version together with the component placement file to allow anyone to make it or have one made.


Andre ... such a GURU?

TassyJim

Guru

Joined: 07/08/2011
Location: Australia
Posts: 5898
Posted: 07:10am 13 Jul 2020
Copy link to clipboard
Print this post

I have produced a "Care and Feeding your new CMM2" document.

It is based on my own testing as well as reading through the 3500+ pages of information provided by STM

Care_and_feeding_you_new_Colour_Maximite_2.pdf

I hope it helps.

Jim
VK7JH
MMedit   MMBasic Help

GregZone
Senior Member

Joined: 22/05/2020
Location: New Zealand
Posts: 114
Posted: 08:02am 13 Jul 2020
Copy link to clipboard
Print this post

  TassyJim said  I have produced a "Care and Feeding your new CMM2" document.

Jim

Nice work Jim!  Captures everything I knew about, plus plenty of additional information I didn’t know.
