Forum Index : Microcontroller and PC projects : CMM2: Screen capture

Author Message
LeoNicolas

Guru

Joined: 07/10/2020
Location: Canada
Posts: 449
Posted: 11:42pm 14 Nov 2020
Copy link to clipboard
Print this post

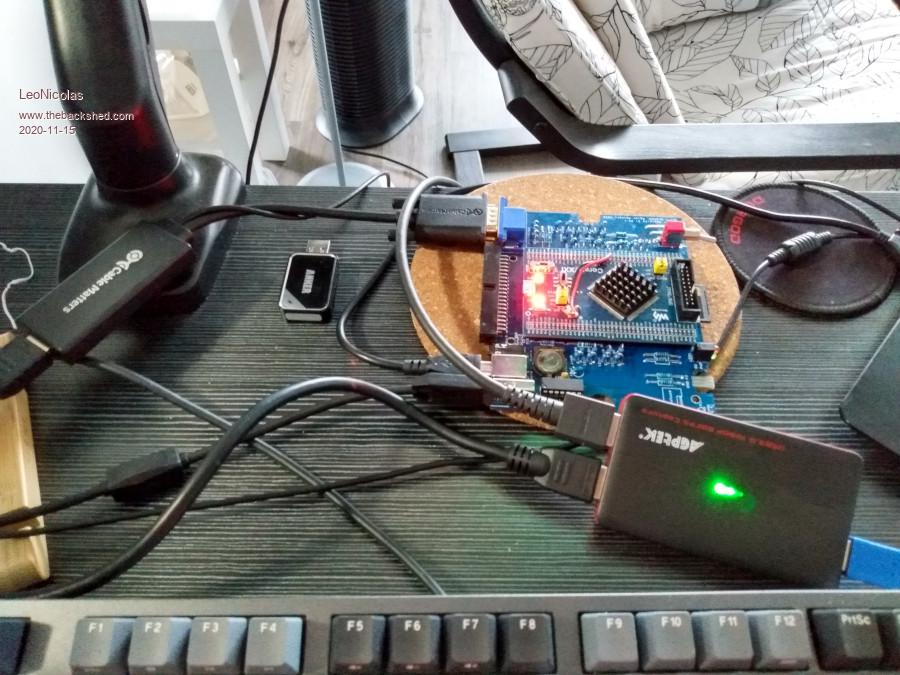

After some research, I found good hardware to record my CMM2 screen.

I'm using a VGA to HDMI converter, an HDMI capture card and the OBS Studio to record the video on my pc.

The video capture card:
https://www.amazon.ca/gp/product/B07567XQRS

The VGA x HDMI converter:
https://www.amazon.ca/gp/product/B00IDFGK1W

Two videos that I recorded today:

https://youtu.be/voeaApRXvE4

https://youtu.be/FmH3VWXXUEY

I didn't organize the cables yet, my desk is a mess


CircuitGizmos

Guru

Joined: 08/09/2011
Location: United States
Posts: 1421
Posted: 11:49pm 14 Nov 2020
Copy link to clipboard
Print this post

This is great info, Leo!
Micromites and Maximites! - Beginning Maximite

LeoNicolas

Guru

Joined: 07/10/2020
Location: Canada
Posts: 449
Posted: 12:03am 15 Nov 2020
Copy link to clipboard
Print this post

  CircuitGizmos said  This is great info, Leo!


Thank you...
Do you have cases for CMM2? I need to buy one, you can see in my picture that my CMM2 is naked

CircuitGizmos

Guru

Joined: 08/09/2011
Location: United States
Posts: 1421
Posted: 12:05am 15 Nov 2020
Copy link to clipboard
Print this post

  LeoNicolas said
  CircuitGizmos said  This is great info, Leo!


Thank you...
Do you have cases for CMM2? I need to buy one, you can see in my picture that my CMM2 is naked


Sorry, no. Never had any cases for the CMM2.

The cases I have are for the RetroMax (my version of the CMM2 with some extra bits.)
Micromites and Maximites! - Beginning Maximite

William Leue
Guru

Joined: 03/07/2020
Location: United States
Posts: 386
Posted: 01:25am 15 Nov 2020
Copy link to clipboard
Print this post

Micromite sells the cases, just be patient as it takes quite a while for them to arrive.
-Bill

paceman
Guru

Joined: 07/10/2011
Location: Australia
Posts: 1328
Posted: 06:40am 15 Nov 2020
Copy link to clipboard
Print this post

Leo,
your CMM2 looks to be the standard one from the July 2020 Silicon Chip article.
The parts list quotes this for cases:

1 Plastic instrument case, 140x110x35mm
Suppliers:

Jaycar P/No. 5970
Altronics  P/No. H0472
Element14 P/No. 1526699
Also: Digikey & Mouser

These are all "Multicomp Pro" ABS boxes; P/No. G738A; Datasheet

Prices are about A$7.40 in Australia.
Jaycar and Altronics are Australian companies and Element14 is I think from UK.

The boxes have removable plain front and rear panels but I assume you will have the correct cutout panels that came with the kit you presumably built.

Greg

TassyJim

Guru

Joined: 07/08/2011
Location: Australia
Posts: 5921
Posted: 06:54am 15 Nov 2020
Copy link to clipboard
Print this post

Element14/Farnell trade as Newark in USA.

It looks like the current offering from Element14 has aluminum ends instead of black plastic. Either would do and they are interchangeable.

Jaycar are much cheaper than Element14.

Jim
VK7JH
MMedit   MMBasic Help

LeoNicolas

Guru

Joined: 07/10/2020
Location: Canada
Posts: 449
Posted: 04:14pm 15 Nov 2020
Copy link to clipboard
Print this post

Thank you Greg and Jim

You are right, my CMM2 is from silicon chips. I have the front an hear panels.

I'll try to buy a case with that specifications.

Thanks
Leo
