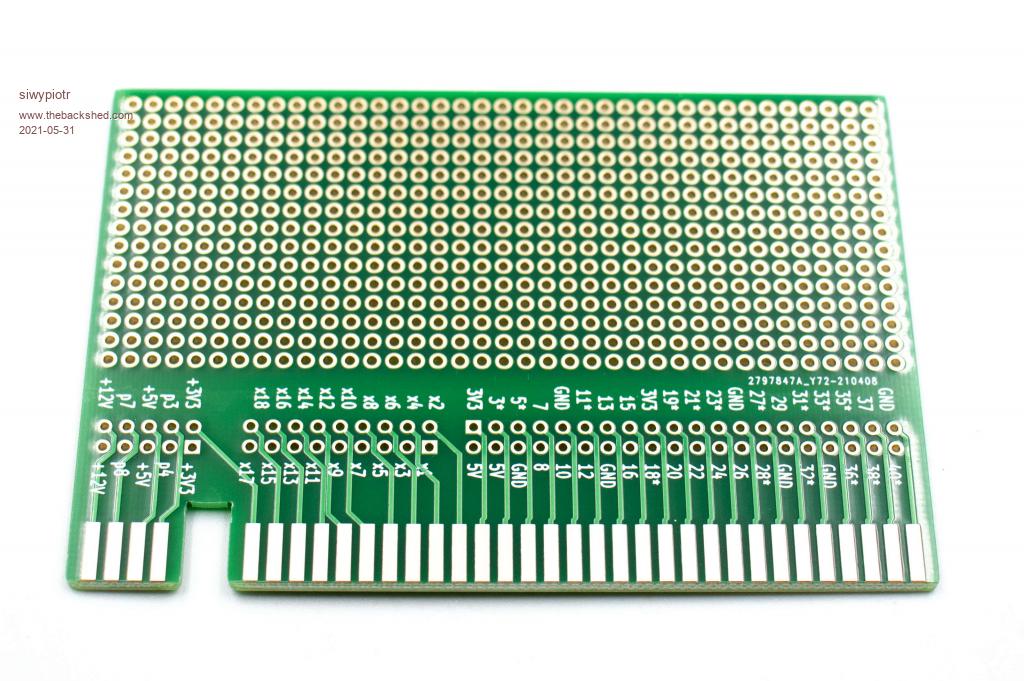

This is simple prototyping card with various signals exposed.

Can be purchased here:
https://sklep.pslabs.pl/Prototyping-Card-Expansion-System-p170

Full Kicad project can downloaded here:

https://github.com/pslabs-ps/CMM2-ExpansionCard-ProtoSimple/blob/main/Kicad/proto_vard_simple

All files included, this will help You to create new cards

Instruction, code can be found on Github:
https://github.com/pslabs-ps/CMM2-ExpansionCard-ProtoSimple

mclout999

Guru

Joined: 05/07/2020
Location: United States
Posts: 492

Posted: 11:00pm 30 May 2021

Copy link to clipboard

Print this post

Hi. Is this the system that that card I won is needed for, Well not this card but the system it plugs into?

They call me Shai-Hulud (The maker)

siwypiotr

Senior Member

Joined: 18/08/2020
Location: Poland
Posts: 127

Posted: 08:15am 31 May 2021

Copy link to clipboard

Print this post

mclout999 said Hi. Is this the system that that card I won is needed for, Well not this card but the system it plugs into?

Hi

Yes, I remember about You. You have won relay card, this is still a prototype, I think that in 3 weeks it will be ready. I will inform You.

You have won the card not the expansion system. Expansion is described here:
https://www.thebackshed.com/forum/ViewTopic.php?FID=16&TID=13843
