Forum Index : Microcontroller and PC projects : PicoMite PCB WANTED

Author Message
Rickard5

Guru

Joined: 31/03/2022
Location: United States
Posts: 463
Posted: 11:49pm 30 Mar 2022
Copy link to clipboard
Print this post

Can anybody help please, does anyone have an Extra Un-Built PicoMite board, I'd love to buy 2 but just one would be a god send. I Tried ordering one from JLB but I couldn't manage it. I've never ordered PCBs and it's too delicate too do by hand with my skill level . Please Help Thank You
I may be Vulgar, but , while I'm poor, I'm Industrious, Honest,  and trustworthy! I Know my Place

lizby
Guru

Joined: 17/05/2016
Location: United States
Posts: 3480
Posted: 01:22am 31 Mar 2022
Copy link to clipboard
Print this post

What kind of PicoMite PCB: Mick's Backpack, Panky's Backpack, mine, VGA? See Add-on PCBs here

And if it's unbuilt, what would you do if "it's too delicate too do by hand with my skill level"?

I'd try again with JLCPCB--if you have a zip file of the gerbers (available for all of those), it's only a matter of a handful of clicks and then paying for it. Several of them would only cost about $6US for 5 with slow boat shipping.

Where in the U.S. are you? I'm in Florida at present, and may have a blank one of mine handy. What do you want to do with it?
PicoMite, Armmite F4, SensorKits, MMBasic Hardware, Games, etc. on fruitoftheshed

Rickard5

Guru

Joined: 31/03/2022
Location: United States
Posts: 463
Posted: 03:30am 31 Mar 2022
Copy link to clipboard
Print this post

  lizby said  What kind of PicoMite PCB: Mick's Backpack, Panky's Backpack, mine, VGA? See Add-on PCBs here

And if it's unbuilt, what would you do if "it's too delicate too do by hand with my skill level"?

I'd try again with JLCPCB--if you have a zip file of the gerbers (available for all of those), it's only a matter of a handful of clicks and then paying for it. Several of them would only cost about $6US for 5 with slow boat shipping.

Where in the U.S. are you? I'm in Florida at present, and may have a blank one of mine handy. What do you want to do with it?


Hi lizby Right now I just want to get the the base PicoMite Motherboard, I tried to upload the Gerber files in the PicoMiteVGA_Construction_Pack to JLB PCB and I didn't know what I was doing. I'm sure I can build it I just don't have the skill to etch one.

I'm in Dallas. but if any of the add on boards ever come up once I get my first PicoMite up and running I'M GAME TO BUY THEM TOO, I'm so Excited to Gert a pico mite going
I may be Vulgar, but , while I'm poor, I'm Industrious, Honest,  and trustworthy! I Know my Place

lizby
Guru

Joined: 17/05/2016
Location: United States
Posts: 3480
Posted: 04:02am 31 Mar 2022
Copy link to clipboard
Print this post

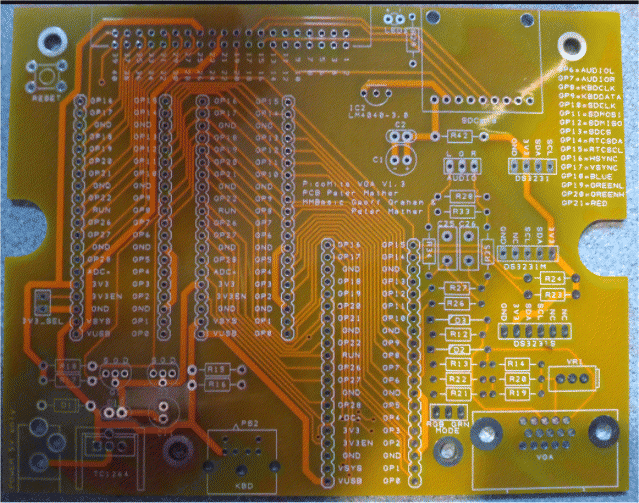

There is no "base" PicoMite PCB--there are different variations. I got 5 of Peter Mather's Picomite VGA V1.3 PCBs, but don't expect to use them since I don't really have any use for VGA.



If you're interested, PM me your address and I'll mail you one.

Note: to get a PicoMite "up and running", all you need is a USB cable and the latest firmware (follow download instructions in manual). Connect using TeraTerm at 115200 baud, and you can start programming. If you solder on pin headers, you can attach simple devices (LEDs, buttons) with "Dupont" flying wires.

Picomite on fruitoftheshed

~
Edited 2022-03-31 14:09 by lizby
PicoMite, Armmite F4, SensorKits, MMBasic Hardware, Games, etc. on fruitoftheshed

Tinine
Guru

Joined: 30/03/2016
Location: United Kingdom
Posts: 1646
Posted: 05:01am 31 Mar 2022
Copy link to clipboard
Print this post

The way I interpret the OP is that he wants to build an actual RPi Pico from scratch(?)

Craig

Rickard5

Guru

Joined: 31/03/2022
Location: United States
Posts: 463
Posted: 05:22am 31 Mar 2022
Copy link to clipboard
Print this post

  Tinine said  The way I interpret the OP is that he wants to build an actual RPi Pico from scratch(?)

Craig


No Craig I'm trying to build a boot to basic VGA toad to build a total boot to basic machine, when I blundered across the PicoMite and PicoMite VGA, it ticked all the boxes of the dream machine I wanted as a kid. and now that I can build a BASIC OS machine with GPIO Access I'm Giddy as a school Girl I've been playing around with it though a terminal, and want to build a stand alone machine
I may be Vulgar, but , while I'm poor, I'm Industrious, Honest,  and trustworthy! I Know my Place

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 8298
Posted: 06:24am 31 Mar 2022
Copy link to clipboard
Print this post

The board that lizby has shown above can fit a nice case, Rikard, if that's important. I think you have to sort out your own front & back panels though, as I don't think they ever got designed. Note that that board includes spaces for two expansion modules (but I don't know much about those).

My design is much smaller and fits a cheaper Chinese case, but it's just undergoing a bit of a design change at present and I've no PCBs available. It's basically the same as the above but without the expansion facility and with a completely different IO pinout.
Edited 2022-03-31 16:31 by Mixtel90
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

Rickard5

Guru

Joined: 31/03/2022
Location: United States
Posts: 463
Posted: 08:26pm 03 Apr 2022
Copy link to clipboard
Print this post

  Mixtel90 said  The board that lizby has shown above can fit a nice case, Rikard, if that's important. I think you have to sort out your own front & back panels though, as I don't think they ever got designed. Note that that board includes spaces for two expansion modules (but I don't know much about those).

My design is much smaller and fits a cheaper Chinese case, but it's just undergoing a bit of a design change at present and I've no PCBs available. It's basically the same as the above but without the expansion facility and with a completely different IO pinout.


Mixtel

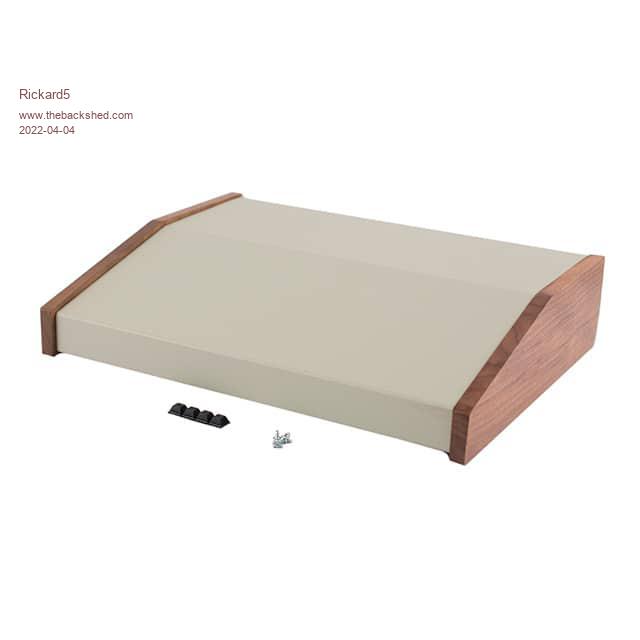

this is the case I ordered from Hammond, and once I have 2 arms again (I just had Elbow replacement) I'll mill out the top to mount a keyboard and any ports. my other Mod on that case will be to add buss access, breadboard space and separate 3.3v-5v-12v power taps to do prototyping. My serious interests are in physical computing like running Stepper motors, real world sensors, and that sort of thing. Mixtel any time you design new boards put mr on the list I'm Game to buy one or 2 and as a Bonus Once I have one I can and will design 3d printable cases and CNC front Panels :)

I may be Vulgar, but , while I'm poor, I'm Industrious, Honest,  and trustworthy! I Know my Place
