Forum Index : Microcontroller and PC projects : Picomite VGA 1.4 BOM
| Author | Message | ||||
Rickard5 Guru  Joined: 31/03/2022 Location: United StatesPosts: 463 |

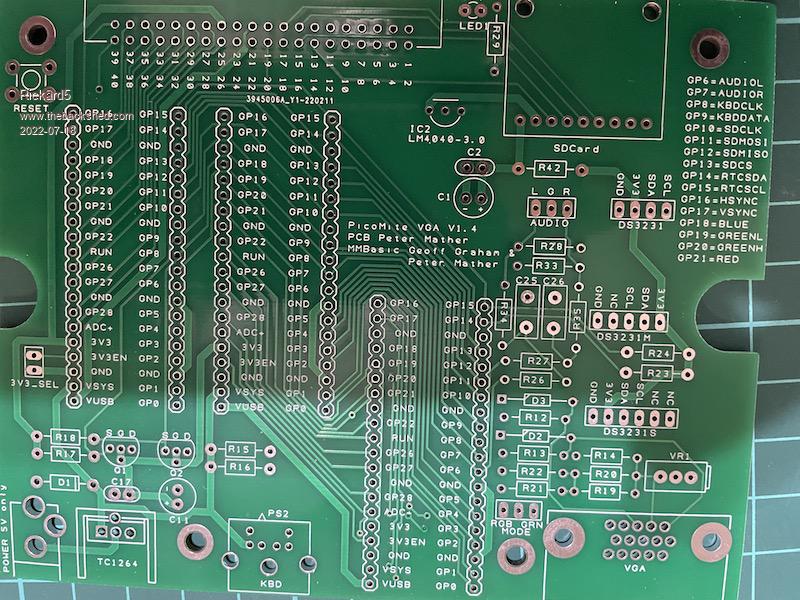

Hi Everyone I was Lucky, and got a Picomite VGA 1.4 board from Al18, and I beed down with surgeries and am ready to get back to serious building, but I've been searching the forum for info on the 1.4 board and can't find any info. I need to at the minimum the BOM So I can start getting parts organized to start Building. Also I'm looking for some information on the SD-Card board Pinout, as I do not want to use the Ada Fruit SD Drive, I've been playing with building my own micro SD Reader from micro SD Card adapters. I Also need to find a pinout for the I/O Bus :)  Thank You guysI may be Vulgar, but , while I'm poor, I'm Industrious, Honest, and trustworthy! I Know my Place |
||||
| matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 10628 |
https://geoffg.net/Downloads/picomite/PicoMiteVGA_Construction_Pack.zip Design 2 |
||||
| Rickard5 Guru Joined: 31/03/2022 Location: United StatesPosts: 463 |
SO THE PICOMITEVGA 1.3 and 1.4 use the same BOM ?and is there a pinout for the SDCard Pads ? I may be Vulgar, but , while I'm poor, I'm Industrious, Honest, and trustworthy! I Know my Place |
||||
| matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 10628 |
Yes https://www.adafruit.com/product/4682 |
||||
