Forum Index : Microcontroller and PC projects : PicoMite Basic Driver for PIMORONI RGB keypad

Author Message
PilotPirx

Newbie

Joined: 03/11/2020
Location: Germany
Posts: 26
Posted: 04:11pm 15 Nov 2022
Copy link to clipboard
Print this post

Hello,

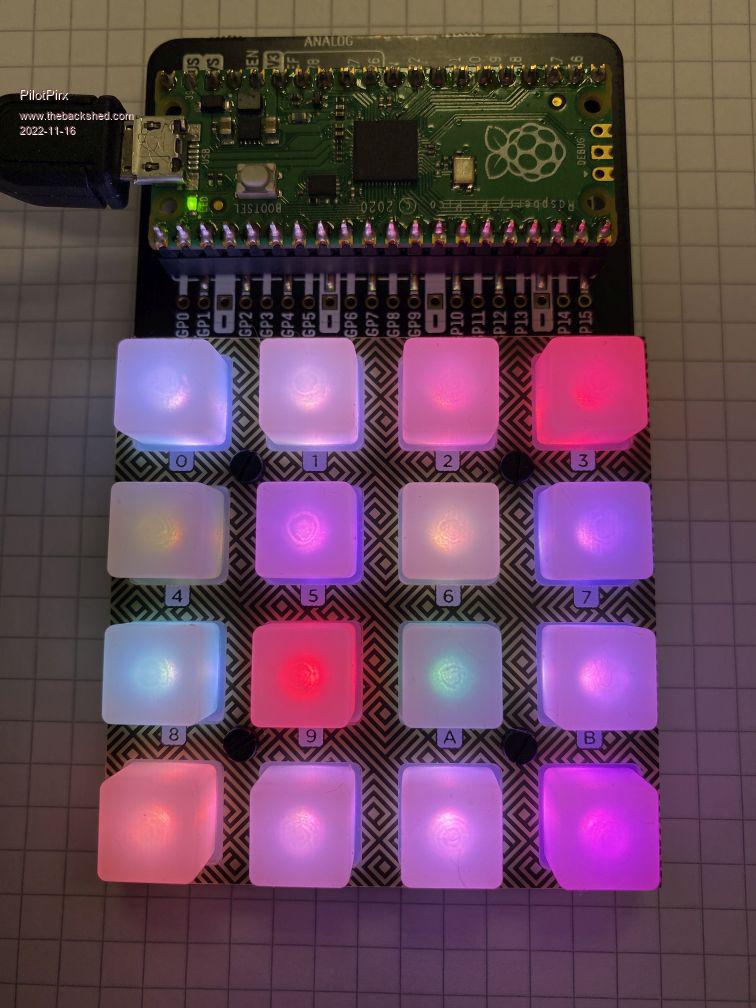

I have written a MMBasic program to control the great RGB keypad from Pimoroni.



Feel free to improve and optimize it, because I am not an experienced MMBasic programmer. My knowledge is in C and Python. But it works fine so far.
Have fun with it,

Peter


'##################################
'# Driver for Pimoroni RGB Keypad #
'# V1.0 by Peter Doerwald         #
'# 14.11.2022                     #
'##################################

 '# Init of SPI and I2C    ###############################################
'Set SPI for APA102 and PICO RGB Keypad
Pin(17) = 0 : SetPin GP17, DOUT  ' pin 17 will be used as the enable signal
SetPin GP16,GP19,GP18,SPI
SPI OPEN 15000000, 0, 8          ' speed is 15MHz and the data size is 8 bits
Dim KeypadRGB%(16)               'RGB888 color of LED 0-15
'Set SPI forTCA9555 Key Input
SetPin GP3, INTL, ButtonPressed  'INT-Pin
SetPin GP4,GP5, I2C
I2C OPEN 100, 1000               '100kHz I2C
Row1%=0                          'Button 0-7  from TCA9555, Reg.0
Row2%=0                          'Button 8-15 from TCA9555, Reg.1
Key%=255                         'pressed key (0-15)
Temp%=255
KeyReleased%=0                   ' Is key released ?
Keypressed%=0                    '1 if key is pressed or released

'Main Demo Program
CLR_RGB
Timer =0
Do
If Keypressed%=1 Then
   Temp%=WhichKey()
   If Temp%<255 Then
      Key%=Temp%
      KeyReleased%=0
   Else
      KeyReleased%=1
   EndIf
   If KeyReleased%=0 Then
      Print "Key:",Key%
      SetKeyRGB(Key%,Rnd()*&HFFFFFF)
      Timer =0
   EndIf
   Keypressed%=0
EndIf
If Timer>5000 Then CLR_RGB():EndIf
Loop
End

' SUBs and FUNCTIONs'

Sub PrintPad(bright)          'print all LEDs with colours in KeypadRGB%(16), bright:0-31
Pin(17)=0
junk = SPI(&H00)              ' send the command and ignore the return
junk = SPI(&H00)
junk = SPI(&H00)
junk = SPI(&H00)
For a=0 To 15
junk = SPI(&H80+bright)
junk = SPI(KeypadRGB%(a) And &HFF)
junk = SPI((KeypadRGB%(a) And &HFF00)\256)
junk = SPI((KeypadRGB%(a) And &HFF0000)\65536)
Next a
junk = SPI(&HFF)
junk = SPI(&HFF)
junk = SPI(&HFF)
junk = SPI(&HFF)
Pin(17)=0
End Sub

Sub SetKeyRGB(Key,ColorRGB)   'Set RGB888 color of Key (0-15)
KeypadRGB%(Key)= ColorRGB
PrintPad(31)
End Sub

Sub CLR_RGB                   'Clears all LEDs to black
For x=0 To 15
 KeypadRGB%(x)=&H000000
Next x
PrintPad(31)
End Sub

Sub ButtonPressed             'Interrupt-Routine if key is pressed or released
 Keypressed%=1
 I2C WRITE &H20, 1, 1, 0
 I2C READ &H20, 0, 1, Row1%
 I2C WRITE &H20, 1, 1, 1
 I2C READ &H20, 0, 1, Row2%
End Sub

Function WhichKey() As INTEGER 'Calculates which key is pressed, 255=No Key or released
 Local But%=0
 Local Brk%=0
 Brk% =0
 Do
   If Row1%<255 Then
      If (Row1% And &H01) = &H00 Then
         WhichKey=But%
         Brk% =1
      Else
         Row1%=Fix(Row1%/2)
         But%=But%+1
      EndIf
   Else
      If Row2%<255 Then
         If (Row2% And &H01) = &H00 Then
            WhichKey=But%+8
            Brk% =1
         Else
            Row2%=Fix(Row2%/2)
            But%=But%+1
         EndIf
       Else
         WhichKey=255
         Brk% =1
       EndIf
    EndIf
  If But%>7 Then
     Brk% =1
     WhichKey=255
  EndIf
 Loop Until Brk%=1
End Function


Tinine
Guru

Joined: 30/03/2016
Location: United Kingdom
Posts: 1529
Posted: 09:23am 19 Nov 2022
Copy link to clipboard
Print this post

Pin(17) never changes state?

PilotPirx

Newbie

Joined: 03/11/2020
Location: Germany
Posts: 26
Posted: 03:02pm 21 Nov 2022
Copy link to clipboard
Print this post

Hello Tinine,

normally, on the SPI bus, the CS/Enable goes high after the communication is finished. But the APA102 has no CS. In this case, the CS only controls the buffer of CLK and MOSI. So you can also program as follows, but it makes no difference:

Pin(17)=1
End Sub

Print this page


To reply to this topic, you need to log in.

© JAQ Software 2022
