Forum Index : Microcontroller and PC projects : 3D printed case for matherp's PicoMite-VGA board v1.0
| Author | Message | ||||
karlelch Senior Member  Joined: 30/10/2014 Location: GermanyPosts: 220 |

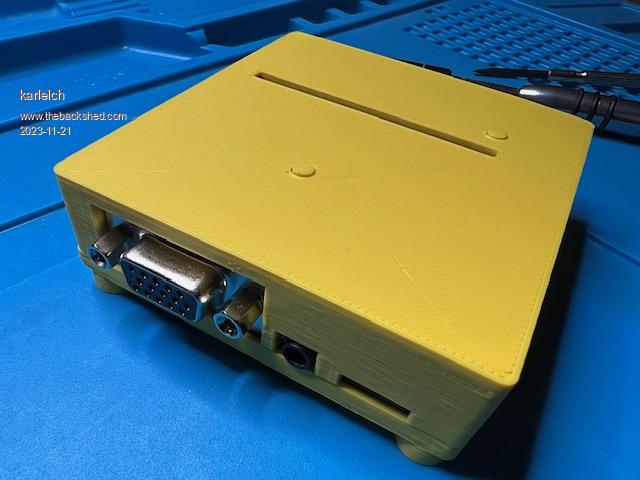

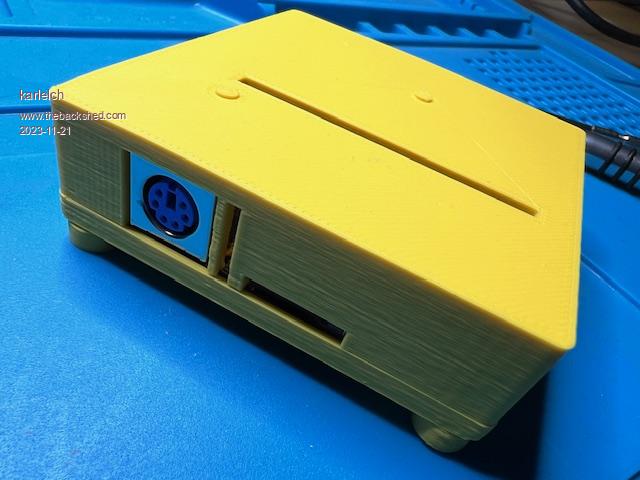

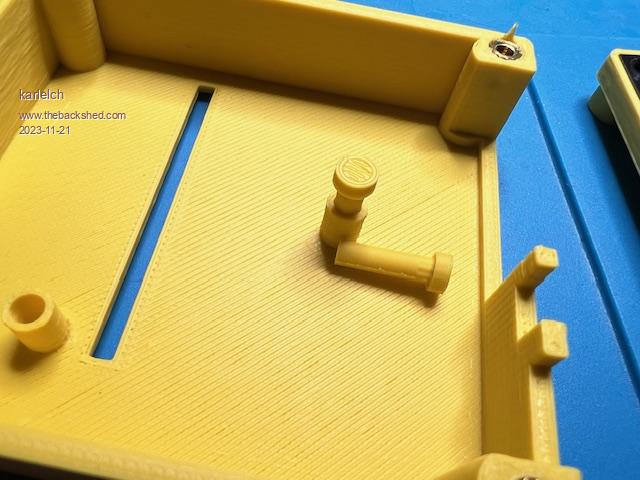

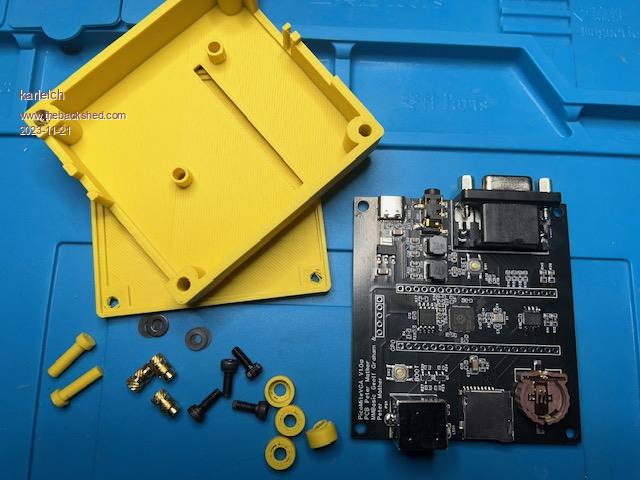

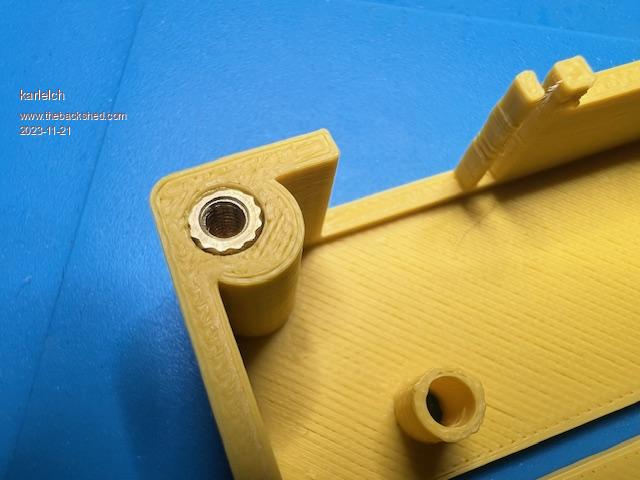

Hi, I created a simple 3D-printable case for Peter's PicoMite-VGA board v1.0 using FreeCAD. It requires: - 1x case top - 1x case bottom - 2x "button sticks" (to press the two buttons on the PCB) - 4x feet - 4x M3 machine screws - 4x embeddable brass nuts (M3x8x5) The FreeCAD file as well as the .STL files for the 4 printable parts are in here: picomiteVGA_case_v2.zip Here are some pictures: All parts:  Embedded nut:  "button sticks":  Finished case from one ...  ... and the other side.  Cheers Thomas |
||||
| matherp Guru  Joined: 11/12/2012 Location: United KingdomPosts: 10063 |
Very nice - will try and print one tomorrow |
||||
| okwatts Regular Member  Joined: 27/09/2022 Location: CanadaPosts: 60 |
Thanks for doing this. Now I need to find the metric hardware, especially the embedded nuts. At the moment the case is taped together. Now I need cases for other projects like Mixtel90's Picomite Backpack, and Hydra40-80 with ArmiteF4, etc. My problem is I'm not very good at design and Fusion360. |
||||
| karlelch Senior Member Joined: 30/10/2014 Location: GermanyPosts: 220 |

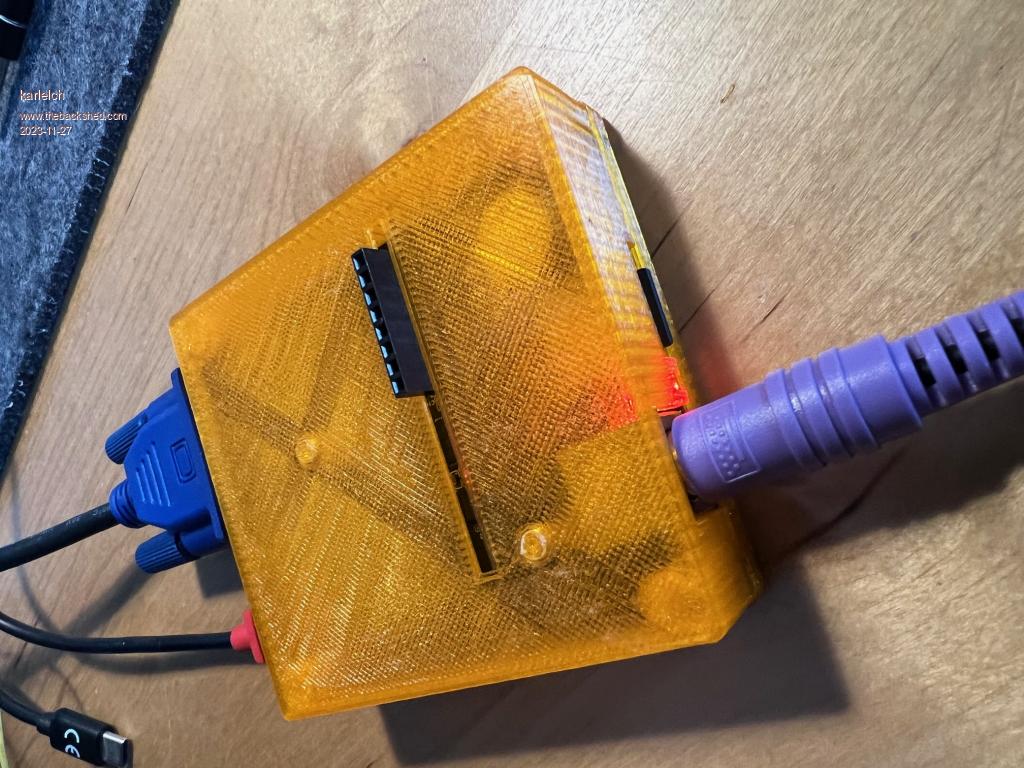

This is what I used. Slightly updated case (picomiteVGA_case_v3.zip):  |
||||
