Forum Index : Microcontroller and PC projects : Nice little amp for the Pico etc.

Author Message
matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9201
Posted: 12:42pm 02 Nov 2024
Copy link to clipboard
Print this post

12V barrel jack power and the output seems pretty immune from noise on the supply. Quoted as 15W per channel. Take that with a pinch of salt but still plenty of oomph with no obvious distortion. 3.5mm stereo jack input and screw terminals for the speakers. Works like a treat on the pico using volhout's magic filter.

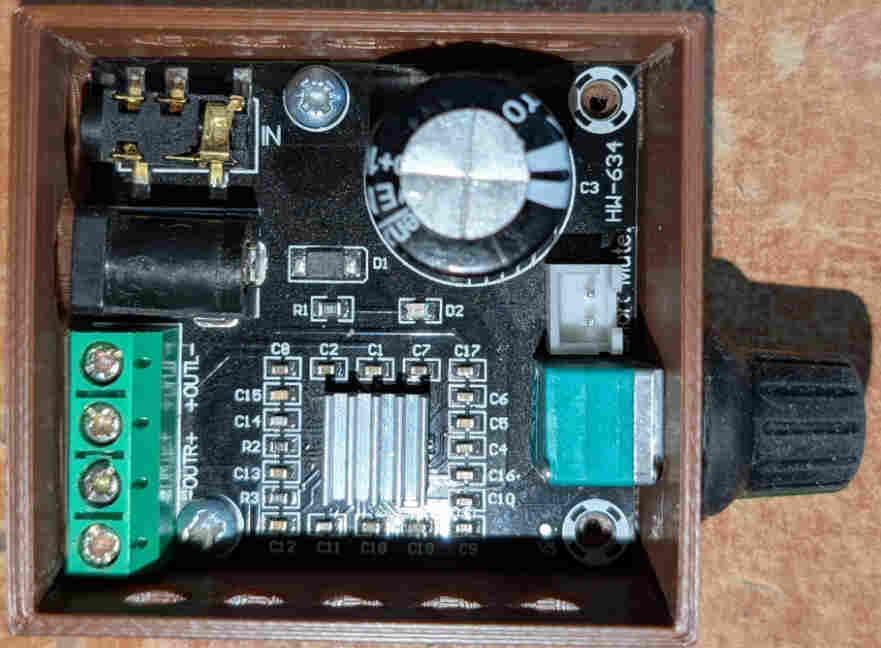

This is the module

and here is the stl for the box 52mm x 48mm x 30mm


ampbox.zip
Edited 2024-11-02 22:43 by matherp

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6870
Posted: 12:59pm 02 Nov 2024
Copy link to clipboard
Print this post

Extortionate price, of course. :)

Your ears will love you if you stick to a maximum of 8W per channel into 8Ω with a 12V supply, giving 0.1% THD. That is soddin' loud in the average living room though. :)
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

JanVolk
Senior Member

Joined: 28/01/2023
Location: Netherlands
Posts: 146
Posted: 02:19pm 02 Nov 2024
Copy link to clipboard
Print this post

Look at AliExpress for even cheaper prices. Already seen under 3 Euro including shipping costs.
Has excellent specifications.
Power at 12V DC
    5W 8Ω --> THD+N=0.1%
    8W 8Ω --> THD+N=1.0%
   10W 8Ω --> THD+N=10%
   15W 4Ω --> THD+N=0.1%
   Efficiency: >90%
It says here that it is a 2x10W with this configuration and if a larger heat sink is used, 2x15W.
Also nice to use the extra connections such as mute and the power switch.

Jan.

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2158
Posted: 06:57pm 02 Nov 2024
Copy link to clipboard
Print this post

so many stereo amps eg https://www.ebay.co.uk/itm/176549329564
