NES on the PicoMiteHDMIUSB motherboard

pico-infonesPlus

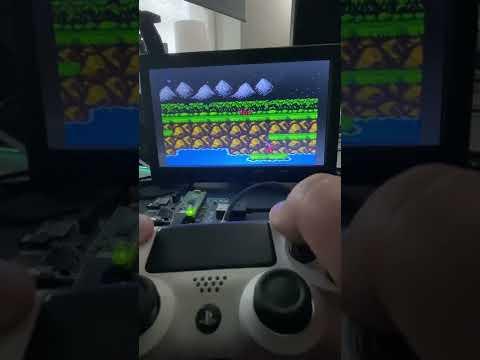

 Here I have set up the pico-infonesPlus project for PicoMite HDMI USB, please check its operation on your device?
Attention! HDMI video signal comes with sound and will only work on devices that are suitable for this, such as a TV ))
piconesPlus4picoMiteHDMIUSB.zip

USB keyboard and some gamepads work.

SD CARD is connected to ports:
CS    -- GP22
SCK   -- GP26
SPITX -- GP27
SPIRX -- GP28

Wii Classic Conroller:
I2C0 SDA -- GP20
i2C0 SCL -- GP21

NES Controller 1:     NES Controller 2:
NES1_CLK  -- GP0      NES2_CLK  -- GP3
NES1_LAT  -- GP1      NES2_LAT  -- GP4
NES1_DATA -- GP2      NES2_DATA -- GP5

javavi

Guru

Joined: 01/10/2023
Location: Ukraine
Posts: 458
Posted: 08:18pm 07 Feb 2025
Copy link to clipboard
Print this post

Nintendo (NES) ROMs
https://www.emulatorgames.net/roms/nintendo/
www.emulatorgames.net

Super Mario Bros (E).zip
Edited 2025-02-08 06:30 by javavi

Amnesie
Guru

Joined: 30/06/2020
Location: Germany
Posts: 625
Posted: 09:23pm 07 Feb 2025
Copy link to clipboard
Print this post

  Quote  Error occured:
Cannot open / currentloaderom.txt:4i

Pres a button to continue.


I also tried it with zelda.. no rom works. Always this error...

javavi

Guru

Joined: 01/10/2023
Location: Ukraine
Posts: 458
Posted: 10:14pm 07 Feb 2025
Copy link to clipboard
Print this post

  Amnesie said
  Quote  Error occured:
Cannot open / currentloaderom.txt:4i
Pres a button to continue.

I also tried it with zelda.. no rom works. Always this error...


Try X key on the USB keyboard

When using an USB-Keyboard

Cursor keys: up, down, left, right
A: Select
S: Start
Z: B
X: A
Edited 2025-02-08 08:18 by javavi

Amnesie
Guru

Joined: 30/06/2020
Location: Germany
Posts: 625
Posted: 10:49pm 07 Feb 2025
Copy link to clipboard
Print this post

Mario does not work for me (yes exactly this version from your link, when I press X on usb keyboard), screen gets black and I am back in the menu.

BUT: I'm glad I also tried Zelda. This works with "X" key AND the most important thing you wanted to know:

SOUND works via HDMI! And it is great, no glitches, perfect quality. Imagequality is also perfect and rock solid (I tried bending the breadboard wires wildly) - no problems. Even played a round Zelda

Cool!

Greetings
Daniel
Edited 2025-02-08 08:51 by Amnesie

javavi

Guru

Joined: 01/10/2023
Location: Ukraine
Posts: 458
Posted: 01:17pm 08 Feb 2025
Copy link to clipboard
Print this post

@Amnesie & All,

NES firmware of the pico-infoNESplus project for the PicoMiteHDMI scheme has been updated - stability in operation and the number of supported joysticks have been added.
picoNES+_PicoMiteHDMI.zip

Gamepad and keyboard usage

Menu Usage
Gamepad buttons:

UP/DOWN: Next/previous item in the menu.
LEFT/RIGHT: next/previous page.
A (Circle): Open folder/flash and start game.
B (X): Back to parent folder.
START: Starts game currently loaded in flash.
The colors in the menu can be changed and saved:

Select + Up/Down changes the foreground color.
Select + Left/Right changes the background color.
Select + A saves the colors. Screen will flicker when saved.
Select + B resets the colors to default. (Black on white)
When using an USB-Keyboard:

Cursor keys: Up, Down, left, right
Z: Back to parent folder
X: Open Folder/flash and start a game
S: Starts game currently loaded in flash.
A: acts as the select button.

Emulator (in game)
Gamepad buttons:

SELECT + START, Xbox button: Resets back to the SD Card menu. Game saves are saved to the SD card.
SELECT + UP/SELECT + DOWN: switches screen modes.
SELECT + A/B: toggle rapid-fire.
START + A : Toggle framerate display
When using a Genesis Mini controller, press C for SELECT.

When using an USB-Keyboard

Cursor keys: up, down, left, right
A: Select
S: Start
Z: B
X: A
