Folks,

I would like to make you aware of a new modular series of expanders for the Maximite.

The Maximite Modular Expanders are a series of smaller modules that can be purchased separately and added to over time.

These modules interface to the Maximite via a powered hub.

Note: These modules are separate to the full 10 channel expander module, however some connectivity between module series is possible.

It is also possible to plug any single modular board directly into the Maximite, so if you only needed 4 outputs or 4 inputs then you don't need the Hub.

Currently the modules are as follows.

Modular Powered I/O Hub.

4 Channel Digital output board, with relays.

4 Channel Digital/Analogue Input board.

RS232 Serial Communications board.

RS485 Serial Communications board.

Serial LCD & 16 Key serial, BCD or polled Keypad.

Ethernet/webserver.

These products will be added to my online store later today.

Some of you may also be surprised to see Ethernet in the list as I argued against such a thing in a previous post. However having given it more thought, I believe the solution I have come up with is a good compromise in terms of functionality whilst having minimal impact on the the Maximite it's self.

More information on the modules can be found here http://www.hamfield.com.au/modular.htm

Regards

Rohan
Edited by rhamer 2011-07-03

Rohan Hamer
HAMFIELD Software & Hardware Solutions

Makers of the Maximite Expander.

http://www.hamfield.com.au

rhamer
Senior Member

Joined: 06/06/2011
Location: Australia
Posts: 174

Posted: 04:41am 02 Jul 2011

Copy link to clipboard

Print this post

Folks,

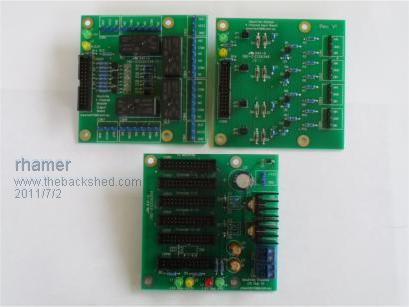

Some photos of the Maximite Modular Series Hub, 4 Channel Output and 4 Channel Input Boards

These are now available via my web site.

Regards

Rohan

Rohan Hamer
HAMFIELD Software & Hardware Solutions

Makers of the Maximite Expander.

http://www.hamfield.com.au

pito
Newbie

Joined: 09/06/2011
Location:
Posts: 25

Posted: 01:35pm 02 Jul 2011

Copy link to clipboard

Print this post

Rohan, nice to have - a module with buffered I2C and SPI headers, and a few buffered chipselects. There is a lot of spi and i2c gadgets out there so one may connect several to maximite without destroying it.
For example:
4x i2c 10pin headers - buffered
4x spi 10pin headers - buffered

10 pin i2c headers:
5v
3v3
gnd
sda (how to buffer?)
sdc (how to buffer?)
/cs1
/cs2
/cs3
/cs4
nc

10 pin spi headers:
5v
3v3
gnd
sdi
sdo
sclk
/cs1
/cs2
/cs3
/cs4

Pito.

Edited by pito 2011-07-03

rhamer
Senior Member

Joined: 06/06/2011
Location: Australia
Posts: 174

Posted: 10:50pm 02 Jul 2011

Copy link to clipboard

Print this post

Are you saying there is a standard for 10 pin connectors and I2C & SPI?

Regards

Rohan

Rohan Hamer
HAMFIELD Software & Hardware Solutions

Makers of the Maximite Expander.

http://www.hamfield.com.au

stuarts

Senior Member

Joined: 15/06/2011
Location: Australia
Posts: 194

Posted: 12:33am 03 Jul 2011

Copy link to clipboard

Print this post

I'd always thought that I2C was 4 wires or maybe 5 if you want to incorporate the INT line present on many I2C devices to interrupt the master to indicate it needs servicing.

Stuart

Time is nature's way of keeping everything from happening all at once.
