Forum Index : Microcontroller and PC projects : CGCOLORMAX2 now shipping

Author Message
CircuitGizmos

Guru

Joined: 08/09/2011
Location: United States
Posts: 1427

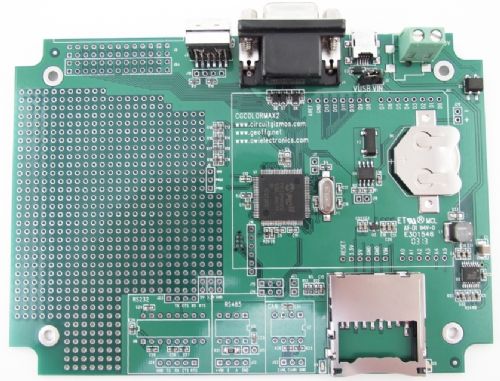

Posted: 08:01am 11 Mar 2013
Copy link to clipboard
Print this post

http://www.circuitgizmos.com/products/cgcolormax2/cgcolormax 2.shtml



Micromites and Maximites! - Beginning Maximite

TinkersALot
Regular Member

Joined: 20/11/2012
Location: United States
Posts: 72
Posted: 08:52am 11 Mar 2013
Copy link to clipboard
Print this post

Is the board available fully stuffed (including all header-pins etc.)?

CircuitGizmos

Guru

Joined: 08/09/2011
Location: United States
Posts: 1427
Posted: 08:58am 11 Mar 2013
Copy link to clipboard
Print this post

Not yet. I don't want to have to manage a bunch of versions with different stuffing options. I think I'll see what the best option is and offer that. Edited by CircuitGizmos 2013-03-12
Micromites and Maximites! - Beginning Maximite

Grogster

Admin Group

Joined: 31/12/2012
Location: New Zealand
Posts: 9599
Posted: 01:23pm 11 Mar 2013
Copy link to clipboard
Print this post

Looks sexy.

Can you still buy the original version, or are they now going to be replaced by the version 2 board?

The only reason I ask, is that I already use the cute little RS232 interface module that comes pre-installed on the V1 board.
Smoke makes things work. When the smoke gets out, it stops!

CircuitGizmos

Guru

Joined: 08/09/2011
Location: United States
Posts: 1427
Posted: 01:46pm 11 Mar 2013
Copy link to clipboard
Print this post

Shhh don't tell anyone, but the RS232 chip is actually populated on the new board, too.

The reason was that there was an error in the library part when the CGCOLORMAX2 was designed. I felt it would be easier to populate the part at the factory than to explain how to populate the part after purchase.


The CGCOLORMAX2 replaces the CGCOLORMAX1.
Micromites and Maximites! - Beginning Maximite

Grogster

Admin Group

Joined: 31/12/2012
Location: New Zealand
Posts: 9599
Posted: 01:59pm 11 Mar 2013
Copy link to clipboard
Print this post

Okey dokey, thanks.

I see you have a different SD card holder in the new design - is this one a push-in-push-out type?

...not that it really matters, I have no issues with the SD card holder on the V1 board, I am just curious.
Smoke makes things work. When the smoke gets out, it stops!

CircuitGizmos

Guru

Joined: 08/09/2011
Location: United States
Posts: 1427
Posted: 02:38pm 11 Mar 2013
Copy link to clipboard
Print this post


Yes. Push in, push out. Also has the detect so that MMBasic knows when the card is changed.

Micromites and Maximites! - Beginning Maximite

Zonker

Guru

Joined: 18/08/2012
Location: United States
Posts: 767
Posted: 03:40pm 13 Mar 2013
Copy link to clipboard
Print this post

Just got done orderin-up the C-Max-2 but noticed one thing about the Rs-485 chip. Like the C-Max-1, the RE pin on the chip is at ground. This will put everything you transmit right back in the Rx buffer. The RE and DE pins should be tied together so this dosn't happen. Maybe I'm wrong about this.... but will try it out soon...

Thanks CG..!!!

Greg Fordyce
Senior Member

Joined: 16/09/2011
Location: United Kingdom
Posts: 153
Posted: 04:12am 15 Mar 2013
Copy link to clipboard
Print this post

Is there a box availible for the C-Max-2? The website shows
  Quote  ColorMax Box

Black ABS Plastic Enclosure for CGCOLORMAX1. Comes with lid and screws.



Also a question using the CGKEYCHIP1. If I want to plug in a keyboard occasionally, do I need to disconnect the CGKEYCHIP1 first or can I connect both simultaneously, CGKEYCHIP1 on the provided header and keyboard into the PS2 port?

Greg

CircuitGizmos

Guru

Joined: 08/09/2011
Location: United States
Posts: 1427
Posted: 06:39am 15 Mar 2013
Copy link to clipboard
Print this post

The box will also work with the CGCOLORMAX2. I'll add that to the list of changes to make, thanks!

I've tested the CGKEYCHIP1 with PS2 keyboards - they will work together.
Micromites and Maximites! - Beginning Maximite
