This is a basic way of printing 7 segment style numbers using 'draw filled rectangle' from Peter's TFT code.

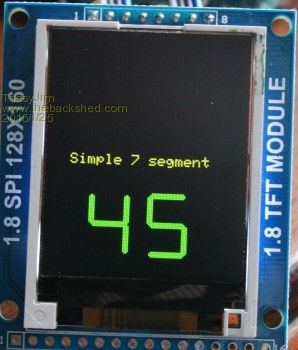

It has 3 sizes. This image is size '2'
Each digit takes between 18 and 44 mS to draw, depending on the number of segments.

Replace the T18_test sub with:

'
SUB T18_test
LOCAL INTEGER i, xfs, yfs, x0, y0, x1, y1, wi, ht, sz
LOCAL FLOAT tn
T18.fillscreen(black)
T18.setrot(T18_normal)
T18.pbitmap(58, 2, &HFF81818181FF, 1, 0, green, black)
T18.pstring(24, 12, "Welcome to the", 1, 0, green, black)
T18.pstring(8, 30, "Micromite", 2, 0, red, black)
T18.pstring(44,50,"MK2",2,0,red,black)
T18.pstring(8, 80, "in colour", 2, 0, yellow, black)
T18.pstring(10, 100, "1.8in SPI display", 1, 0, cyan, black)
T18.pstring(7, 115, "S6D02A1 controller", 1, 0, cyan, black)
T18.drect(0, 0, T18_params(T18_wi), T18_params(T18_ht), red)
'
PAUSE 2000
T18.fillscreen(black)
T18.pstring(12, 80, "Simple 7 segment", 1, 0, yellow, black)
count
end sub

sub count
local n as integer, colour as integer, w as integer
for n = 0 to 99
if n>89 then
colour = red
else
colour = green
end if
if n>9 then
draw7segment( n\10, 20,100,colour,2)
draw7segment( n mod 10, 60,100,colour,2)
else
draw7segment( n\10, 40,130,colour,1)
draw7segment( n mod 10, 60,130,colour,1)
end if
pause 940
next n
end sub

SUB draw7segment(v as integer, x AS INTEGER, y AS INTEGER, rcolour AS INTEGER, w as integer)
' number, top left x, top left y, colour, size (1, 2 or 3)
local i as integer
T18.frect(x, y, 20*w, 30*w, black)
select case v
case 0
for i = 1 to 6
drawSegment(i, x , y , rcolour, w )
next i
case 1
drawSegment(2, x , y , rcolour, w )
drawSegment(3, x , y , rcolour, w)
case 2
drawSegment(1, x , y , rcolour, w )
drawSegment(2, x , y , rcolour, w )
drawSegment(4, x , y , rcolour, w )
drawSegment(5, x , y , rcolour, w )
drawSegment(7, x , y , rcolour, w )
case 3
for i = 1 to 4
drawSegment(i, x , y , rcolour, w )
next i
drawSegment(7, x , y , rcolour, w )
case 4
drawSegment(2, x , y , rcolour, w )
drawSegment(3, x , y , rcolour, w )
drawSegment(6, x , y , rcolour, w )
drawSegment(7, x , y , rcolour, w )
case 5
drawSegment(1, x , y , rcolour, w )
drawSegment(3, x , y , rcolour, w )
drawSegment(4, x , y , rcolour, w )
drawSegment(6, x , y , rcolour, w )
drawSegment(7, x , y , rcolour, w )
case 6
drawSegment(1, x , y , rcolour, w )
for i = 3 to 7
drawSegment(i, x , y , rcolour, w )
next i
case 7
for i = 1 to 3
drawSegment(i, x , y , rcolour, w )
next i
case 8
for i = 1 to 8
drawSegment(i, x , y , rcolour, w )
next i
case 9
for i = 1 to 4
drawSegment(i, x , y , rcolour, w )
next i
drawSegment(6, x , y , rcolour, w )
drawSegment(7, x , y , rcolour, w )
end select
end sub

sub drawSegment(s as integer, x AS INTEGER, y AS INTEGER, rcolour AS INTEGER, w as integer)
if w < 1 then w = 1
if w > 3 then w = 3
select case s
case 1
T18.frndrect(x+4*w, y+3*w, 12*w, 2*w, w, rcolour)
case 2
T18.frndrect(x+15*w, y+4*w, 2*w, 10*w, w, rcolour)
case 3
T18.frndrect(x+15*w, y+14*w, 2*w, 10*w, w, rcolour)
case 4
T18.frndrect(x+4*w, y+23*w, 12*w, 2*w, w, rcolour)
case 5
T18.frndrect(x+3*w, y+14*w, 2*w, 10*w, w, rcolour)
case 6
T18.frndrect(x+3*w, y+4*w, 2*w, 10*w, w, rcolour)
case 7
T18.frndrect(x+4*w, y+13*w, 12*w, 2*w, w, rcolour)
end select
end sub

Decimal points should be easy to add if required.

Jim

VK7JH
MMedit

Zonker

Guru

Joined: 18/08/2012
Location: United States
Posts: 767

Posted: 11:25am 01 Feb 2015

Copy link to clipboard

Print this post

Sweet add-on Tassy..!

Maybe decimal points, the degree symbol and a colon thingy would be good...

I just got in the 1.8" displays and got one going last night... Maybe if I can get more time this week, I can get this working ok...

Looks good on the Display..!

TassyJim

Guru

Joined: 07/08/2011
Location: Australia
Posts: 6268

Posted: 12:55pm 01 Feb 2015

Copy link to clipboard

Print this post

Decimal points and the colon are simply filled circles.
Degree is an unfilled circle.

New numbers will likely over-write the DP so it would have to be re entered after each write.

To keep you going, here is an update that has size zero numbers.

SUB T18_test
LOCAL INTEGER i, xfs, yfs, x0, y0, x1, y1, wi, ht, sz
LOCAL FLOAT tn
T18.fillscreen(black)
T18.setrot(T18_normal)
T18.pbitmap(58, 2, &HFF81818181FF, 1, 0, green, black)
T18.pstring(24, 12, "Welcome to the", 1, 0, green, black)
T18.pstring(8, 30, "Micromite", 2, 0, red, black)
T18.pstring(44,50,"MK2",2,0,red,black)
T18.pstring(8, 80, "in colour", 2, 0, yellow, black)
T18.pstring(10, 100, "1.8in SPI display", 1, 0, cyan, black)
T18.pstring(7, 115, "S6D02A1 controller", 1, 0, cyan, black)
T18.drect(0, 0, T18_params(T18_wi), T18_params(T18_ht), red)
'
PAUSE 2000
T18.fillscreen(black)
T18.pstring(12, 80, "Simple 7 segment", 1, 0, yellow, black)
count
end sub

Jim
sub count
local n as integer, colour as integer, w as integer
for n = 0 to 99
if n>89 then
colour = red
else
colour = green
end if
if n>9 then
draw7segment( n\10, 20,100,colour,2)
draw7segment( n mod 10, 60,100,colour,2)
else
draw7segment( n\10, 40,130,colour,0)
draw7segment( n mod 10, 60,130,colour,0)
end if
pause 940
next n
end sub

SUB draw7segment(v as integer, x AS INTEGER, y AS INTEGER, rcolour AS INTEGER, w as integer)
' number, top left x, top left y, colour, size (1, 2 or 3)
local i as integer
if w < 0 then w = 0
if w > 3 then w = 3
if w = 0 then
T18.frect(x, y, 10, 15, black)
else
T18.frect(x, y, 20*w, 30*w, black)
end if
select case v
case 0
for i = 1 to 6
drawSegment(i, x , y , rcolour, w )
next i
case 1
drawSegment(2, x , y , rcolour, w )
drawSegment(3, x , y , rcolour, w)
case 2
drawSegment(1, x , y , rcolour, w )
drawSegment(2, x , y , rcolour, w )
drawSegment(4, x , y , rcolour, w )
drawSegment(5, x , y , rcolour, w )
drawSegment(7, x , y , rcolour, w )
case 3
for i = 1 to 4
drawSegment(i, x , y , rcolour, w )
next i
drawSegment(7, x , y , rcolour, w )
case 4
drawSegment(2, x , y , rcolour, w )
drawSegment(3, x , y , rcolour, w )
drawSegment(6, x , y , rcolour, w )
drawSegment(7, x , y , rcolour, w )
case 5
drawSegment(1, x , y , rcolour, w )
drawSegment(3, x , y , rcolour, w )
drawSegment(4, x , y , rcolour, w )
drawSegment(6, x , y , rcolour, w )
drawSegment(7, x , y , rcolour, w )
case 6
drawSegment(1, x , y , rcolour, w )
for i = 3 to 7
drawSegment(i, x , y , rcolour, w )
next i
case 7
for i = 1 to 3
drawSegment(i, x , y , rcolour, w )
next i
case 8
for i = 1 to 8
drawSegment(i, x , y , rcolour, w )
next i
case 9
for i = 1 to 4
drawSegment(i, x , y , rcolour, w )
next i
drawSegment(6, x , y , rcolour, w )
drawSegment(7, x , y , rcolour, w )
end select
end sub

sub drawSegment(s as integer, x AS INTEGER, y AS INTEGER, rcolour AS INTEGER, w as integer)
if w < 0 then w = 0
if w > 3 then w = 3
if w = 0 then
select case s
case 1
T18.dline(x+2, y+2, x+8, y+2, rcolour)
case 2
T18.dline(x+8, y+2, x+8, y+8, rcolour)
case 3
T18.dline(x+8, y+8, x+8, y+14, rcolour)
case 4
T18.dline(x+2, y+14, x+8, y+14, rcolour)
case 5
T18.dline(x+2, y+8, x+2, y+14, rcolour)
case 6
T18.dline(x+2, y+2, x+2, y+8, rcolour)
case 7
T18.dline(x+2, y+8, x+8, y+8, rcolour)
end select
else
select case s
case 1
T18.frndrect(x+4*w, y+3*w, 12*w, 2*w, w, rcolour)
case 2
T18.frndrect(x+15*w, y+4*w, 2*w, 10*w, w, rcolour)
case 3
T18.frndrect(x+15*w, y+14*w, 2*w, 10*w, w, rcolour)
case 4
T18.frndrect(x+4*w, y+23*w, 12*w, 2*w, w, rcolour)
case 5
T18.frndrect(x+3*w, y+14*w, 2*w, 10*w, w, rcolour)
case 6
T18.frndrect(x+3*w, y+4*w, 2*w, 10*w, w, rcolour)
case 7
T18.frndrect(x+4*w, y+13*w, 12*w, 2*w, w, rcolour)
end select
end if
end sub
