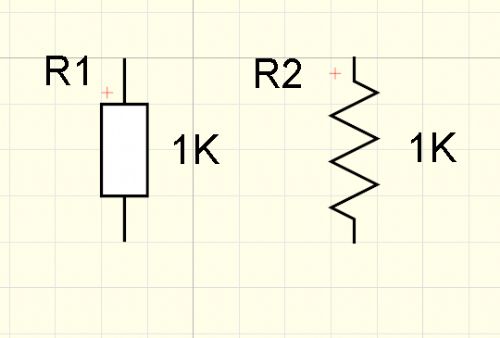

Have folks on this forum any recommendations for circuit diagram software that does *not* have the dreaded European rectangular resistors?Edited by Herry 2015-03-22

Senior?! �Whatever it says, I'm a complete and utter beginner...

palcal

Guru

Joined: 12/10/2011
Location: Australia
Posts: 1997

Posted: 11:49am 21 Mar 2015

Copy link to clipboard

Print this post

Circuit Wizard uses the zig-zag resistor pattern, but it is very basic.
I used it for a while but now use diptrace.
I agree I prefer the zig-zag, I grew up on Radio and Hobbies and Silicon Chip.
Paul.
Edit. It wasn't Circuit Wizard in fact it is DipTrace, I must be going mad, its just that I don't do schematics for my projects now because they never convert to PCB the way I want.
I just use the PCB and place the components where I want and connect it up.
Diptrace has a freeware version just search the net.
Paul.Edited by palcal 2015-03-22

"It is better to be ignorant and ask a stupid question than to be plain Stupid and not ask at all"

Herry

Senior Member

Joined: 31/05/2014
Location: Australia
Posts: 261

Posted: 02:26pm 21 Mar 2015

Copy link to clipboard

Print this post

Thanks! Mine was the very early Practical Wireless...

Senior?! �Whatever it says, I'm a complete and utter beginner...

Grogster

Admin Group

Joined: 31/12/2012
Location: New Zealand
Posts: 9641

Posted: 03:27pm 21 Mar 2015

Copy link to clipboard

Print this post

I use Sprint Plan for all my schematic work.

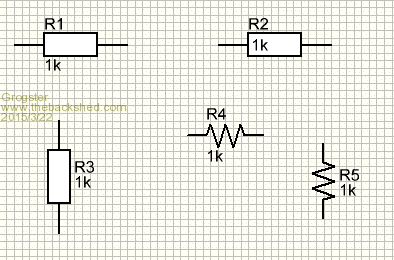

They support both the square resistors(which I personally prefer!), AND also the zig-zag type:

Edited by Grogster 2015-03-23

Smoke makes things work. When the smoke gets out, it stops!

MicroBlocks

Guru

Joined: 12/05/2012
Location: Thailand
Posts: 2209

Posted: 08:09pm 21 Mar 2015

Copy link to clipboard

Print this post

I use diptrace and i find it a very user friendly program to make schematics and pcb's.
I not worry to much about how the standard parts look like as it is only a minute or two to change it or even make your own part.

Microblocks. Build with logic.

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2956

Posted: 09:05pm 21 Mar 2015

Copy link to clipboard

Print this post

Hi Herry,

Of course AUTOTRAX DEX does just that

The little + signs next to the resistors signify pin 1 (I think) and can be removed if you do not wish them there..

AutoTrax DEX is totally free for non-commercial use (adds a non-commercial text to your GERBERs, I believe) and is fairly/very easy to use.

Regards,

Mick

Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

muddy0409

Senior Member

Joined: 15/06/2011
Location: Australia
Posts: 125

Posted: 01:21am 22 Mar 2015

Copy link to clipboard

Print this post

Express PCB. is free and includes express schematic.

Don't poo poo conspiracy theories.
Remember that everything ever discovered started somewhere as a theory.

robert.rozee
Guru

Joined: 31/12/2012
Location: New Zealand
Posts: 2447

Posted: 02:14am 22 Mar 2015

Copy link to clipboard

Print this post

i use a program called DIY Layout Creator (DIYLC), a java application that is downloadable here:
https://code.google.com/p/diy-layout-creator/

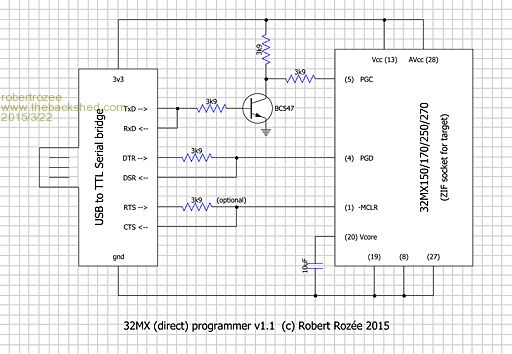

it supports nice zig-zag resistors, though the transistors lack circles around the outside - but it is relatively easy to add the circles later on yourself. note that it is not a schematic layout program in the strictest sense, more of a drawing program that has been designed to aid drawing schematics. on the plus size, it is compact, simple, and it does also support creating veroboard layouts, which can be pretty handy.

completed work can be converted to PNG images or PDF documents. i use the PDF option, then convert into a GIF file for publishing using photoshop elements 2. with schematics i generally boost the gamma massively to achieve good readability when the resolution is reduced for display in a browser:

cheers,
rob :-)

Herry

Senior Member

Joined: 31/05/2014
Location: Australia
Posts: 261

Posted: 07:45am 22 Mar 2015

Copy link to clipboard

Print this post

Many thanks chaps for all these suggestions. I will using my choice for Micromite Mk 2 projects on Veroboard. I've got Pebble for layout but it is easy drawing of schematics that really interests me. If they can be linked, so much the batter.
