Hi All

This video is a small part of my Christmas light display.

All the attractions have at least one picaxe and some have up to 4 picaxes to control them

These rang from 08m / M2, 14m2, 18m /m2 and 28x2s.
Also a number of PIC32MX170 (micromits) to drive the WS2812 displays.

https://www.youtube.com/watch?v=l-F2RdG2j3U

Bill

In the interests of the environment, this post has been constructed entirely from recycled electrons.

Justplayin

Guru

Joined: 31/01/2014
Location: United States
Posts: 327

Posted: 01:10pm 12 Jan 2016

Copy link to clipboard

Print this post

WOW!! That looks great! Impressive, Amazing, Fantastic...

I bet that little display set you back a few dollars!

--CurtisEdited by Justplayin 2016-01-13

I am not a Mad Scientist... It makes me happy inventing new ways to take over the world!!

OA47

Guru

Joined: 11/04/2012
Location: Australia
Posts: 982

Posted: 03:00pm 12 Jan 2016

Copy link to clipboard

Print this post

Congratulations Bill I am very impressed. Just looking through the display I could count the many, many hours of work.
Well Done !!!!!!!!!!
GM

viscomjim
Guru

Joined: 08/01/2014
Location: United States
Posts: 925

Posted: 03:10pm 12 Jan 2016

Copy link to clipboard

Print this post

Bill.b, HOLY COW. That is super impressive. I can only guess at how much effort you put into this. AMAZING!!!!!

Great Job!!!!!

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2949

Posted: 06:23pm 12 Jan 2016

Copy link to clipboard

Print this post

Very Good Bill,

I haven't got the time nor the patience to do that.. But it is something I have always wished I could do someday.

Regards,

Mick

Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

paceman
Guru

Joined: 07/10/2011
Location: Australia
Posts: 1329

Posted: 07:24pm 12 Jan 2016

Copy link to clipboard

Print this post

Holey Moley Bill - next year I'll have to get up to Eleebana just to see that!

Greg

Frank N. Furter
Guru

Joined: 28/05/2012
Location: Germany
Posts: 947

Posted: 08:17pm 13 Jan 2016

Copy link to clipboard

Print this post

Hi Bill,

very, very nice!

Did you have some more infos about your Christmas light display?

Frank

Bill.b

Senior Member

Joined: 25/06/2011
Location: Australia
Posts: 235

Posted: 03:10pm 14 Jan 2016

Copy link to clipboard

Print this post

Hi Frank

What other info would you like to know?

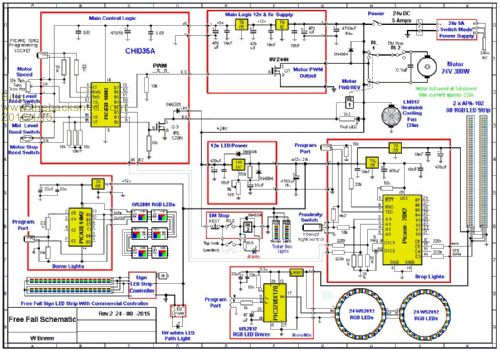

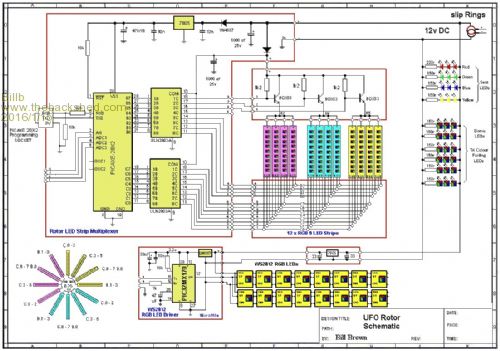

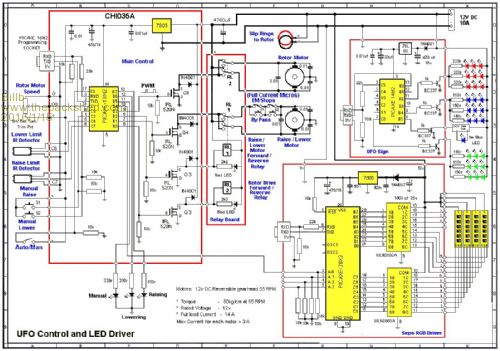

Below is a number of schematics for two of the carnival rides.

Thanks to all for your comments.

Bill

In the interests of the environment, this post has been constructed entirely from recycled electrons.

Frank N. Furter
Guru

Joined: 28/05/2012
Location: Germany
Posts: 947

Posted: 06:32am 17 Jan 2016

Copy link to clipboard

Print this post

Hi Bill,

thanks a lot!
It's very impressive!

Frank

HankR
Senior Member

Joined: 02/01/2015
Location: United States
Posts: 209

Posted: 10:58pm 17 Jan 2016

Copy link to clipboard

Print this post

Bill,

How is the Santa's Sleigh device propelled? I like how it just barely goes over the top.

Hank

Bill.b

Senior Member

Joined: 25/06/2011
Location: Australia
Posts: 235

Posted: 01:26am 18 Jan 2016

Copy link to clipboard

Print this post

Hi Hank

The Sleigh acts like a pendulum With a motor driving a
rubber roller in the base giving it a kick each swing.

The motor direction is controlled by a picaxe 08m with two proximity
switches at the top to detect the arms as they pass.

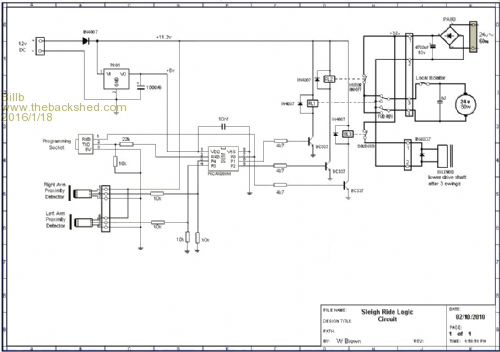

Schematic of the motor drive.

Bill

In the interests of the environment, this post has been constructed entirely from recycled electrons.

HankR
Senior Member

Joined: 02/01/2015
Location: United States
Posts: 209

Posted: 02:54pm 19 Jan 2016

Copy link to clipboard

Print this post

Bill.b said

The Sleigh acts like a pendulum With a motor driving a
rubber roller in the base giving it a kick each swing.

Bill

Very clever, Bill. Thanks for explaining how it's done.
