cpu 48
option autorun on
rtc gettime
rem OPTION EXPLICIT
rem OPTION DEFAULT float
const i2caddr=&B1110111
const MS7=7 'set default wait period
const signed=1
const unsigned=0
'
dim i2cin$ length 8 'max size for integer conversion
dim UT,UP,i,j
dim ac1,ac2,ac3,ac4,ac5,ac6,b1,b2,mb,mc,md 'bmp180 parameters
dim x1,x2,b5,b6,x3,b3,b4,b7,OSS
dim temperature,pressure
DIM altitude as float
dim OSSdata(4)
dim OSSscale(4)
Const c.face = RGB(32, 32, 96)
Const c.bezel = RGB(white)
const InTmpPin = 5 'Indoor DS18B20 uMITE Pin
const InHumPin = 4 'Indoor DS18B20 uMITE Pin
Const c.majormark = RGB(green)
Const c.minormark = RGB(green)
Altitude =45.0
setpin InHumPin,AIN
TEMPR START InTmpPin ,1
I2C OPEN 100,1000
rem TEMPR START 5 ,3
InTmp =TEMPR(5)
COLOR RGB(0,50,0),RGB(32,0,32)'Set Basic LED Display Colors
BOX 0,0,318,239,7,RGB(0,0,255),RGB(32,0,32)'Add A Border

TinyCircular
Initclock
init_1
Run_Main
Sub InitClock
Local Float i, y, xx, yy, r1, r2, tim
Circle 159, 160,FaceRadius, 5, 1, RGB(255,255,255),RGB(0,0,0)
For i = 0 To 59
If i Mod 15 = 0 Then
For y = -2 To +2
tim = (i + y/10) : xx = Cos(Rad(tim * 6)) : yy = Sin(Rad(tim * 6))
r1 = ana.r - 20 : r2 = ana.r - 5
Line ana.x + xx*r1, ana.y - yy*r1, ana.x + xx*r2, ana.y - yy*r2, 1, c.majormark
Next y
ElseIf i Mod 5 = 0 Then
For y = -2 To +2
tim = (i + y/10) : xx = Cos(Rad(tim * 6)) : yy = Sin(Rad(tim * 6))
r1 = ana.r - 15 : r2 = ana.r - 5
Line ana.x + xx*r1, ana.y - yy*r1, ana.x + xx*r2, ana.y - yy*r2, 1, c.majormark
Next y
Else
tim = i : xx = Cos(Rad(tim * 6)) : yy = Sin(Rad(tim * 6))
r1 = ana.r - 10 : r2 = ana.r - 5
Line ana.x + xx*r1, ana.y - yy*r1, ana.x + xx*r2, ana.y - yy*r2, 1, c.majormark
EndIf
Next i
end sub

sub init_1

OSS=1 'set oversampling ratio
' OSS=0 ' Uncomment this line to check algorithm against datasheet
OSSdata(0)=&H34
OSSdata(1)=&H74
OSSdata(2)=&HB4
OSSdata(3)=&HF4
OSSscale(0)=1
OSSscale(1)=2
OSSscale(2)=4
OSSscale(3)=8
I2C WRITE i2caddr,1,1,&HAA 'send read calibration data command
I2C READ i2caddr,0,22,i2cin$() 'read in calibration data
ac1=intconv(mid$(i2cin$,1,2),signed)
ac2=intconv(mid$(i2cin$,3,2),signed)
ac3=intconv(mid$(i2cin$,5,2),signed)
ac4=intconv(mid$(i2cin$,7,2),unsigned)
ac5=intconv(mid$(i2cin$,9,2),unsigned)
ac6=intconv(mid$(i2cin$,11,2),unsigned)
b1=intconv(mid$(i2cin$,13,2),signed)
b2=intconv(mid$(i2cin$,15,2),signed)
mb=intconv(mid$(i2cin$,17,2),signed)
mc=intconv(mid$(i2cin$,19,2),signed)
md=intconv(right$(i2cin$,2),signed)
end sub
sub Run_Main
do
rtc gettime
InTmp =TEMPR(5)
bmp180
DatTim$= Date$+" "+Time$'Date & Time String from the RTC
'Remember Old Clock Values and Get the New Ones
SecsOld=Secs:Secs=Val(Mid$(DatTim$,18,2))
MinsOld=Mins:Mins=Val(Mid$(DatTim$,15,2))
HorsOld=Hors:Hors=Val(Mid$(DatTim$,12,2))
'Rearange the RTC Time String
DTim$=Mid$(DatTim$,7,4)+"/"+Mid$(DatTim$,4,2)+"/"+Left$(DatTim$,2)+" "+Mid$(DatTim$,12,8)

'Assemble Temperature String for Display on the Terminal
HumVal=pin(4)
InTemp$ =" Indoor :"+str$(temperature/10,4,1)+" C"
RHCal=HumVal-0.5:D_RHCal=RHCal/0.02
True_RH = Cint((D_RHCal)/(1.0546-0.00216*(temperature/10)))
T_RH$ ="Luft: "+Str$(True_RH)+" %RH"


'Remember Old Clock Hands Parameters
OldSecX=secX:OldSecY=SecY:OldMinX=MinX:OldMinY=MinY:OldHorX=HorX:OldHorY=HorY
'Calculate the Hands Orientation Including the Small Analog Movements
HorX=CenterX+Cos((Hors+Mins/60+Secs/3600 -3)/ 6*PI)*(FaceRadius-15*FaceThick)
HorY=CenterY+Sin((Hors+Mins/60+Secs/3600 -3)/ 6*PI)*(FaceRadius-15*FaceThick)
MinX=CenterX+Cos((Mins+Secs/60 -12)/30*PI)*(FaceRadius-10*FaceThick)
MinY=CenterY+Sin((Mins+Secs/60 -12)/30*PI)*(FaceRadius-10*FaceThick)
SecX=CenterX+Cos((Secs -15)/30*PI)*(FaceRadius-10*FaceThick)
SecY=CenterY+Sin((Secs -15)/30*PI)*(FaceRadius-10*FaceThick)
'Erace Old Clock Hands, if changed, from the LCD Panel
'----------------------------------------------------------------------------
If SecsOld<>Secs then
for dthkn=0 to 7
LINE CenterX,CenterY,OldHorX,OldHorY+dthkn,1,RGB(0,0,0)
next dthkn
end if
'-----------------------------------------------------------------------------
If SecsOld<>Secs then
for dthknm=0 to 1
LINE CenterX,CenterY,OldMinX,OldMinY+dthknm,1,RGB(0,0,0)
next dthknm
end if
'----------------------------------------------------------------------------


'Display New Clock Hands on the LCD Panel
'Note, Paint in this Order so Seconds Overlap Minutes, then Minutes Overlap Hours
'-----------------------------------------------------------------------------
If SecsOld<>Secs then LINE CenterX,CenterY,OldSecX,OldSecY,1,RGB(0,0,0)
for thkn=0 to 7
LINE CenterX,CenterY,HorX,HorY+thkn,,RGB(255,255,255)
next thkn
'-----------------------------------------------------------------------------
for thknm=0 to 1
LINE CenterX,CenterY,MinX,MinY+thknm,,RGB(255,255,255)
next thknm
LINE CenterX,CenterY,SecX,SecY,,RGB(255,255,128)

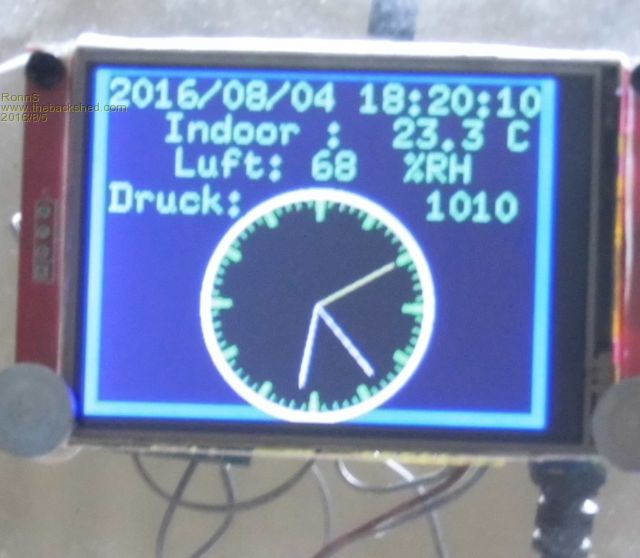

'Display Text on the LCD Panel
'TEXT X, Y,STRING,JUSTIFI,FONT,SCALE,C,BC
TEXT 160, 1,DTim$ ,CT,1,2,RGB(128,255,128)
TEXT 160,25,InTemp$ ,CT,1,2,RGB(128,255,128)
TEXT 160,49,T_RH$ ,CT,1,2,RGB(128,255,128)
TEXT 60,75,"Druck:" ,CT,1,2,RGB(128,255,128)
TEXT 265,75,str$(cint(pressure/((1-(altitude/44330))^5.255)/100,4,1)) ,CT,1,2,RGB(128,255,128)
loop
end sub


sub bmp180

I2C WRITE i2caddr,0,2,&HF4,&H2E 'send temp conversion
pause MS7 'wait for temperature conversion
I2C WRITE i2caddr,1,1,&HF6 'send read data
I2C READ i2caddr,0,2,i2cin$() 'read 2 bytes
UT=intconv(i2cin$,unsigned)
' UT=27898 ' Uncomment this line to check algorithm against datasheet
I2C WRITE i2caddr,0,2,&HF4,ossdata(oss) 'send pressure conversion
pause (oss+1)*ms7 'wait for the pressure conversion
I2C WRITE i2caddr,1,1,&HF6 'send read data
I2C READ i2caddr,0,3,i2cin$() 'read 3 bytes
UP=intconv(i2cin$,unsigned)
up=up>>(8-oss) 'scale the output by the number of unused bits in the xlsb byte
' UP=23843' Uncomment this line to check algorithm against datasheet
calc_temp
calc_pressure
rem print "Temperature = ",str$(temperature/10,4,1),"Deg C"
rem print "Local Pressure = ",str$(pressure/100,4,1),"Hectopascal/Mb"

rem print "Sea level pressure = ",str$(pressure/((1-(altitude/44330))^5.255)/100,4,1),"Hecto pascal/Mb"


end sub
'
' calc_temperature: calculate the temperature from the raw temperature given the calibration parameters
'
sub calc_temp:
X1=(UT-AC6)*AC5\powerof2(15)
X2=MC*powerof2(11)/(X1+MD) 'This needs to be a floating divide to match the datasheet
B5=X1+X2
temperature=(B5+8)\powerof2(4)
end sub
'
' calc_pressure: calculate the pressure from the raw pressure given the calibration parameters and temperature output
'
sub calc_pressure:
B6=b5-4000
x1=(b2*(b6*b6/powerof2(12)))\powerof2(11)
x2=ac2*b6\powerof2(11)
x3=x1+x2
b3=(((ac1*4+x3)*ossscale(oss))+2)\4
X1=AC3*B6\POWEROF2(13)
X2=(B1*(B6*B6/POWEROF2(12)))\POWEROF2(16)
x3=((x1+x2)+2)\4
b4=ac4*(abs(x3+32768))\powerof2(15)
b7=abs(up-b3)*(50000\ossscale(oss))
pressure=(b7*2)\b4
x1=(pressure\powerof2(8))*(pressure\powerof2(8))
x1=(x1*3038)\powerof2(16)
x2=(-7357*pressure)\powerof2(16)
pressure=pressure+(x1+x2+3791)\powerof2(4)
end sub

CFunction intconv
00000000
27bdfff8 00001021 00001821 afa20000 afa30004 90880000 1900000b 01003821
2503ffff 03a31821 24020001 00823021 90c60000 a0660000 24420001 00e2302a
10c0fffa 2463ffff 8ca20000 1040000d 03a81021 9042ffff 30420080 10400009
29020008 10400007 03a81021 27a40008 2403ffff a0430000 24420001 5444fffe
a0430000 8fa20000 8fa30004 03e00008 27bd0008
End CFunction
'
CFunction powerof2
00000000
27bdfff8 00001021 00001821 afa20000 afa30004 8c820000 000218c2 03a32021
000318c0 00431023 24030001 00431004 a0820000 8fa20000 8fa30004 03e00008
27bd0008
End CFunction

sub TinyCircular
CenterX=159:CenterY=160'Center Position of the Clock Face
ana.x=159:ana.Y=160:ana.r=80
FaceRadius=80'Distance from Center to Upper Edge of the Clock Face

AspRatio=1.00'Ratio of Face Width to Height
FaceThick=2 'Basic Width of Outer Ring of Face
TicRadius=0.8*FaceThick'Radius of Hour Clock Tic Marks
rem r1 = FaceRadius - 20 : r2 = FaceRadius - 5
End Sub
