Forum Index : Microcontroller and PC projects : Micromite controlled Smart -Home System
| Author | Message | ||||
| RonnS Senior Member  Joined: 16/07/2015 Location: GermanyPosts: 120 |

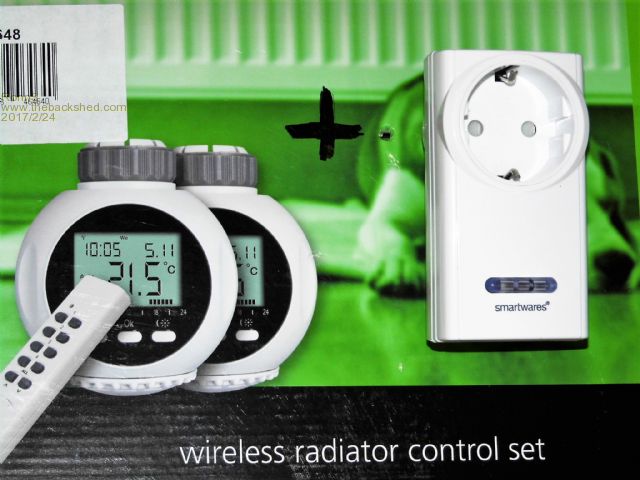

Hurraaa I finally got it to work (first steps) this is the begin of my or our Micromite controlled "Smart Home-System" My vision is a Micromite to control all my home radiator valves, switching and diming Lights and others first ab very big thankyou to Peter Mather for his BitBang-CSub the details: i choose the 433,92 Mhz System there are cheap transmitters and actuators available needed parts: 1) a SMARTWARES Radiator Valve http://www.homewizard.co.uk/smartwares-wireless-radiator-valve.html 2) a 433,92 Mhz Transmitter http://www.watterott.com/de/RF-Link-Sender-434MHz 3)a 433,92 Mhz Reciver http://www.watterott.com/de/RF-Link-2400bps-Empfaenger-434MHz 4) a cheap Generic USB Saleae Logic Analyzer, China clone for about 6 dollars and as software for windows : "pulseview" https://sigrok.org/wiki/PulseView so you can start it the Smartwares Valves use as Transmitting Protocol a Protocol named "Arctech-switch" You can find more details here: https://wiki.pilight.org/doku.php/arctech_switch_v7_0 see this site for fourther informations many hours after work i used to read this and messure Pulse , test it and do this again till it works With the following test program I reached on and off the valves 'puls generator from P.Mather option autorun on cpu 48 Option explicit option default NONE setpin 18,DOUT pin(18)=1 Dim Float StartS(27)=(270, 270, 270, 270, 270, 270, 270, 270, 270, 270, 270, 270, 270, 270 , 270, 270, 270, 270, 270, 270, 270, 270, 270, 270, 270, 380, 155, 325) dim float lengthsZ(41)=(245, 2475, 352, 195, 337, 1200, 345, 1200, 345, 229, 314, 225, 314, 1200, 318, 226, 314, 1200, 314, 228, 307, 1334, 320, 235, 304, 1247, 304, 245, 302, 1252, 302, 1243, 305, 244, 305, 250, 300, 1276, 278, 239, 304, 660)'lst Val reduced from 1200 dim float lengthsA(39)=(330, 200, 330, 1200, 330, 214, 330, 1224, 330, 1211, 330, 212, 330, 1200, 330, 214, 330, 1212, 330, 220, 330, 1220, 330, 220, 330, 220, 330, 1230, 330, 220, 330, 1220, 330, 220, 330, 1230, 330, 220, 330, 660) dim float lengthsB(27)=(330, 300, 330, 1232, 320, 300, 330, 1233, 320, 300, 320, 1233, 320, 300, 320, 1220, 330, 300, 330, 1225, 330, 300, 330, 1220, 330, 300, 330, 660) dim float lengthsC_ON(21) =(330, 1220, 330, 300, 330, 300, 330, 1220, 320, 300, 320, 1200, 340, 207, 340, 1213, 340, 1208, 340, 206, 340, 10600) dim float lengthsC_OFF(21)=(330, 300, 330, 1220, 330, 300, 330, 1220, 320, 300, 320, 1200, 340, 207, 340, 1213, 340, 1208, 340, 206, 340, 10600) 'array of bit lengths in usec do pause 500 pin(18)=1 bitbanger(18,28,StartS()) pin(18)=0 bitbanger(18,42,lengthsZ()) rem pin(18)=0 bitbanger(18,40,lengthsA()) pin(18)=0 bitbanger(18,28,lengthsB()) pin(18)=0 bitbanger(18,22,lengthsC_ON()) pin(18)=0 bitbanger(18,42,lengthsZ()) rem pin(18)=0 bitbanger(18,40,lengthsA()) pin(18)=0 bitbanger(18,28,lengthsB()) pin(18)=0 bitbanger(18,22,lengthsC_ON()) rem pin(18)= 0 bitbanger(18,42,lengthsZ()) rem pin(18)=0 bitbanger(18,40,lengthsA()) pin(18)=0 bitbanger(18,28,lengthsB()) pin(18)=0 bitbanger(18,22,lengthsC_ON()) rem pin(18)=0 bitbanger(18,42,lengthsZ()) rem pin(18)=0 bitbanger(18,40,lengthsA()) pin(18)=0 bitbanger(18,28,lengthsB()) pin(18)=0 bitbanger(18,22,lengthsC_ON()) rem pin(18)=0 'bitbanger(18,42,lengthsZ()) 'DEBUG 'rem pin(18)=0 'DEBUG 'bitbanger(18,40,lengthsA()) 'DEBUG 'pin(18)=0 'DEBUG 'bitbanger(18,40,lengthsB()) 'DEBUG 'pin(18)=0 'DEBUG 'bitbanger(18,10,lengthsC()) 'DEBUG 'rem pin(18)=0 'DEBUG 'bitbanger(18,42,lengthsZ()) 'DEBUG 'rem pin(18)=0 'DEBUG 'bitbanger(18,40,lengthsA()) 'DEBUG 'pin(18)=0 'DEBUG 'bitbanger(18,40,lengthsB()) 'DEBUG 'pin(18)=0 'DEBUG 'bitbanger(18,10,lengthsC()) 'DEBUG 'rem pin(18)=0 'DEBUG 'bitbanger(18,42,lengthsZ()) 'DEBUG 'rem pin(18)=0 'DEBUG 'bitbanger(18,40,lengthsA()) 'DEBUG 'pin(18)=0 'DEBUG 'bitbanger(18,40,lengthsB()) 'DEBUG 'pin(18)=0 'DEBUG 'bitbanger(18,10,lengthsC()) 'DEBUG pin(18)=0 loop end CSub bitbanger 'pin number, number of bits, floating point array of bit lengths in usec 00000000 27BDFFC0 AFBF003C AFBE0038 AFB70034 AFB60030 AFB5002C AFB30024 AFB20020 AFB1001C AFB00018 AFB40028 3C109D00 8E030000 00808821 8E020080 8C640000 00A09021 00002821 00C0B021 0040F809 8E140064 00409821 8E02009C 3C0449F4 0040F809 24842400 00402821 0280F809 02602021 0040B821 8E240000 8E020024 24050007 0040F809 241E0001 AFA20010 8E020028 0040F809 8E240000 8E520000 8E030040 005EF004 0060F809 00122080 AFA20014 12400013 0040A821 0000A021 00008821 3C139D00 0014A080 02D41821 8C640000 8E620058 8E70007C 0040F809 02E02821 26310001 0200F809 00402021 02B4A021 0232182B AE820000 1460FFF2 0220A021 8FA30014 3C040008 8C620000 2442FFFD AC620000 3C03BF88 AC641064 3C03BF88 00001021 AC601068 40824800 8FA50014 8FA30010 2652FFFF AC7E0000 8CA40000 00442021 40024800 0044182B 1460FFFD 00000000 1640FFF6 24A50004 8FBF003C 3C020008 3C03BF88 AC621064 3C03BF88 8FBE0038 8FB70034 8FB60030 8FB5002C 8FB40028 8FB30024 8FB20020 8FB1001C 8FB00018 AC621068 03E00008 27BD0040 End CSub thank you for watching i hope this is an interesting projekt fon many others my home control with a micromite my next questions : is it possible to send these sequences at once? send it as as binäry code as an example "00000000011110001001000000101111" ? to make a automatically reading of this pulses . and so on ? the first step i have done please help me for further development i think that others are interesting in this too Ronald (RonnS) regards vvRon |
||||
panky Guru  Joined: 02/10/2012 Location: AustraliaPosts: 1098 |
@ronns Ineresting project Ron - can you explain further what you are doing with the bitbang sequences please? Doug. ... almost all of the Maximites, the MicromMites, the MM Extremes, the ArmMites, the PicoMite and loving it! |
||||
| RonnS Senior Member Joined: 16/07/2015 Location: GermanyPosts: 120 |
hello Doug, in this case you have to send very short pulses. a normally basic command alone without doing something needs in my case 600 microseconds you have to send the following Puls pattern (high and low) as an example 370, 2445, 330, 220, 330, 1220, 330, 1173, 330, 220, 370, 220, 370, 1186, 370, 220, 370, 1149, 349, 220, 343, 1205, 340, 220, 340, 1200, 340, 220, 340, 1200, 330, 1200, 330, 220, 330, 220, 330, 1215, 330, 220, 340, 500 330, 200, 330, 1200, 330, 214, 330, 1224, 330, 1211, 330, 212, 330, 1200, 330, 214, 330, 1212, 330, 220, 330, 1220, 330, 220, 330, 220, 330, 1230, 330, 220, 330, 1220, 330, 220, 330, 1230, 330, 220, 330, 500 330, 300, 330, 1232, 320, 300, 330, 1233, 320, 300, 320, 1233, 320, 300, 320, 1220, 330, 300, 330, 1225, 330, 300, 330, 1220, 330, 300, 330, 1220, 330, 1220, 330, 300, 330, 300, 330, 1220, 320, 300, 320, 500 260, 300, 260, 1220, 260, 1220, 260, 300, 260, 10600 This is only possible with a Cfunction a problem is that the line lengh is limited so i could send with Peters code only 42 bits at once could we find another way ? Ron |
||||
| RonnS Senior Member Joined: 16/07/2015 Location: GermanyPosts: 120 |
hello..the news: now I can control these two units  and i took deeper look at the Arctech protocol so i found thats only one line of code needed to change the Status and the unit-number i have made a little usable code ( Micromite 170 28 Pin) under use of Peter Mathers bitbang CSub - That makes everything a bit clearer and I commented the bits to be changed 'puls generator from P.Mather option autorun on cpu 48 Option explicit option default NONE dim integer repeater dim string comand setpin 18,DOUT pin(18)=1 Dim Float StartS(27)=(270, 270, 270, 270, 270, 270, 270, 270, 270, 270, 270, 270, 270, 270 , 270, 270, 270, 270, 270, 270, 270, 270, 270, 270, 270, 380, 155, 325) dim float UnitNbrV(41)=(245, 2475, 352, 195, 337, 1200, 345, 1200, 345, 229, 314, 225, 314, 1200, 318, 226, 314, 1200, 314, 228, 307, 1334, 320, 235, 304, 1247, 304, 245, 302, 1252, 302, 1243, 305, 244, 305, 250, 300, 1276, 278, 239, 304, 660)'lst Val reduced from 1200 dim float lengthsA(39)=(330, 200, 330, 1200, 330, 214, 330, 1224, 330, 1211, 330, 212, 330, 1200, 330, 214, 330, 1212, 330, 220, 330, 1220, 330, 220, 330, 220, 330, 1230, 330, 220, 330, 1220, 330, 220, 330, 1230, 330, 220, 330, 660) dim float lengthsB(27)=(330, 300, 330, 1232, 320, 300, 330, 1233, 320, 300, 320, 1233, 320, 300, 320, 1220, 330, 300, 330, 1225, 330, 300, 330, 1220, 330, 300, 330, 660) dim float UnitA_ON(21) =(330, 1220, 330, 300, 330, 300, 330, 1220, 320, 300, 320, 1200, 340, 207, 340, 1213, 340, 1208, 340, 206, 340, 10600) dim float UnitA_OFF(21)=(330, 300, 330, 1220, 330, 300, 330, 1220, 320, 300, 320, 1200, 340, 207, 340, 1213, 340, 1208, 340, 206, 340, 10600) dim float UnitD_ON(21) =(330, 1220, 330, 300, 330, 300, 330, 1220, 340, 1208, 300, 300, 240, 207, 300, 1213, 300, 240, 340, 1200, 340, 10600) dim float UnitD_OFF(21)=(330, 300, 330, 1220, 330, 300, 330, 1220, 340, 1208, 300, 300, 240, 200, 300, 1213, 300, 240, 340, 1213, 340, 10600) ' < ON/OFF > < 0 > < 1 > < 0 > < 0 >< footer > ' < UNIT D= 4 >< footer > 'array of bit lengths in usec do input comand if comand = "a" then Pause 500:Valve1_ON:end if if comand = "aa" then Pause 500:Valve1_OFF:end if if comand = "d" then :ValveD_ON:end if if comand = "dd" then :ValveD_OFF:end if loop Sub ValveD_ON pin(18)=0 bitbanger(18,28,StartS()) for repeater =1 to 12 pin(18)=0 bitbanger(18,42,UnitNbrV()) bitbanger(18,40,lengthsA()) pin(18)=0 bitbanger(18,28,lengthsB()) pin(18)=0 bitbanger(18,22,UnitD_ON()) pin(18)=0 next end sub Sub ValveD_OFF pin(18)=0 bitbanger(18,28,StartS()) for repeater =1 to 12 pin(18)=0 bitbanger(18,42,UnitNbrV()) bitbanger(18,40,lengthsA()) pin(18)=0 bitbanger(18,28,lengthsB()) pin(18)=0 bitbanger(18,22,UnitD_OFF()) pin(18)=0 next end sub Sub Valve1_ON pin(18)=0 bitbanger(18,28,StartS()) for repeater =1 to 12 pin(18)=0 bitbanger(18,42,UnitNbrV()) bitbanger(18,40,lengthsA()) pin(18)=0 bitbanger(18,28,lengthsB()) pin(18)=0 bitbanger(18,22,UnitA_ON()) pin(18)=0 next end sub Sub Valve1_OFF pin(18)=0 bitbanger(18,28,StartS()) for repeater =1 to 12 pin(18)=0 bitbanger(18,42,UnitNbrV()) bitbanger(18,40,lengthsA()) pin(18)=0 bitbanger(18,28,lengthsB()) pin(18)=0 bitbanger(18,22,UnitA_OFF()) pin(18)=0 next end sub CSub bitbanger 'pin number, number of bits, floating point array of bit lengths in usec 00000000 27BDFFC0 AFBF003C AFBE0038 AFB70034 AFB60030 AFB5002C AFB30024 AFB20020 AFB1001C AFB00018 AFB40028 3C109D00 8E030000 00808821 8E020080 8C640000 00A09021 00002821 00C0B021 0040F809 8E140064 00409821 8E02009C 3C0449F4 0040F809 24842400 00402821 0280F809 02602021 0040B821 8E240000 8E020024 24050007 0040F809 241E0001 AFA20010 8E020028 0040F809 8E240000 8E520000 8E030040 005EF004 0060F809 00122080 AFA20014 12400013 0040A821 0000A021 00008821 3C139D00 0014A080 02D41821 8C640000 8E620058 8E70007C 0040F809 02E02821 26310001 0200F809 00402021 02B4A021 0232182B AE820000 1460FFF2 0220A021 8FA30014 3C040008 8C620000 2442FFFD AC620000 3C03BF88 AC641064 3C03BF88 00001021 AC601068 40824800 8FA50014 8FA30010 2652FFFF AC7E0000 8CA40000 00442021 40024800 0044182B 1460FFFD 00000000 1640FFF6 24A50004 8FBF003C 3C020008 3C03BF88 AC621064 3C03BF88 8FBE0038 8FB70034 8FB60030 8FB5002C 8FB40028 8FB30024 8FB20020 8FB1001C 8FB00018 AC621068 03E00008 27BD0040 End CSub Ron |
||||
disco4now Guru Joined: 18/12/2014 Location: AustraliaPosts: 844 |
Hi Ron, I have spliced my code into yours and modified to what I think your protocol uses. i.e a header, 32 bits and a footer. Your code needs 4 bitbanger inversions per bit but the ARLEC code only need 2. The code below runs and puts out pulses so your can try/adjust it. The code's fundamental period is set as 300us for a short, a long is 4 times that at 1200uS. Regards Gerry Latest F4 Latest H7 |
||||
| RonnS Senior Member Joined: 16/07/2015 Location: GermanyPosts: 120 |
Thank you Gerry, i tried it immediately but it did not work I think I have 3 varieties of pulse lengths really, I will continue to work with your code and tell you about the results best regards Ron |
||||
| RonnS Senior Member Joined: 16/07/2015 Location: GermanyPosts: 120 |
very good news, hello Gerry, i have got it, your Code just running with my "smartwares" Parts i have done some adjustments and changes,particular at the 433Mhz Sub and now it works for testing i have added a 4x3 keypad , and some new "Smartwares" parts_ a dimmable lampholder an an Wall mounted dimmer for switching and dimming lights the big wrong point was the loop in the 433Mhz Sub to bitbang the codes out the repeatloop may only affect the bitbang csub, elsewere the saturation need too much time ( all new calculations) and the polarity is reversed .----- if not so the code for the Arctec_switch_protocol with 3 Units: 'puls generator from P.Mather option autorun on 'cpu 48 option explicit option default NONE dim integer repeater dim string comand dim float KeyCode Keypad KeyCode, KP_Int, 2, 3, 4, 5, 6, 7, 21 ' 4x3 keyboard ' Coding for 0 and 1 s ' 1 = short,long,short,short |-|___|-|_ ie 4 inversions by bitbanger ' 0= short,short,short,long |-|_|-|___ ie 4 inversions by bitbanger ' The 32 bit code as 0 and 1 based on data above. ' The header and footers are added to the front and end of the code respectively. dim integer Aon%= &B01000001000011110000000000010001 'A on dim integer Aoff%= &B01000001000011110000000000000001 'A off dim integer Don%= &B01000001000011110000000000010100 'D on dim integer Doff%= &B01000001000011110000000000000100 'D off dim integer LHon%= &B01000001000011110000000000011010 'LH on dim integer LHoff%=&B01000001000011110000000000001010 'LH off dim integer code% dim float lengths(131) ' 128 transitions for the 32 bits, and 2 each for the header and foooter 128+2+2=132 -1 dim integer xmitpin=18 ' the pin connected to the 433mhz module data pin PIN(xmitpin)=0 ' set the data pin low SetPin xmitpin, DOUT ' set it as an output ' set up the code and pin details dim integer numberofbitsincode=32 'number of bits in the code. dim integer pulsecount=numberofbitsincode*4 'number of inversions in the code ie. 1 down + 1 up per bit in the code dim float pulselength=300 'the number of microseconds for the basic short pulse length A long is 4 times this ie 1200 dim integer repeat=12 'number of times to repeat the transmission do if KeyCode = 1 then 'Pause 500:Valve1_ON: code%=Aon% SEND433MHZ(pulsecount,pulselength,repeat,xmitpin,code%) KeyCode = 101 end if if KeyCode = 2 then 'Pause 500:Valve1_OFF: code%=Aoff% SEND433MHZ(pulsecount,pulselength,repeat,xmitpin,code%) KeyCode = 102 end if if KeyCode = 3 then ':ValveD_ON: code%=Don% SEND433MHZ(pulsecount,pulselength,repeat,xmitpin,code%) KeyCode = 103 end if if KeyCode = 4 then ':ValveD_OFF: code%=Doff% SEND433MHZ(pulsecount,pulselength,repeat,xmitpin,code%) KeyCode = 104 end if if KeyCode = 5 then ':ValveD_ON: code%=LHon% SEND433MHZ(pulsecount,pulselength,repeat,xmitpin,code%) KeyCode = 105 end if if KeyCode = 6 then ':ValveD_OFF: code%=LHoff% SEND433MHZ(pulsecount,pulselength,repeat,xmitpin,code%) KeyCode = 106 end if loop SUB KP_Int ' a key press has been detected PRINT "Key press = " KeyCode pause 50 END SUB SUB SEND433MHZ(pulsecount as integer,pulselength as float,repeat as integer ,thexmitpin as integer,senddata% as integer) local integer savedata%=senddata% local integer long,short,mini,maxi,prelong local integer j,i 'long=pulselength*3-.15 'fudge for Mx170 at 48 MHz short=pulselength mini=pulselength-50 maxi=pulselength*27 long=pulselength*4 prelong=short*8 rem for j=0 to repeat-1 ' send the header bits lengths(0)=short lengths(1)=prelong senddata%=savedata% for i=2 to pulsecount+1 step 4 if senddata% and &H80000000 then 'One lengths(i)=short lengths(i+1)=long lengths(i+2)=short lengths(i+3)=mini ELSE 'Zero lengths(i)=short lengths(i+1)=mini lengths(i+2)=short lengths(i+3)=long end if senddata%=senddata%<<1 next i ' send the footer bits lengths(pulsecount+2)=short lengths(pulsecount+3)=maxi ' Call the CFunction for j=0 to repeat-1 bitbanger(thexmitpin,132,lengths()) next j end SUB CSub bitbanger 'pin number, number of bits, floating point array of bit lengths in usec 00000000 27BDFFC0 AFBF003C AFBE0038 AFB70034 AFB60030 AFB5002C AFB30024 AFB20020 AFB1001C AFB00018 AFB40028 3C109D00 8E030000 00808821 8E020080 8C640000 00A09021 00002821 00C0B021 0040F809 8E140064 00409821 8E02009C 3C0449F4 0040F809 24842400 00402821 0280F809 02602021 0040B821 8E240000 8E020024 24050007 0040F809 241E0001 AFA20010 8E020028 0040F809 8E240000 8E520000 8E030040 005EF004 0060F809 00122080 AFA20014 12400013 0040A821 0000A021 00008821 3C139D00 0014A080 02D41821 8C640000 8E620058 8E70007C 0040F809 02E02821 26310001 0200F809 00402021 02B4A021 0232182B AE820000 1460FFF2 0220A021 8FA30014 3C040008 8C620000 2442FFFD AC620000 3C03BF88 AC641064 3C03BF88 00001021 AC601068 40824800 8FA50014 8FA30010 2652FFFF AC7E0000 8CA40000 00442021 40024800 0044182B 1460FFFD 00000000 1640FFF6 24A50004 8FBF003C 3C020008 3C03BF88 AC621064 3C03BF88 8FBE0038 8FB70034 8FB60030 8FB5002C 8FB40028 8FB30024 8FB20020 8FB1001C 8FB00018 AC621068 03E00008 27BD0040 end CSub |
||||
| RonnS Senior Member Joined: 16/07/2015 Location: GermanyPosts: 120 |
hello guys, these simple LED-Strip-Light-Single-Color-Dimmer-Switch, banggood link could be easily controlled i have running these part as additional and ambiente lightning since many years in my living room it was only controllable by a small remote control..until now ! Now that makes this the micromiteMM MK2 MuP Board with a good (plastic)keypad like this from Altronic simple code snipped for on and of switching 'puls generator from P.Mather 'idea of the 433Mhz sub by discofornow(gerry) option autorun on 'cpu 48 option explicit option default NONE dim integer repeater dim string comand dim float KeyCode=1000 Keypad KeyCode, KP_Int, 2, 3, 4, 5, 6, 7, 21 ' 4x3 keyboard 'array of bit lengths in usec ' 1= long,short |---|_ ie 2 inversions by bitbanger ' 0= short,long |-|___ ie 2 inversions by bitbanger dim integer NVSW%= &B010000011011110000100001 'A off 'dim float lengths(68) ' set up the code and pin details 'dim integer numberofbitsincode=32 'number of bits in the code. 'dim integer pulsecount=numberofbitsincode*2 'number of inversions in the code ie. 1 down + 1 up per bit in the code 'dim float pulselength=270 'the number of microseconds for the basic short pulse length A long is 3 times this 'dim integer repeat=15 'number of times to repeat the transmission 'Modified to match your data dim integer code% dim integer xmitpin=18 ' the pin connected to the 433mhz module data pin PIN(xmitpin)=0 ' set the data pin low SetPin xmitpin, DOUT ' set it as an output ' set up the code and pin details dim float lengths(98) ' set up the code and pin details dim integer numberofbitsincode=24 'number of bits in the code. dim integer pulsecount=numberofbitsincode*2 'number of inversions in the code ie. 1 down + 1 up per bit in the code dim float pulselength=400 'the number of microseconds for the basic short pulse length A long is 3 times this dim integer repeat=16 'number of times to repeat the transmissio do if KeyCode = 0 then code%=NVSW% SEND433MHZ(pulsecount,pulselength,repeat,xmitpin,code%) KeyCode = 101 end if loop SUB KP_Int ' a key press has been detected PRINT "Key press = " KeyCode pause 50 END SUB SUB SEND433MHZ(pulsecount as integer,pulselength as float,repeat as integer ,thexmitpin as integer,senddata% as integer) local integer savedata%=senddata% local integer long,short,prelong local integer repeatpause,j,i 'long=pulselength*3-.15 'fudge for Mx170 at 48 MHz short=pulselength prelong=pulselength*6 long=pulselength*3 repeatpause=long*10/1000 'is millseconds so divide by 1000 ' send the header bits lengths(0)=short 'DEBUG lengths(1)=prelong 'DEBUG senddata%=savedata% for i=2 to pulsecount-1 step 2 if senddata% and &H800000 then ' minus 2 für 24 bytes &H80000000 'One lengths(i)=long lengths(i+1)=short ELSE 'Zero lengths(i)=short lengths(i+1)=long END if senddata%=senddata%<<1 next i ' send the stop bits ' lengths(pulsecount+1)=short 'DEBUG ' lengths(pulsecount+2)=prelong 'DEBUG ' Call the CFunction for j=0 to repeat-1 bitbanger(thexmitpin,108,lengths()) rem pause repeatpause ' pause between repetitions next j END SUB CSub bitbanger 'pin number, number of bits, floating point array of bit lengths in usec 00000000 27BDFFC0 AFBF003C AFBE0038 AFB70034 AFB60030 AFB5002C AFB30024 AFB20020 AFB1001C AFB00018 AFB40028 3C109D00 8E030000 00808821 8E020080 8C640000 00A09021 00002821 00C0B021 0040F809 8E140064 00409821 8E02009C 3C0449F4 0040F809 24842400 00402821 0280F809 02602021 0040B821 8E240000 8E020024 24050007 0040F809 241E0001 AFA20010 8E020028 0040F809 8E240000 8E520000 8E030040 005EF004 0060F809 00122080 AFA20014 12400013 0040A821 0000A021 00008821 3C139D00 0014A080 02D41821 8C640000 8E620058 8E70007C 0040F809 02E02821 26310001 0200F809 00402021 02B4A021 0232182B AE820000 1460FFF2 0220A021 8FA30014 3C040008 8C620000 2442FFFD AC620000 3C03BF88 AC641064 3C03BF88 00001021 AC601068 40824800 8FA50014 8FA30010 2652FFFF AC7E0000 8CA40000 00442021 40024800 0044182B 1460FFFD 00000000 1640FFF6 24A50004 8FBF003C 3C020008 3C03BF88 AC621064 3C03BF88 8FBE0038 8FB70034 8FB60030 8FB5002C 8FB40028 8FB30024 8FB20020 8FB1001C 8FB00018 AC621068 03E00008 27BD0040 end CSub attention ! You have to modify the 433mhzsub in the place of the logical operation for only 24 bytes you need : if senddata% and &H800000 then ' for 24 bytes for 32 bytes use &H80000000 Much success with the try regards Ron |
||||
