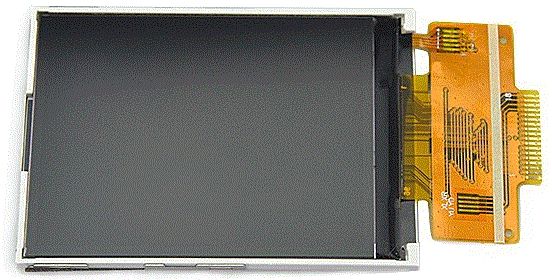

I have some of these "raw" displays and wanted to have a go at getting
a PCB "engine" built around it... Just getting started...

2017-08-10_234810_2.4in_240x320_COLOR_LCD_DISPLAY_-_ILI9341_3.3v_18pin.zip

The part sits on the top layer and the flex interface connections are wrapped
to the back side... BTW: - this is a DEX part...



(part shown does not have the touch pad on it, but it is on the interface pads)
Edited by Zonker 2017-08-12

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2944
Posted: 04:37pm 16 Aug 2017
Copy link to clipboard
Print this post

GDay Zonker,

I am interested in what you can make of that... The thing I do not like about the backpack ideas is the thickness of the plug-on PCB board.. If you come up with a micromite board with this interface included..

Regards,

Mick
Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

Quazee137

Guru

Joined: 07/08/2016
Location: United States
Posts: 586
Posted: 06:01pm 26 Aug 2017
Copy link to clipboard
Print this post


Zonker I was going to have a look but the file is bad.

upzipped I get another zip that also gives another zip

2.4in 240x320 COLOR LCD DISPLAY - ILI9341 3.3v 18pin.part

Looking forward to checking it out.
Quazee137
