Forum Index : Electronics : 8 Cell Balancing BMS

Author Message
Solar Mike
Guru

Joined: 08/02/2015
Location: New Zealand
Posts: 1122
Posted: 01:43am 10 Mar 2021
Copy link to clipboard
Print this post

Currently splitting up an old lifepo4 battery bank into several 24v packs, the old 40AH cells are pretty much on the way out, 4 have started to swell markedly if left after charging; the rest 30 odd are probably at < 50% capacity.

Cannot really use them without a BMS as their capacities vary all over the place, the current BMS I published a while ago is a bit complex and requires several pcbs; so have designed this version which is a bit easier to make.

Spec: 8 cells, can vary between 2.5 - 12 volts each, balancing current 0.5 - several amps, using a switched floating isolated measuring circuit. Extender output allows expansion to more groups of 8 cells.

Just as I completed this, latest silicon chip has a nifty design using switching transformers for lossless balancing of 4 cells, not sure how much that it can be extended, wait for part 2 next month.

And those 4 bad cells, cannot find anywhere in Wellington to take for disposal or recycling, not sure what to do with them, may drill a 10mm hole in each and drop in a bucket of water for a week to make inert.

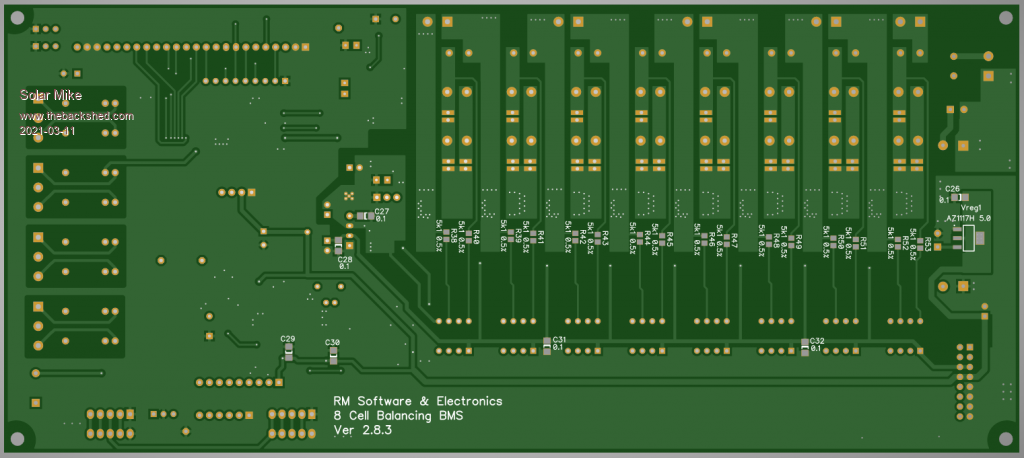

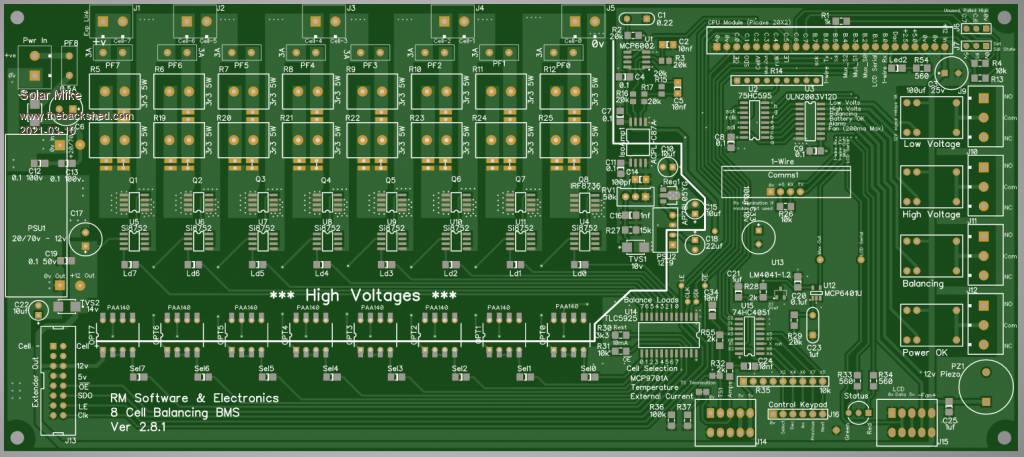

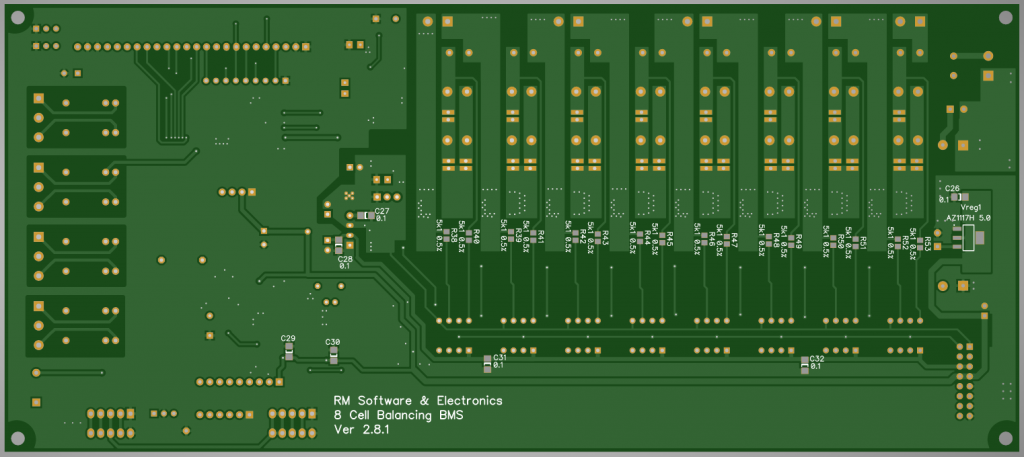

PCB top: 260 x 115mm




I dont have a schematic as yet as its very similar to previous designs.

Cheers
Mike

Solar Mike
Guru

Joined: 08/02/2015
Location: New Zealand
Posts: 1122
Posted: 10:54am 11 Mar 2021
Copy link to clipboard
Print this post

Update: Have cut and paste to clone an extender pcb, this allows multiples of 8 cells to be measured. Made some minor alterations to original at same time, still don't have a schematic for this, not even a pencil drawing, but have sent both sets of gerbers off today regardless; cannot see any errors... famous last words.

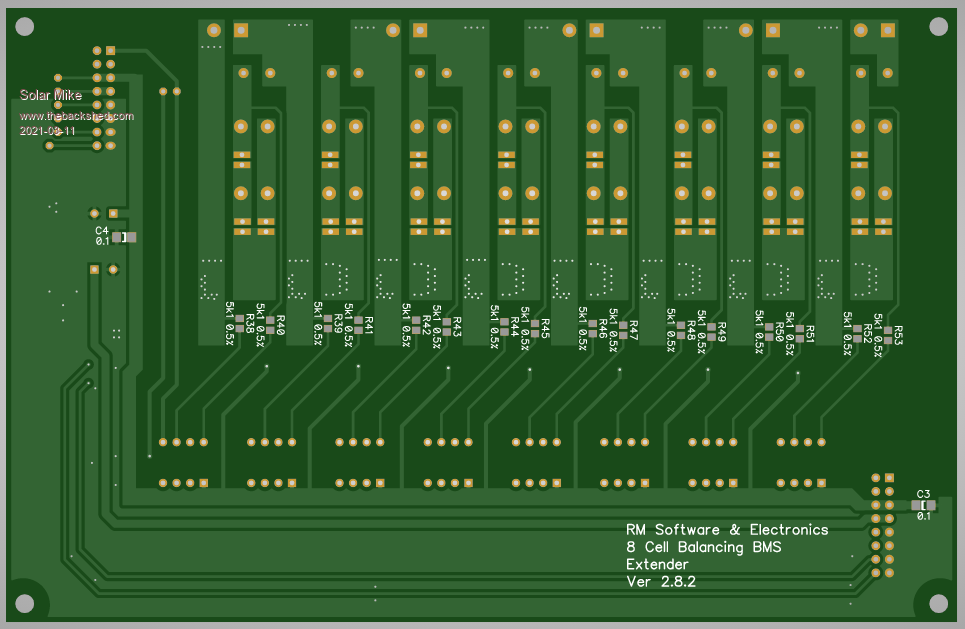

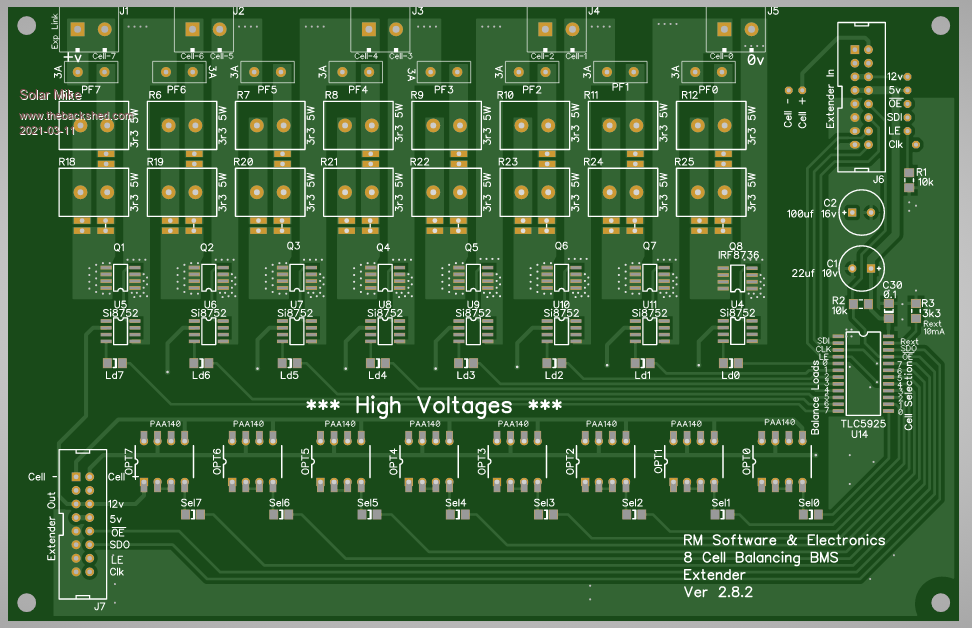

Extender 115 x 178:




Once I get it going will publish gerbers and software.

Cheers
Mike
