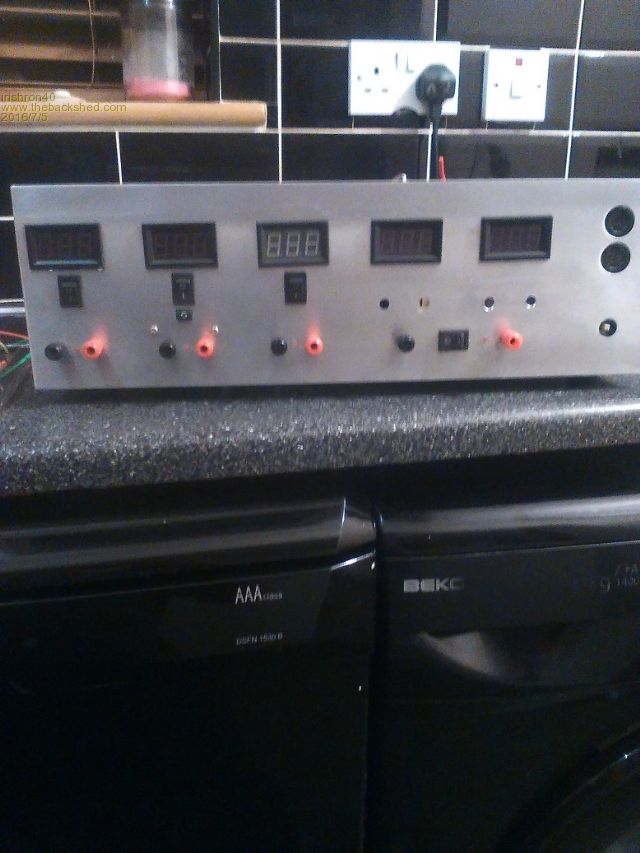

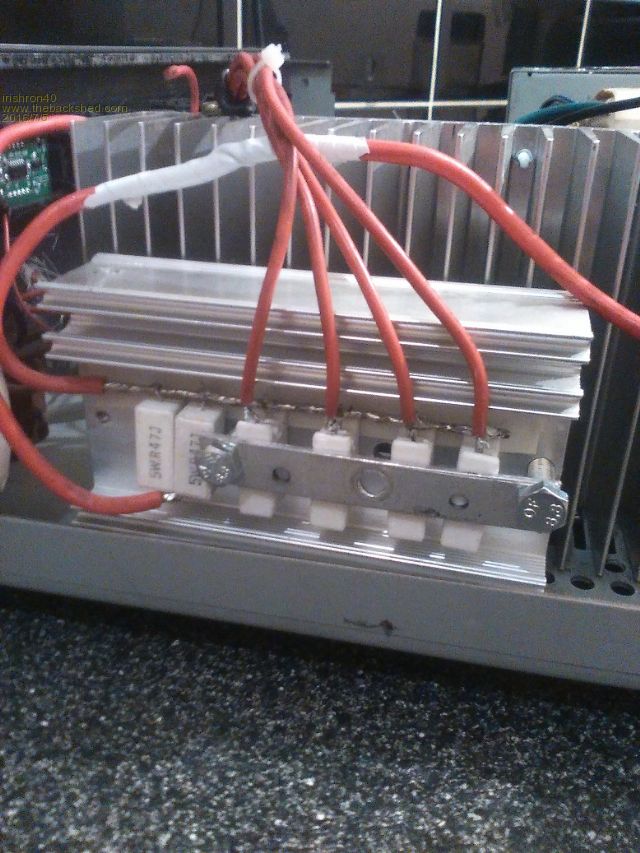

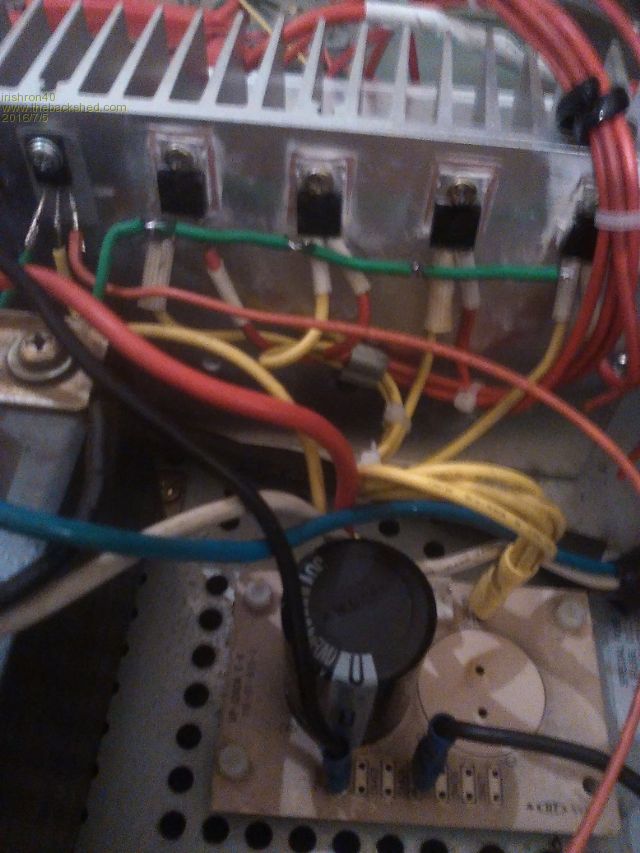

Hi I just took a few photos of the power supply i am making.

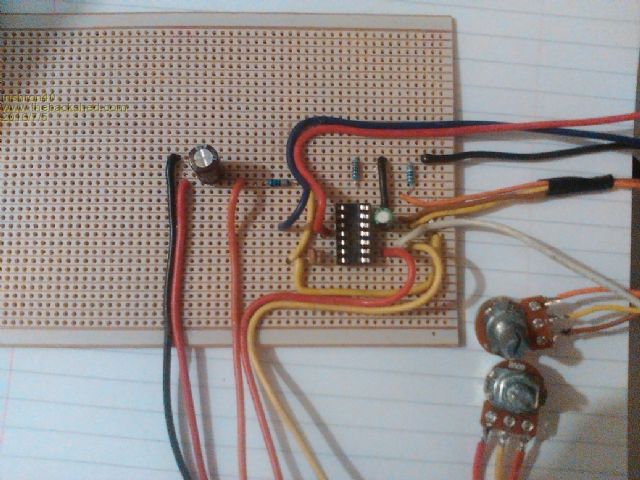

It is based around a LM-723 voltage regulator chip and has current limiting.

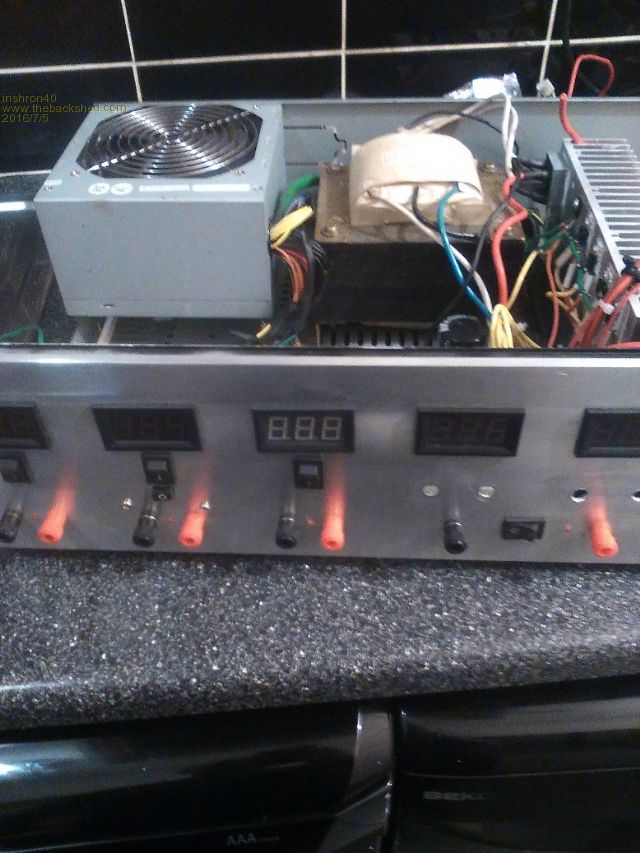

I also have a PSU powersupply separate which gives me 12 , 5 and 3 volts

the case was from an old video player and I made up a aluminium front.
















Gizmo

Admin Group

Joined: 05/06/2004
Location: Australia
Posts: 5118
Posted: 03:44pm 04 Jul 2016
Copy link to clipboard
Print this post

Nice work Ron
The best time to plant a tree was twenty years ago, the second best time is right now.
JAQ

irishron40
Senior Member

Joined: 22/09/2014
Location: Ireland
Posts: 254
Posted: 04:30pm 04 Jul 2016
Copy link to clipboard
Print this post

thanks Glenn
