tjwd
Newbie

Joined: 14/02/2015
Location: Australia
Posts: 6
Posted: 02:58am 19 Feb 2015
Copy link to clipboard
Print this post

Hi,
many thanks to matherp and WhiteWizzard for the follow-up to my questions. I will be sure to change the pin definitions in the demo code. It's good to know someone has used the TFT/touch with a 44 pin micromite - if it does not work at least I will know it's my fault !

I will try it over the weekend and report results.

Regards, tjw.

OA47

Guru

Joined: 11/04/2012
Location: Australia
Posts: 982
Posted: 09:03pm 12 Mar 2015
Copy link to clipboard
Print this post

Have a couple of pieces of code for Peters great Cfunctions for the 2.4" touchscreens:

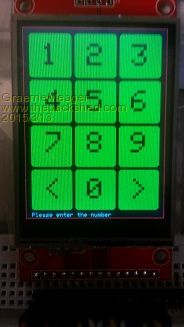

NumberPad


Sub NumberPad
I9341.fillscreen(black)
I9341.drect(0, 0, 240, 320, red)

I9341.frndrect(10, 10, 70, 70, 5, green)
I9341.pstring (30, 25, "1", 5, 0 , black, green)

I9341.frndrect(85, 10, 70 ,70, 5,green)
I9341.pstring (105, 25, "2", 5, 0 , black, green)

I9341.frndrect(160, 10, 70, 70, 5, green)
I9341.pstring (180, 25, "3", 5, 0 , black, green)

I9341.frndrect(10, 85, 70, 70, 5, green)
I9341.pstring (35, 100, "4", 5, 0 , black, green)

I9341.frndrect(85, 85, 70, 70, 5,green)
I9341.pstring (105, 100, "5", 5, 0 , black, green)

I9341.frndrect(160,85, 70, 70, 5,green)
I9341.pstring (180, 100, "6", 5, 0 , black, green)

I9341.frndrect(10, 160, 70, 70, 5,green)
I9341.pstring (35, 170, "7", 5, 0 , black, green)

I9341.frndrect(85, 160, 70, 70, 5,green)
I9341.pstring (105, 170, "8", 5, 0 , black, green)

I9341.frndrect(160, 160, 70, 70, 5,green)
I9341.pstring (180, 170, "9", 5, 0 , black, green)

I9341.frndrect(10, 235, 70, 70, 5,green)
I9341.pstring (30, 250, "<", 5, 0 , black, green)

I9341.frndrect(85, 235, 70, 70, 5,green)
I9341.pstring (105, 250, "0", 5, 0 , black, green)

I9341.frndrect(160, 235, 70, 70, 5, green)
I9341.pstring (180, 250, ">", 5, 0 , black, green)

I9341.pstring (10,310, "Please enter the number",1,0,cyan,black)
End Sub

'******************************************************************************
'* *
'* Sub to identify which Number Pad Button has been pressed *
'* *
'******************************************************************************
' test for 1, 2 & 3
If 150 < y0 And y0 < 550 Then 'Row 1
If 1300 < x0 And x0 < 1800 Then 'Column 1
I9341.frndrect(10, 10, 70, 70, 5, black)
I9341.frndrect(10, 10, 65, 65, 5, green)
I9341.pstring (30, 25, "1", 5, 0 , yellow, green)
Pause 200
'USE DIGIT 1
I9341.frndrect(10, 10, 70, 70, 5, green)
I9341.pstring (30, 25, "1", 5, 0 , black, green)
Pause 200
x0=0:y0=0
EndIf

If 800 < x0 And x0 < 1300 Then 'Column 2
I9341.frndrect(85, 10, 70, 70, 5, black)
I9341.frndrect(85, 10, 65, 65, 5, green)
I9341.pstring (105, 25, "2", 5, 0 , yellow, green)
Pause 200
'USE DIGIT 2
I9341.frndrect(85, 10, 70 ,70, 5,green)
I9341.pstring (105, 25, "2", 5, 0 , black, green)
Pause 200
x0=0:y0=0
EndIf

If 100 < x0 And x0 < 750 Then 'Column 3
I9341.frndrect(160, 10, 70, 70, 5, black)
I9341.frndrect(160, 10, 65, 65, 5, green)
I9341.pstring (180, 25, "3", 5, 0 , yellow, green)
Pause 200
'USE DIGIT 3
I9341.frndrect(160, 10, 70, 70, 5, green)
I9341.pstring (180, 25, "3", 5, 0 , black, green)
Pause 200
x0=0:y0=0
EndIf
EndIf
' test for 4, 5 & 6
If 550 < y0 And y0 < 950 Then 'Row 2
If 1300 < x0 And x0 < 1800 Then 'Column 1
I9341.frndrect(10, 85, 70, 70, 5, black)
I9341.frndrect(10, 85, 65, 65, 5, green)
I9341.pstring (35, 100, "4", 5, 0 , yellow, green)
Pause 200
'USE DIGIT 4
I9341.frndrect(10, 85, 70, 70, 5, green)
I9341.pstring (35, 100, "4", 5, 0 , black, green)
Pause 200
x0=0:y0=0
EndIf

If 800 < x0 And x0 < 1300 Then 'Column 2
I9341.frndrect(85, 85, 70, 70, 5, black)
I9341.frndrect(85, 85, 65, 65, 5, green)
I9341.pstring (105, 100, "5", 5, 0 , yellow, green)
Pause 200
'USE DIGIT 5
I9341.frndrect(85, 85, 70, 70, 5,green)
I9341.pstring (105, 100, "5", 5, 0 , black, green)
Pause 200
x0=0:y0=0
EndIf

If 100 < x0 And x0 < 750 Then 'Column 3
I9341.frndrect(160,85, 70, 70, 5, black)
I9341.frndrect(160,85, 65, 65, 5, green)
I9341.pstring (180, 100, "6", 5, 0 , yellow, green)
Pause 200
' Use DIGIT 6
I9341.frndrect(160,85, 70, 70, 5,green)
I9341.pstring (180, 100, "6", 5, 0 , black, green)
Pause 200
x0=0:y0=0
EndIf
EndIf

' test for 7, 8 & 9
If 950 < y0 And y0 < 1350 Then 'Row 3
If 1300 < x0 And x0 < 1800 Then 'Column 1
I9341.frndrect(10, 160, 70, 70, 5, black)
I9341.frndrect(10, 160, 65, 65, 5, green)
I9341.pstring (35, 170, "7", 5, 0 , yellow, green)
Pause 200
'Use DIGIT 7
I9341.frndrect(10, 160, 70, 70, 5,green)
I9341.pstring (35, 170, "7", 5, 0 , black, green)
Pause 200
x0=0:y0=0
EndIf

If 800 < x0 And x0 < 1300 Then 'Column 2
I9341.frndrect(85, 160, 70, 70, 5, black)
I9341.frndrect(85, 160, 65, 65, 5,green)
I9341.pstring (105, 170, "8", 5, 0 , yellow, green)
Pause 200
' Use DIGIT 8
I9341.frndrect(85, 160, 70, 70, 5,green)
I9341.pstring (105, 170, "8", 5, 0 , black, green)
Pause 200
x0=0:y0=0
EndIf

If 100 < x0 And x0 < 750 Then 'Column 3
I9341.frndrect(160, 160, 70, 70, 5, black)
I9341.frndrect(160, 160, 65, 65, 5, green)
I9341.pstring (180, 170, "9", 5, 0 , yellow, green)
Pause 200
'Use DIGIT 9
I9341.frndrect(160, 160, 70, 70, 5,green)
I9341.pstring (180, 170, "9", 5, 0 , black, green)
Pause 200
x0=0:y0=0
EndIf
EndIf

'Test for Last row
If 1350 < y0 And y0 < 1750 Then 'Row 4
If 1300 < x0 And x0 < 1800 Then 'Column 1
I9341.frndrect(10, 235, 70, 70, 5, black)
I9341.frndrect(10, 235, 65, 65, 5, green)
I9341.pstring (30, 250, "<", 5, 0 , yellow, green)
Pause 200
' Use Back Symbol
I9341.frndrect(10, 235, 70, 70, 5,green)
I9341.pstring (30, 250, "<", 5, 0 , black, green)
Pause 200
x0=0:y0=0
EndIf

If 800 < x0 And x0 < 1300 Then 'Column 2
I9341.frndrect(85, 235, 70, 70, 5, black)
I9341.frndrect(85, 235, 65, 65, 5, green)
I9341.pstring (105, 250, "0", 5, 0 , yellow, green)
Pause 200
'Use 0
I9341.frndrect(85, 235, 70, 70, 5,green)
I9341.pstring (105, 250, "0", 5, 0 , black, green)
Pause 200
x0=0:y0=0
EndIf

If 100 < x0 And x0 < 750 Then 'Column 3
I9341.frndrect(160, 235, 70, 70, 5, black)
I9341.frndrect(160, 235, 65, 65, 5, green)
I9341.pstring (180, 250, ">", 5, 0 , yellow, green)
Pause 200
'Use Enter
I9341.frndrect(160, 235, 70, 70, 5, green)
I9341.pstring (180, 250, ">", 5, 0 , black, green)
Pause 200
x0=0:y0=0
EndIf
EndIf 'Row 4

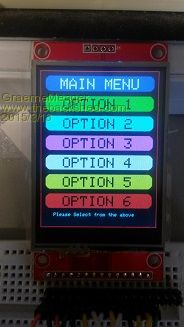

Sub MainMenu
I9341.fillscreen(black)
I9341.drect(0, 0, 240, 320, red)

I9341.frndrect(10, 10, 220, 30, 10, blue)
I9341.pstring(40, 15, "MAIN MENU", 3, 0, white, blue)

I9341.frndrect(10, 50, 220, 30, 10, green)
I9341.pstring(45, 55, "OPTION 1", 3, 0, black, green)

I9341.frndrect(10, 90, 220, 30, 10, cyan)
I9341.pstring(45, 95, "OPTION 2", 3, 0, black, cyan)

I9341.frndrect(10, 130, 220, 30, 10, magenta)
I9341.pstring(45, 135, "OPTION 3", 3, 0, black, magenta)

I9341.frndrect(10, 170, 220, 30, 10, white)
I9341.pstring(45, 175, "OPTION 4", 3, 0, black, white)

I9341.frndrect(10, 210, 220, 30, 10, yellow)
I9341.pstring(45, 215, "OPTION 5", 3, 0, black, yellow)

I9341.frndrect(10, 250, 220, 30, 10, red)
I9341.pstring(45, 255, "OPTION 6", 3, 0, black, red)

I9341.pstring(26, 290, "Please Select from the above", 1, 0, cyan, black)
End Sub

' Test Touch for MainMenu
If mm=1 Then
If 200 < x0 And x0 < 1820 Then
If 320 < y0 And y0 < 580 Then
I9341.pstring(26, 290,"OPTION 1",1,0,green,black)
EndIf

If 590 < y0 And y0 < 790 Then
I9341.pstring(26, 290,"OPTION 2",1,0,cyan,black)
EndIf

If 800 < y0 And y0 < 1000 Then
I9341.pstring(26, 290,"OPTION 3",1,0,magenta,black)
EndIf

If 1010 < y0 And y0 < 1210 Then
I9341.pstring(26, 290,"OPTION 4",1,0,white,black)
EndIf

If 1220 < y0 And y0 < 1430 Then
I9341.pstring(26, 290,"OPTION 5",1,0,yellow,black)
EndIf

If 1440 < y0 And y0 < 1640 Then
I9341.pstring(26, 290,"OPTION 6",1,0,red,black)
EndIf
EndIf
EndIf


Peters Code for getting the x and y co-ordinates:
If T.getxy(xvalues(0),yvalues(0),1000) And T.getxy(xvalues(1),yvalues(1),1000) And T.getxy(xvalues(2),yvalues(2),1000) Then
y0=filter(yvalues())
x0=filter(xvalues())
I9341.frect(1, 300, wi-2, 16, black)
I9341.pstring(38, 300, "X="+Str$(x0)+" Y="+Str$(y0), 2, 0, green, black)
Pause 200
EndIf


Hope someone finds it useful

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2947
Posted: 10:33pm 12 Mar 2015
Copy link to clipboard
Print this post

Great job Graeme,

I hope my display with touch comes soon..

Regards,

Mick

Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

twofingers

Guru

Joined: 02/06/2014
Location: Germany
Posts: 1566
Posted: 01:37am 13 Mar 2015
Copy link to clipboard
Print this post

@Greame,

  Quote  Hope someone finds it useful

Yes! It is! Makes life easier. Thanks!

Regards
Michael
causality ≠ correlation ≠ coincidence

Grogster

Admin Group

Joined: 31/12/2012
Location: New Zealand
Posts: 9585
Posted: 01:55am 13 Mar 2015
Copy link to clipboard
Print this post

Thanks for posting. More inspiration for when my 7" LCD gets here.
Smoke makes things work. When the smoke gets out, it stops!

paceman
Guru

Joined: 07/10/2011
Location: Australia
Posts: 1329
Posted: 02:58am 13 Mar 2015
Copy link to clipboard
Print this post

Yes, thanks from me too Graeme - I've just been trying it out and it looks good.

BTW - should we be limiting the LCD current? I think I saw somewhere that it has an internal step-up supply for the screen but I'm not sure how that fits in. It seems reasonably bright with 33R in series on the LCD pin, i.e. pin7 and uses ~15mA with that (at 3.3v), but it certainly looks better with no other current limiting. In the latter case it's pulling about 45mA on pin7.

Greg

OA47

Guru

Joined: 11/04/2012
Location: Australia
Posts: 982
Posted: 11:03am 13 Mar 2015
Copy link to clipboard
Print this post

  paceman said   Yes, thanks from me too Graeme - I've just been trying it out and it looks good.

BTW - should we be limiting the LCD current? I think I saw somewhere that it has an internal step-up supply for the screen but I'm not sure how that fits in. It seems reasonably bright with 33R in series on the LCD pin, i.e. pin7 and uses ~15mA with that (at 3.3v), but it certainly looks better with no other current limiting. In the latter case it's pulling about 45mA on pin7.

Greg


On one of my projects where current minimization was needed, I used a trimpot on the LED supply and could get good backlight with a total current draw of 45mA for both Micromite and screen. If you can spare one of the PWM outputs you could control the backlight by software.

GM

Zonker

Guru

Joined: 18/08/2012
Location: United States
Posts: 767
Posted: 12:23pm 13 Mar 2015
Copy link to clipboard
Print this post

Excellent work Graeme..!!

The first known GUI objects for the TFT's.! Hummm maybe start a library of these...


OA47

Guru

Joined: 11/04/2012
Location: Australia
Posts: 982
Posted: 12:13am 07 May 2015
Copy link to clipboard
Print this post

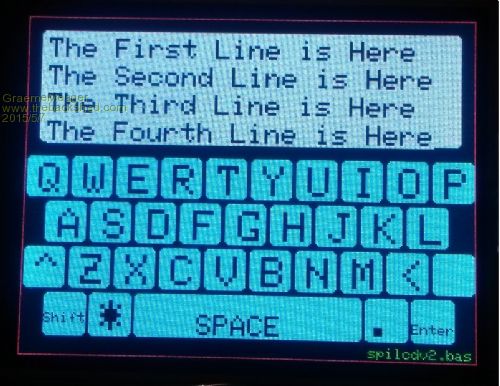

QWERTY KEYPAD (use of a pointer may be necessary)



Unlike the previous pads instead of animating the key pressed, I wanted an audio beep when each key was pressed but found that all the PWM 1 ports were in use for the LCD and the PWM 2A is being used for the backlight control. Decided to use the PWM 2B output for the beep by putting a pietzo transducer on it with the added conformation of the backlight flashing for 50mS on each pad touched. ("That's a feature not a fault !!)

Sub QwertyPad
Local integer J
Local String Q$
Q$="QWERTYUIOPASDFGHJKL^ZXCVBNM< * ."
' Q$="qwertyuiopasdfghjkl zxcvbnm< * ."
I9341.setrot(I9341_rt_left)
I9341.fillscreen(black)
I9341.drect(0, 0, 320, 240, red)
For J = 1 To 10
I9341.frndrect((J*32)-30,100,29,29,3,cyan)
I9341.pstring((J*32)-22,105,Mid$(Q$,J,1),3,0,black,cyan)
Next J
For J = 1 To 9
I9341.frndrect((J*32)-16,132,29,29,3,cyan)
I9341.pstring((J*32)-7,137,Mid$(Q$,J+10,1),3,0,black,cyan)
Next J
For J = 1 To 10
I9341.frndrect((J*32)-30,164,29,29,3,cyan)
I9341.pstring((J*32)-22,169,Mid$(Q$,J+19,1),3,0,black,cyan)
Next J
For J = 1 To 2
I9341.frndrect((J*32)-15,196,30,30,3,cyan)
I9341.pstring((J*32)-7,201,Mid$(Q$,J+29,1),3,0,black,cyan)
Next J
I9341.pstring(17,210,"Shift",1,0,black,cyan)
I9341.frndrect(81,196,160,30,3,cyan)
I9341.pstring(125,210,"SPACE",2,0,black,cyan)
For J = 8 To 9
I9341.frndrect((J*32)-13,196,30,30,3,cyan)
Next J
I9341.pstring(243,201,".",3,0,black,cyan)
I9341.pstring(275,211,"Enter",1,0,black,cyan)
I9341.pstring(245,230,"spilcdv2.bas",1,0,green,black)
I9341.frndrect(10,10,300,80,3,white)
I9341.pstring(15,15,"The First Line is Here",2,0,Black,White)
I9341.pstring(15,35,"The Second Line is Here",2,0,Black,White)
I9341.pstring(15,55,"The Third Line is Here",2,0,Black,White)
I9341.pstring(15,75,"The Fourth Line is Here",2,0,Black,White)
End Sub

Sub QwertyTest ' Test Touch for QwertyPad
SHIFT=1
If 1160 > x0 And 920 < x0 Then 'Value for first row
If 1850 > y0 And 1680 < y0 Then 'Value for Key Q
Beep
If Shift=1 Then L1$=L1$+"Q" Else L1$=L1$+"q"
EndIf
If 1680 > y0 And 1510 < y0 Then 'Value for W
Beep
If Shift=1 Then L1$=L1$+"W" Else L1$=L1$+"w"
EndIf
If 1510 > y0 And 1340 < y0 Then 'Value for E
Beep
If Shift=1 Then L1$=L1$+"E" Else L1$=L1$+"e"
EndIf
If 1340 > y0 And 1170 < y0 Then 'Value for R
Beep
If Shift=1 Then L1$=L1$+"R" Else L1$=L1$+"r"
EndIf
If 1170 > y0 And 1000 < y0 Then 'Value for T
Beep
If Shift=1 Then L1$=L1$+"T" Else L1$=L1$+"t"
EndIf
If 1000 > y0 And 830 < y0 Then 'Value for Y
Beep
If Shift=1 Then L1$=L1$+"Y" Else L1$=L1$+"y"
EndIf
If 830 > y0 And 660 < y0 Then 'Value for U
Beep
If Shift=1 Then L1$=L1$+"U" Else L1$=L1$+"u"
EndIf
If 660 > y0 And 490 < y0 Then 'Value for I
Beep
If Shift=1 Then L1$=L1$+"I" Else L1$=L1$+"i"
EndIf
If 490 > y0 And 320 < y0 Then 'Value for O
Beep
If Shift=1 Then L1$=L1$+"O" Else L1$=L1$+"o"
EndIf
If 320 > y0 And 150 < y0 Then 'Value for P
Beep
If Shift=1 Then L1$=L1$+"P" Else L1$=L1$+"p"
EndIf
x0=0:y0=0
EndIf
If 920 > x0 And 680 < x0 Then 'Value for second row
If 1760 > y0 And 1590 < y0 Then 'Value for Key A
Beep
If Shift=1 Then L1$=L1$+"A" Else L1$=L1$+"a"
EndIf
If 1590 > y0 And 1420 < y0 Then 'Value for S
Beep
If Shift=1 Then L1$=L1$+"S" Else L1$=L1$+"s"
EndIf
If 1420 > y0 And 1250 < y0 Then 'Value for D
Beep
If Shift=1 Then L1$=L1$+"D" Else L1$=L1$+"d"
EndIf
If 1250 > y0 And 1080 < y0 Then 'Value for F
Beep
If Shift=1 Then L1$=L1$+"F" Else L1$=L1$+"f"
EndIf
If 1080 > y0 And 910 < y0 Then 'Value for G
Beep
If Shift=1 Then L1$=L1$+"G" Else L1$=L1$+"g"
EndIf
If 910 > y0 And 740 < y0 Then 'Value for H
Beep
If Shift=1 Then L1$=L1$+"H" Else L1$=L1$+"h"
EndIf
If 740 > y0 And 570 < y0 Then 'Value for J
Beep
If Shift=1 Then L1$=L1$+"J" Else L1$=L1$+"j"
EndIf
If 570 > y0 And 400 < y0 Then 'Value for K
Beep
If Shift=1 Then L1$=L1$+"K" Else L1$=L1$+"k"
EndIf
If 400 > y0 And 230 < y0 Then 'Value for L
Beep
If Shift=1 Then L1$=L1$+"L" Else L1$=L1$+"l"
EndIf
x0=0:y0=0
EndIf
If 680 > x0 And 440 < x0 Then 'Value for third row
If 1850 > y0 And 1680 < y0 Then 'Value for Key SHIFT
Beep
Shift= Not Shift ':QweryPad
EndIf
If 1680 > y0 And 1510 < y0 Then 'Value for Z
Beep
If Shift=1 Then L1$=L1$+"Z" Else L1$=L1$+"z"
EndIf
If 1510 > y0 And 1340 < y0 Then 'Value for X
Beep
If Shift=1 Then L1$=L1$+"X" Else L1$=L1$+"x"
EndIf
If 1340 > y0 And 1170 < y0 Then 'Value for C
Beep
If Shift=1 Then L1$=L1$+"C" Else L1$=L1$+"c"
EndIf
If 1170 > y0 And 1000 < y0 Then 'Value for V
Beep
If Shift=1 Then L1$=L1$+"V" Else L1$=L1$+"v"
EndIf
If 1000 > y0 And 830 < y0 Then 'Value for B
Beep
If Shift=1 Then L1$=L1$+"B" Else L1$=L1$+"b"
EndIf
If 830 > y0 And 660 < y0 Then 'Value for N
Beep
If Shift=1 Then L1$=L1$+"N" Else L1$=L1$+"n"
EndIf
If 660 > y0 And 490 < y0 Then 'Value for M
Beep
If Shift=1 Then L1$=L1$+"M" Else L1$=L1$+"m"
EndIf
If 490 > y0 And 320 < y0 Then 'Value for Backspace
Beep
L1$=Left$(L1$,(Len(L1$)-1))
EndIf
x0=0:y0=0
EndIf
End Sub

Sub Beep
PWM 2,1200,50:Pause 50:PWM 2,STOP
End Sub


Hope a TBSer may find some use.
GM

WhiteWizzard
Guru

Joined: 05/04/2013
Location: United Kingdom
Posts: 2931
Posted: 01:26am 07 May 2015
Copy link to clipboard
Print this post

Thanks for posting that GM - really useful

paceman
Guru

Joined: 07/10/2011
Location: Australia
Posts: 1329
Posted: 02:29am 07 May 2015
Copy link to clipboard
Print this post

Nice job Graeme - another good one for the collection.

Greg

OA47

Guru

Joined: 11/04/2012
Location: Australia
Posts: 982
Posted: 03:48pm 09 May 2015
Copy link to clipboard
Print this post

@matherp

Peter the code to interpret the touch pad seems to take 3 second @ 48Mhz.

If T.getxy(xvalues(0),yvalues(0),1000) And T.getxy(xvalues(1),yvalues(1),1000) And T.getxy(xvalues(2),yvalues(2),1000) Then
y0=filter(yvalues())
x0=filter(xvalues())
I9341.pstring(38, 300, "X="+Str$(x0)+" Y="+Str$(y0), 2, 0, green, black)
Pause 200
EndIf

Is there a way of deceasing the time that this routine takes?

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 10181
Posted: 08:50pm 09 May 2015
Copy link to clipboard
Print this post

It takes three seconds because there are three 1000msec timeouts in the first line. You can change these to anything you want.

This code for touch input is much more robust (in the zip file) . You will need to integrate it in with the Cfunction code rather than the in-built display code on the MX470. Also assuming the touch and screen are on the same SPI channel substitute this version of T.getdata which modifies the SPI speed to suit the slow XPT2046.


function T.Getdata(command as integer) as integer 'get data from the touch controller
local integer i,j,k,l
pin(T_CS)=0
l=peek(word &HBF805830) 'read the SPI clock register
poke word &HBF805830,&H17 'slow down the SPI
i=spi(command)
j=spi(0)
k=spi(0)
pin(T_CS)=1
poke word &HBF805830,l 'reset the SPI clock register
T.Getdata= (j*256+k)>>4
end function

OA47

Guru

Joined: 11/04/2012
Location: Australia
Posts: 982
Posted: 09:37pm 09 May 2015
Copy link to clipboard
Print this post

Thankyou again Peter, question answered.
Keep up the great work.
GM

paceman
Guru

Joined: 07/10/2011
Location: Australia
Posts: 1329
Posted: 09:22pm 14 May 2015
Copy link to clipboard
Print this post

@Graeme
@Peter

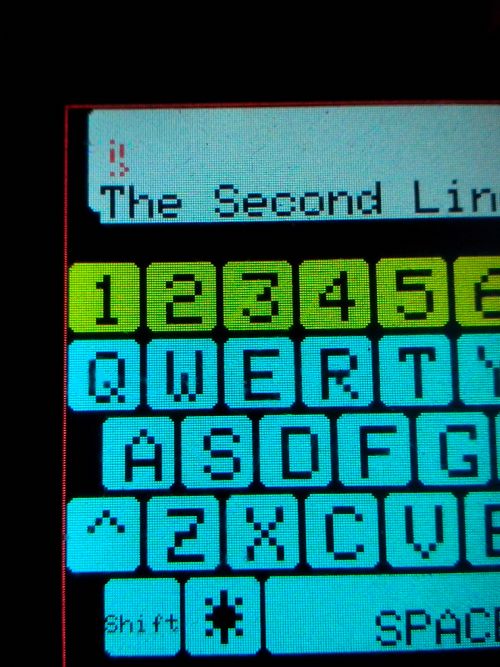

I've been 'playing' with Graeme's Qwerty pad code on the I9341 serial 2.4" screen (MX170 and MMBasic V4.6b) and added a number line. With or without the added number line though I'm getting an artifact character displaying in the first top left print position (of the "First line is here") when the T.getxy routine times out - in 'SUB QwertyTest' down near the bottom of this 2015-05-15_071924_QwertPadTest.zip file.

The shot below shows the artifact (in red) - it's always the same. Has anyone else seen this or have I missed something?

Greg



OA47

Guru

Joined: 11/04/2012
Location: Australia
Posts: 982
Posted: 10:14pm 14 May 2015
Copy link to clipboard
Print this post

Greg, I haven't seen this sort of thing before. Interesting that it is in red as the only red I used was on the border. Could you post all of your code for perusal?
GM

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 10181
Posted: 10:27pm 14 May 2015
Copy link to clipboard
Print this post

It is because after a timeout you are printing an empty string in this line:


I9341.pstring(15,15,L1$,2,0,red,white)


My code doesn't cater for null strings

To fix it change I9341.pstring as below:

[code]
SUB I9341.pstring(xx0 AS INTEGER, yy0 AS INTEGER, text$, sz AS INTEGER, orientation AS INTEGER, fontcolour AS INTEGER, backgroundcolour AS INTEGER) 'x, y coordinates of top left of first character, text string, size, orientation
if text$<>"" then
LOCAL INTEGER i=I9341draw(I9341.fpstring,I9341_AddrOfFont,xx0,yy0,sz,orientation,fontcolour,backgroundcolour,I9341_params(),text$)
endif
END SUB
[/code]

OA47

Guru

Joined: 11/04/2012
Location: Australia
Posts: 982
Posted: 10:50pm 14 May 2015
Copy link to clipboard
Print this post

  Quote  Could you post all of your code for perusal?
GM

Sorry Greg, I will put that one down to grey hair rather than the grey cells. I missed the link to the code all together.

Glad Peter is on the ball
GM

paceman
Guru

Joined: 07/10/2011
Location: Australia
Posts: 1329
Posted: 12:59am 15 May 2015
Copy link to clipboard
Print this post

  Graeme Meager said  Sorry Greg, I will put that one down to grey hair rather than the grey cells. I missed the link to the code all together.GM

No worries Graeme - I figured you'd be back pretty quick

Greg

paceman
Guru

Joined: 07/10/2011
Location: Australia
Posts: 1329
Posted: 01:08am 15 May 2015
Copy link to clipboard
Print this post

  matherp said   It is because after a timeout you are printing an empty string in this line:

I9341.pstring(15,15,L1$,2,0,red,white)
My code doesn't cater for null strings
[/code]

Thanks Peter, I'll give that a go. I knew it was printing an empty string but couldn't see the problem!

Greg

     Page 2 of 3
Print this page
The Back Shed's forum code is written, and hosted, in Australia.
© JAQ Software 2025
