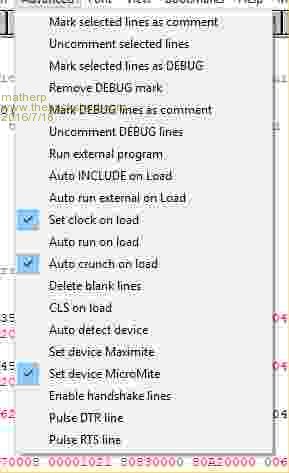

sub mm.startup
'
' include initialisation for display driver here if required
'
local i%=ILI9341_MX170(3,6,15,16)
sdcard 0,10,1 'set up the chip select pin for the SDcard , speed 10MHz
end sub

Option explicit
option default NONE
'
' Demo of functionality of ILI9341 enhanced functionality driver for Micromite MX170
'
const SD_CS_PIN = 10 'set to 0 for demo if SDcard not connected
' connect other SD card pins in parallel with ILI9341 display i.e. SPI 1
'
' Codes for use of the ILI9341 driver
'
const writeregion=5
' writes colour data saved in a string into a region previously defined
' The zero position of the string contains its length and the subsequent bytes the RGB intensities
' e.g. 6,R1,G1,B1,R2,G2,B2
' this routine can be called repeatedly to fill the defined region
' The string length must be divisible by 3
const saverectangle=6
' reads the contents of a rectangle off the screen, 3 bytes per pixel (R,G,B)
' the parameters are:
' address of a buffer to receive the data
' x,y coordinates of top left, width, height
' byte position in the buffer to start writing
const restorerectangle=7
' writes the contents of a buffer to the screen, 3 bytes per pixel (R,G,B)
' the parameters are:
' address of a buffer to provide the data
' x,y coordinates of top left, width, height
' byte position in the buffer to start reading
const defineregion=8
' defines a region that can be written into specified as x,y coordinates of top left, width, height
' the parameters are:
' code to indicate the region will be used for writing (1) or reading (0)
' x,y coordinates of top left, width, height
const writetriangle=9 '
' routine to write a single filled triangle to the screen
' the parameters are:
' dummy parameter - set to zero
' colour of the triangle to be written
' arrays of the x1,y1, x2,y2, x3,y3 coordinates of the triangle
const triangles=128 ' + number of triangles
' routine to save current screen data for a triangle and replace it with a user supplied colour and/or replace the screen data with information previously stored.
' the parameters are:
' Number of triangles to be processed
' a buffer big enough to hold the RGB data for all the triangles to be stored (3 bytes per pixel)
' array of the colours of the triangles to be written (use -1 to restore from the buffer)
' arrays of the x1,y1, x2,y2, x3,y3 coordinates of the triangles
' returns the number of byte used in the buffer: divide by 8 and add 1 to get the required number of integers
'
'
' Codes for use of the SD card driver
' see http://www.thebackshed.com/forum/forum_posts.asp?TID=8648 for more details
'
const mount=0
const fileopen=1
const readfile=2
const writefile=3
const opendir=4
const readdir=5
'
const buffersize=5000
dim integer buff(buffersize),i,j,maxd


if MM.vres>mm.hres then
maxd=mm.vres
else
maxd=mm.hres
endif
if SD_CS_PIN then
' The following line not needed if SDcard is set up in MM.STARTUP
' sdcard 0,10,1 'set up the chip select pin for the SDcard , speed 10MHz
DisplayPicture("tiger2.ppm",0,0)
else
cls rgb(GRAY)
for i=5 to sqr(mm.hres^2 + mm.Vres^2)/2 step 5 'cover the screen in circles
circle mm.hres\2,mm.vres\2,i
next i
endif
i=ILI9341_MX170(saverectangle, buff(), 95, 80, 130, 80, 0) 'save the central screen area to a buffer

for j=0 to 10 'flash transparent text overlayed on the background
text mm.hres\2,mm.vres\2-28,"ILI9341",CM,,2,rgb(red),1
text mm.hres\2,mm.vres\2,"Enhanced",CM,,2,rgb(red),1
text mm.hres\2,mm.vres\2+28,"Driver",CM,,2,rgb(red),1
pause 500
i=ILI9341_MX170(restorerectangle, buff(), 95, 80, 130, 80, 0) 'restore the central screen area to a buffer
pause 500
next j
'
' rotate a pointer over the background
'
const Y_top = 0 'Y coordinate of top of the area swept by the pointer on the screen
const X_left = 0 'X coordinate of left of the iarea swept by the pointer on the screen
const Y_point = mm.vres\2 'Y coodinate of the centre of the pointer relative to the top
const X_point = mm.hres\2 'X coodinate of the centre of the pointer relative to the left
'
' Now we define the pointer as the X,Y coordinates of a number of triangles with the rotation point at 0,0
' It is simplest to define this in the 12-oclock position which means the Y-coordinates at the top of the pointer will be negative
' The order of data elements in the array is:
' t1x1,t1y1,t1x2,t1y2,t1x3,t1y3, t2x1,t2y1,t2x2,t2y2,t2x3,t2y3,...tntx1,tnty1,tntx2,tnty2,tntx3,tnty3
'
dim integer nt=2 'Number of triangles used to define the pointer
dim integer ptr(5,nt-1)=(-4,100,-4,-100,4,100,-4,-100,4,-100,4,100)
DIM INTEGER pcolour=rgb(green) 'define the colour of the pointer
dim integer xx0(nt*2-1),yy0(nt*2-1),xx1(nt*2-1),yy1(nt*2-1),xx2(nt*2-1),yy2(nt*2-1),tcol(nt*2-1)
dim integer first=1 'marker to control alternate processing on first time through the loop

for j=0 to 360*10 step 3
drawpointer(j)
pause 100
next j

end

Sub drawpointer(angle as float)
Local integer i
for i=0 to nt-1
rotatetriangle(i,pcolour,angle,X_point+X_left,Y_point+Y_top,ptr(0,i),ptr(1,i),ptr(2,i),ptr(3,i),ptr(4,i),ptr(5,i)) 'rotate the pointer into the drawing array
next i
if first then 'store the background and write the pointer
i=ILI9341_MX170(triangles or nt, buff() , tcol(nt), xx0(nt), yy0(nt), xx1(nt), yy1(nt), xx2(nt), yy2(nt))
first=0
else 'replace the background over the last pointer, store the background for the new pointer and write itand write the pointer
i=ILI9341_MX170(triangles or nt*2, buff() , tcol(), xx0(), yy0(), xx1(), yy1(), xx2(), yy2())
endif
End Sub
'
sub rotatetriangle(n as integer, col as integer, angle as float, x as integer, y as integer, x0 as integer, y0 as integer, x1 as integer, y1 as integer, x2 as integer, y2 as integer)
local float sine=sin(rad(angle)),cosine=cos(rad(angle))
local integer x0a,y0a,x1a,y1a,x2a,y2a
x0a= x0*cosine - y0 * sine + x
y0a= y0*cosine + x0 * sine + y
x1a= x1*cosine - y1 * sine + x
y1a= y1*cosine + x1 * sine + y
x2a= x2*cosine - y2 * sine + x
y2a= y2*cosine + x2 * sine + y
xx0(n)=xx0(n+nt)
yy0(n)=yy0(n+nt)
xx1(n)=xx1(n+nt)
yy1(n)=yy1(n+nt)
xx2(n)=xx2(n+nt)
yy2(n)=yy2(n+nt)
xx0(n+nt)=x0a
yy0(n+nt)=y0a
xx1(n+nt)=x1a
yy1(n+nt)=y1a
xx2(n+nt)=x2a
yy2(n+nt)=y2a
tcol(n)=-1
tcol(n+nt)=col
end sub

'***************************************************************************************************
'
' Display a picture from the SD card
' Code should work on any of the MM2 supported displays ILI9341, ST7735, ILI9163
' Picture must be in binary .PPM format
'
' Parameters are:
' PIC$ = filename of the picture to be displayed
' StartX% = X coordinate of the top left of the picture
' StartY% = Y coordinate of the top left of the picture
'
' Note: the routine checks that the picture is not too big for the screen and reports an error if it is
'
Sub DisplayPicture(PIC$, StartX%, StartY%)
LOCAL Buffer$,addbuffer$ length 3
LOCAL Result%=-1
LOCAL NumBytes%,a%,i%
local integer buff(511)
SDcard fileopen,PIC$
'Read the first 128 bytes
Buffer$=STRING$(128," ")
SDcard readfile,buffer$,0,len(buffer$),NumBytes%
a%=instr(buffer$,chr$(10)) ' look for the first CR
if left$(buffer$,a%-1)="P6" then
buffer$=right$(buffer$,len(buffer$)-a%)
a%=instr(buffer$,chr$(10)) ' look for the second CR
buffer$=right$(buffer$,len(buffer$)-a%)
a%=instr(buffer$,chr$(32)) ' look for the space between dimensions
local width%=val(left$(buffer$,a%-1))
buffer$=right$(buffer$,len(buffer$)-a%)
a%=instr(buffer$,chr$(10)) ' look for the third CR
LOCAL height%=val(left$(buffer$,a%-1))
buffer$=right$(buffer$,len(buffer$)-a%)
a%=instr(buffer$,chr$(10)) ' look for the fourth CR
buffer$=right$(buffer$,len(buffer$)-a%)
a%=len(buffer$) mod 3
addBuffer$=STRING$(3-a%," ") ' we need to make sure we have a number of bytes divisible by three in the buffer
SDcard readfile,addbuffer$,-1,len(addbuffer$),NumBytes%
buffer$=buffer$+addbuffer$
if (StartX%+width%>MM.HRES) OR (StartY%+height%>MM.VRES) then
print "Picture too big", width%," x",height%
else
i%=ILI9341_MX170(defineregion, 1, StartX%, StartY%, width%, height%)
i%=ILI9341_MX170(writeregion,Buffer$)
Buffer$=STRING$(255,chr$(0))
do
SDcard readfile,buff(),-1,4095,NumBytes%
if numbytes%<>0 then i%=ILI9341_MX170(writeregion,Buff(),numbytes%)
loop while NumBytes%<>0
endif
else
Print "Invalid File Format"
endif

end sub

' Codes for use of the SD card driver
' see http://www.thebackshed.com/forum/forum_posts.asp?TID=8648 for more details
'
const mount=0
const fileopen=1
const readfile=2
const writefile=3
const opendir=4
const readdir=5
