Forum Index : Microcontroller and PC projects : Pico Power Supply Cheat Sheet

     Page 3 of 3
Author Message
stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2567
Posted: 03:06pm 30 Oct 2023
Copy link to clipboard
Print this post

Plug a pico rpi into usb and code it. No electronics needed.
I thought the Schottky diode in the manual/psu diagram was built in, not you added it.
Next step put pico rpi on breadboard but can't wire so look for pcb but can't solder and don't know what caps and resistors are and colour blind and everything is too small to read the writing on anyway and what's a multimeter and does it have a capacitor range.
Wiring is not electronics, join gnd to gnd , + to +, clk to clk, data to data etc.
no electronics or even what clk or data is, just wire and code.
It was only when using adc it was mentioned the pico rpi board psu is noisy so then I changed the psu but don't think it was really needed.

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 7937
Posted: 03:30pm 30 Oct 2023
Copy link to clipboard
Print this post

This is the point. You can use the Pico / PicoMite simply by wiring. You don't need electronics knowledge to do the basics (although it's not a great idea to short outputs to either supply rail). The manual tells you the safe output limits, the approximate current consumption  and shows what's onboard the Pico. Many people will never need anything else.
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

aFox
Senior Member

Joined: 28/02/2023
Location: Germany
Posts: 105
Posted: 01:57am 04 Nov 2023
Copy link to clipboard
Print this post

Hi

Here is the final version, if allways is ok.
Many thanks for your help.

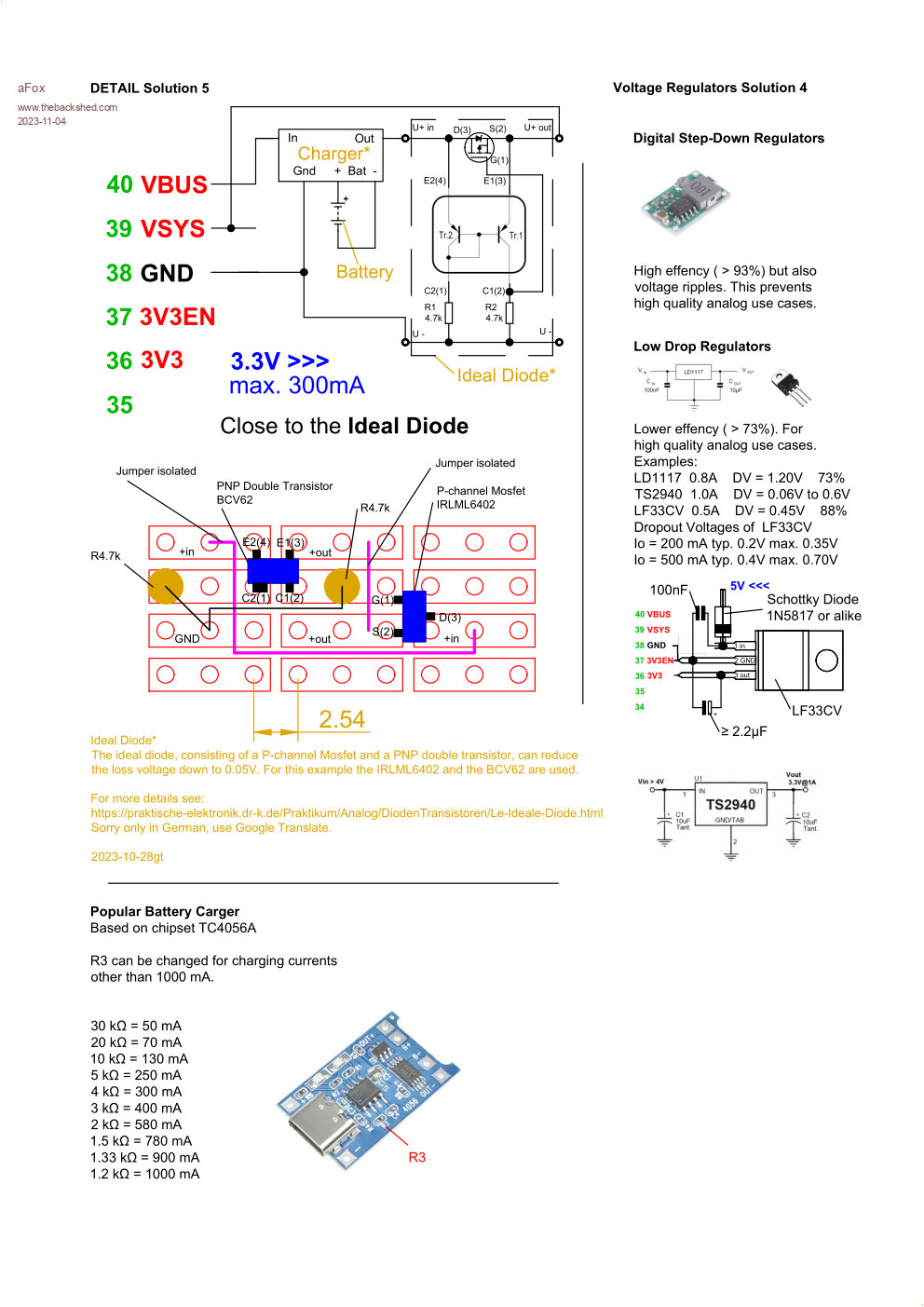

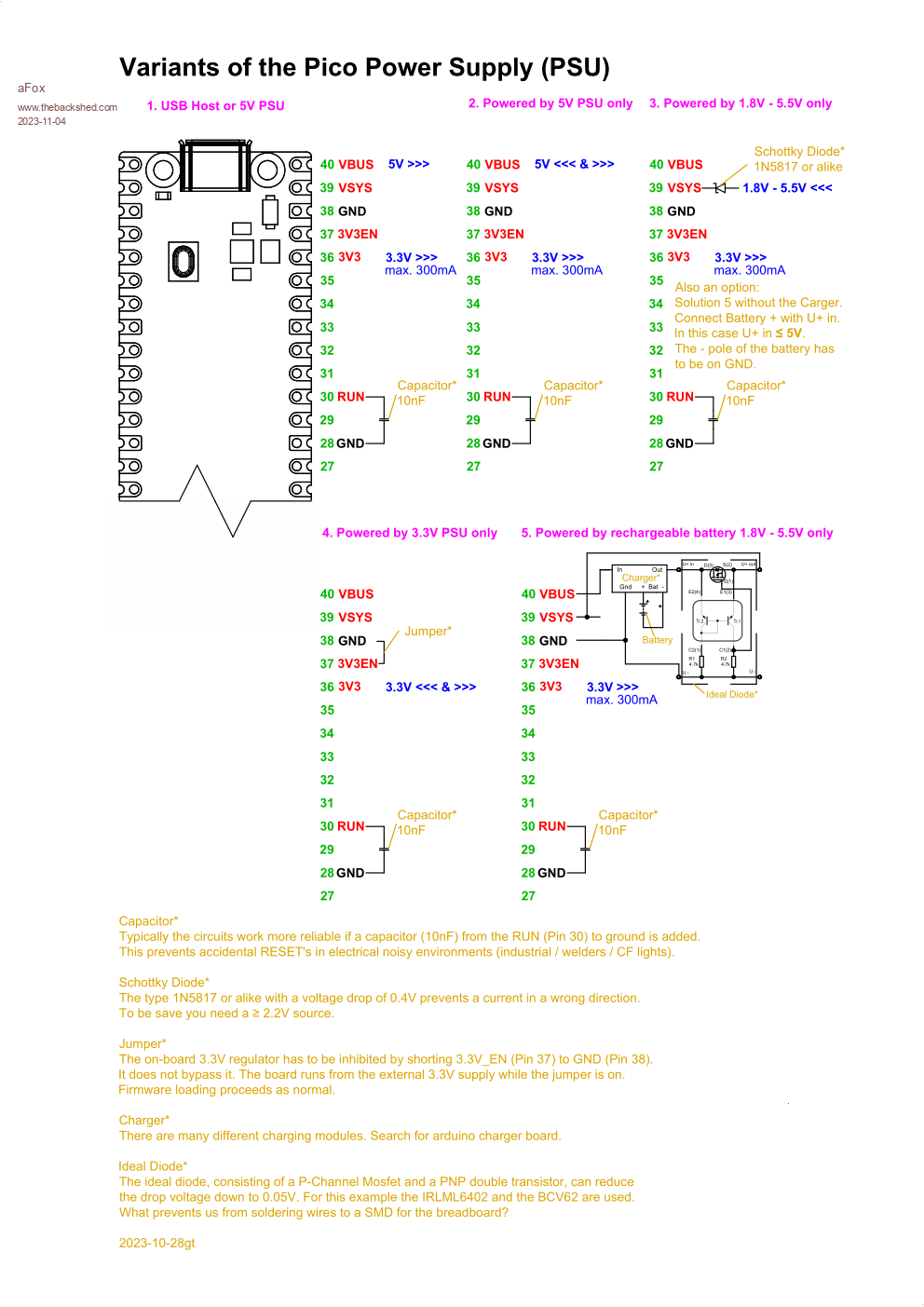

Pico Power Supply Cheat Sheet 2023-11-04.zip

Gregor
Edited 2023-11-04 12:15 by aFox

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 7937
Posted: 09:24am 04 Nov 2023
Copy link to clipboard
Print this post

Thanks Gregor. :)
It's a useful document to have around.
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs
