Hi Lads,

A few more additions to the Mik_libs

I have been trying to implement 3D in all parts so bare with me..

As you can see there are a few minor issues (MINI USB Through hole Schematic for one)

But it is still a work in progress. I have added a lot more headers and extended the range to 2 row headers as well.

2015-02-22_041232_Transistors.zip
2015-02-22_041249_ICs.zip
2015-02-22_041309_Headers.zip
2015-02-22_041622_Connectors.zip
2015-02-22_041645_RCA_.zip
2015-02-22_041703_VGA.zip

Note Due to the 3D models size the RCA and VGA headers are in their own ZIPs

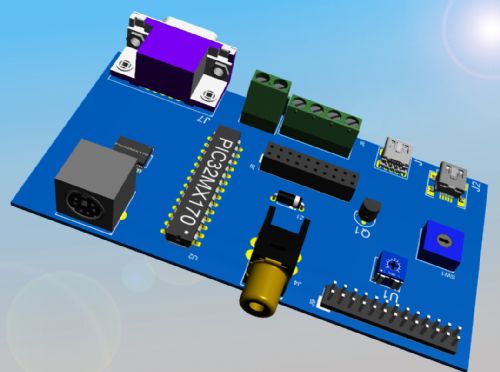

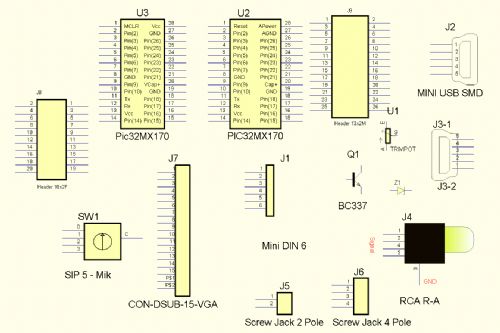

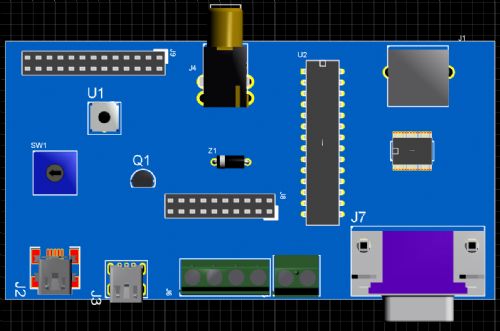

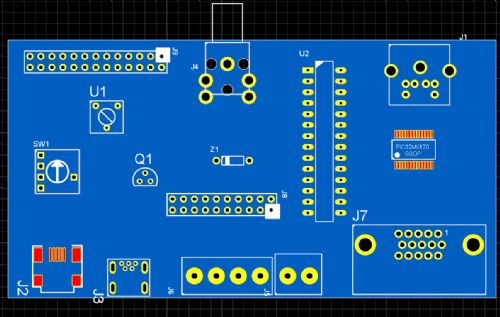

Here are some screen shots:

Regards,

Mick

PS. If anyone has any comments that can improve the libraries please let me know or if you have any parts that you want a lib part for also let me know.

Mick

EDIT ***

Some extra parts here that weren't in categories.

2015-02-22_042239_Extras.zip

Mik

Edited by bigmik 2015-02-23

Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

WhiteWizzard
Guru

Joined: 05/04/2013
Location: United Kingdom
Posts: 2948

Posted: 10:35pm 21 Feb 2015

Copy link to clipboard

Print this post

Great stuff Mik.

I hope to be 3D printing a new PCB based on all this work of yours (to ensure my design fits in the case ok).

Has anyone here 3D printed their board before from AutoTrax DEX?? If so please let me know how it went (and was it easy to achieve?) - Thanks

WW

smudge
Newbie

Joined: 04/12/2014
Location: United Kingdom
Posts: 16

Posted: 11:13am 22 Feb 2015

Copy link to clipboard

Print this post

Great thanks very much Mik. I've made a few custom parts of my own which i'll share when i've double checked them. Not sure if i'll be up to doing the 3D version though!

John

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2956

Posted: 11:41am 22 Feb 2015

Copy link to clipboard

Print this post

Hi Smudge,

If I can assist by adding the 3D for you I am happy to give it a go.

A lot of parts have an automatic 3D which looks OK (like the headers) I can load better more accurate looking 3D models which I get from HERE but these add to the size of the library parts so I use them on the specialty items only.

WhiteWizard,

How do you intend to print your 3D work? I don't think that DEX supports that feature unless you can print an export of the PCB somehow.

Regards,

Mick

Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

WhiteWizzard
Guru

Joined: 05/04/2013
Location: United Kingdom
Posts: 2948

Posted: 10:03pm 22 Feb 2015

Copy link to clipboard

Print this post

Mick,

Can you not save in .stl format? If so this should do it. I will take a look later today and if .stl exists I will take one of the demo 3D files and try a 3D print (just to check it works.

Will let you know how it goes . . . .

WW

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2956

Posted: 04:32pm 23 Feb 2015

Copy link to clipboard

Print this post

Hi WW,

I just tested it.

Yes it can output as .STL (I loaded it into `inventor' and it looks fine but no colour) it can also output as .SVG .IDF Colada and Active 3D

Regards,

Mick

Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

WhiteWizzard
Guru

Joined: 05/04/2013
Location: United Kingdom
Posts: 2948

Posted: 01:11am 24 Feb 2015

Copy link to clipboard

Print this post

@bigmik,

Would you mind sending me a .stl file (from AutoTrax) representing your NanoMite?

I would love to try a 3D print asap but the example files supplied with AutoTrax are a bit too big an output to try a 3D print to begin with. So I thought your NanoMite would make a great test print.

If there are any 'file-save' options then just leave them on default.

Hope you're ok with me trying/asking this

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2956

Posted: 10:38am 24 Feb 2015

Copy link to clipboard

Print this post

WhiteWizzard said
Would you mind sending me a .stl file (from AutoTrax) representing your NanoMite?

Check your Mail

Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

WhiteWizzard
Guru

Joined: 05/04/2013
Location: United Kingdom
Posts: 2948

Posted: 10:59am 24 Feb 2015

Copy link to clipboard

Print this post

bigmik said

WhiteWizzard said
Would you mind sending me a .stl file (from AutoTrax) representing your NanoMite?

Check your Mail

Thanks Mick - now check yours!

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2956

Posted: 01:46pm 02 Apr 2015

Copy link to clipboard

Print this post

Hi All,

One of our members asked me for a standard power jack connector as he couldnt find one in the included DEX libraries..

I found some (not named as you would expect) but they were pretty ordinary and had tiny holes and small pads and of course NO 3D image.

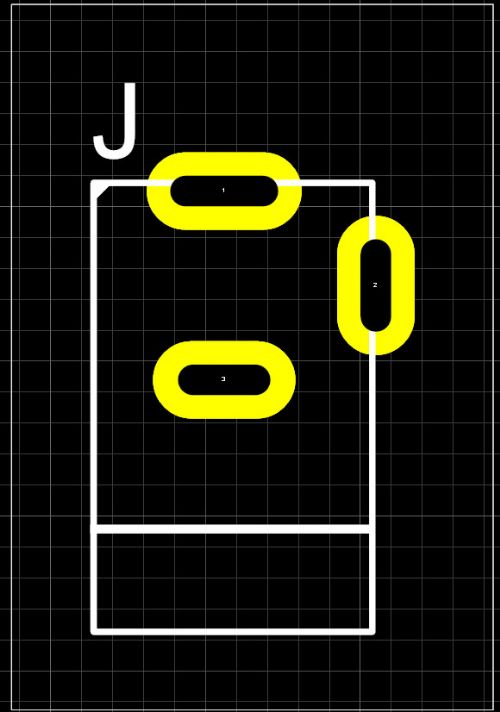

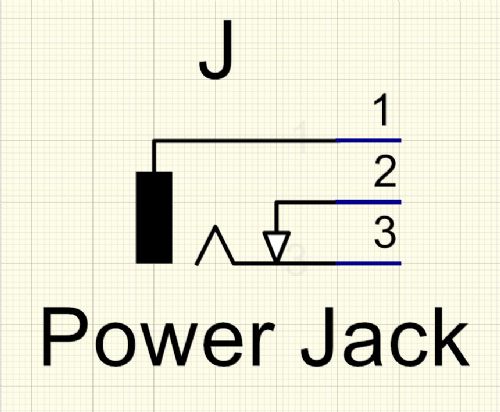

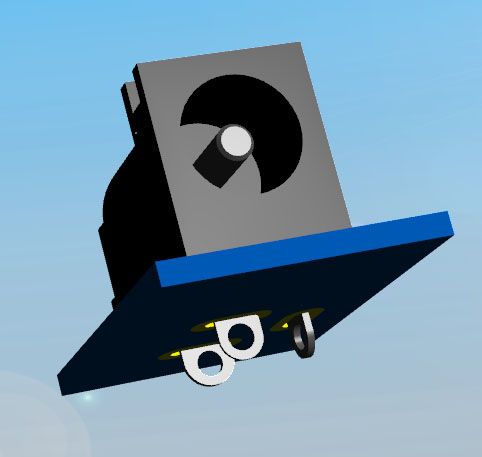

So I created this part for him.. I have uploaded it here as I am sure others might want it too.

2015-04-02_234533_Power_Jack.zip

Regards,

Mick

Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2956

Posted: 04:14pm 02 Apr 2015

Copy link to clipboard

Print this post

Lads,

Don has graciously supplied some space for these libraries to be stored..

As I have new parts to share I will add them here.. I also intend to clean the listing up and organise the parts in groups with maybe a version No so that you can see if you have the latest connectors list for instance.

You can find the libraries HERE !!

If anyone else has parts to share I am sure Don wont mind adding yours there as well.

Regards,

mick

Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

donmck

Guru

Joined: 09/06/2011
Location: Australia
Posts: 1314

Posted: 05:27pm 02 Apr 2015

Copy link to clipboard

Print this post

bigmik said
If anyone else has parts to share I am sure Don wont mind adding yours there as well.

Only too happy to.

Cheers Don...

https://www.dontronics.com

WhiteWizzard
Guru

Joined: 05/04/2013
Location: United Kingdom
Posts: 2948

Posted: 01:48am 03 Apr 2015

Copy link to clipboard

Print this post

@bigmik (and donmck!)

This is great stuff - thanks for making this available.

I am still stuck in Eagle but will hopefully migrate soon to take advantage of the 3D 'modelling'

Mick - I still have to try the 3D print of your NanoMite - I have not forgotten, but I have been busy with the kids computer project.

Keep the libraries coming . . . .

WW

AutotraxLearner
Newbie

Joined: 18/06/2015
Location: Spain
Posts: 1

Posted: 01:46pm 18 Jun 2015

Copy link to clipboard

Print this post

Hello,

I am a new user of Autotrax and it is very easy to use, but I am wondering to know how to import libraries from Eagle. Import projects is not a problem, but when I try to import libraries I use "File>Import>Eagle library" there is no window or menu to import files.

As some users have imported eagle libraries, can you say to me how did you do it?

Thank you for your answer

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2956

Posted: 02:06pm 18 Jun 2015

Copy link to clipboard

Print this post

Hi AL,

If you are referring to the large EAGLE Library located on Don's site (in my previous post) then just download it and extract the entire contents of already converted eagle libs into the directory that should look something like this

C:\Users\MIK\AppData\Roaming\AutoTRAX Software\DEX\Library\Eagle

Replace MIK with whatever your login name is..

Then the parts will appear automatically in the library in a folder called EAGLE

If you mean another eagle lib.. I will have to play again it was a long time since I did one..

I really do NOT like the eagle format libraries as in many (most) cases they have terrible silkscreen overlays, incorrect hole sizes, and never have any 3D content.. I generally prefer to create my own parts which is pretty simple from scratch..

Regards,

Mick

Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2956

Posted: 02:37pm 18 Jun 2015

Copy link to clipboard

Print this post

Hi AL,

Ok, as I do not have Eagle installed on my current PC I went to THIS SITE to download a sample eagle library. In this case I saved the "microchip-pic32mx.lbr" library to my desktop.

From within DEX do the following:

Click the big circle with DX in it (Top left)
Select IMPORT
Select EAGLE Library

This should bring up a dialog to point to the directory that holds your eagle lib... use the box with the ... in it to navigate to your eagle lib.

Then select the path to where you want this converted library to be saved..

Use set to library path then scroll to the end and change the name to a directory of your chosing and click OK/Convert and it will be converted and saved in DEX format for you in DEX's libraries.

Regards,

Mick

Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

willy
Newbie

Joined: 12/07/2015
Location: Belgium
Posts: 2

Posted: 09:27am 13 Jul 2015

Copy link to clipboard

Print this post

Hi everyone,

First of all, sorry for my bad english.

I'm a new user of dex and I'm realy optisitic about this programm.
I have a problem with inserting inventor xgl files into a part.
When I look at this file in a free xgl-viewer it looks OK.
Bur when I import it in dex, serveral ipt's of the assembly are gone.

What am I doing wrong, has enebody a clue ???

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2956

Posted: 11:30am 13 Jul 2015

Copy link to clipboard

Print this post

Hi Willy,

Welcome to the Back Shed (TBS) forum.

I often have the colour reverting to totally BLACK when inserting a part but not missing parts... I would suggest something is wrong with your XGL file...

What part is it you are trying to import?

Regards,

Mick

Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

willy
Newbie

Joined: 12/07/2015
Location: Belgium
Posts: 2

Posted: 03:11am 14 Jul 2015

Copy link to clipboard

Print this post

Hi Mick,

2015-07-14_131001_connector_1rij_haaks_2P.zip

her is the xgl file. looks ok for me.

I realy want to get it working, andmake a lot of parts for dex.

regards
Willy

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2956

Posted: 04:17am 14 Jul 2015

Copy link to clipboard

Print this post

Hi Willy,

On my free XGL viewer that looks to me like a SMT right angle 2 pin 0.1" header.

When I import it into DEX it somehow looks like a one pin instead..

If that is correct try this one

2015-07-14_141532_2Pin.zip

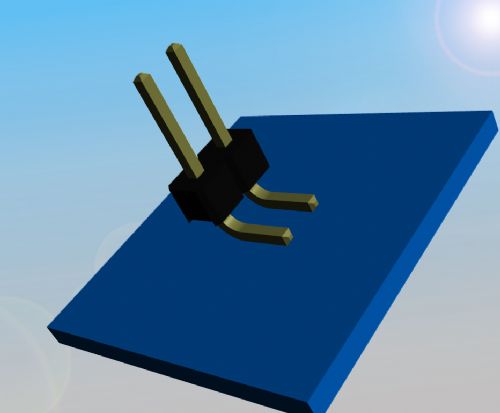

It looks like this once imported into DEX

FYI. I got the part from 3D content as a solidworks 2014 model and used autodesk inventor to convert it to XGL format

Regards,

Mick

Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<
