RonnS said Hello Javavi, I find your code so beautiful and have translated it into another basic language - do I have your permission to also publish the result on another site (with acknowledgment of the author)?

OK! No restrictions, just fun!
I didn’t invent this code myself, I just adapted the ready-made one to the syntax of MMBASIC and slightly modified it for dynamics.

javavi

Guru

Joined: 01/10/2023
Location: Ukraine
Posts: 510

Posted: 04:29pm 26 Jun 2025

Copy link to clipboard

Print this post

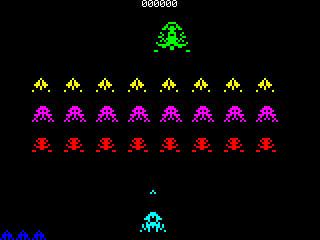

Galaxian

MODE 2
Text 160,0,"000000","CT",7,1
For R=0 To 2: Proc(16*R,238,6,1):Next
Proc(140,230,12,7):Proc(150,192,2,7):Proc(154,50,17,6)
For R=1 To 8
Proc(32*R,150,9,8):Proc(32*R,120,10,9):Proc(32*R,90,8,14)
Next
End

Sub Proc(X0,Y0,Q,C)
Color Map(C)
A=1:W=X0:U=W+2*Q
For X=1 To (Q+2)/2
Y=Y0:I=1
Do
If I And A Then Box W,Y,2,2: Box U,Y,2,2
Inc Y,-2:Inc I,I
Loop Until I>A
A=A*(Q+1-X)/X
Inc W,2:Inc U,-2
Next
End Sub

Volhout
Guru

Joined: 05/03/2018
Location: Netherlands
Posts: 5166

Posted: 08:16pm 26 Jun 2025

Copy link to clipboard

Print this post

Few more lines and you have a game...
Great !!

Volhout

PicomiteVGA PETSCII ROBOTS

Martin H.

Guru

Joined: 04/06/2022
Location: Germany
Posts: 1264

Posted: 05:28am 03 Aug 2025

Copy link to clipboard

Print this post

I've found a little listing in Facebook and converted it to run in MMBasic
Here the PicomiteVGA Version

mode 2 ' 320x240
Const SCREEN_HEIGHT = 480
Const Q = 3
Dim XP(Q), YP(Q), ZP(Q) As Integer
Dim MX(26,26), MY(26,26) As Integer
cls
' Define charge points
XP(1) = 11 : YP(1) = 6 : ZP(1) = 175
XP(2) = 17 : YP(2) = 18 : ZP(2) = -150
XP(3) = 7 : YP(3) = 19 : ZP(3) = 40
' Projection constants
Dim XS , YS As Integer
XS = 25: YS = 200
' Fill matrix with transformed coordinates
For X = 0 To 25
For Y = 0 To 25
UPJE = 0
For W = 1 To Q
D = Sqr((X - XP(W))^2 + (Y - YP(W))^2)
inc UPJE, ZP(W) * Exp(-D / 2)
Next
' Fix grid orientation (X then Y)
MX(X,Y) = XS + 11*X + 11*Y
' Flip Y-axis (to match PC-BASIC lower-left origin)
MY(X,Y) = SCREEN_HEIGHT - (UPJE + YS - X*4 + Y*4)
' Optional: show control points
Pixel MX(X,Y)/2, MY(X,Y)/2, rgb(0,255,255)
Next
Next
' Draw the surface
E = 0
For Y = 25 To 1 Step -1
For X = 0 To 24
X1 = MX(X,Y)/2: Y1 = MY(X,Y)/2
X2 = MX(X+1,Y)/2: Y2 = MY(X+1,Y)/2
X3 = MX(X+1,Y-1)/2: Y3 = MY(X+1,Y-1)/2
X4 = MX(X,Y-1)/2: Y4 = MY(X,Y-1)/2
' Fill with alternating pattern
If (E Mod 2 = 0) Then
K = RGB(0,0,255)
else
K = RGB(0,128,255)
endif
TRIANGLE X1, Y1, X2, Y2,X3, Y3 ,k,k
TRIANGLE X1, Y1, X4, Y4,X3, Y3 ,k,k
Line X1,Y1 ,X2,Y2,, K
Line X2,Y2 ,X3,Y3,, K
Line X3,Y3,X4,Y4,, K
Line X4,Y4,X1,Y1,, K

XPc = (X1 + X3) \ 2
YPc = (Y1 + Y3) \ 2
' Highlight border
K = RGB(255,255,255)
Line X1,Y1,X2,Y2,, K
Line X2,Y2 ,X3,Y3,, K
Line X3,Y3,X4,Y4,, K
Line X4,Y4,X1,Y1,, K
inc E
Next
Next

Since the program was designed for 640x360, I divided all screen coordinates by 2.
Not elegant but it works

Cheers
Martin
Edited 2025-08-03 15:31 by Martin H.

'no comment

Amnesie
Guru

Joined: 30/06/2020
Location: Germany
Posts: 690

Posted: 06:34am 03 Aug 2025

Copy link to clipboard

Print this post

Martin H. said I've found a little listing in Facebook and converted it to run in MMBasic
Here the PicomiteVGA Version

Since the program was designed for 640x360, I divided all screen coordinates by 2.
Not elegant but it works

Cheers
Martin

Martin,

this is funny, I saw the same exact post in this Facebook-Group, too and also wondered if it can be translated to MMBASIC

And now you're posting this! Hah!

Greetings
Daniel

Martin H.

Guru

Joined: 04/06/2022
Location: Germany
Posts: 1264

Posted: 07:04am 03 Aug 2025

Copy link to clipboard

Print this post

Good Morning Daniel,
Sometimes you do strange things with your first coffee on a Sunday morning

I have now (after coffee) also noticed that the 4 “Line” commands after the “Triangle” commands can be omitted
Edited 2025-08-03 17:09 by Martin H.

'no comment

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 10371

Posted: 08:38am 03 Aug 2025

Copy link to clipboard

Print this post

Looks even better in 1280x720 mode 3 (640x360)

MODE 3 ' 640x360
Const SCREEN_HEIGHT = 360
Const Q = 3
Dim XP(Q), YP(Q), ZP(Q) As Integer
Dim MX(26,26), MY(26,26) As Integer
CLS
' Define charge points
XP(1) = 11 : YP(1) = 6 : ZP(1) = 175
XP(2) = 17 : YP(2) = 18 : ZP(2) = -150
XP(3) = 7 : YP(3) = 19 : ZP(3) = 40
' Projection constants
Dim XS , YS As Integer
XS = 25: YS = 200
' Fill matrix with transformed coordinates
For X = 0 To 25
For Y = 0 To 25
UPJE = 0
For W = 1 To Q
D = Sqr((X - XP(W))^2 + (Y - YP(W))^2)
Inc UPJE, ZP(W) * Exp(-D / 2)
Next
' Fix grid orientation (X then Y)
MX(X,Y) = XS + 11*X + 11*Y
' Flip Y-axis (to match PC-BASIC lower-left origin)
MY(X,Y) = SCREEN_HEIGHT - (UPJE + YS - X*4 + Y*4)
' Optional: show control points
Pixel MX(X,Y), MY(X,Y), RGB(0,255,255)
Next
Next
' Draw the surface
E = 0
For Y = 25 To 1 Step -1
For X = 0 To 24
X1 = MX(X,Y): Y1 = MY(X,Y)
X2 = MX(X+1,Y): Y2 = MY(X+1,Y)
X3 = MX(X+1,Y-1): Y3 = MY(X+1,Y-1)
X4 = MX(X,Y-1): Y4 = MY(X,Y-1)
' Fill with alternating pattern
If (E Mod 2 = 0) Then
K = RGB(0,0,255)
Else
K = RGB(0,128,255)
EndIf
Triangle X1, Y1, X2, Y2,X3, Y3 ,k,k
Triangle X1, Y1, X4, Y4,X3, Y3 ,k,k

XPc = (X1 + X3)
YPc = (Y1 + Y3)
' Highlight border
K = RGB(255,255,255)
Line X1,Y1,X2,Y2,, K
Line X2,Y2 ,X3,Y3,, K
Line X3,Y3,X4,Y4,, K
Line X4,Y4,X1,Y1,, K
Inc E
Next
Next
Save image "layer"

Martin H.

Guru

Joined: 04/06/2022
Location: Germany
Posts: 1264

Posted: 09:18am 03 Aug 2025

Copy link to clipboard

Print this post

matherp said Looks even better in 1280x720 mode 3 (640x360)

Thank you Peter,
This certainly looks better

Have a good Sunday
Cheers
Martin

'no comment

javavi

Guru

Joined: 01/10/2023
Location: Ukraine
Posts: 510

Posted: 04:54pm 03 Aug 2025

Copy link to clipboard

Print this post

Mandelbrot MODE 2 / MODE 3

MODE 2
Dim CM(3)=(RGB(Blue),RGB(Cyan),RGB(Yellow),RGB(Magenta))
Dim R(15)=(0,8,2,10,12,4,14,6,3,11,1,9,15,7,13,5)
L=Log(2)
S=0:For U=-1.725 To -1.225 Step .5/MM.HRES
D=0:For V=-0.2 To .0000002 Step .4/MM.VRES
Color CM(Int((fM(U,V)+R(S Mod 4+4*(D Mod 4)))/16)Mod 4)
Pixel S,D:Pixel S,MM.VRES-D
Inc D: Next V
Inc S: Next U
Do :Loop While Inkey$=""

Function fM(U,V)
Local X,Y,A,B,C
Do
Y=2*X*Y+V
X=A-B+U
A=X*X
B=Y*Y
Inc C
Loop Until C>=50 Or A+B>16
If C=50 Then fM=0 Else fM=5*(C+1-Log((Log(A+B)/2)/L)/L)
End Function

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2614

Posted: 05:53pm 03 Aug 2025

Copy link to clipboard

Print this post

nice. can the colours be mapped and rotated?

javavi

Guru

Joined: 01/10/2023
Location: Ukraine
Posts: 510

Posted: 09:12am 10 Aug 2025

Copy link to clipboard

Print this post

Cylinder on a plane by bazzargh 10.07.2025
# Weekend MMBasic Entertainment
# Procedural graphics

Q=.755/8
Z=.636363/8
C=.527225
For X=0 To 1280 Step 2
For Y=0 To 1000 Step 2
V=(X+4*Y)\500
W=(X-Y+450)\200
F=1
If (X>70 And X<430 And Y>300 And Y<900)Or((X-250)*(X-250)/8+(Y-300)*(Y-300)<4000) Then
F=1-X/250:F=F*(F>0)
EndIf
If (X-250)*(X-250)/8+(Y-900)*(Y-900)<4000 Then F=0
If F=1 And V>1 And V<7 And W>0 And W<6 Then
F=.5+.25*((W+V)Mod 2)-.25*(X>250 And X-3*Y>-900 And X-8*Y<-1600)
EndIf
I=Q*X+Z*Y+C
I=I-Int(I)
If Int(F)-(F-Int(F)>I) And 1 Then Pixel X\2,500-Y\2
Next :Next

Martin H.

Guru

Joined: 04/06/2022
Location: Germany
Posts: 1264

Posted: 11:29am 10 Aug 2025

Copy link to clipboard

Print this post

Hi javavi
I have no idea how the program does it, but it's brilliant

'no comment

vegipete

Guru

Joined: 29/01/2013
Location: Canada
Posts: 1140

Posted: 03:19pm 10 Aug 2025

Copy link to clipboard

Print this post

Here's a slight change to the cylinder on checker-board so it fits on a 320 pixel wide screen, and possibly runs slightly faster:

Q=.755/8
Z=.636363/8
C=.527225
For X=0 To 1280 Step 4
For Y=0 To 1000 Step 4
V=(X+4*Y)\500
W=(X-Y+450)\200
F=1
X2=X-250
X3=X2*X2/8
If (X>70 And X<430 And Y>300 And Y<900)Or(X3+(Y-300)*(Y-300)<4000) Then
F=1-X/250:F=F*(F>0)
EndIf
If X3+(Y-900)*(Y-900)<4000 Then F=0
If F=1 And V>1 And V<7 And W>0 And W<6 Then
F=.5+.25*((W+V)Mod 2)-.25*(X>250 And X-3*Y>-900 And X-8*Y<-1600)
EndIf
I=Q*X+Z*Y+C
I=I-Int(I)
If Int(F)-(F-Int(F)>I) And 1 Then Pixel X\4,250-Y\4
Next
Next

Visit Vegipete's *Mite Library for cool programs.

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2614

Posted: 11:00pm 10 Aug 2025

Copy link to clipboard

Print this post

looks fine ili9341

Martin H.

Guru

Joined: 04/06/2022
Location: Germany
Posts: 1264

Posted: 07:44am 13 Aug 2025

Copy link to clipboard

Print this post

Found on Facebook

sh=MM.VRes : sw=MM.HRes
xc = sw / 2 : yc = sh / 2
rad = sh / 40
For j = 1 To 9999
CLS
a = Rnd(1)
If a > 0.86 Then a = a * 0.86
If a < 0.1 Then a = a + 0.1
If a = 0.5 Then a = 0.4999
b = 0.9998
Print @(5,5) a
p = 15000
c = 2 - 2 * a
x = 0
y = 12.17
w = a * x + c * x * x / (1 + x * x)
For h = 0 To p
If h > 150 Then
ct = 1.1 * Sqr(x * x + y * y) / rad
cr = 83 * ct : If cr >255 Then cr = cr/5
cg = 177 * ct : If cg >255 Then cg = cg/5
cb = 186 * ct : If Cb >255 Then cb = cb/5
Pixel x * rad + xc, y * rad + yc, RGB(cr, cg, cb)
z = x
x = b * y + w
u = x * x
w = a * x + c * u / (1 + u)
y = w - z
End If
Next h
Pause 300
Next j

Edited 2025-08-13 17:44 by Martin H.

'no comment

phil99

Guru

Joined: 11/02/2018
Location: Australia
Posts: 2669

Posted: 08:20am 13 Aug 2025

Copy link to clipboard

Print this post

After a while this happened:-

[23] Pixel x * rad + xc, y * rad + yc, RGB(cr, cg, cb)
Error : 256 is invalid (valid is 0 to 255)

So added rollovers to the colours.

sh=MM.VRES : sw=MM.HRES
xc = sw / 2 : yc = sh / 2
rad = sh / 40
For j = 1 To 9999
CLS
a = Rnd(1)
If a > 0.86 Then a = a * 0.86
If a < 0.1 Then a = a + 0.1
If a = 0.5 Then a = 0.4999
b = 0.9998
Print @(5,5) a
p = 15000
c = 2 - 2 * a
x = 0
y = 12.17
w = a * x + c * x * x / (1 + x * x)
For h = 0 To p
If h > 150 Then
ct = 1.1 * Sqr(x * x + y * y) / rad
cr = 83 * ct : If cr >255 Then cr = cr/5
cg = 177 * ct : If cg >255 Then cg = cg/5
cb = 186 * ct : If Cb >255 Then cb = cb/5
cr = cr And 255
cg = cg And 255
cb = cb And 255
Pixel x * rad + xc, y * rad + yc, RGB(cr, cg, cb)
z = x
x = b * y + w
u = x * x
w = a * x + c * u / (1 + u)
y = w - z
End If
Next h
Pause 300
Next j

Edited 2025-08-13 18:24 by phil99

javavi

Guru

Joined: 01/10/2023
Location: Ukraine
Posts: 510

Posted: 05:31pm 23 Aug 2025

Copy link to clipboard

Print this post

Waves 640х480

MODE 1
Dim float t,d,h
Dim integer x,y,x1,y1,z
FRAMEBUFFER CREATE
FRAMEBUFFER WRITE F
Do
CLS
For y1=0 To 24
For x1=0 To 24
x=12*(24-x1)+12*y1+30
y=-6*(24-x1)+6*y1+240
h=60*Sin((x1-y1)/4+t)
'h=60*Sin((x1+y1)/4+t)
'h=60*Sin(x1/2+t)+60*Cos(y1/2+t)
Circle x,y-h,7,,,0,1
Next
Next
FRAMEBUFFER COPY F,N,B
Inc t,.2
Loop

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2614

Posted: 06:58pm 23 Aug 2025

Copy link to clipboard

Print this post

nice demo! works as is hdmi. bit harder to work on ili9341 display, still working on it

Page 9 of 9

Print this page

To reply to this topic, you need to log in.
