Forum Index : Microcontroller and PC projects : My Silicon Chip Kit has finally arrived!

Author Message
HellbentHorse
Regular Member

Joined: 08/07/2020
Location: Australia
Posts: 55
Posted: 04:56am 10 Aug 2020
Copy link to clipboard
Print this post

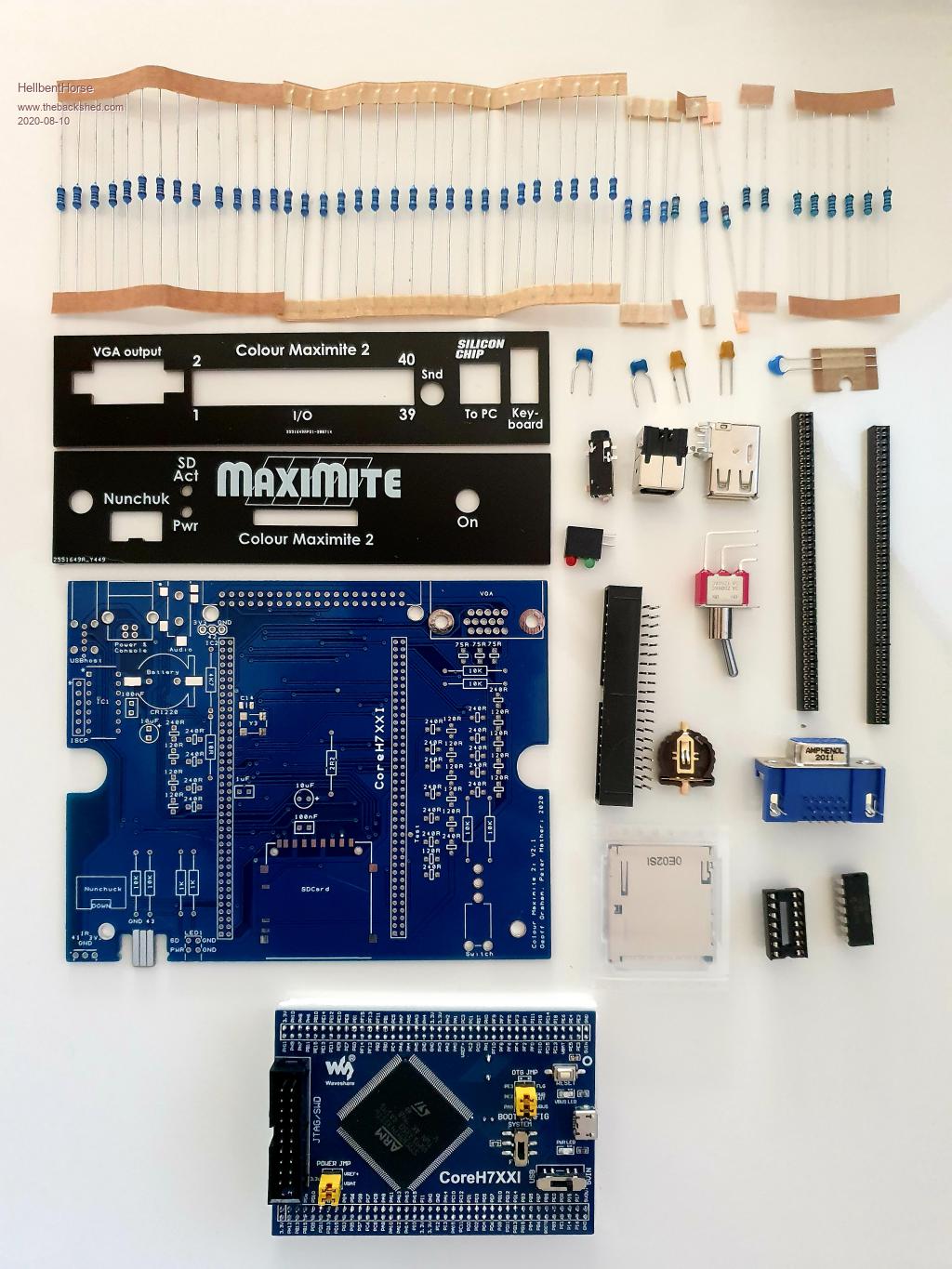

Time to warm the iron up and have some fun.

Looking forward to finally joining your ranks!

Geoffg

Guru

Joined: 06/06/2011
Location: Australia
Posts: 3292
Posted: 05:05am 10 Aug 2020
Copy link to clipboard
Print this post

I'm glad to see that they went with the blue PCB to match the Waveshare board.  I think that their front panel looks nice but if you want to match the photos you can get the artwork from the Construction Pack.

Geoff
Geoff Graham - http://geoffg.net

HellbentHorse
Regular Member

Joined: 08/07/2020
Location: Australia
Posts: 55
Posted: 05:13am 10 Aug 2020
Copy link to clipboard
Print this post

Thanks Geoff, I'll check it out!

The panels are actually pieces of PCB they had printed and cut for the kit. Very solid. I didn't realise and thought they were just pieces of card or thin plastic.
Edited 2020-08-10 15:14 by HellbentHorse

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2950
Posted: 06:31am 10 Aug 2020
Copy link to clipboard
Print this post

Hi Hellbent,

I cant see the Ir receiver.. Did they include one of them?

Kind Regards

Mick
Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

berighteous
Senior Member

Joined: 18/07/2020
Location: United States
Posts: 110
Posted: 07:06am 10 Aug 2020
Copy link to clipboard
Print this post

Sweet!

Bill7300
Senior Member

Joined: 05/08/2014
Location: Australia
Posts: 159
Posted: 08:47am 10 Aug 2020
Copy link to clipboard
Print this post

Shame though that the front panel is monochrome, unlike the coloured version in the mag article?
Bill

HellbentHorse
Regular Member

Joined: 08/07/2020
Location: Australia
Posts: 55
Posted: 08:54am 10 Aug 2020
Copy link to clipboard
Print this post

  bigmik said  Hi Hellbent,

I cant see the Ir receiver.. Did they include one of them?

Kind Regards

Mick


Unfortunately not. Not a huge deal breaker for me personally but still a little disappointing from a completionist sense.

HellbentHorse
Regular Member

Joined: 08/07/2020
Location: Australia
Posts: 55
Posted: 08:56am 10 Aug 2020
Copy link to clipboard
Print this post

  Bill7300 said  Shame though that the front panel is monochrome, unlike the coloured version in the mag article?


Yeah it is a bit. I'm tempted to just paint inside the stripes with the colours at some stage..

mclout999
Guru

Joined: 05/07/2020
Location: United States
Posts: 490
Posted: 02:50pm 10 Aug 2020
Copy link to clipboard
Print this post

  HellbentHorse said
  Bill7300 said  Shame though that the front panel is monochrome, unlike the coloured version in the mag article?


Yeah it is a bit. I'm tempted to just paint inside the stripes with the colours at some stage..


I am going to see about making a small sticker that I can put over the Mono logo on mine.  I think I can get the immage from the construction kit.  If I get something printable on an inkjet or color lazer I will post. I can get printable lable stock.

mclout999
Guru

Joined: 05/07/2020
Location: United States
Posts: 490
Posted: 03:46pm 10 Aug 2020
Copy link to clipboard
Print this post

It took all of 5 min from the constrution kit to cut, past, resize and some dubble sided tape and mine looks pretty nice.
logo.zip

NOW IT HAVE A PAGE FULL OF THEM.  I put my extras in the folder I am building for the CMM2.

HellbentHorse
Regular Member

Joined: 08/07/2020
Location: Australia
Posts: 55
Posted: 10:01pm 10 Aug 2020
Copy link to clipboard
Print this post

  mclout999 said  It took all of 5 min from the constrution kit to cut, past, resize and some dubble sided tape and mine looks pretty nice.
logo.zip

NOW IT HAVE A PAGE FULL OF THEM.  I put my extras in the folder I am building for the CMM2.


Nice one, thanks for that. Might have to print a few off and see how it looks :)

Grogster

Admin Group

Joined: 31/12/2012
Location: New Zealand
Posts: 9610
Posted: 10:01pm 10 Aug 2020
Copy link to clipboard
Print this post

I also produce PCB-type front and rear panels for my ones, and you are limited to white-only silkscreen in most PCB processes.  About the only exception to that that I can think of, is that white boards will have a black silkscreen, but black silkscreen on a black soldermask would be a bit silly.

So, that basically means, you are limited to a B/W panel design.  Basically, no PCB houses offer multi-colour silkscreen - that I am aware of.  If any did, I would expect it to be expensive, so the cut/paste/resize method is probably still the best way forward.
Smoke makes things work. When the smoke gets out, it stops!

HellbentHorse
Regular Member

Joined: 08/07/2020
Location: Australia
Posts: 55
Posted: 10:47pm 10 Aug 2020
Copy link to clipboard
Print this post

Yeah that makes a lot of sense Grogster.

To be honest at the end of the day I'm about the hardware and what I can do with it, it could be in a cardboard box for all I care as long as I can play with this little machine!

I can always loop back around to the aesthetics in the future if the bug bites me.

berighteous
Senior Member

Joined: 18/07/2020
Location: United States
Posts: 110
Posted: 12:21am 11 Aug 2020
Copy link to clipboard
Print this post

I like the black and white.  The only thing that bothers me is it says "Colour" instead of "Color."

HellbentHorse
Regular Member

Joined: 08/07/2020
Location: Australia
Posts: 55
Posted: 01:59am 11 Aug 2020
Copy link to clipboard
Print this post

  berighteous said  I like the black and white.  The only thing that bothers me is it says "Colour" instead of "Color."


Looks perfectly fine to me here in the 'deep south'

HellbentHorse
Regular Member

Joined: 08/07/2020
Location: Australia
Posts: 55
Posted: 10:57pm 11 Aug 2020
Copy link to clipboard
Print this post

A quick update for anyone considering ordering the kit from Silicon Chip.

I emailed them to confirm about the IR reciever which was not included in the kit.

Their official response was:

  Quote  The IR receiver is an optional component which we don't stock, like the DS18B20 temperature sensor, so sadly it's not included in the kit. element14 does have the part though (https://au.element14.com/vishay/tsop4838/ir-receiver-45m-0-12mw-m2-side/dp/4913190) and they're at least located in NSW. Or RS for cheaper postage, but you can only get them in sets of 5 (https://au.rs-online.com/web/p/ir-receivers/7085115/).

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2950
Posted: 02:07am 12 Aug 2020
Copy link to clipboard
Print this post

Hi Berightous,

  berighteous said  I like the black and white.  The only thing that bothers me is it says "Colour" instead of "Color."


It is payback for us having to see COLOR instead of COLOUR for years. And TIRE instead of TYRE.. and being a predominately ENGLISH and AUSTRALIAN designed product you wouldn't expect it to be written in a foreign language would you?

Crikey, and you still say you speak ENGLISH..

Kind Regards

Mick
Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2950
Posted: 02:09am 12 Aug 2020
Copy link to clipboard
Print this post

Hi Hellbent,

If you send me your address I can send you an IR sensor.

Kind Regards

Mick
Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

Womble

Senior Member

Joined: 09/07/2020
Location: United Kingdom
Posts: 267
Posted: 02:33am 12 Aug 2020
Copy link to clipboard
Print this post

  berighteous said  I like the black and white.  The only thing that bothers me is it says "Colour" instead of "Color."

Noah Webster has alot to answer for
At least the CMM2 dialect of Basic allows either spelling
and the case front is easily replaceable with a region appropriate logo/sticker
