Forum Index : Microcontroller and PC projects : Mixed Signal Oscilloscope

     Page 1 of 3
Author Message
Lightrock
Newbie

Joined: 19/05/2014
Location: Australia
Posts: 26
Posted: 02:09am 18 Sep 2017
Copy link to clipboard
Print this post

Element14 have the Bitscope BS05U 20MHz 8 Ch Mixed Signal Oscilloscope P/No. 243 290601 in the latest issue of their Connect magazine for $58.03. Normal price is $145.00 - 60% off. Stock showing 12 left. Enter the p/no. directly to get the better price.

Bitscope web site has details and software. I had a problem initially with comms as the software does not recognise com ports above 10. Found how to delete a lower number and all OK. Decoded a touch SPI from an LCD Backpack ok.

Aussie designed and manufactured as well.

TassyJim

Guru

Joined: 07/08/2011
Location: Australia
Posts: 6283
Posted: 04:12pm 18 Sep 2017
Copy link to clipboard
Print this post

Down to 5 left now.

A good price.

JIm
VK7JH
MMedit

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2950
Posted: 09:39pm 18 Sep 2017
Copy link to clipboard
Print this post

Thanks Lightrock,

I just bought the 2nd last one. Looks pretty good.

One left for grabs now.

Kind Regards,

Mick
Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

astro1
Regular Member

Joined: 26/06/2016
Location: Australia
Posts: 53
Posted: 12:02am 26 Sep 2017
Copy link to clipboard
Print this post

To free up a USB-Com port, 10 or below
http://theitbros.com/how-to-delete-com-ports-in-use/Edited by astro1 2017-09-27

HankR
Senior Member

Joined: 02/01/2015
Location: United States
Posts: 209
Posted: 04:35pm 26 Sep 2017
Copy link to clipboard
Print this post

  Lightrock said   Element14 have the Bitscope BS05U 20MHz 8 Ch Mixed Signal Oscilloscope P/No. 243 290601 in the latest issue of their Connect magazine for $58.03. Normal price is $145.00 - 60% off. Stock showing 12 left. Enter the p/no. directly to get the better price.

What URL to you folks go to in order to see this and to see the special price? Asking even if the sale is long over which it must be by now.

When I enter that PN 243 it is not recognized, with or without space.

I tried element14 at newark.com and element14.com and both knew nothing of it. Maybe because that was a special number just for the sale I suppose and it's now gone poof.

That regular price is pretty steep for a bare board. I see the everyday price at Robot Shop is about $100 with free shipping, so it looks like the $145 is not a price anyone would be paying -- a sort of a fantasy list price?

TassyJim

Guru

Joined: 07/08/2011
Location: Australia
Posts: 6283
Posted: 04:56pm 26 Sep 2017
Copy link to clipboard
Print this post

I just tried entering the part number and got to the page with a note that they are on back order. Did you use the full part number '243 290601'

The (very long) direct link to the AU page didn't seem to work for me.




JimEdited by TassyJim 2017-09-28
VK7JH
MMedit

Lightrock
Newbie

Joined: 19/05/2014
Location: Australia
Posts: 26
Posted: 08:49pm 26 Sep 2017
Copy link to clipboard
Print this post

I use the Australian website http://au.element14.com/ . Maybe only an Aus special. I checked the link with the p/no. including the space and both price versions are listed.

Roy

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2950
Posted: 09:27pm 26 Sep 2017
Copy link to clipboard
Print this post

Hi All,

Mine arrived today..

The easy click link for the item is >>> CLICK HERE <<<

Kind Regards,

Mick
Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

cs41
Newbie

Joined: 08/08/2016
Location: Australia
Posts: 27
Posted: 10:19pm 26 Sep 2017
Copy link to clipboard
Print this post

I came across a very cheap but also very useful little single channel 'scope which is good for a lot of Micromite work. (up to 200 kbs)

Banggood have them for $AU 20 or so. I am very impressed having had one for a little while now.

Lots of useful features, probably biggest drawback is external 9 volt supply needed but a small battery pack could probably be used. Comes as a partly assembled kit so guess that reduces the cost a bit. Quite easy to assemble.

JYE Tech DSO 138 Digital Oscilloscope should find it.

I also have a BS05 which is good but for simple checks prefer the DSO 138.

regards

cs

Bill7300
Senior Member

Joined: 05/08/2014
Location: Australia
Posts: 159
Posted: 12:52pm 27 Sep 2017
Copy link to clipboard
Print this post

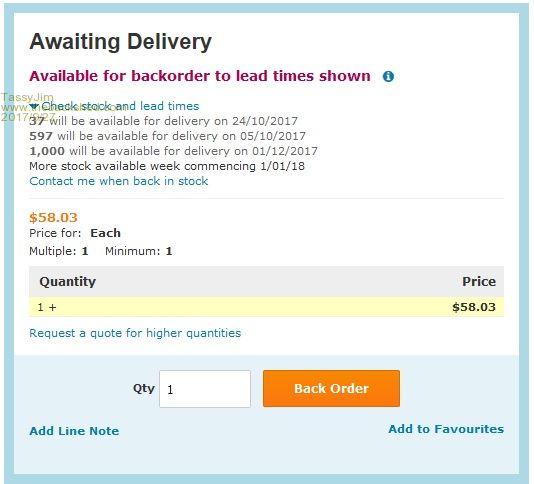

While the Bitscope at Element 14 is on backorder, with first supplies due late October, I have just managed to backorder one at the current special price of $58.03, plus GST of course.

Bill
Bill

TassyJim

Guru

Joined: 07/08/2011
Location: Australia
Posts: 6283
Posted: 04:12pm 27 Sep 2017
Copy link to clipboard
Print this post

Mine arrived today. (It takes a few days to paddle across from the north island.)

  astro1 said   To free up a USB-Com port, 10 or below

While the drop-down list stops at 10, you can directly enter a higher value and it works happily.



Jim
VK7JH
MMedit

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2950
Posted: 07:43pm 27 Sep 2017
Copy link to clipboard
Print this post

Hi All,

I have had a bit of a play..

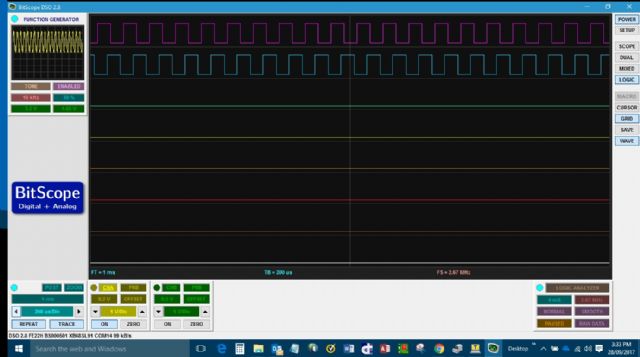

The TOP wave is a 10kHz PWM (50% duty) read from my MuP3 (pin 26).
The 2nd wave is a 10kHz square from the Bitscope internal generator.

So far so good..

I need to do some reading as I have often got myself into a state where I get no screen updates or waveforms etc..

Anyway thanks LIGHTROCK for pointing me to the new toy.

Regards,

Mick
Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

flip
Senior Member

Joined: 18/07/2016
Location: Australia
Posts: 114
Posted: 08:23pm 28 Sep 2017
Copy link to clipboard
Print this post

Hi all,
Looks like a fresh batch is coming in of 500 or so at same special price (or you can optionally pay full price if you want to ) - lead time is around 6 business days. Just ordered a couple.
Looks like a useful gadget that I won't be forced to use in the shed

Regards,
Phil

Ralph2k6

Senior Member

Joined: 24/09/2017
Location: Australia
Posts: 129
Posted: 12:54am 29 Sep 2017
Copy link to clipboard
Print this post

Thanks for the heads up, looks like a great deal.

Guessing this could be used on mains voltage frequencies with a proper x100 probe?

Got an x10/100 probe off bangood and one of the jaytech 138 units, but not game to test serious voltages with cheap scopes.. Nervous..
Ralph

geraldfryjr

Regular Member

Joined: 02/03/2014
Location: United States
Posts: 61
Posted: 07:26am 02 Oct 2017
Copy link to clipboard
Print this post

Will they send the thing to the U.S?
It is listed for full price on our pages.

jer
Keep on DIYin' !!!

Lou

Senior Member

Joined: 01/02/2014
Location: United States
Posts: 229
Posted: 06:51pm 03 Oct 2017
Copy link to clipboard
Print this post

I went to Mick's link (Thanks Mick) and tried to order 3 units for me and Zonker but they only deliver in Australia.

I tried to use the export customers link and couldn't get that to work either.

Does anybody know how to get a few units at that price here in the US?

Thanks, Lou
Microcontrollers - the other white meat

Bill7300
Senior Member

Joined: 05/08/2014
Location: Australia
Posts: 159
Posted: 09:23pm 03 Oct 2017
Copy link to clipboard
Print this post

Maybe one of us could order for you and then send to you?

Bill
Bill

geraldfryjr

Regular Member

Joined: 02/03/2014
Location: United States
Posts: 61
Posted: 03:05am 04 Oct 2017
Copy link to clipboard
Print this post

That would be Great, I Definitely would like to get at least one !!

jer Edited by geraldfryjr 2017-10-05
Keep on DIYin' !!!

Lou

Senior Member

Joined: 01/02/2014
Location: United States
Posts: 229
Posted: 05:06am 04 Oct 2017
Copy link to clipboard
Print this post

Bill, Thanks.

I would take four units for me and Zonker in the US.
Maybe you or someone already in business (like Mick) would be interested in helping. (No pressure)
Tack on a few bucks for the trouble and everyone is happy !!

Lou
Microcontrollers - the other white meat

Andrew_G
Guru

Joined: 18/10/2016
Location: Australia
Posts: 871
Posted: 08:20am 04 Oct 2017
Copy link to clipboard
Print this post

Hi - thanks for alerting us all. I've just ordered one.
As a very under-equipped beginner (I have a DMM, solder station and good microscope) what would I be advised to consider buying to use and get the most out of it?
Cheers, Andrew
