Posted: 11:19am 10 Jul 2026 Copy link to clipboard
v.lenzer Senior Member

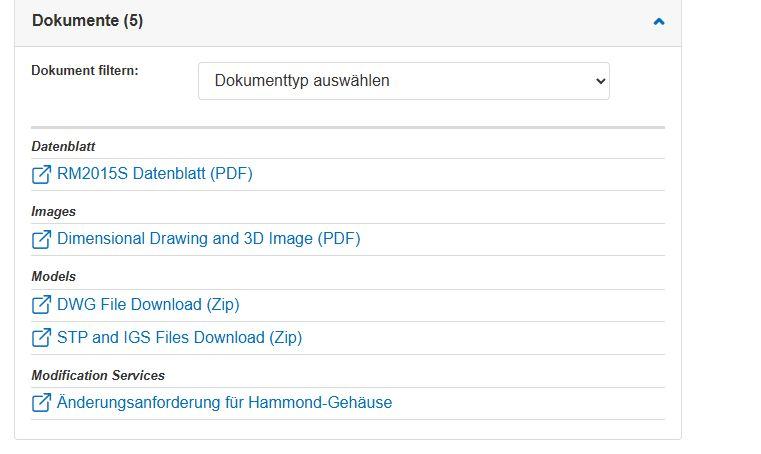

Wenn man bei Mouser (Deutschland) eingetragen ist, kann man das Gehäuse Hammond RM20215S als STP-Datei herunterladen und drucken (https://www.mouser.de/ProductDetail/Hammond-Manufacturing/RM2015S?qs=6W4OQKoqJ0vbaS7wWejjkQ%3D%3D). Das ist ein toller Support von Mouser! Allerdings sollte man auf dem Boden die Abschrägung nach unten ziehen, damit nicht soviele Supports gedruckt werden müssen. Ich denke, das ist das Gehäuse, das Peter verwendet hat.
If you have an account with Mouser (Germany), you can download the Hammond RM20215S enclosure as an STP file and print it (https://www.mouser.de/ProductDetail/Hammond-Manufacturing/RM2015S?qs=6W4OQKoqJ0vbaS7wWejjkQ%3D%3D). It's a great support from Mouser. However, you should extend the bevel on the bottom downwards so that fewer supports are required during printing. I believe this is the enclosure Peter used.
Edited 2026-07-10 21:23 by v.lenzer
Posted: 06:55pm 11 Jul 2026 Copy link to clipboard
v.lenzer Senior Member
Ich nehme noch ein komplettes Set dazu. Die Liste habe ich ergänzt.
User | Name |Loc.|No.ofPC3s|hdmi2VGA|panels|case|Aug.OK?|comment homa57 | Matthias | DE | 2 | 1 | 2 | 2 | yes | v.lenzer | Joachim | DE | 3 | 3 | 3 | 3 | yes | bigfix | Guenter | AT | 3 | 3 | 3 | 3 | yes |delivery AT Arne | Arne | DE | 2 | 2 | 2 | 2 | yes | ManiB | Manfred | DE | 5 | 5 | 5 | 5 | yes | Gerad | Gerad | DE | 3 | 3 | 3 | 3 | yes | Martin H. | Martin | DE | 1 | - | - | - | yes | karlelch | Thomas | DE | 1 | - | 1 | 1 | yes | Frank N. Furter| Frank | DE | 1 | 1 | 1 | 1 | yes | tom_g | Thomas | CH | 1 | 1 | - | - | yes |delivery DE ville56 | Gerald | AT | 1 | 1 | 1 | 1 | yes |delivery AT ---------------------------------------------------------------------------------- 23 20 21 21 must be ordered by me 25 20 23 23
Posted: 06:26am 12 Jul 2026 Copy link to clipboard
hhtg1968 Senior Member
is it still possible to order?

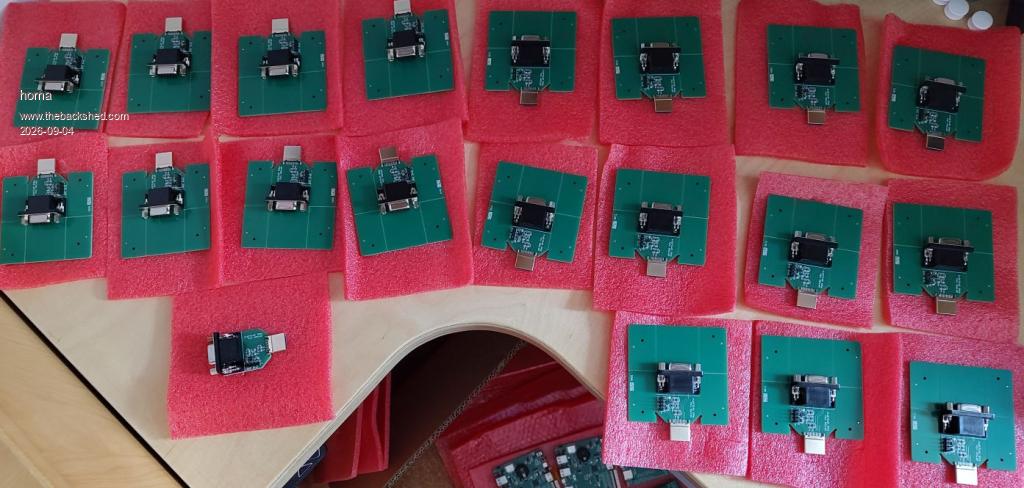

User | Name |Loc.|No.ofPC3s|hdmi2VGA|panels|case|Aug.OK?|comment hhtg1968 | Heinrich | DE | 1 | - | 1 | 1 | yes |delivery DE
Posted: 02:02pm 12 Jul 2026 Copy link to clipboard
homa Guru
User | Name |Loc.|No.ofPC3s|hdmi2VGA|panels|case|Aug.OK?|comment homa57 | Matthias | DE | 3 | 1 | 2 | 2 | yes | v.lenzer | Joachim | DE | 3 | 3 | 3 | 3 | yes | bigfix | Guenter | AT | 3 | 3 | 3 | 3 | yes |delivery AT Arne | Arne | DE | 2 | 2 | 2 | 2 | yes | ManiB | Manfred | DE | 5 | 5 | 5 | 5 | yes | Gerad | Gerad | DE | 3 | 3 | 3 | 3 | yes | Martin H. | Martin | DE | 1 | - | - | - | yes | karlelch | Thomas | DE | 1 | - | 1 | 1 | yes | Frank N. Furter| Frank | DE | 1 | 1 | 1 | 1 | yes | tom_g | Thomas | CH | 1 | 1 | - | - | yes |delivery DE ville56 | Gerald | AT | 1 | 1 | 1 | 1 | yes |delivery AT hhtg1968 | Heinrich | DE | 1 | - | 1 | 1 | yes | ---------------------------------------------------------------------------------- 25 20 22 22

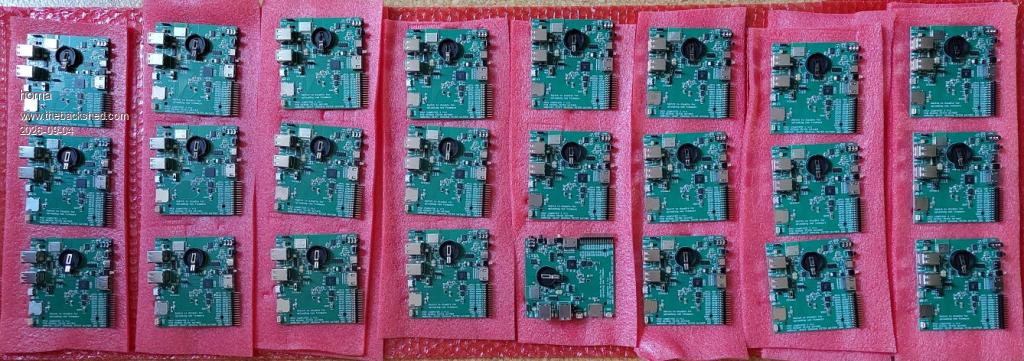

Orders for “PC3s” and “hdmi2VGA” are now closed; this fits in perfectly with the tiered pricing structure of the supplier jlcpcb!
Posted: 06:01pm 12 Jul 2026 Copy link to clipboard
homa Guru
@ManiB: Die Blenden in schwarz sind für mich okay und auch default gewählt. Welche Stärke hast du da im Bild verwendet? 1.6 oder 2 mm? Bei der Platinenfarbe bevorzuge ich grün, dann kann man viel besser die Leiterbahnen verfolgen und hat im Falle eines Falles noch eine Chance. Es ist doch eh der Deckel drauf ;-)
@ManiB: The black panels are fine by me – that’s my default setting anyway. What thickness did you use in the picture? 1.6 or 2 mm? As for the colour of the circuit board, I prefer green – it makes the tracks much easier to follow, and you still have the option of repairing something if the worst comes to the worst. The board is covered by the casing anyway ;-)
Posted: 09:38am 13 Jul 2026 Copy link to clipboard
v.lenzer Senior Member
Für die Druckvariante des Gehäuses (und vermutlich auch für die Kaufvariante) ist die Frontplattenstärke 1,6 mm.
For the printable version of the enclosure (and presumably for the purchased version as well), the front panel thickness is 1.6 mm. Edited 2026-07-13 19:39 by v.lenzer
