Hi all,
For some time I've been wanting to make my own simple 1-sided PCBs (I want to be able do it myself before sending off Gerbers to China/whatever).
I've been using Jaycar iron on "Press n Peel" with some success but I'd like to try UV/Photo resist methods,

I have been doing some research eg Pete's article here and, thanks to Paceman, I now have a beaut 4-tube UV light box.

I had been just about to purchase some Riston products from Jaycar but they appear to be closing the range down.
Kinsten are an option but they only appear to have Phenolic substrate rather than fibreglass(??).
R/S have treated boards by Mega Electronics (et al) but I am sure there are many options out there.

Before committing myself I thought I'd ask members - what have you used (or are using) and any comments?

Many thanks, Andrew

Chopperp

Guru

Joined: 03/01/2018
Location: Australia
Posts: 693
Posted: 05:23am 10 Aug 2018
Copy link to clipboard
Print this post

Hi Andrew

I used both of these types about a year ago with reasonable success.

As mentioned in another post, I only have success with small boards, but with your new light box, you might have better luck with a larger board. I wasn't worried about the subsratate. I think I got the RS ones because I needed them in a hurry.

Here
and here

Hope this helps.

Brian
ChopperP

Andrew_G
Guru

Joined: 18/10/2016
Location: Australia
Posts: 410
Posted: 01:15am 22 Aug 2018
Copy link to clipboard
Print this post

Hi Brian,
many thanks for your reply - I'm surprised there has not been more interest - perhaps the readership of this forum is not as active as the MM one?

Apologies for not thanking you sooner but I've had some medical issues that, thankfully, should now be resolved.

I'll get some RS product shortly,

Cheers, Andrew

Chopperp

Guru

Joined: 03/01/2018
Location: Australia
Posts: 693
Posted: 12:15pm 22 Aug 2018
Copy link to clipboard
Print this post

Hi Andrew,

I was getting a bit concerned that you hadn't replied & also that others hadn't responded. I think most others get their boards done elsewhere now.

Sorry to hear you were not well. Hope all goes good for the future. Apology accepted BTW.

Please keep us up to date on your efforts. I'm particularly interested in how big a board you can do.

Regards, Brian
ChopperP

Boppa
Guru

Joined: 08/11/2016
Location: Australia
Posts: 807
Posted: 04:36am 23 Aug 2018
Copy link to clipboard
Print this post

I used to make my own all the time, both at work and at home as a hobbyist, these days of course its just so easy to get one made up that I havent bothered to DIY for probably three years or so, I doubt the acid crystals are even still any good lol

Warpspeed
Guru

Joined: 09/08/2007
Location: Australia
Posts: 3276
Posted: 04:33am 24 Aug 2018
Copy link to clipboard
Print this post

Pretty much the same story here.

I started making my own boards maybe forty years ago with stick on tape and donuts, a light box, ferric chloride in the sink, drilling thousands of wobbly holes, and the whole works.

Graduated to doing it on a PC with free Autotrax software, and getting circuit boards made by a local board manufacturer.

When the Australian PCB manufacturing industry totally collapsed I started getting my boards made in China, but I had huge problems finding Chinese companies that could use my Autotrax files, and the cost was high.

I then purchased some relatively expensive commercial software which now enables me to auto-route a very complex board in literally seconds with zero errors, and get very high quality Chinese boards delivered in less than a week. Its all just so convenient and not all that expensive. The expensive software allows me to now get very cheap boards made with no errors on them, so its actually a long term saving.

So don't be too surprised that a great many others here have had a similar experience and are no longer interested in going back to the very old ways, or still have the equipment to do it the old way.
Cheers, Tony.

Tinker

Guru

Joined: 07/11/2007
Location: Australia
Posts: 1904
Posted: 09:49am 24 Aug 2018
Copy link to clipboard
Print this post

  Warpspeed said   Pretty much the same story here.


So don't be too surprised that a great many others here have had a similar experience and are no longer interested in going back to the very old ways, or still have the equipment to do it the old way.


Well, I still have a little box with 'Bishop' tapes and donuts here though the glue backing has long since gone off .
Also have an etching tank and toner transfer paper. I would only use that if I needed a single sided board in a hurry, everything else is made in China.
But I take them on on their cheapest delivery method which takes 4 weeks to arrive. Using DHL raises the delivered board price many times from the manufacturing price.
Klaus

Andrew_G
Guru

Joined: 18/10/2016
Location: Australia
Posts: 410
Posted: 10:03pm 24 Aug 2018
Copy link to clipboard
Print this post

Tony and Klaus (et al),
yes I agree that logic, and even economics, suggest sending gerbers off to China is the way to go - but this is a "phase" I feel I need to go through before I too progress to the "next" phase.
I only need pcbs to interface with MM modules (eg by Big Mick etc), eg instead of veroboard, as I am NOT upto designing a full circuit.
I'm actually hoping to skip the "gerber to China" phase as I expect that 3-D printing, or the next big thing, will make it possible to DIY boards etc

Cheers, Andrew

Warpspeed
Guru

Joined: 09/08/2007
Location: Australia
Posts: 3276
Posted: 10:33pm 24 Aug 2018
Copy link to clipboard
Print this post

There are other methods that may be of interest.

There used to be special marking pens you could use to trace out the tracks directly onto the bare copper, then just etch the exposed copper away from around the tracks. Probably the simplest and easiest method of all for a very basic board.

If you are interested in future 3D printing, then some people have used similar in concept small CNC milling/engraving machines to mechanically cut away the copper and also drill the holes.
Cheers, Tony.

Andrew_G
Guru

Joined: 18/10/2016
Location: Australia
Posts: 410
Posted: 11:22pm 24 Aug 2018
Copy link to clipboard
Print this post

Hi Tony,
Yes 3D or CNC are of more interest to me than "gerbers to China" but (to my thinking) they are not yet at the availability/price for small volume DIY??

Here is an example of a small board I recently made via Jaycar Press 'n Peel. This is the type of thing I have in mind (the layout is via Diptrace, manually routed).
Veroboard is easy enough but I want to make four of them so is bordering on being a PITA.
(I don't yet have the skills to take the Diptrace layout to gerbers)

Cheers, Andrew




Warpspeed
Guru

Joined: 09/08/2007
Location: Australia
Posts: 3276
Posted: 11:57pm 24 Aug 2018
Copy link to clipboard
Print this post

Any CNC machine is probably going to work out a lot more expensive in the end, than some "Gerbers to China" PCB design software.
And you still will never be able to do plated through holes with CNC.

Going the mechanical CNC route would require a good solid high precision machine which would very likely be beyond most peoples ability to successfully home brew.
It may still be worthwhile though, if you have some other totally different applications for the same machine in mind.

I have very distant memories of a home built XY pen plotter. That was back in the days of DOS, 130mm floppy discs, and dot matrix printers. I eventually gave up because it was never able to create the drawing quality I really hoped for. Ended up buying a commercial Roland XY plotter that worked like magic. Still have that here somewhere.
Cheers, Tony.

Andrew_G
Guru

Joined: 18/10/2016
Location: Australia
Posts: 410
Posted: 12:10am 25 Aug 2018
Copy link to clipboard
Print this post

Tony,
Arrh yes - I used to have a beaut flat-bed xy plotter (30 years ago - stayed with the ex, along with a lot of other stuff, eg a 15" band saw).
Easy to write to but probably not strong enough to mount a dremel to.

Whereas if/when 3D can easily do PCBs then I'll be interested.


Andrew

Boppa
Guru

Joined: 08/11/2016
Location: Australia
Posts: 807
Posted: 12:44am 25 Aug 2018
Copy link to clipboard
Print this post

I've used the special pen (and even liquid paper /liquid paper pens) as well- work surprisingly well they do- dse had (many moons ago) a triple pen pack, with various sized tipped pens from a fine tip up to a marker pen style one- dont know if anything similar is available today?

re 3d printing/milling- there are metallic/conductive plastics available but not all machines can handle them and I still havent seen anyone using them much for pcb style work, milling machines on the other hand are quite common and relatively cheap, in fact I am in the process of building a small one atm especially just for pcb/front panels etc (and other small work)- one day I'd like to make a full sheet one for woodworking (ie 4x8ft) but this one is going to be just big enough for a rack panel front panel or a uncut pcb sheet

eta you would be surprised at just how easy it is to do accurate 3d work these days Warpspeed, Ive built a 3d printer that had less thaan 0.2mm repeatable accuracy, and the mill when finished might be even better now I've built one, I know what not to do lol
have a look at CNCzone for some of the work people are doing with homebuilt machines Edited by Boppa 2018-08-26

TassyJim

Guru

Joined: 07/08/2011
Location: Australia
Posts: 3439
Posted: 02:44am 25 Aug 2018
Copy link to clipboard
Print this post

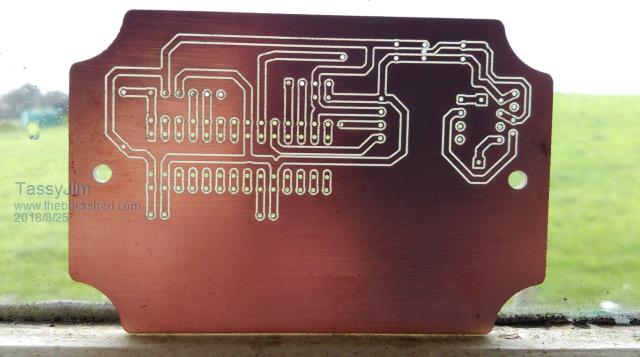

One of my early attempts with a CNC.
Traces, holes then outline all in one sitting.

It takes a bit of fiddling but once I had a procedure that works, I was happy with the results.
I stick to single sided boards.

Etching will get finer traces.

Jim
It all started with the ZX81....
VK7JH
http://www.c-com.com.au/MMedit.htm

Boppa
Guru

Joined: 08/11/2016
Location: Australia
Posts: 807
Posted: 03:13am 25 Aug 2018
Copy link to clipboard
Print this post

One thing I havent seen for a while, I used to use them years ago, was the 'through hole rivets' for diy doublesided pcbs...

I used them with homemade etched boards- you could use the old 'solder both sides of a leg' system, but that was awkward on some components (like single ended electrolytic caps), these were a hollow 'rivet' made of copper that had one end already 'belled' into a inverted cone shape, and you did the other end either with a special tool, or like me, used a centerpunch and then a pair of multigrips...

made through hole 'plating' easy as

eta nice pcb btw

eta2

these

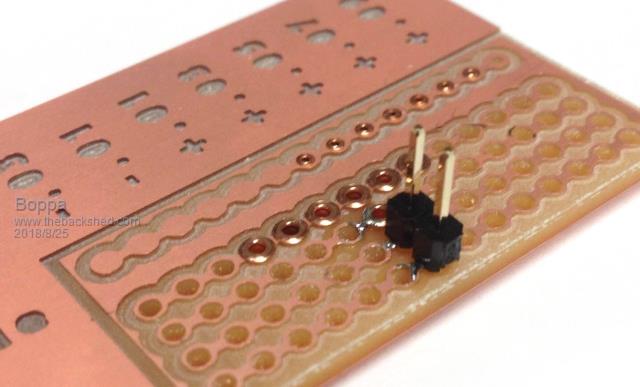

from http://fab.cba.mit.edu/classes/863.16/doc/tutorials/PCB_Rivets/Edited by Boppa 2018-08-26

Warpspeed
Guru

Joined: 09/08/2007
Location: Australia
Posts: 3276
Posted: 04:36am 25 Aug 2018
Copy link to clipboard
Print this post

They are still out there Boppa, on e-bay too...

https://www.ebay.com/itm/500x-best-quality-pcb-copper-via-vias-through-hole-rivets-5-sizes-100pcs-each/223078735988?hash =item33f0876074:g:AbgAAMXQDHpRjAbE

And the PCB etch resistant pens as well.

https://www.ebay.com.au/itm/5pcs-CCL-Anti-etching-PCB-Circuit-Board-Ink-Marker-Pen-For-DIY-PCB/263718807220?hash=item3d6 6dda6b4%3Am%3AmSMBjr5ZgcX4QptnJ1Wslqw&var=562897731401Edited by Warpspeed 2018-08-26
Cheers, Tony.

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2288
Posted: 06:42am 25 Aug 2018
Copy link to clipboard
Print this post

Crikey,

I only just caught this thread..

Sounds like a history of my life (sans the milling PCB era)

I used to make Letra-set/Bishop tape style masters on clear overhead projector sheet and get them photo reduced to single size.. Then if single sided I made my own PCBs or double sided I sent them to a local PCB house.

These places have all gone to `god' now but I used them all.

Sunbury Printed Circuits
Australian Printed Circuits
Micro-Etch
Bay-Side PCB (Or similar name)
BEC (these may still be around but they changed from Australian made to China made but kept their Aus prices.

I never used those little rivets, if I needed though hole on a DS PCB (I did make a few) I used wire I stripped from copper braided wire and soldered it top and bottom unless it was an axial component and could be top soldered (I used machined pin IC sockets for the ICs as they can be top soldered as well.

I wouldnt consider doing them now.. The worst part was drilling the holes but I know the feeling when `IT WORKS' and I made the lot and usually on the same day.

Good luck

Kind Regards,

Mick


Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

Tinker

Guru

Joined: 07/11/2007
Location: Australia
Posts: 1904
Posted: 10:29am 25 Aug 2018
Copy link to clipboard
Print this post

Andrew, a few tips if you are set to do the home PCB etching bit.

Make the 'land' of the pads as large as possible - I prefer square or rectangular pads for that reason. The ones shown in your example above at the connector would be difficult to etch or drill. For the same reason make the 'hole' in the pad small enough so it etches well but not so big that it would be hard to center your PCB drill.

PCB drilling is not much fun IMO, even when I use a good pedestal drill with a comfy seat and foot operated switch plus a magnifying glass and illumination from above & below (small LED torch stuck in the center hole of the drill table)

Ferric cloride etching is very messy, I used it far too long until I saw the light and changed to that granule stuff (whatsitsname?) that was dissolved in water and required heating in my etch tank.
That liquid remained translucent (blue)so the etching process could be monitored through the perspex etching tank. A bubbler sped up the etching too.

With the ferric cloride I had to check the progress by removing the board from the tank and letting the now black ferric cloride run off so as to make visible what was happening.

I only used the toner transfer method for my single sided boards, another learning curve to get that right. The sheets for that available from the local electronic parts shop were useless - those cheap A4 ones I got on e-bay were much better,

have fun.
Klaus

Warpspeed
Guru

Joined: 09/08/2007
Location: Australia
Posts: 3276
Posted: 10:33am 25 Aug 2018
Copy link to clipboard
Print this post

  Tinker said   I saw the light and changed to that granule stuff (whatsitsname?)

Amonium persulphate.
Cheers, Tony.

Andrew_G
Guru

Joined: 18/10/2016
Location: Australia
Posts: 410
Posted: 10:15pm 25 Aug 2018
Copy link to clipboard
Print this post

Hi All, thank you very much. All good advice.
I'm sure that when I have finished this "hairy shirt" phase (to quote Geoffg) I'll graduate to "gerbers to China" (or 3D or CNC or??).
By coincidence I use ammonium persulphate so I'll stick with that.

If using coated Cu and UV light what do you use to develop the exposed image, ie before etching?
Do you tin the cleaned Cu prior to drilling or do you leave it as bare Cu? (If so, why?)

Jim - is that view from your house? - great
Klaus - is that your yacht in your avatar (I have a Van deStadt 34) is it on the Lakes?
Mick - my little PCB is to piggyback your Serial Backpack

Cheers, Andrew
