Does anyone have a link to or the list of components to make the TL084 charge controller?
Being a newbie to the forum, I scanned through the posts and the website just to make sure I havnt missed it.
On the article page are the schematics,but not a components list!

Im in the UK and have an account with Rapid Online who can supply all I need, if only I knew what that was!!!

Any help would be greatly appreciated.

Smoothy
“The scientists of today think deeply instead of clearly. One must be sane to think clearly, but one can think deeply and be quite insane.”
Nikola Tesla

Downwind

Guru

Joined: 09/09/2009
Location: Australia
Posts: 2333
Posted: 11:35am 12 Jan 2010
Copy link to clipboard
Print this post

Hi Smoothy,

Think you are being a bit lazy here, as all the information needed is provided.

The basic list is :-
1 x TL-084
1 x 78L08 voltage reg.
1 x 100uf x 35v electo. cap
1 x 10uf x 16v electro. cap
1 x 0.1 cap
2 x 1n4004 power diode
1 x 1n1001 diode
2 x led (red, green or what ever you choose)
1 x BD-139 transistor
2 x 12k 1/4 watt resistor ( all resistors 1/4 watt)
3 x 1k
1 x 10k
1 x 3.3k
1 x 8.2k
1 x 100k
2 x 4.7k
1 x 2.2k
2 x 10k trimpots
1 x relay
1 x terminal strip

Please check the list against the the data given.

Perhaps if Gizmo has nothing better to do??? and felling real nice he might add the list to the page for others that are to lazy to take pen to paper and make a list of what to order.

Pete.



Sometimes it just works

Smoothy

Newbie

Joined: 12/01/2010
Location: United Kingdom
Posts: 15
Posted: 11:36am 12 Jan 2010
Copy link to clipboard
Print this post

OK....
heres what I have so far...

1N4001 1A 50V SILICON RECTIFIER DIODE RC

1N4004 RECTIFIER DIODE 1A 400V DO-41 RC

PK 100 8K2 0.25W CF RESISTOR (RC)

PACK 100 12K 0.25W CF RESISTOR (RC)

1K 0.25W CARBON COMP RESISTOR RC

3.3K 0.25W CARBON COMP RESISTOR RC

4.7K 0.25W CARBON COMP RESISTOR RC

10K 0.25W CARBON COMP RESISTOR RC

TL084 BI-FET QUAD OP AMPLIFIER (DIL14)RC

12V 30A AUTOMOTIVE RELAY RC

10K SINGLE TURN CERMET TRIMMER (RC)

BD139 NPN AUDIO HIGH VOLTAGE (RC)

10U 25V 105 DEG AXIAL ELECTROLYTIC (RC).

100U 25V 105 DEG AXIAL ELECTROLYTIC(RC).

0.1UF 250V 10% MET POLYESTER CAP(RC)

95 X 127MM STRIPBOARD (RC)

MULTIPURPOSE ABS BOX BLK 127X75X45MM RC

Are any of these incorrect, or have I missed anything?
I didnt want to appear lazy, but being a novice I wanted to ensure I had the correct items!!!
Sorry if I sounded a bit vague!!
I just posted the same time as you downwind so my apologies for not being clearer!
SmoothyEdited by Smoothy 2010-01-13
“The scientists of today think deeply instead of clearly. One must be sane to think clearly, but one can think deeply and be quite insane.”
Nikola Tesla

Downwind

Guru

Joined: 09/09/2009
Location: Australia
Posts: 2333
Posted: 11:38am 12 Jan 2010
Copy link to clipboard
Print this post

I will retract my comment as you did make a list

Pete.
Sometimes it just works

Smoothy

Newbie

Joined: 12/01/2010
Location: United Kingdom
Posts: 15
Posted: 11:40am 12 Jan 2010
Copy link to clipboard
Print this post

Lol...just checking mine against yours!!!
Thanks for the response Pete.
Smoothy
“The scientists of today think deeply instead of clearly. One must be sane to think clearly, but one can think deeply and be quite insane.”
Nikola Tesla

Downwind

Guru

Joined: 09/09/2009
Location: Australia
Posts: 2333
Posted: 11:51am 12 Jan 2010
Copy link to clipboard
Print this post

The only change i would make is:-

10U 25V 105 DEG AXIAL ELECTROLYTIC (RC).

100U 25V 105 DEG AXIAL ELECTROLYTIC(RC).

I would use PCB mount and not Axial but both will work as well as each other.

You might want to watch the voltage rating on the 100uf cap depending on your input voltage.
If using 12v then 25v cap should be ok.

Check your list against mine.

Pete.
Sometimes it just works

Smoothy

Newbie

Joined: 12/01/2010
Location: United Kingdom
Posts: 15
Posted: 12:22pm 12 Jan 2010
Copy link to clipboard
Print this post

Im trying to match what my supplier has against your list, but coming up with a few unavailable items.

1 x 78L08 voltage reg. not available
2.2k 1/4 watt resistor not in stock

As for the capacitors, I could change those to

10UF 16V 4X5.4MM 20%85C SMD ELECTROLY RC
100UF 16V 6.3X5.4MM 20% 85C SMD ELEC RC

Is there an alternatives for the 78L08?
I am unsure as to its handling capabilities.

Smoothy
“The scientists of today think deeply instead of clearly. One must be sane to think clearly, but one can think deeply and be quite insane.”
Nikola Tesla

Downwind

Guru

Joined: 09/09/2009
Location: Australia
Posts: 2333
Posted: 02:30pm 12 Jan 2010
Copy link to clipboard
Print this post

Smd components are a right bugger to work, with so would not go that way and go back to the axial caps.

As for the voltage regulator there is no reason you cant use a standard LM-7808 v-reg that should be a standard item, Juat need to check the pinouts to see if they are the same order when wiring the circuit.

If you can not get the LM-7808 then check for a LM-317 v-reg as it is a adjustable v-reg and with a few extra components be used for the same job.

The resistors you can make up with resistors in series ( in line ) like 1k + 1.2k or 2 x 1K + 220R or what ever values add up close to 2.2K.

Pete.
Sometimes it just works

Smoothy

Newbie

Joined: 12/01/2010
Location: United Kingdom
Posts: 15
Posted: 02:46pm 12 Jan 2010
Copy link to clipboard
Print this post

Thanks for all your help Pete,
I can get an LM-317 just need to figure out adjustment for 12v!!
Ill go back to the axial caps on your instruction!!!
Anything for an easy life!!

Smoothy
“The scientists of today think deeply instead of clearly. One must be sane to think clearly, but one can think deeply and be quite insane.”
Nikola Tesla

Downwind

Guru

Joined: 09/09/2009
Location: Australia
Posts: 2333
Posted: 03:07pm 12 Jan 2010
Copy link to clipboard
Print this post

If you have trouble working out the 317 setup i will post a basic circuit but should you wish to place an order you should be safe with an added
1 x 0.1uf cap
1 x 10uf electro cap
1 x 1 uf electro/tantalum cap
2 x 1n4004 diode
1 x 120ohm resistor 1/4
1 x 1k trimpot

1 x LM-317 v-reg

Pete.

Sometimes it just works

Dinges
Senior Member

Joined: 04/01/2008
Location: Albania
Posts: 510
Posted: 03:28pm 12 Jan 2010
Copy link to clipboard
Print this post

[quote]1 x 78L08 voltage reg. not available [/quote]

The 78L08 (100mA version, in TO-92 case) can be replaced by a more common 7808 (1A version, in TO-220 case). This is exactly what Glenn/Gizmo did in his prototype too. Just be careful you don't mount them in reverse, which is something I always have to pay attention to for the 78Lxx regulators.

I'd be very surprized if your electronics supplier can't supply a 7808.

1/4W resistors can be replaced by ones with a higher power rating (say, 1/2W), as long as you have physical space for them on the board.

Peter.

Edit - oops, just noticed Downwind just mentioned the same about the 7808. Try finding that one first before you start messing around with other regulators which require circuit modifications.Edited by Dinges 2010-01-14

Smoothy

Newbie

Joined: 12/01/2010
Location: United Kingdom
Posts: 15
Posted: 06:54pm 12 Jan 2010
Copy link to clipboard
Print this post

Thanks for the guidance Pete, Dinges.
I'll look into it tomorrow, and let you know how I get on.

Smoothy
“The scientists of today think deeply instead of clearly. One must be sane to think clearly, but one can think deeply and be quite insane.”
Nikola Tesla

Smoothy

Newbie

Joined: 12/01/2010
Location: United Kingdom
Posts: 15
Posted: 11:18am 13 Jan 2010
Copy link to clipboard
Print this post

OK, re-did the list based on availability.
Please let me know if I've missed anything or listed anything incorrect before I order it all!

TL084 BI-FET QUAD OP AMPLIFIER (DIL14)RC £0.45
L7808CV +8V 1A VOLTAGE REGULATOR (ST) RC £0.34
PACK 100 1K 0.25W CF RESISTOR (RC) £0.50
PACK 100 2K2 0.25W CF RESISTOR (RC) £0.50
PACK 100 3K3 0.25W CF RESISTOR (RC) £0.50
PACK 100 4K7 0.25W CF RESISTOR (RC) £0.50
PK 100 8K2 0.25W CF RESISTOR (RC) £0.50
PACK 100 10K 0.25W CF RESISTOR (RC) £0.50
PK 100 100K 0.25W CF RESISTOR (RC) £0.50
10K SINGLE TURN CERMET TRIMMER (RC) £0.92
5M MICROMIN 10UF 16V ELECTROLYTIC (RC) £0.05
100U 35V 105 DEG.RADIAL ELECT. (RC) £0.10
0.1UF 250V 10% MET POLYESTER CAP(RC) £0.04
1N4004 1A 400V SILICON RECTIFIER DIODERC £0.10
1N4001 1A 50V SILICON RECTIFIER DIODE RC £0.04
BD139 NPN AUDIO HIGH VOLTAGE (RC) £0.20
PACK 100 12K 0.25W CF RESISTOR (RC) £0.50
MULTIPURPOSE ABS BOX BLK 127X75X45MM RC £3.76
95 X 127MM STRIPBOARD (RC) £1.19
3 way screw to solder tag barrier terminal block £1.86
30V MOVING COIL PANEL METER (RC) £5.25

Sub Total 18.30
VAT 3.20
Total 21.50
AUS$ 37.31

Smoothy
“The scientists of today think deeply instead of clearly. One must be sane to think clearly, but one can think deeply and be quite insane.”
Nikola Tesla

Downwind

Guru

Joined: 09/09/2009
Location: Australia
Posts: 2333
Posted: 12:00pm 13 Jan 2010
Copy link to clipboard
Print this post

Think there was 2 x 1n4004 diodes (1 across the relay)also 2 x 10k trimpots.
I would also get a 14 pin ic socket and a spare TL084.
I dont see any led's on the list there should be 2.
What about the relay??


Pete.
Sometimes it just works

Smoothy

Newbie

Joined: 12/01/2010
Location: United Kingdom
Posts: 15
Posted: 12:27pm 13 Jan 2010
Copy link to clipboard
Print this post

For some strang reason, the relay was ommited from the list but its definately on the order list!!
The list above does include 2 x 1n4004 diodes and 2 trimpots (column was ommited when posting!!)
I have a vast stock of LED's so not needed for ordering but I have added an extra TL084 on your recommendation.
Other than that, It should be ready to order, unless you can think of anything else!!!
Thanks for your assistance Pete. Hopefully, all going well, I'll construt another controller after this on for another turbine. I need 2 for seperate circuits.
Bieng a novice, im looking forward to tackling the controller, I just hope I can follow the schematic!!!!
Also Im a tad concerned that I may mount them in reverse as Dinges said!!!

Smoothy
“The scientists of today think deeply instead of clearly. One must be sane to think clearly, but one can think deeply and be quite insane.”
Nikola Tesla

Downwind

Guru

Joined: 09/09/2009
Location: Australia
Posts: 2333
Posted: 01:15pm 13 Jan 2010
Copy link to clipboard
Print this post

Dont forget the ic sockets or if you kill a chip you will need to unsolder 14 pins and some bad words might be mutter about then.
If you are unsure about the construction just ask, as i dont mind helping people that are prepared to have a go.

A good place to find data sheets on components that i use is.........

http://www.datasheetcatalog.com/

Its free and they have almost any component.
Just leave out any dashes in the product code and type the code all in one word with no spaces.

Have you worked with stripboard before?
As i could offer a few tips, but we all have our own adapted way of doing things.

If you like electronics you should have a look at the topic "picaxe for old dogs" i started, and consider ordering a picaxe 08m chip as well, and puting a test board together out of the left over strip board and have some fun with programming a microprocessor.

The board dont need to be to extent i designed it and can be just 08m chip with resistors and leds, as you have the leds and now 100 resistors. Will need a few other bits like a 9 pin D socket etc.
Think you would have some fun with it.

Good luck and i want to see some photos of your project and an update on progress along the way.
They are the things that make this 4m interesting for all.

Pete.
Sometimes it just works

Smoothy

Newbie

Joined: 12/01/2010
Location: United Kingdom
Posts: 15
Posted: 06:17pm 13 Jan 2010
Copy link to clipboard
Print this post

Thanks for the encouragement Pete.
Im fairly competent with soldering but this is my first stripboard attempt so any advice would be great!
I did look through your Picaxe post, but some of it went over my head so I may leave tackling that till im a bit more confident with my work!!
I know I'm probably jumping in with both feet here, but Id rather screw up and learn the hard way than buy an off the shelf product and learn nothing!
In reality, this is probably the smallest job that I need to tackle.
Im in the process of renovating my ship and am aiming to be totally green in terms of power consumption and heating.
I have loads of projects that I'm looking to take on, so I'll probably be asking loads of questions in my attempt to further my knowledge.
Hopefully I wont become a burden!

Smoothy
“The scientists of today think deeply instead of clearly. One must be sane to think clearly, but one can think deeply and be quite insane.”
Nikola Tesla

Downwind

Guru

Joined: 09/09/2009
Location: Australia
Posts: 2333
Posted: 04:28am 14 Jan 2010
Copy link to clipboard
Print this post

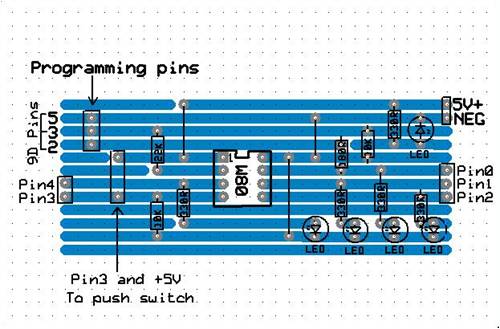

If you look at the Veroboard layout (stripboard) that Gizmo done it is very simple to follow.
I dont know if you realize that the white squares shown (5 of them) are cuts in the tracks.
You can use a craft knife to do this or an old favorite of mine is a new sharp drill bit about twice the size of the tracks and just turn it by hand between your fingers and drill off the copper track only, at a hole.
It is quick and neat.

Just watch the electro caps are placed in around the right way along with the diodes, vreg, transistor and ic chip, the rest dont matter which way around they go.

Pete.
Sometimes it just works

Downwind

Guru

Joined: 09/09/2009
Location: Australia
Posts: 2333
Posted: 04:35am 14 Jan 2010
Copy link to clipboard
Print this post

I should add there is cuts in the tracks under the Ic as well that i did not notice with the above post.

Pete.
Sometimes it just works

Smoothy

Newbie

Joined: 12/01/2010
Location: United Kingdom
Posts: 15
Posted: 09:30am 14 Jan 2010
Copy link to clipboard
Print this post

Thanks Pete. I did notice the white patches, but thought it was to highlight components!!!
I'm ordering all components today so they should be here by Monday (weather permitting)
Its like Siberia here at present. The tide came in this morning and froze!!!!

Smoothy
“The scientists of today think deeply instead of clearly. One must be sane to think clearly, but one can think deeply and be quite insane.”
Nikola Tesla

     Page 1 of 2
Print this page
© JAQ Software 2024
